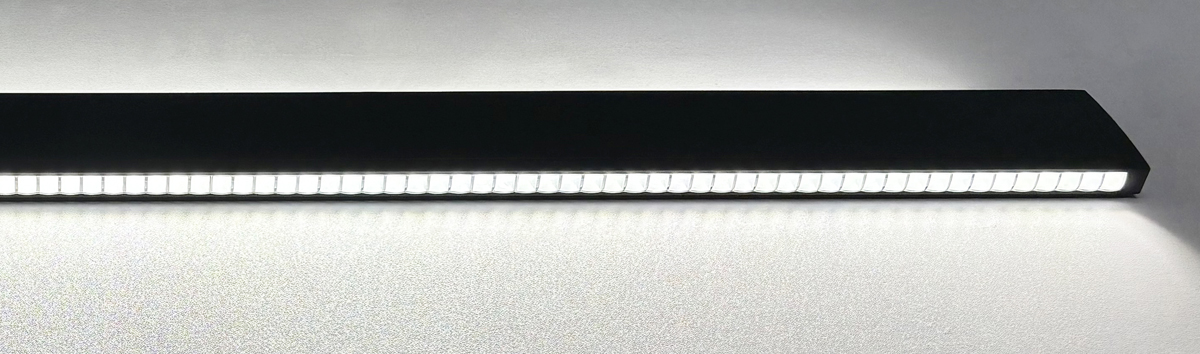

H2180 Ultra-Slim Up and Down Linear LED Luminaire UGR
Product Introduction
Introducing our latest innovation in architectural lighting, the Ultra-Slim Linear LED Luminaire. With a minimalistic design boasting only 20mm in width, this luminaire seamlessly integrates into any space, providing both functional and aesthetic lighting solutions. The customizable length ensures it fits perfectly in your unique environment.
The advanced anti-glare technology ensures a UGR rating of <12, delivering comfortable and eye-friendly illumination. The dual lighting options, direct at 26° and indirect at 105°, offer versatile lighting designs, perfect for creating the desired ambiance.
Powered by Osram LEDs, this luminaire offers an efficiency of 100lm/W, ensuring bright and energy-efficient lighting. The superior build quality promises durability and longevity, making it an ideal choice for various applications.

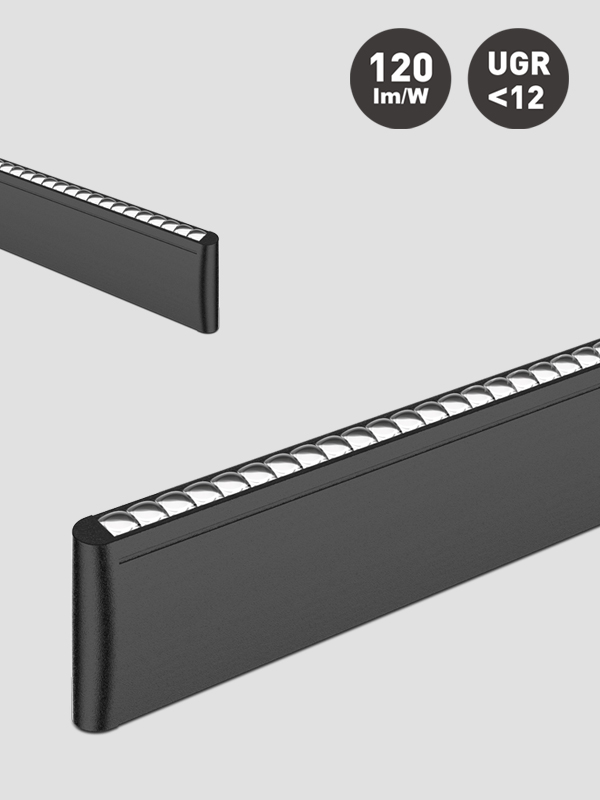

Feature
1. Ultra-Thin Design:Just 20mm wide, providing a sleek and modern look.
2.Customizable Length:Tailor the length to fit your specific needs.
3. Anti-Glare Technology:UGR<12 ensures a comfortable lighting experience
4. Dual Lighting Angles:Direct lighting at 26° and indirect lighting at 105°.
5. High Efficiency:At least 100lm/W with Osram LEDs.
6. Premium Build:Durable and reliable for long-term use.
7.Versatile Applications:Suitable for a range of settings, from offices to retail spaces.
8. Big space in the profile:the back cover of the profile is easy to be opened, easy the entire installation process.
9. Flexible installation Methods:Sus-pendant or surface-mounted.
10.Easy Connection Brackets:equipped with user-friendly connection brackets that simplify the installation process.
These brackets facilitate quick and secure connections, reducing the need for extensive labor and technical expertise during setup，get flawless, continuous lighting effect.

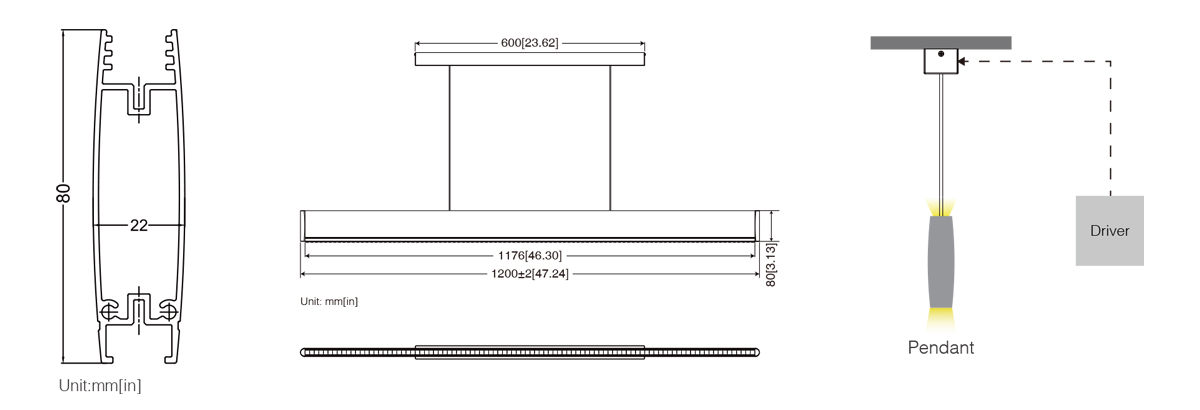

Size & Installation

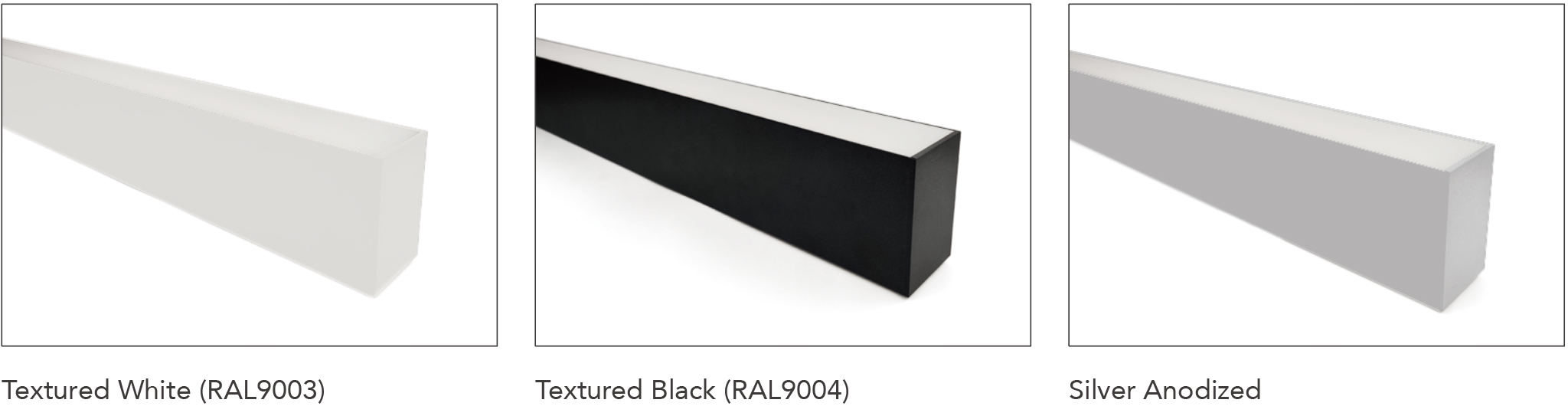

Finish
Available in Matt White, Matt Black, Silver Anodized, with over 48 custom options.
Color Option

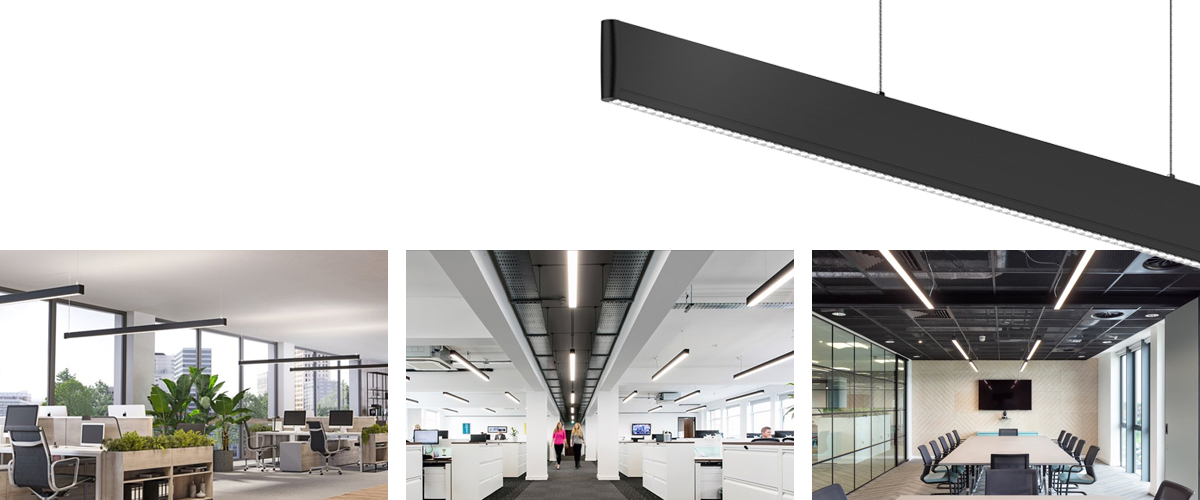

Range of Applications
Ideal for both general and localized lighting needs, this luminaire is perfect for a diverse range of settings. Whether in offices, educational institutions, conference rooms, or any other workspace, our product excels at illuminating your environment with precision and style. Ensure a comfortable and productive ambiance with our versatile lighting solutions.
Specification
|
Model |
BV-H2180 |
Input Vol. |
220-240VAC |
|
Optical |
TIR Lens |
Power |
30W |
|
Beam Angle |
Direct:24°,Indirect:105° |
LED |
Osram 3030 |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<22 |
SDCM |
<3 |
|
Dimension |
L1190 x W21 x H80mm |
Lumen |
3000lm/pc |
|
IP |
IP22 |
Efficiency |
100lm/W |
|
Installation |
Pendant |
Life Time |
50,000hrs |
|
Net Weight |
/ |
THD |
<20% |
|
Luminaire: BV-H2180, Optical: TIR Lens, Efficiency: 100lm/W, LED: Osram 3030, Driver: Lifud |
||||||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
DIRECT |
INDIRECT |
POWER |
LUMEN |
RA |
CCT |
DIM |
||
|
TIR Lens |
Direct:24°, Indirect:105° |
<22 |
L1190mm |
20.0W |
2000lm |
10.0W |
1000lm |
30.0W |
3000lm |
90+ |
4000K |
On-Off |
-
H2180 FIREFLY LAMP DIRECT & INDIRECT LINEAR LIGHTING
