• U5141 LED Linear Light Fixture – Elevate Modern Interior Spaces with High-Performance LED Lighting, Featuring PC Diffuser for Sustainable and Stylish Illumination with Energy-Efficiency

U5141 LED Linear Light Fixture – Elevate Modern Interior Spaces with High-Performance LED Lighting, Featuring PC Diffuser for Sustainable and Stylish Illumination with Energy-Efficiency

Short Description:

Transform your environment with Zoli’s LED linear lights, showcasing an innovative PC diffuser that beautifully mimics natural lighting.

Experience the soothing radiance emitted by our fixtures, which fosters a warm and inviting atmosphere. Discover the enhanced functionality of our secure aircraft cable pendant kits, meticulously designed to meet rigorous architectural criteria.

Elevate your space with the impeccable fusion of sophisticated craftsmanship and timeless linear illumination, as Zoli sets the benchmark for excellence and style in contemporary and modern interior design.


Product Detail

Download

Product Tags

Product Introduction

Our linear LED lighting fixture is engineered for powerful direct lighting, paired with an external driver to optimize performance. Equipped with a PC diffuser, it ensures uniform light distribution and comfortable illumination in diverse settings, from offices to educational institutions and beyond.

Customization is key to our approach. Each project is unique, and we offer tailored solutions to meet specific requirements. Whether adjusting the fixture's length or configuration, integrating special controls, or applying custom finishes, we collaborate closely to craft the perfect lighting solution for your space.

Choose from a comprehensive selection of driver options, including constant current 0-10V, DALI, and non-dim drivers. Advanced features such as settable white, dual white/Dime2Warm, DMX, and PWM lighting solutions provide flexibility and precise control over lighting dynamics.

Experience the versatility and efficiency of our linear LED fixture, designed to elevate any environment with effective, customizable lighting solutions tailored to your project's needs.

Feature

Discover our versatile linear LED lighting fixture, engineered to deliver exceptional direct lighting paired with an external driver for optimal performance and efficiency. This fixture is designed to provide effective illumination while maintaining a sleek and modern aesthetic in various settings.

To enhance light distribution and diffusion, the fixture comes equipped with a PC diffuser, ensuring uniform and comfortable lighting in the surrounding environment. Whether illuminating office spaces, educational institutions, or commercial settings, this fixture offers versatile functionality and style.

Customization is key to our approach. We understand that each project has unique requirements and preferences. That's why our fixtures can be tailored to suit your specific needs. From adjusting the length and configuration to integrating special controls or finishes, we work closely with you to create the perfect lighting solution for your space.

In terms of driver options, we provide a comprehensive selection including constant current 0-10V, DALI, and non-dim drivers. Additionally, we offer advanced features such as settable white, dual white / Dim-to-Warm, as well as DMX and PWM lighting solutions, giving you flexibility and control over the lighting dynamics.

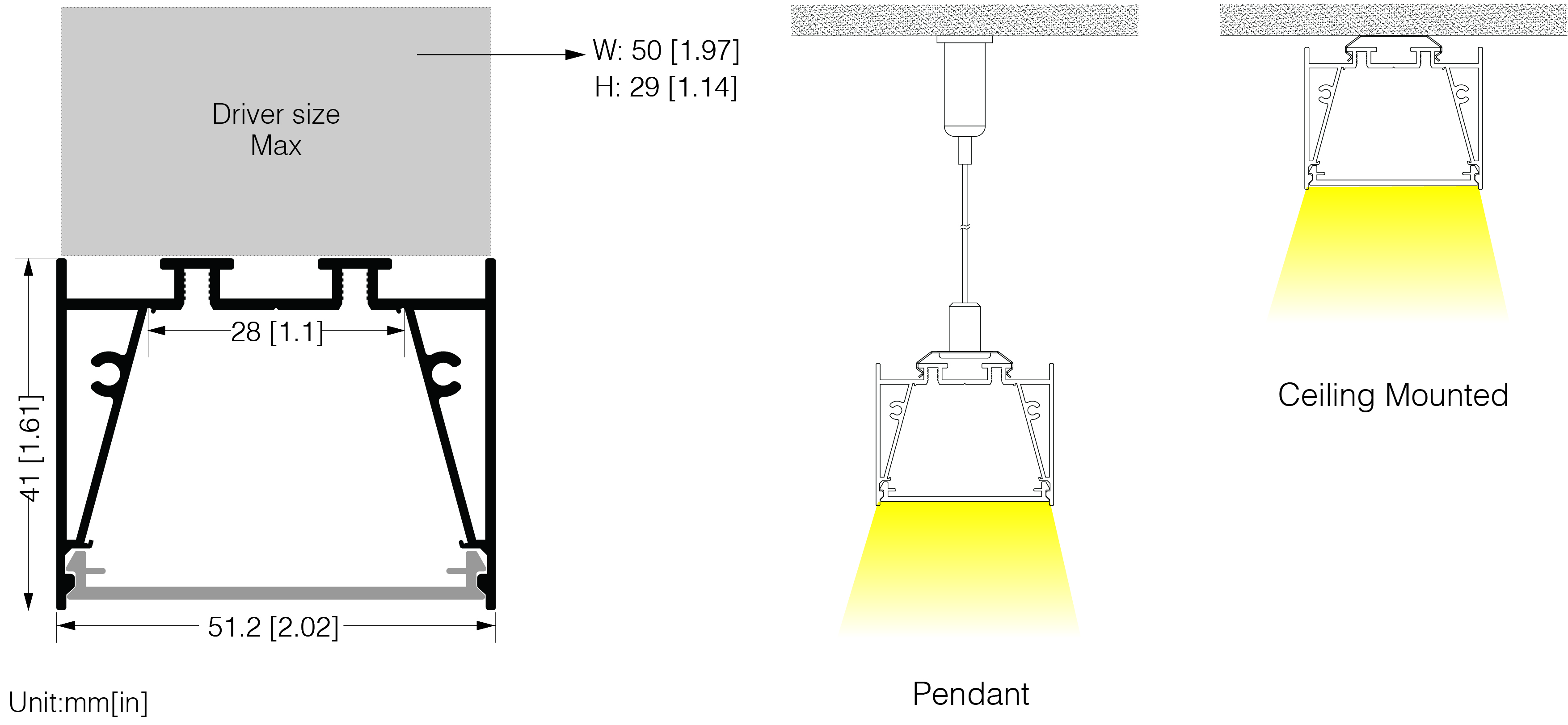

Dimension

U5141 LINEAR LIGHTING-PC DIFFUSER

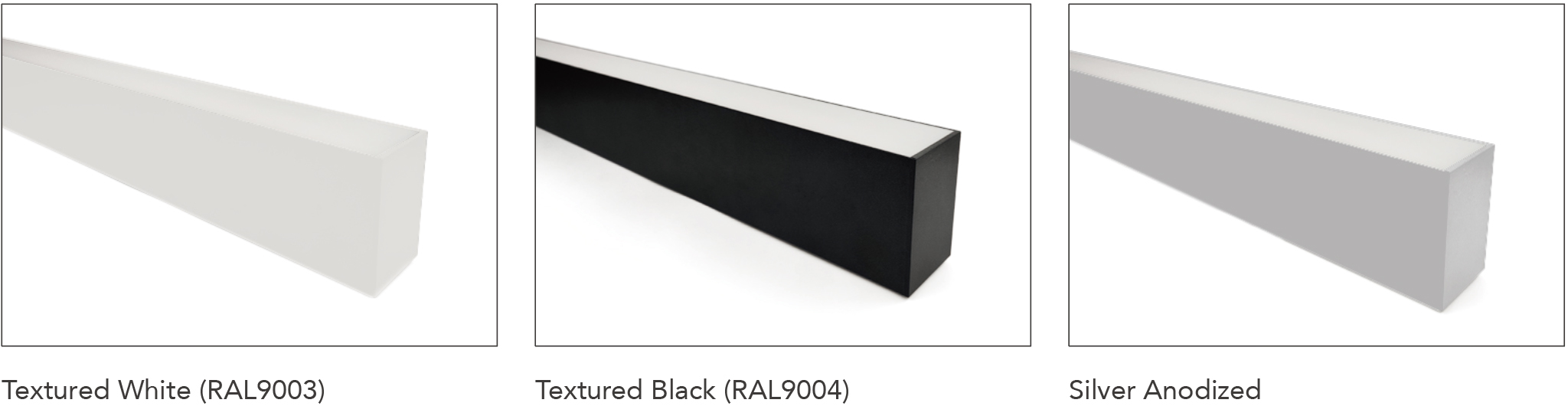

Finish

Explore our standard options which include Matt White textured, Matt Black textured powder coating, and Silver anodized finishes. Looking for more personalization? Our Customized service offers an expanded palette of up to 48 additional colors, allowing you to tailor your selection to perfectly match your preferences.

Finish

Color Option

slim crystal louver-12

Range of Applications

Our lighting fixtures demonstrate outstanding versatility and adaptability, excelling in a range of environments. Whether providing ambient lighting for offices, educational institutions, or conference rooms, or delivering focused illumination in diverse workspaces, our fixtures shine. They not only boost productivity in office spaces but also cultivate a conducive learning atmosphere in educational settings, making them the perfect lighting solution for various environments.

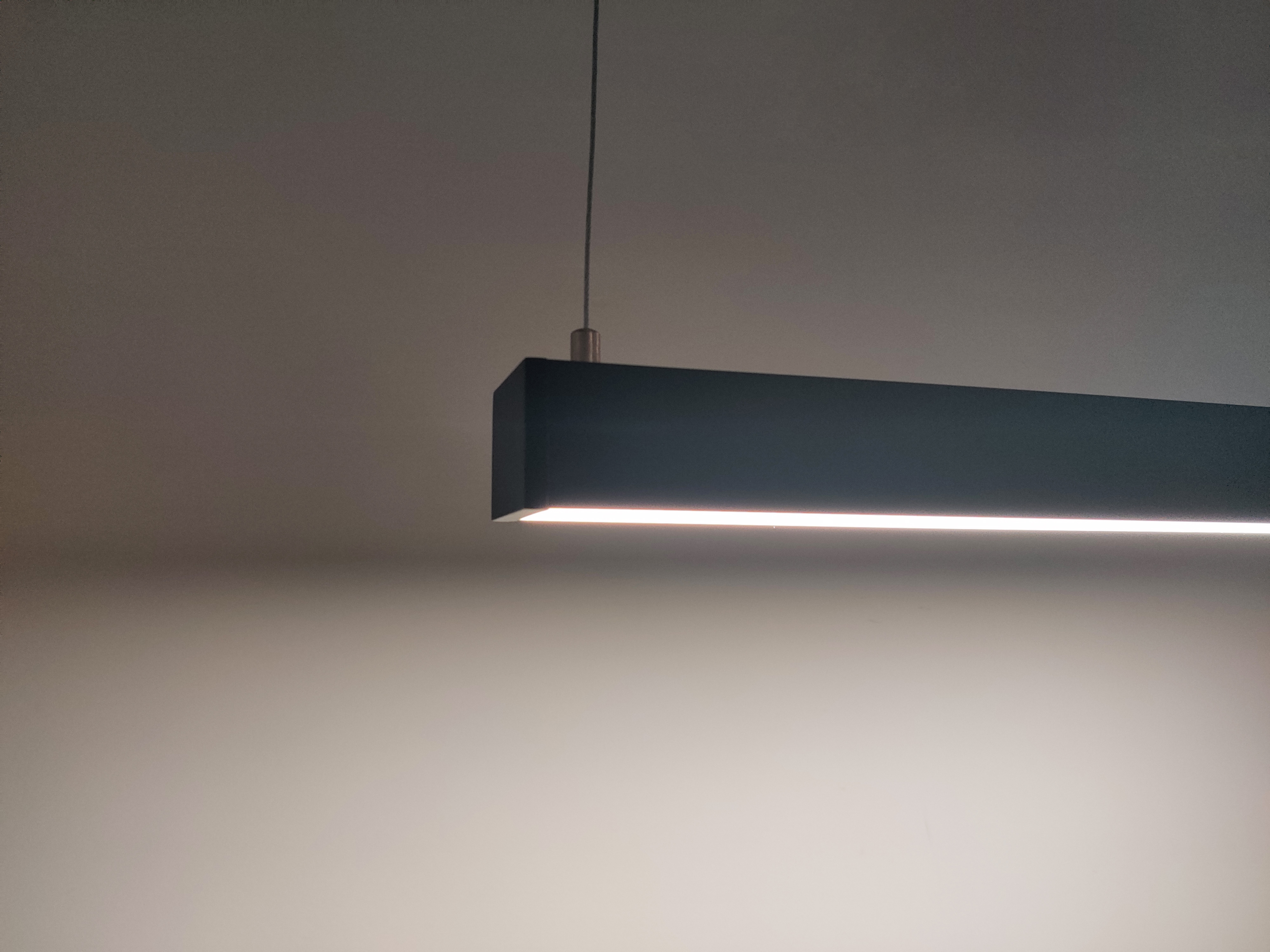

U5141 LINEAR LIGHTING-PC DIFFUSER  (4)

Specification

Model

U5141

Input Vol.

220-240VAC

Optical

PC Diffuser Lens

Power

15W

Beam Angle

105°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1208 x W51 x H41mm

Lumen

1350-2008lm/pc

IP / IK

IP22 / IK06

Efficiency

90 -130lm/W

Installation

Pendant, Ceiling Mounting

THD

<20%

Net Weight

1.35kgs

Life Time
L80B10

50,000hrs

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 15W       Efficiency: 90lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1350lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1350lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1350lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1208lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1208lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1208lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1391lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1391lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1391lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1251lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1251lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1251lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1283lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1283lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1283lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1154lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1154lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1154lm

90+

2700-4000K

DALI

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 15W       Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1650lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1650lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1650lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1485lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1485lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1485lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1700lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1700lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1700lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1530lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1530lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1530lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1568lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1568lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1568lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1411lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1411lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1411lm

90+

2700-4000K

DALI

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 15W       Efficiency: 130lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1950lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1950lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1950lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1755lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1755lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1755lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

2009lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

2009lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

2009lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1808lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1808lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1808lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1853lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1853lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1853lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

15.0W

1667lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1667lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

15.5W

1667lm

90+

2700-4000K

DALI

Model

U5141

Input Vol.

220-240VAC

Optical

PC Diffuser Lens

Power

27W

Beam Angle

105°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1208 x W51 x H41mm

Lumen

2430-3615lm/pc

IP / IK

IP22 / IK06

Efficiency

90 -130lm/W

Installation

Pendant, Ceiling Mounting

THD

<20%

Net Weight

1.35kgs

Life Time
L80B10

50,000hrs

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 27W       Efficiency: 90lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1208mm

27.0W

2430lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2430lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2430lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

2187lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2187lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2187lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

2503lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2503lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2503lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

2253lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2253lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2253lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

2309lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2309lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2309lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

2078lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2078lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2078lm

90+

2700-4000K

DALI

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 27W       Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1208mm

27.0W

2970lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2970lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2970lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

2673lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2673lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2673lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

3059lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3059lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3059lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

2753lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2753lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2753lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

2822lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2822lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2822lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

2539lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2539lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

2539lm

90+

2700-4000K

DALI

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 27W       Efficiency: 130lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1208mm

27.0W

3510lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3510lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3510lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

3159lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3159lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3159lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

3615lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3615lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3615lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

3254lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3254lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3254lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

3335lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3335lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3335lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

27.0W

3001lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3001lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

27.8W

3001lm

90+

2700-4000K

DALI

Model

U5141

Input Vol.

220-240VAC

Optical

PC Diffuser Lens

Power

35W

Beam Angle

105°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1208 x W51 x H41mm

Lumen

2835-4687lm/pc

IP / IK

IP22 / IK06

Efficiency

90 -130lm/W

Installation

Pendant, Ceiling Mounting

THD

<20%

Net Weight

1.35kgs

Life Time
L80B10

50,000hrs

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 36W       Efficiency: 90lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1208mm

35.0W

3150lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3150lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3150lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

2835lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

2835lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

2835lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

3245lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3245lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3245lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

2920lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

2920lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

2920lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

2993lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

2993lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

2993lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

2693lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

2693lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

2693lm

90+

2700-4000K

DALI

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 36W       Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1208mm

35.0W

3850lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3850lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3850lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

3465lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3465lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3465lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

3966lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3966lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3966lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

3569lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3569lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3569lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

3658lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3658lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3658lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

3292lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3292lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3292lm

90+

2700-4000K

DALI

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 36W       Efficiency: 130lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1208mm

35.0W

4550lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

4550lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

4550lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

4095lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

4095lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

4095lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

4687lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

4687lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

4687lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

4218lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

4218lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

4218lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

4323lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

4323lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

4323lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1208mm

35.0W

3890lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3890lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1208mm

36.1W

3890lm

90+

2700-4000K

DALI

Model

U5141

Input Vol.

220-240VAC

Optical

PC Diffuser Lens

Power

27W

Beam Angle

105°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1508 x W51 x H41mm

Lumen

2430-3615lm/pc

IP / IK

IP22 / IK06

Efficiency

90 -130lm/W

Installation

Pendant, Ceiling Mounting

THD

<20%

Net Weight

1.45kgs

Life Time
L80B10

50,000hrs

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 27W       Efficiency: 90lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1508mm

27.0W

2430lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2430lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2430lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

2187lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2187lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2187lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

2503lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2503lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2503lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

2253lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2253lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2253lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

2309lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2309lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2309lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

2078lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2078lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2078lm

90+

2700-4000K

DALI

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 27W       Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1508mm

27.0W

2970lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2970lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2970lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

2673lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2673lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2673lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

3059lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3059lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3059lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

2753lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2753lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2753lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

2822lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2822lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2822lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

2539lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2539lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

2539lm

90+

2700-4000K

DALI

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 27W       Efficiency: 130lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1508mm

27.0W

3510lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3510lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3510lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

3159lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3159lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3159lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

3615lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3615lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3615lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

3254lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3254lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3254lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

3335lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3335lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3335lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

27.0W

3001lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3001lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

27.8W

3001lm

90+

2700-4000K

DALI

Model

U5141

Input Vol.

220-240VAC

Optical

PC Diffuser Lens

Power

36W

Beam Angle

105°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1508 x W51 x H41mm

Lumen

3240-4914lm/pc

IP / IK

IP22 / IK06

Efficiency

90 -130lm/W

Installation

Pendant, Ceiling Mounting

THD

<20%

Net Weight

1.45kgs

Life Time
L80B10

50,000hrs

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 36W       Efficiency: 90lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1508mm

36.0W

3240lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3240lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3240lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

2916lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

2916lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

2916lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

3337lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3337lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3337lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

3003lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3003lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3003lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

3078lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3078lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3078lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

2770lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

2770lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

2770lm

90+

2700-4000K

DALI

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 36W       Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1508mm

36.0W

3960lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3960lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3960lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

3564lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3564lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3564lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

4079lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4079lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4079lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

3671lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3671lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3671lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

3762lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3762lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3762lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

3386lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3386lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

3386lm

90+

2700-4000K

DALI

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 36W       Efficiency: 130lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1508mm

36.0W

4680lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4680lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4680lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

4212lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4212lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4212lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

4820lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4820lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4820lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

4338lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4338lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4338lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

4446lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4446lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4446lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

36.0W

4001lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4001lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

37.1W

4001lm

90+

2700-4000K

DALI

Model

U5141

Input Vol.

220-240VAC

Optical

PC Diffuser Lens

Power

45W

Beam Angle

105°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1508 x W51 x H41mm

Lumen

4050-6143lm/pc

IP / IK

IP22 / IK06

Efficiency

90 -130lm/W

Installation

Pendant, Ceiling Mounting

THD

<20%

Net Weight

1.45kgs

Life Time
L80B10

50,000hrs

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 45W       Efficiency: 90lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1508mm

45.0W

4050lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4050lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4050lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

3645lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

3645lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

3645lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

4172lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4172lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4172lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

3754lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

3754lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

3754lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

3848lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

3848lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

3848lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

3463lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

3463lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

3463lm

90+

2700-4000K

DALI

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 45W       Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1508mm

45.0W

4950lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4950lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4950lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

4455lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4455lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4455lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

5099lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

5099lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

5099lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

4589lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4589lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4589lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

4703lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4703lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4703lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

4232lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4232lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

4232lm

90+

2700-4000K

DALI

Luminaire: U5141,     Optical: PC Diffuser Lens,     Power: 45W       Efficiency: 130lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1508mm

45.0W

5850lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

5850lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

5850lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

5265lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

5265lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

5265lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

6026lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

6026lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

6026lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

5423lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

5423lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

5423lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

5558lm

80+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

5558lm

80+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

5558lm

80+

2700-4000K

DALI

PC Diffuser Lens

105°

<26

L1508mm

45.0W

5002lm

90+

2700-4000K

On-Off

PC Diffuser Lens

105°

<26

L1508mm

46.4W

5002lm

90+

2700-4000K

0-10V

PC Diffuser Lens

105°

<26

L1508mm

46.4W

5002lm

90+

2700-4000K

DALI


  • Previous:
  • Next:

    • 1,U514128 SURFACE LINEAR LIGHT
      1,U514128 SURFACE LINEAR LIGHT
      1,U514128 SURFACE LINEAR LIGHT
      1,U514128 SURFACE LINEAR LIGHT
    • 2,U5168 Pendant Installation
      2,U5168 Pendant Installation
      2,U5168 Pendant Installation
      2,U5168 Pendant Installation
    • 3,U5168 Pendant Joining
      3,U5168 Pendant Joining
      3,U5168 Pendant Joining
      3,U5168 Pendant Joining
    • 4-ZOLI U5141 SERIES PC DIFFUSER LENS LINEAR LIGHT
      4-ZOLI U5141 SERIES PC DIFFUSER LENS LINEAR LIGHT
      4-ZOLI U5141 SERIES PC DIFFUSER LENS LINEAR LIGHT
      4-ZOLI U5141 SERIES PC DIFFUSER LENS LINEAR LIGHT
  • Write your message here and send it to us

    CONTACT

    • facebook (2)
    • youtube (1)
    • linkedin
