U1670 Ultra-Narrow Linear LED Luminaire UGR
Product Introduction
Introducing our newest addition to architectural lighting solutions, the Ultra-Narrow Linear LED Luminaire. At only 16mm wide, this luminaire offers an ultra-sleek design that fits effortlessly into any space, providing both aesthetic and functional lighting. The length can be customized to meet the unique needs of your project.
Our advanced anti-glare technology ensures a UGR rating of <12, providing comfortable and eye-friendly illumination. This luminaire offers direct lighting with a beam angle of 24°, perfect for creating focused and effective lighting designs.
Powered by high-efficiency Osram LEDs, this luminaire boasts an impressive 100lm/W, ensuring bright and energy-efficient lighting. Built with superior quality, it promises durability and longevity, making it an ideal choice for various applications.
Feature
1.Ultra-Narrow Design: Only 16mm wide, offering a sleek and modern appearance.
2.Customizable Length: Adaptable length to fit specific project needs.
3.Anti-Glare Technology: UGR<12 for comfortable lighting.
4.Direct Lighting Angle: Direct lighting at 24°.
5.High Efficiency: 100lm/W with Osram LEDs.
6.Premium Build: Durable and reliable for long-term use.
7.Versatile Applications: Suitable for a wide range of settings, from offices to retail spaces.
8.Big space in the profile: the back cover of the profile is easy to be opened, easy the entire installation process.
9.Flexible installation Methods: Sus-pendant or surface-mounted.
10.Easy Connection Brackets: equipped with user-friendly connection brackets that simplify the installation process.
These brackets facilitate quick and secure connections, reducing the need for extensive labor and technical expertise during setup，get flawless, continuous lighting effect.

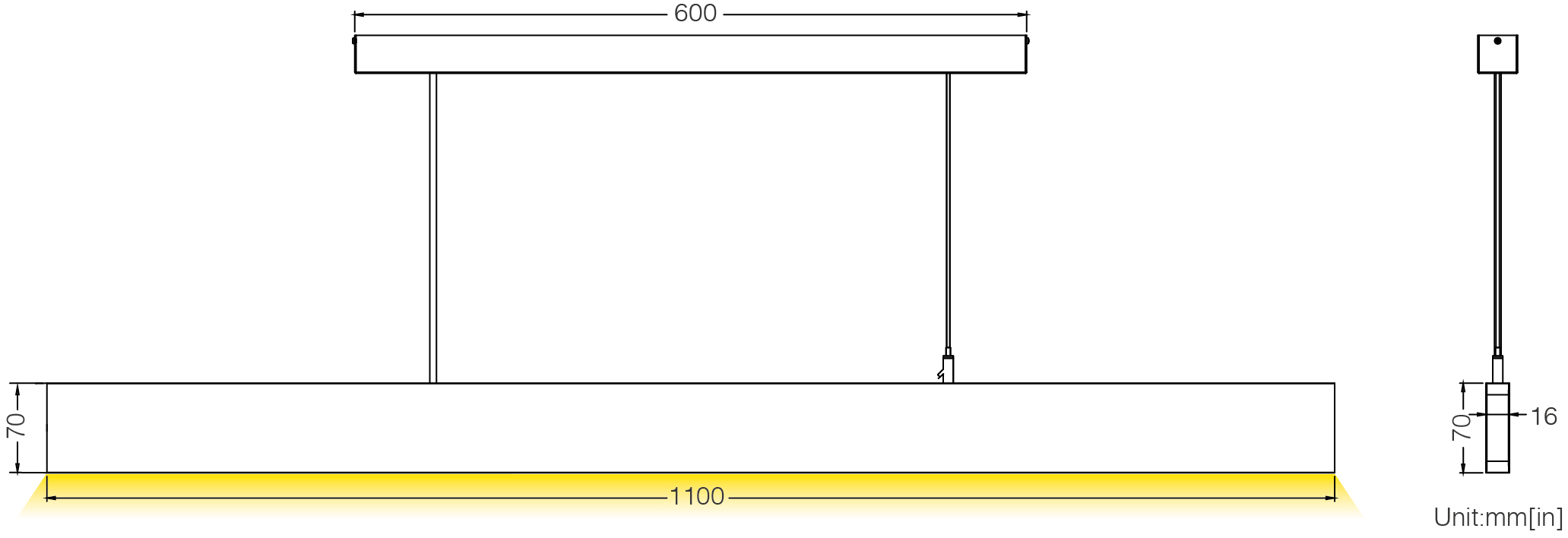

Size & Installation
Finish
Available in Matt White, Matt Black, Silver Anodized, with over 48 custom options.
Color Option

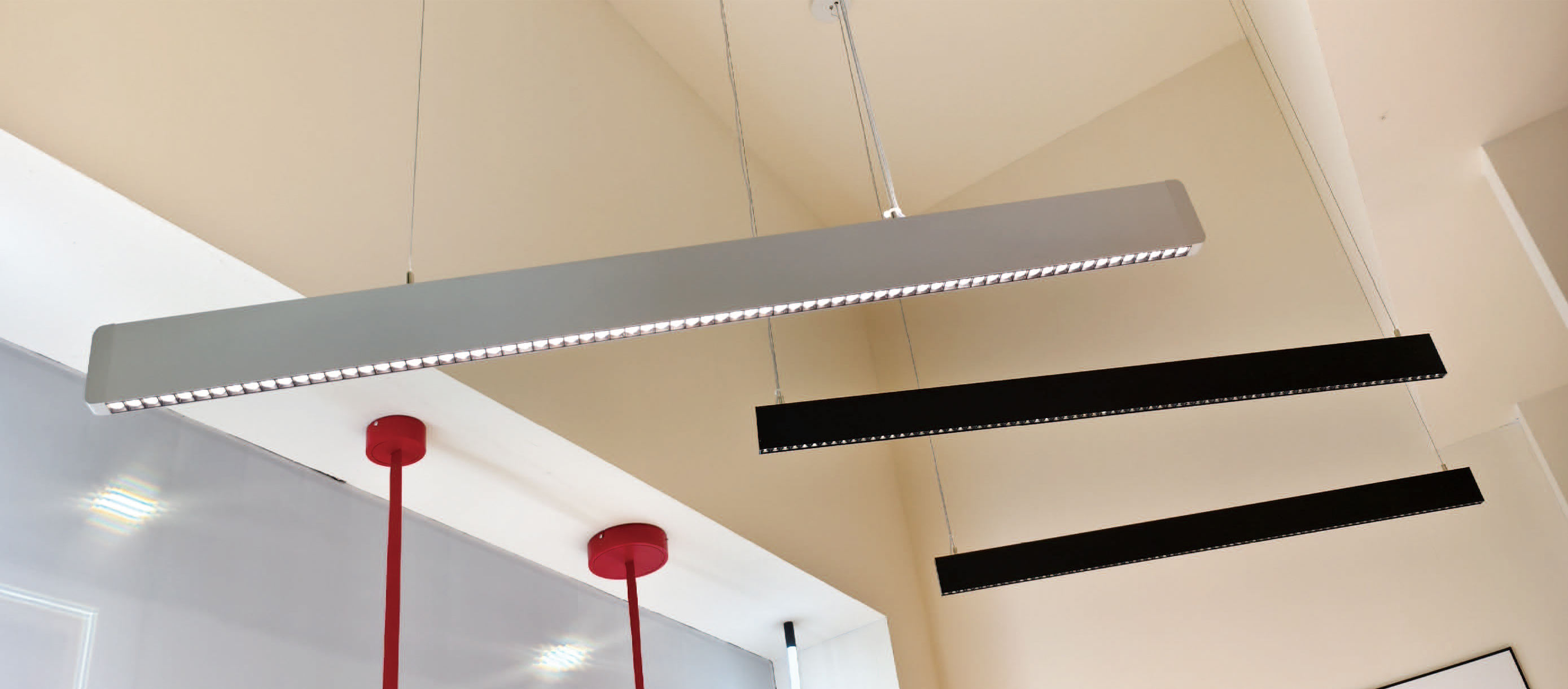

Range of Applications
Perfect for both general and localized lighting needs, this luminaire excels in various environments. Whether used in offices, educational institutions, conference rooms, or retail spaces, it provides precise and stylish illumination, creating a comfortable and productive atmosphere.
Specification
|
Model |
BV-U1670 |
Input Vol. |
220-240VAC |
|
Optical |
TIR Lens |
Power |
25W |
|
Beam Angle |
24° |
LED |
Osram 3030 |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<22 |
SDCM |
<3 |
|
Dimension |
L1100 x W16 x H70mm |
Lumen |
2500lm/pc |
|
IP |
IP22 |
Efficiency |
100lm/W |
|
Installation |
Pendant |
Life Time |
50,000hrs |
|
Net Weight |
/ |
THD |
<20% |
|
Luminaire: BV-U1670, Optical: TIR Lens, Efficiency: 100lm/W, LED: Osram 3030, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
TIR Lens |
24°
|
<22 |
L1100mm |
25.0W |
2500lm |
90+ |
4000K |
Dali, 0-10V, on/off |
-
U1670 FIREFLY LAMP LINEAR LIGHT
