• SSH-Y Y-shaped Acoustic Linear Light

SSH-Y Y-shaped Acoustic Linear Light

Short Description:

An innovative fusion of acoustic performance and modern lighting design
The SSH-Y Y-shaped Acoustic Linear Light is a bold and functional centerpiece designed to elevate both visual and auditory experiences in contemporary interiors. Ideal for offices, open-plan workspaces, educational settings, and creative studios, this fixture offers effective illumination with integrated sound-absorbing materials to enhance acoustic comfort.


Product Detail

Download

Product Tags

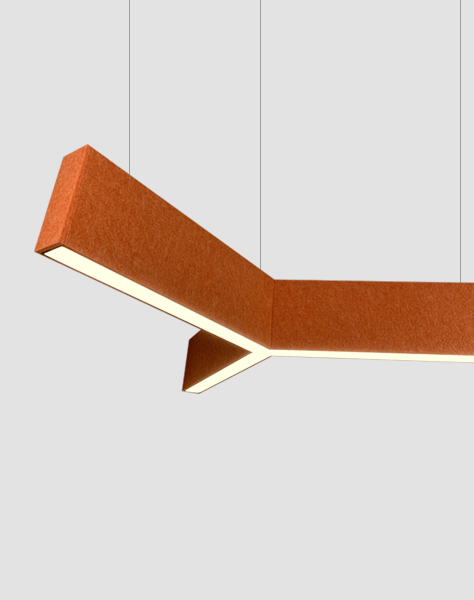

Features

Unique Y-shaped Design: Adds architectural interest while offering versatile layout possibilities.

High Performance Lighting: With a luminous output of up to 5400lm and an efficacy of 100lm/W, it combines beauty with function.

Flexible Controls: Available in On/Off, 0-10V dimming, and DALI control options for customized light management.

Acoustic Functionality: PET acoustic panels reduce ambient noise and improve sound quality in shared spaces.

Custom Panel Colors Available: Choose from a wide range of quick-ship or custom color options to match your design scheme.

Personalized Branding: Acoustic panels can be customized with logos, texts, or graphic elements to reflect your brand identity or interior concept.

Customizable Color Temperatures: Choose from 2700K, 3000K, or 4000K with 90+ CRI for superior color rendering.

Sustainable and Safe: IP22 rated and suspended via aircraft cable for clean, secure installation.

SSH-Y-Y-shaped-Acoustic-Light-Features

Specification

Model      SSH-Y Input Vol.       220-240VAC
Power 54W Lumen 5400lm
Lens PC Diffuser  Efficacy Up to  100lm/w
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
Dim G1-On/Off
G2-0-10V
G3-DALI
IP IP22 CRI 90+
Dimension      L1115 × W965 × H200mm CCT 4000K
Beam Angle 110° Color Quality 3-step MacAdam,5-step MacAdam
Installation Pendant Life Time L80B10    50,000hrs

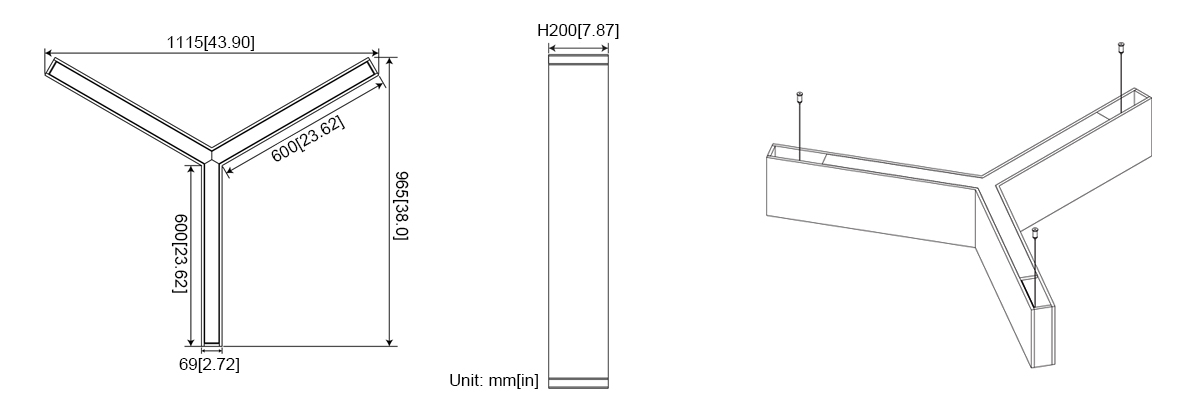

Size & Installation

SSH-Y-Y-shaped-Acoustic-Light-dimension

Finish

Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.

quick-shipping-color-items

Other 15 colors for option.

other-shipping-color-items

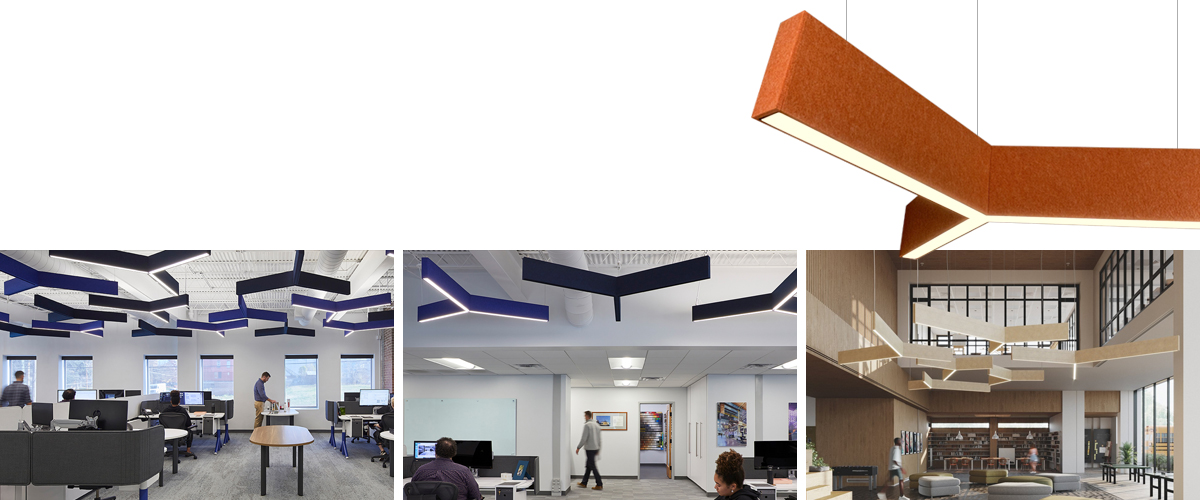

Range of Applications

SSH-Y-Y-shaped-Acoustic-Light-Applications
