• SSH-ONI ACOUSIC DOUBLE SIDED RING LIGHT

SSH-ONI ACOUSIC DOUBLE SIDED RING LIGHT

Short Description:

Acoustic ONI Light Luminaire, available in five diameters ranging from 450 to 1000mm, with double side lighting.

Select from a wide range of 25 panel colors to personalize your lighting experience using different LED choices, such as CRI95+ and 90+.

Explore approximately CCT options spanning from 3000K to 6000K and Tunnable White and experience flexible dimming techniques like ON/OFF, DALI, and 0-10V, granting you full command over your lighting setting.


Product Detail

Download

Product Tags

Product Introduction

Introducing the SSH-ONI Series, a revolutionary acoustic lighting solution that revolutionizes spaces for work, worship, entertainment, and home. This series offers a range of design possibilities, showcasing 4x8ft (1.22x2.44m) acoustic panels made from 100% recyclable, fire-retardant, and odorless materials, contributing to sustainability.

Highlighting a diverse array of LED options in CRI90+/CRI95+, customizable CCT options, and adaptable dimming methods (0-10V, DALI, ON/OFF), this linear light provides both practical illumination and outstanding sound management with NRC = 0.7 acoustic panels. Perfect for pendant installation.

Furthermore, the SSH-ONI comes equipped with a driver and patented connection bracket, ensuring effortless installation, maintenance, and seamless jointing for extended configurations.

Feature

1, Customized Designs: 25 customizable acoustic colors.

2, Exceptional Color Rendering: Presenting our lights, assuring vibrant color reproduction with a Color Rendering Index (CRI) over 95 and an R9 value surpassing 90, enhancing your space's visual appeal.

3, Eco-friendly Materials: Committed to sustainability, our products are crafted from 100% recyclable and odorless materials, minimizing their environmental footprint.

4, Class A Fire Retardant: Prioritizing safety, our lights incorporate Class A fire-retardant materials, ensuring an added layer of security and peace of mind.

5, High Sound Absorption Performance in NRC = 0.7 panels, Excellent illumination performance.

6, Improved Work Environment: Elevate comfort in both work and living spaces through a harmonious blend of reduced noise and superior lighting quality. Improved lighting and sound control not only enhance work efficiency but also contribute to heightened employee satisfaction overall.

7, Effortless Installation: Crafted for easy installation and swift field joints, our Acoustic Lighting guarantees a seamless and hassle-free setup.

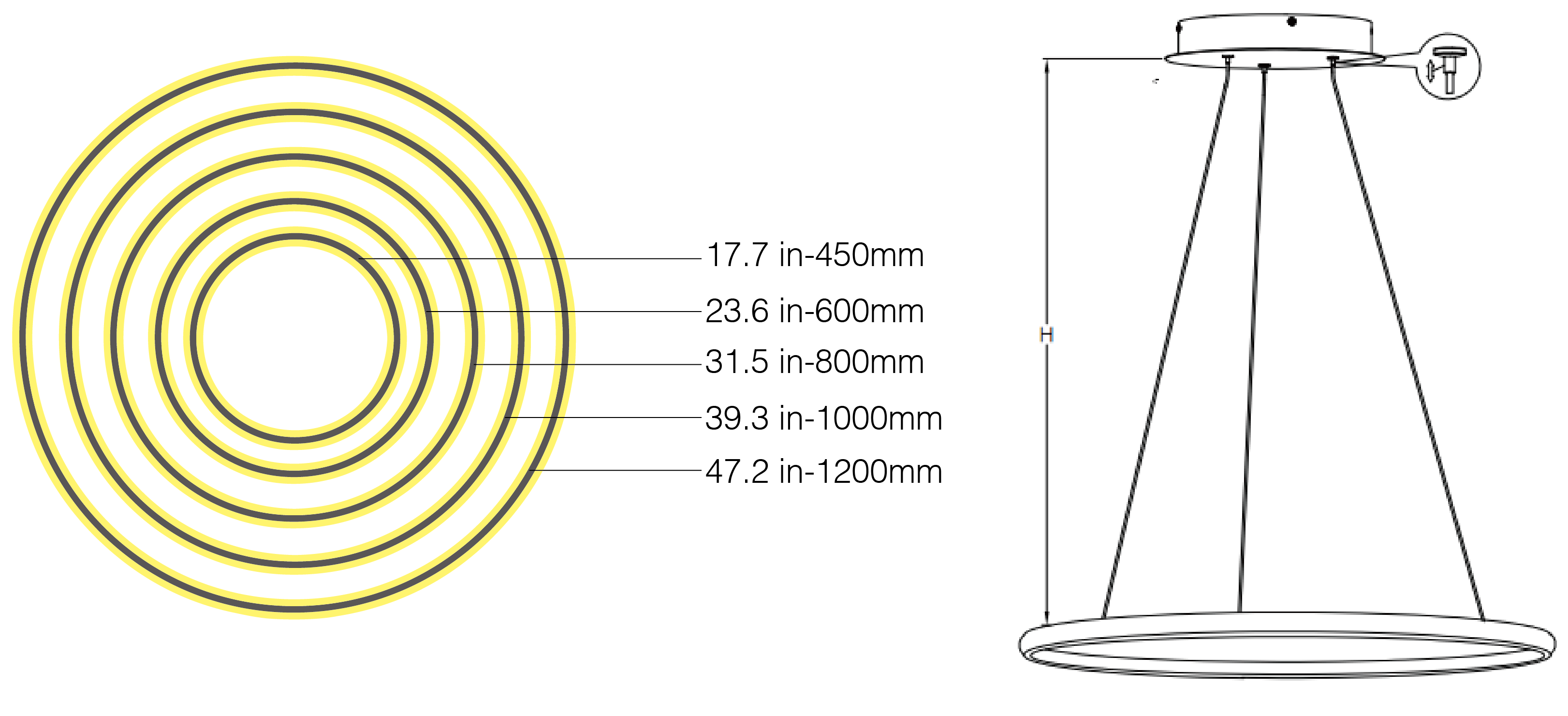

Size & Installation

未标题-1_画板 1

Finish

Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.

33_画板 1

Other 15 colors for option.

1231_画板 1

Range of Applications

Providing a flexible lighting solution by seamlessly combining high-quality illumination with efficient sound absorption. Perfect for establishing a comfortable working atmosphere in various spaces, including offices, restaurants, meeting rooms, educational institutions, healthcare facilities, theaters, museums, and more.

Specification

Model

SSH-ONI

Input Vol.

220-240VAC

Optical

Silicone

Power

25W

Beam Angle

105°

LED

2835SMD

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<26

SDCM

<3

Dimension

D450mm

Lumen

1530lm/pc

IP / IK

IP22

Efficiency

61lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-ONI,         Optical: Silicone,         Efficiency: 60lm/W,         LED: 2835SMD          Driver: Lifud

OPTICAL

ANGLE

UGR

DIMENSION

POWER

LUMEN

RA

CCT

DIM

Silicone

105°

<26

D450mm

25W

1530lm

90+, 95+

3000K

On-Off

Silicone

105°

<26

D450mm

25W

1530lm

90+, 95+

3000K

0-10V

Silicone

105°

<26

D450mm

25W

1530lm

90+, 95+

3000K

DALI

Model

SSH-ONI

Input Vol.

220-240VAC

Optical

Silicone

Power

35W

Beam Angle

105°

LED

2835SMD

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<26

SDCM

<3

Dimension

D600mm

Lumen

2330lm/pc

IP / IK

IP22

Efficiency

61lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-ONI,         Optical: Silicone,         Efficiency: 60lm/W,         LED: 2835SMD          Driver: Lifud

OPTICAL

ANGLE

UGR

DIMENSION

POWER

LUMEN

RA

CCT

DIM

Silicone

105°

<26

D600mm

35W

2330lm

90+, 95+

3000K

On-Off

Silicone

105°

<26

D600mm

35W

2330lm

90+, 95+

3000K

0-10V

Silicone

105°

<26

D600mm

35W

2330lm

90+, 95+

3000K

DALI

Model

SSH-ONI

Input Vol.

220-240VAC

Optical

Silicone

Power

40W

Beam Angle

105°

LED

2835SMD

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<26

SDCM

<3

Dimension

D800mm

Lumen

2500lm/pc

IP / IK

IP22

Efficiency

61lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-ONI,         Optical: Silicone,         Efficiency: 60lm/W,         LED: 2835SMD          Driver: Lifud

OPTICAL

ANGLE

UGR

DIMENSION

POWER

LUMEN

RA

CCT

DIM

Silicone

105°

<26

D800mm

40W

2500lm

90+, 95+

3000K

On-Off

Silicone

105°

<26

D800mm

40W

2500lm

90+, 95+

3000K

0-10V

Silicone

105°

<26

D800mm

40W

2500lm

90+, 95+

3000K

DALI

Model

SSH-ONI

Input Vol.

220-240VAC

Optical

Silicone

Power

50W

Beam Angle

105°

LED

2835SMD

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<26

SDCM

<3

Dimension

D1000mm

Lumen

3423lm/pc

IP / IK

IP22

Efficiency

61lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-ONI,         Optical: Silicone,         Efficiency: 60lm/W,         LED: 2835SMD          Driver: Lifud

OPTICAL

ANGLE

UGR

DIMENSION

POWER

LUMEN

RA

CCT

DIM

Silicone

105°

<26

D1000mm

50W

3423lm

90+, 95+

3000K

On-Off

Silicone

105°

<26

D1000mm

50W

3423lm

90+, 95+

3000K

0-10V

Silicone

105°

<26

D1000mm

50W

3423lm

90+, 95+

3000K

DALI
