• SSH-OLI6 Pumpkin Lantern Acoustic Lighting

SSH-OLI6 Pumpkin Lantern Acoustic Lighting

Short Description:

The SSH-OLI6 Pumpkin Lantern Acoustic Lighting combines modern aesthetics with superior acoustic performance.

This luminaire offers a sleek, cylindrical form in three sizes (L150mm, L300mm, L450mm).

The acoustic panel is available in thicknesses of 9mm and 12mm. With power options of 5W, 10W, and 15W, it delivers up to 1500 lumens with an efficacy of 100 lm/W.

It combines excellent illumination with effective sound absorption, making it ideal for environments that prioritize comfortable workspaces.

The SSH-OLI6 is an efficient and stylish choice for any space.


Product Detail

Download

Product Tags

Product Introduction

The SSH-OLI6 Pumpkin Lantern Acoustic Lighting features a sleek, cylindrical form that enhances any interior with its modern and stylish appearance, making it a visually appealing choice for various environments. This luminaire is designed to provide excellent sound absorption, helping to create comfortable and quiet workspaces by reducing ambient noise. Available in three sizes—L150mm, L300mm, and L450mm—this lighting solution offers versatility and suitability for different spaces and design requirements.

The acoustic panels come in two thickness options, 9mm and 12mm, allowing customization based on the desired level of sound absorption and aesthetic preference. Whether used in offices, restaurants, meeting rooms, educational institutions, healthcare facilities, theaters, museums, or other environments, the SSH-OLI6 seamlessly integrates form and function.

The luminaire's power options of 5W, 10W, and 15W deliver up to 1500 lumens with an efficacy of 100 lm/W, ensuring bright and efficient illumination. Various control options, including DALI, 0-10V, and on/off controls, provide flexibility and ease of use. The SSH-OLI6 is an efficient and stylish choice for any space that values both performance and design.

Feature

1. Modern Aesthetic Design:

The SSH-OLI6 features a sleek, cylindrical form that enhances any interior with its modern and stylish appearance, making it a visually appealing choice for various environments.

2. Superior Acoustic Performance:

This luminaire is designed to provide excellent sound absorption, helping to create comfortable and quiet workspaces by reducing ambient noise.

3. Multiple Size Options:

Available in three sizes: L150mm, L300mm, and L450mm. These options ensure versatility and suitability for different spaces and design requirements.

4. Acoustic Panel Thickness:

The acoustic panels come in two thickness options, 9mm and 12mm, allowing customization based on the desired level of sound absorption and aesthetic preference.

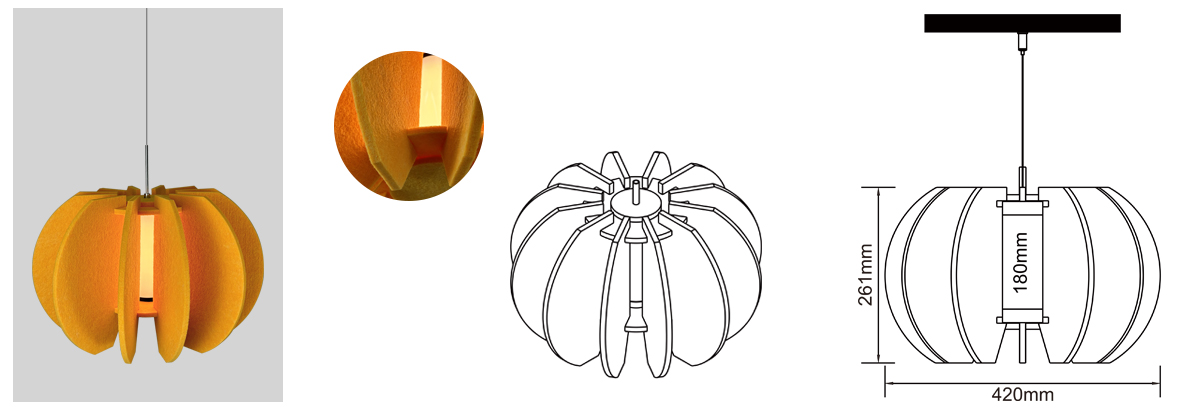

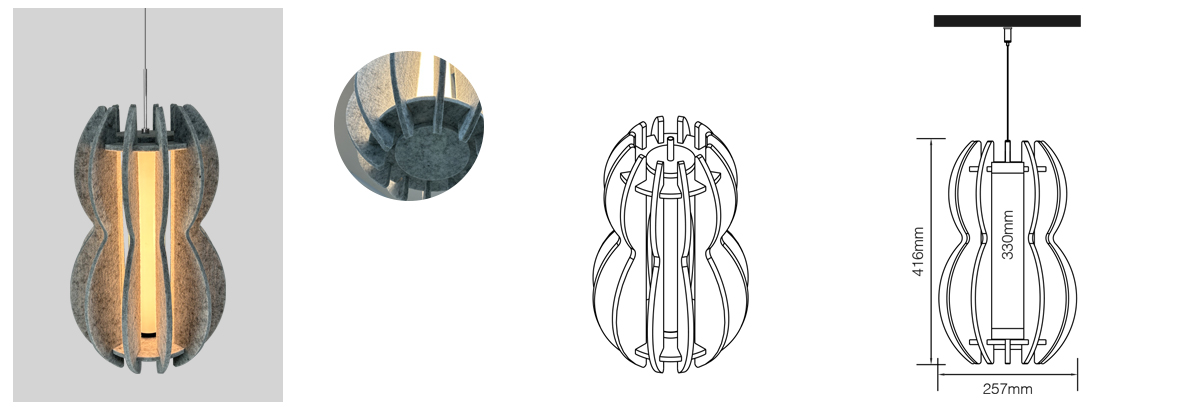

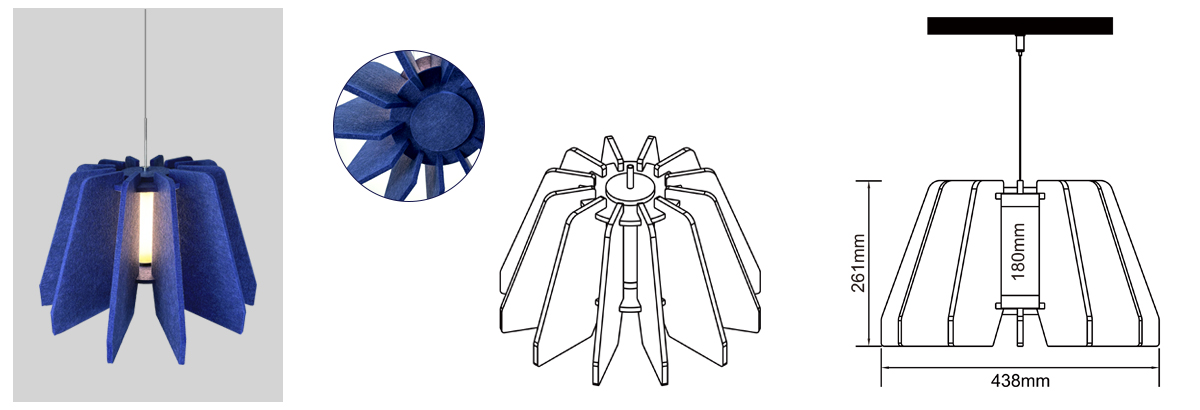

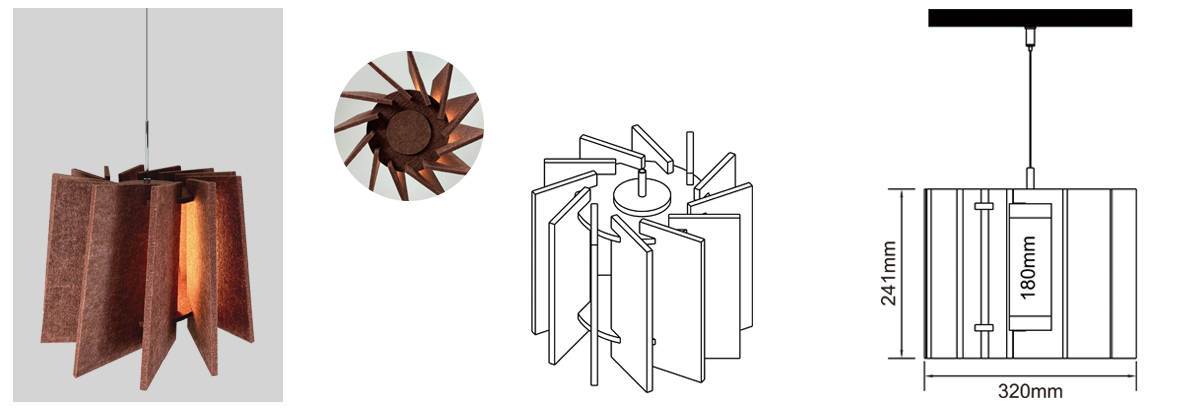

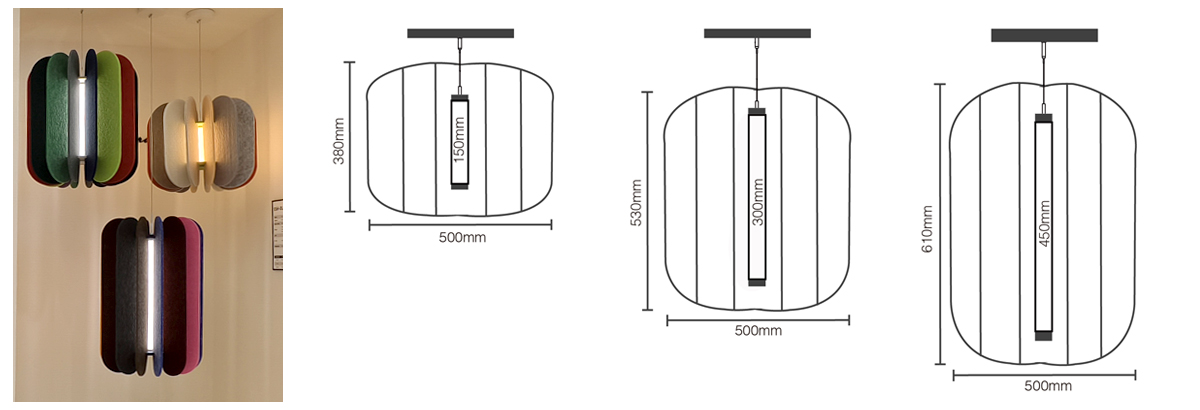

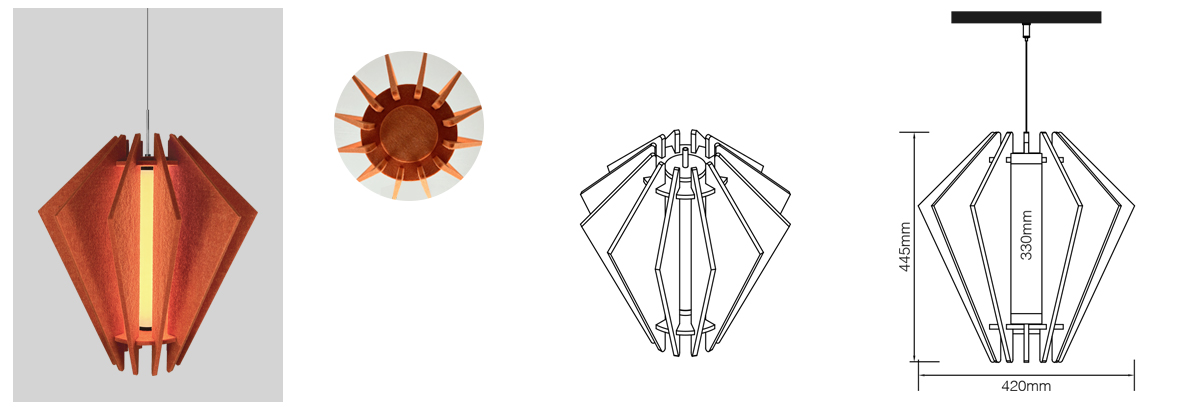

Size & Installation

Q1312312_画板 1

Finish

Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.

33_画板 1

Other 15 colors for option.

1231_画板 1

Range of Applications

Acoustic lights offer exceptional illumination while effectively absorbing sound, making them perfect for environments that prioritize comfortable workspaces. They are ideal for offices, restaurants, meeting rooms, educational institutions, healthcare facilities, theaters, museums, and more.

SSH-OLI6 PUMPKIN LANTERN

Specification

Model

SSH-OLI6

Input Vol.

220-240VAC

Optical

PC Diffuser

Power

5W

Beam Angle

360°

LED

2835 SMD

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

/

SDCM

<3

Dimension

L150 x Φ63mm

Lumen

500lm/pc

IP

IP22

Efficiency

100lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-OLI6,    Optical: PC Diffuser,     Efficiency: 100lm/W,    LED: 2835 SMD,    Driver: Lifud

OPTICAL

ANGLE

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

360°

L150mm

5W

500lm

90+

4000K

Dali, 0-10V, on/off

Model

SSH-OLI6

Input Vol.

220-240VAC

Optical

PC Diffuser

Power

10W

Beam Angle

360°

LED

2835 SMD

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

/

SDCM

<3

Dimension

L300 x Φ63mm

Lumen

1000lm/pc

IP

IP22

Efficiency

100lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-OLI6,    Optical: PC Diffuser,     Efficiency: 100lm/W,    LED: 2835 SMD,    Driver: Lifud

OPTICAL

ANGLE

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

360°

L300mm

10W

1000lm

90+

4000K

Dali, 0-10V, on/off

Model

SSH-OLI6

Input Vol.

220-240VAC

Optical

PC Diffuser

Power

15W

Beam Angle

360°

LED

2835 SMD

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

/

SDCM

<3

Dimension

L450 x Φ63mm

Lumen

1500lm/pc

IP

IP22

Efficiency

100lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-OLI6,    Optical: PC Diffuser,     Efficiency: 100lm/W,    LED: 2835 SMD,    Driver: Lifud

OPTICAL

ANGLE

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

360°

L450mm

15W

1500lm

90+

4000K

Dali, 0-10V, on/off
