• Ssh-Luz-Pendant Acoustic Led linear light with Louver lens

Ssh-Luz-Pendant Acoustic Led linear light with Louver lens

Short Description:

Ssh-Luz Louver lens

This acoustic Led linear light Ssh-Luz Box & Luminaire boasts a sleek 58mm width, offering flexibility in any customized in unfolded 1.2×2.4m.

Choose from an array of 25 panel colors, personalize your lighting further with a variety of LED options, including CRI95+ and 90+, available in approximately 10 CCT options ranging from 1800K to 6500K, dual White, and Tunable White.

Experience versatile dimming methods like 0-10V, DALI, and 0-10v for complete lighting control.

It is with the Louver lens, creates the combination of anti-glaring lighting and quiet sounding environment.


Product Detail

Download

Product Tags

Product Introduction

SSH-LUZ Series is an Engineering design Acoustic Lighting, which is revolutionizing the way people experience work, worship, entertainment, and their home through a suite of sound absorption and soundproofing solutions.

Crafted from 100% recyclable, fire-retardant and odorless materials, this acoustic led lighting offers a wide range of design options, including 4x8ft (1.22x2.44m) acoustic panels, to complement your interior decor needs, not only enhances your space but also contribute to a greener planet.

With an array LED options in CRI95+, 90+ in around 10 CCT options from 1800K to 6500K, Dual White, Tunable white, different dimming methods 0-10V, DALI, DMX, Triac forward /Reverse Phase, NRC = 0.7 acoustic panels, this linear light provides functional illumination source as well as excellent sound management.

What’s more, this sound-absorbing linear light is with internal driver, patented bracket for connection, easy installation, maintenance, and effortless joint to long line.

Feature

1,Customized Designs: Choose from a variety of designs, including 4x8ft (1.22x2.44m) acoustic panels, to suit your interior decor needs.

2,Designed with Louver lens, providing different beam angles to meet different requirements, anti-glaring, protect people’s eyes.

3, Exceptional Color Rendering: With a CRI (Color Rendering Index) of over 95 and R9 value exceeding 90, our lights ensure accurate and vibrant color reproduction, making your space visually appealing.

4, Eco-friendly Materials: We are committed to sustainability. Our products are made from 100% recyclable and odorless materials, reducing their environmental impact.

5, Class A Fire Retardant: Safety is paramount. Our lights feature Class A fire-retardant materials, providing added security and peace of mind.

6, High Sound Absorption Performance in NRC = 0.7 panels Excellent illumination performance.

7, Improved Work Environment: Reduced noise and quality lighting improve the comfort of work and living spaces. Better lighting and sound control contribute to higher work efficiency and employee satisfactory.

8, Effortless Installation: Our Acoustic LED Linear Lighting is designed for ease of installation and quick field joints for continuous runs, ensuring a seamless and hassle-free setup.

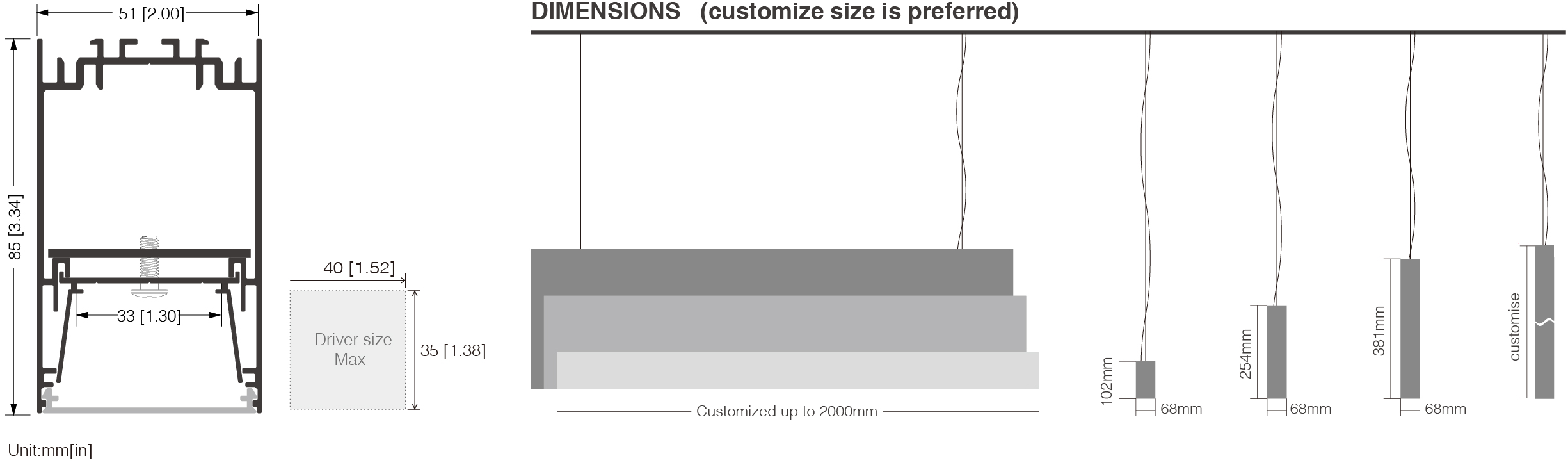

Size & Installation

尺寸_画板 1

Finish

Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.

33_画板 1

Other 15 colors for option.

1231_画板 1

Range of Applications

This sound-absorbing LED linear lights are a versatile lighting solution with dual functionality—providing anti-glaring lighting and sound absorption.

They are suitable for spaces where creating a pleasant working environment is essential, such as Offices, Restaurants, Meeting rooms, Educational Institutions, Healthcare, Theater, Museums, etc.

acoustic linear lighting application

Specification

Model

LUZ acoustic

Input Vol.

220-240VAC

Optical

Louver & Lens

Power

25W

Beam Angle

24° / 38° / 50° / 50x50° / 35x70°

LED

CREE

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1208 x W50 x H102mm

Lumen

2138-2202lm/pc

IP

IP22

Efficiency

95lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

1.55kgs

THD

<20%

Luminaire: LUZ acoustic,    Optical: Louver & Lens=3sets,     Efficiency: 95lm/W,    LED: Cree,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

24°

<19

L1208mm

25.0W

2375lm

80+

3000K

On-Off

Louver & Lens

24°

<19

L1208mm

25.8W

2375lm

80+

3000K

0-10V

Louver & Lens

24°

<19

L1208mm

25.8W

2375lm

80+

3000K

DALI

Louver & Lens

24°

<19

L1208mm

25.0W

2138lm

90+

3000K

On-Off

Louver & Lens

24°

<19

L1208mm

25.8W

2138lm

90+

3000K

0-10V

Louver & Lens

24°

<19

L1208mm

25.8W

2138lm

90+

3000K

DALI

Louver & Lens

24°

<19

L1208mm

25.0W

2446lm

80+

4000K

On-Off

Louver & Lens

24°

<19

L1208mm

25.8W

2446lm

80+

4000K

0-10V

Louver & Lens

24°

<19

L1208mm

25.8W

2446lm

80+

4000K

DALI

Louver & Lens

24°

<19

L1208mm

25.0W

2202lm

90+

4000K

On-Off

Louver & Lens

24°

<19

L1208mm

25.8W

2202lm

90+

4000K

0-10V

Louver & Lens

24°

<19

L1208mm

25.8W

2202lm

90+

4000K

DALI

Luminaire: LUZ acoustic,    Optical: Louver & Lens=3sets,     Efficiency: 95lm/W,    LED: Cree,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

38°

<19

L1208mm

25.0W

2375lm

80+

3000K

On-Off

Louver & Lens

38°

<19

L1208mm

25.8W

2375lm

80+

3000K

0-10V

Louver & Lens

38°

<19

L1208mm

25.8W

2375lm

80+

3000K

DALI

Louver & Lens

38°

<19

L1208mm

25.0W

2138lm

90+

3000K

On-Off

Louver & Lens

38°

<19

L1208mm

25.8W

2138lm

90+

3000K

0-10V

Louver & Lens

38°

<19

L1208mm

25.8W

2138lm

90+

3000K

DALI

Louver & Lens

38°

<19

L1208mm

25.0W

2446lm

80+

4000K

On-Off

Louver & Lens

38°

<19

L1208mm

25.8W

2446lm

80+

4000K

0-10V

Louver & Lens

38°

<19

L1208mm

25.8W

2446lm

80+

4000K

DALI

Louver & Lens

38°

<19

L1208mm

25.0W

2202lm

90+

4000K

On-Off

Louver & Lens

38°

<19

L1208mm

25.8W

2202lm

90+

4000K

0-10V

Louver & Lens

38°

<19

L1208mm

25.8W

2202lm

90+

4000K

DALI

Luminaire: LUZ acoustic,    Optical: Louver & Lens=3sets,     Efficiency: 95lm/W,    LED: Cree,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

50°

<19

L1208mm

25.0W

2375lm

80+

3000K

On-Off

Louver & Lens

50°

<19

L1208mm

25.8W

2375lm

80+

3000K

0-10V

Louver & Lens

50°

<19

L1208mm

25.8W

2375lm

80+

3000K

DALI

Louver & Lens

50°

<19

L1208mm

25.0W

2138lm

90+

3000K

On-Off

Louver & Lens

50°

<19

L1208mm

25.8W

2138lm

90+

3000K

0-10V

Louver & Lens

50°

<19

L1208mm

25.8W

2138lm

90+

3000K

DALI

Louver & Lens

50°

<19

L1208mm

25.0W

2446lm

80+

4000K

On-Off

Louver & Lens

50°

<19

L1208mm

25.8W

2446lm

80+

4000K

0-10V

Louver & Lens

50°

<19

L1208mm

25.8W

2446lm

80+

4000K

DALI

Louver & Lens

50°

<19

L1208mm

25.0W

2202lm

90+

4000K

On-Off

Louver & Lens

50°

<19

L1208mm

25.8W

2202lm

90+

4000K

0-10V

Louver & Lens

50°

<19

L1208mm

25.8W

2202lm

90+

4000K

DALI

Luminaire: LUZ acoustic,    Optical: Louver & Lens=3sets,     Efficiency: 95lm/W,    LED: Cree,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

50x50°

<19

L1208mm

25.0W

2375lm

80+

3000K

On-Off

Louver & Lens

50x50°

<19

L1208mm

25.8W

2375lm

80+

3000K

0-10V

Louver & Lens

50x50°

<19

L1208mm

25.8W

2375lm

80+

3000K

DALI

Louver & Lens

50x50°

<19

L1208mm

25.0W

2138lm

90+

3000K

On-Off

Louver & Lens

50x50°

<19

L1208mm

25.8W

2138lm

90+

3000K

0-10V

Louver & Lens

50x50°

<19

L1208mm

25.8W

2138lm

90+

3000K

DALI

Louver & Lens

50x50°

<19

L1208mm

25.0W

2446lm

80+

4000K

On-Off

Louver & Lens

50x50°

<19

L1208mm

25.8W

2446lm

80+

4000K

0-10V

Louver & Lens

50x50°

<19

L1208mm

25.8W

2446lm

80+

4000K

DALI

Louver & Lens

50x50°

<19

L1208mm

25.0W

2202lm

90+

4000K

On-Off

Louver & Lens

50x50°

<19

L1208mm

25.8W

2202lm

90+

4000K

0-10V

Louver & Lens

50x50°

<19

L1208mm

25.8W

2202lm

90+

4000K

DALI

Luminaire: LUZ acoustic,    Optical: Louver & Lens=3sets,     Efficiency: 95lm/W,    LED: Cree,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

35x70°

<19

L1208mm

25.0W

2375lm

80+

3000K

On-Off

Louver & Lens

35x70°

<19

L1208mm

25.8W

2375lm

80+

3000K

0-10V

Louver & Lens

35x70°

<19

L1208mm

25.8W

2375lm

80+

3000K

DALI

Louver & Lens

35x70°

<19

L1208mm

25.0W

2138lm

90+

3000K

On-Off

Louver & Lens

35x70°

<19

L1208mm

25.8W

2138lm

90+

3000K

0-10V

Louver & Lens

35x70°

<19

L1208mm

25.8W

2138lm

90+

3000K

DALI

Louver & Lens

35x70°

<19

L1208mm

25.0W

2446lm

80+

4000K

On-Off

Louver & Lens

35x70°

<19

L1208mm

25.8W

2446lm

80+

4000K

0-10V

Louver & Lens

35x70°

<19

L1208mm

25.8W

2446lm

80+

4000K

DALI

Louver & Lens

35x70°

<19

L1208mm

25.0W

2202lm

90+

4000K

On-Off

Louver & Lens

35x70°

<19

L1208mm

25.8W

2202lm

90+

4000K

0-10V

Louver & Lens

35x70°

<19

L1208mm

25.8W

2202lm

90+

4000K

DALI

Model

LUZ acoustic

Input Vol.

220-240VAC

Optial

Louver & Lens

Power

36W

Beam Angle

24° / 38° / 50° / 50x50° / 35x70°

LED

CREE

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1208 x W50 x H102mm

Lumen

3402-3504lm/pc

IP

IP22

Efficiency

105lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

1.55kgs

THD

<20%

Luminaire: LUZ acoustic,    Optical: Louver & Lens=6sets,     Efficiency: 105lm/W,    LED: Cree,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

24°

<19

L1208mm

36.0W

3780lm

80+

3000K

On-Off

Louver & Lens

24°

<19

L1208mm

37.1W

3780lm

80+

3000K

0-10V

Louver & Lens

24°

<19

L1208mm

37.1W

3780lm

80+

3000K

DALI

Louver & Lens

24°

<19

L1208mm

36.0W

3402lm

90+

3000K

On-Off

Louver & Lens

24°

<19

L1208mm

37.1W

3402lm

90+

3000K

0-10V

Louver & Lens

24°

<19

L1208mm

37.1W

3402lm

90+

3000K

DALI

Louver & Lens

24°

<19

L1208mm

36.0W

3893lm

80+

4000K

On-Off

Louver & Lens

24°

<19

L1208mm

37.1W

3893lm

80+

4000K

0-10V

Louver & Lens

24°

<19

L1208mm

37.1W

3893lm

80+

4000K

DALI

Louver & Lens

24°

<19

L1208mm

36.0W

3504lm

90+

4000K

On-Off

Louver & Lens

24°

<19

L1208mm

37.1W

3504lm

90+

4000K

0-10V

Louver & Lens

24°

<19

L1208mm

37.1W

3504lm

90+

4000K

DALI

Luminaire: LUZ acoustic,    Optical: Louver & Lens=6sets,     Efficiency: 105lm/W,    LED: Cree,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

38°

<19

L1208mm

36.0W

3780lm

80+

3000K

On-Off

Louver & Lens

38°

<19

L1208mm

37.1W

3780lm

80+

3000K

0-10V

Louver & Lens

38°

<19

L1208mm

37.1W

3780lm

80+

3000K

DALI

Louver & Lens

38°

<19

L1208mm

36.0W

3402lm

90+

3000K

On-Off

Louver & Lens

38°

<19

L1208mm

37.1W

3402lm

90+

3000K

0-10V

Louver & Lens

38°

<19

L1208mm

37.1W

3402lm

90+

3000K

DALI

Louver & Lens

38°

<19

L1208mm

36.0W

3893lm

80+

4000K

On-Off

Louver & Lens

38°

<19

L1208mm

37.1W

3893lm

80+

4000K

0-10V

Louver & Lens

38°

<19

L1208mm

37.1W

3893lm

80+

4000K

DALI

Louver & Lens

38°

<19

L1208mm

36.0W

3504lm

90+

4000K

On-Off

Louver & Lens

38°

<19

L1208mm

37.1W

3504lm

90+

4000K

0-10V

Louver & Lens

38°

<19

L1208mm

37.1W

3504lm

90+

4000K

DALI

Luminaire: LUZ acoustic,    Optical: Louver & Lens=6sets,     Efficiency: 105lm/W,    LED: Cree,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

50°

<19

L1208mm

36.0W

3780lm

80+

3000K

On-Off

Louver & Lens

50°

<19

L1208mm

37.1W

3780lm

80+

3000K

0-10V

Louver & Lens

50°

<19

L1208mm

37.1W

3780lm

80+

3000K

DALI

Louver & Lens

50°

<19

L1208mm

36.0W

3402lm

90+

3000K

On-Off

Louver & Lens

50°

<19

L1208mm

37.1W

3402lm

90+

3000K

0-10V

Louver & Lens

50°

<19

L1208mm

37.1W

3402lm

90+

3000K

DALI

Louver & Lens

50°

<19

L1208mm

36.0W

3893lm

80+

4000K

On-Off

Louver & Lens

50°

<19

L1208mm

37.1W

3893lm

80+

4000K

0-10V

Louver & Lens

50°

<19

L1208mm

37.1W

3893lm

80+

4000K

DALI

Louver & Lens

50°

<19

L1208mm

36.0W

3504lm

90+

4000K

On-Off

Louver & Lens

50°

<19

L1208mm

37.1W

3504lm

90+

4000K

0-10V

Louver & Lens

50°

<19

L1208mm

37.1W

3504lm

90+

4000K

DALI

Luminaire: LUZ acoustic,    Optical: Louver & Lens=6sets,     Efficiency: 105lm/W,    LED: Cree,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

50x50°

<19

L1208mm

36.0W

3780lm

80+

3000K

On-Off

Louver & Lens

50x50°

<19

L1208mm

37.1W

3780lm

80+

3000K

0-10V

Louver & Lens

50x50°

<19

L1208mm

37.1W

3780lm

80+

3000K

DALI

Louver & Lens

50x50°

<19

L1208mm

36.0W

3402lm

90+

3000K

On-Off

Louver & Lens

50x50°

<19

L1208mm

37.1W

3402lm

90+

3000K

0-10V

Louver & Lens

50x50°

<19

L1208mm

37.1W

3402lm

90+

3000K

DALI

Louver & Lens

50x50°

<19

L1208mm

36.0W

3893lm

80+

4000K

On-Off

Louver & Lens

50x50°

<19

L1208mm

37.1W

3893lm

80+

4000K

0-10V

Louver & Lens

50x50°

<19

L1208mm

37.1W

3893lm

80+

4000K

DALI

Louver & Lens

50x50°

<19

L1208mm

36.0W

3504lm

90+

4000K

On-Off

Louver & Lens

50x50°

<19

L1208mm

37.1W

3504lm

90+

4000K

0-10V

Louver & Lens

50x50°

<19

L1208mm

37.1W

3504lm

90+

4000K

DALI

Luminaire: LUZ acoustic,    Optical: Louver & Lens=6sets,     Efficiency: 105lm/W,    LED: Cree,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

35x70°

<19

L1208mm

36.0W

3780lm

80+

3000K

On-Off

Louver & Lens

35x70°

<19

L1208mm

37.1W

3780lm

80+

3000K

0-10V

Louver & Lens

35x70°

<19

L1208mm

37.1W

3780lm

80+

3000K

DALI

Louver & Lens

35x70°

<19

L1208mm

36.0W

3402lm

90+

3000K

On-Off

Louver & Lens

35x70°

<19

L1208mm

37.1W

3402lm

90+

3000K

0-10V

Louver & Lens

35x70°

<19

L1208mm

37.1W

3402lm

90+

3000K

DALI

Louver & Lens

35x70°

<19

L1208mm

36.0W

3893lm

80+

4000K

On-Off

Louver & Lens

35x70°

<19

L1208mm

37.1W

3893lm

80+

4000K

0-10V

Louver & Lens

35x70°

<19

L1208mm

37.1W

3893lm

80+

4000K

DALI

Louver & Lens

35x70°

<19

L1208mm

36.0W

3504lm

90+

4000K

On-Off

Louver & Lens

35x70°

<19

L1208mm

37.1W

3504lm

90+

4000K

0-10V

Louver & Lens

35x70°

<19

L1208mm

37.1W

3504lm

90+

4000K

DALI


  • Previous:
  • Next:

    • SSH-LUZ-RL SPECIFICATIONS
      SSH-LUZ-RL SPECIFICATIONS
      SSH-LUZ-RL SPECIFICATIONS
      SSH-LUZ-RL SPECIFICATIONS
    • 02-U5085 Pendant Installation
      02-U5085 Pendant Installation
      02-U5085 Pendant Installation
      02-U5085 Pendant Installation
  • Write your message here and send it to us

    CONTACT

    • facebook (2)
    • youtube (1)
    • linkedin
