• SSH-HONG 7590 Versatile Acoustic Bell-Shaped LED Lighting with Direct and Indirect Illumination Options for Enhanced Lighting Solutions

SSH-HONG 7590 Versatile Acoustic Bell-Shaped LED Lighting with Direct and Indirect Illumination Options for Enhanced Lighting Solutions

Short Description:

The SSH-HONG 7590 Direct & Indirect Bell-Shaped Lamp is a versatile lighting solution featuring both direct and indirect illumination options, designed to provide high sound absorption and reduce noise reverberation.

It offers a direct light angle of 85° and an indirect light angle of 105°. This lamp uses Nichia LED chips with a CRI of 80+ or 90+ and a color temperature of 4000K. Available in various finishes including white, black, and silver, it is designed for pendant installation with aircraft cable and boasts an IP22 and IK06 rating for durability.

Control options include on/off, 0-10V, and DALI. The lamp measures 800mm in length and consumes 15W for direct lighting and 5W for indirect lighting, delivering an efficacy of up to 100 lm/W.”


Product Detail

Download

Product Tags

Product Introduction

The Dual Lighting Angles lamp combines functionality with aesthetic appeal, offering both direct (85°) and indirect (105°) lighting to cater to diverse illumination needs, from focused tasks to ambient environments. Powered by high-quality Nichia LED chips, available in CRI 80+ or 90+, it maintains a consistent 4000K color temperature for enhanced color accuracy and visual comfort.

Designed with superior sound absorption capabilities, the lamp features panels that effectively minimize noise, making it ideal for settings requiring noise control like open-plan offices, meeting rooms, and public spaces. This dual functionality of lighting and sound management ensures a more comfortable and productive atmosphere.

We offer a comprehensive range of tests through our in-house Acoustics Lab, including NRC tests, E90 testing, and more, providing partners with detailed data and graphical representations promptly after each assessment.

Available in elegant finishes including white, black, and silver, the lamp seamlessly integrates into various interior design styles, adding a modern and sophisticated touch to any space. Its blend of innovative lighting technology and acoustic performance makes it a versatile choice for enhancing both functionality and ambiance in professional and public environments alike.

Feature

1, Dual Lighting Angles:

Provides direct (85°) and indirect (105°) lighting to ensure comprehensive illumination, enhancing both task and ambient lighting needs.

2, High-Quality LED Chips:

Utilizes Nichia LED chips, available in CRI 80+ or 90+, with a consistent 4000K color temperature for superior color accuracy and visual comfort.

3, High Sound Absorption:

Features panels with excellent sound absorption capabilities, making it ideal for environments where noise control is crucial, such as open-plan offices, meeting rooms, and public spaces. This combination of lighting and sound absorption creates a more comfortable and productive environment.

4Free Acoustical Testing Report Offer:

We offer a comprehensive range of tests through our in-house Acoustics Lab, including NRC tests, E90 testing, and more. Our commitment to transparency ensures that we provide our partners with detailed data and graphical presentations immediately after each test.

5, Elegant Finishes:

Available in white, black, and silver finishes, the lamp can seamlessly integrate into various interior design styles, adding a modern and sophisticated touch.

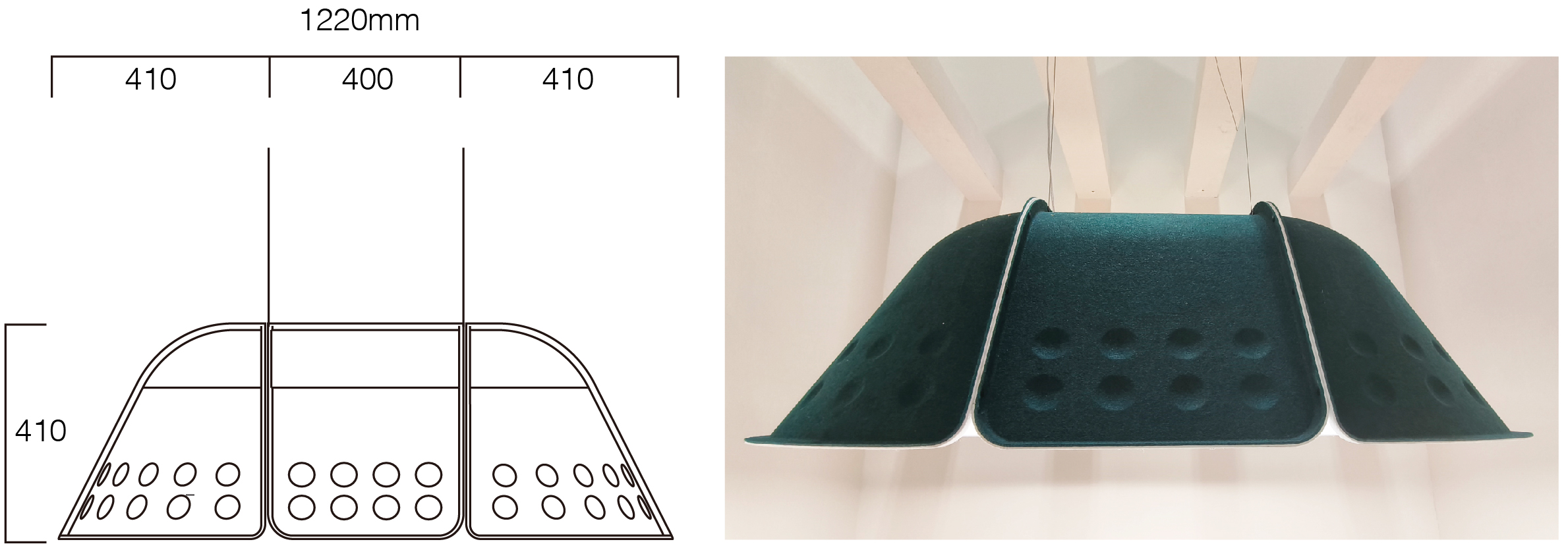

Size & Installation

2_画板 1

Finish

Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.

33_画板 1

Other 15 colors for option.

1231_画板 1

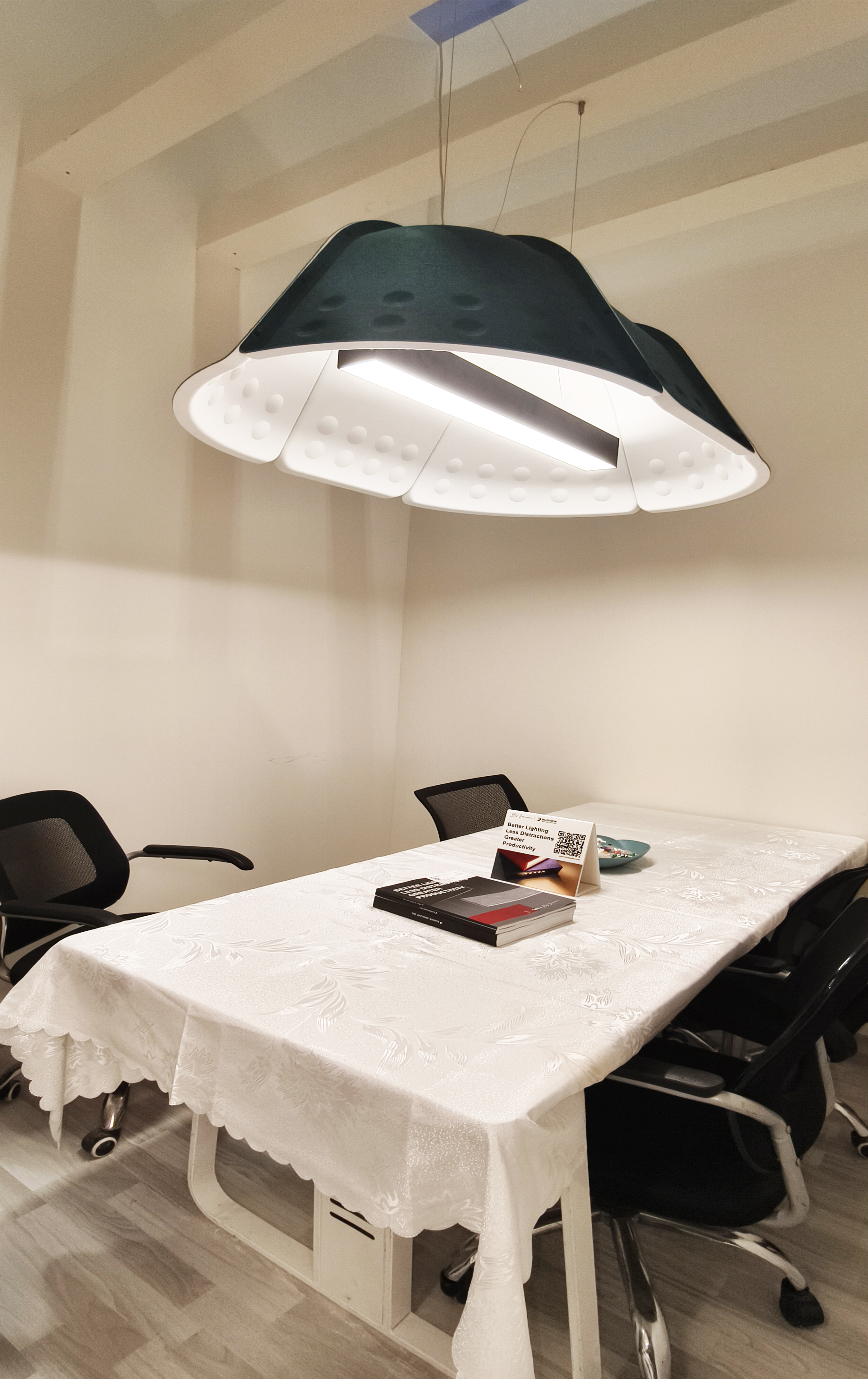

Range of Applications

Acoustic lights blend superior illumination with effective sound absorption, catering perfectly to environments that prioritize a comfortable workspace. Ideal for offices, restaurants, meeting rooms, educational institutions, healthcare facilities, theaters, museums, and beyond."

1 (46)

Specification

Model

SSH-7590

Input Vol.

220-240VAC

Optical

DirectP:Prismatic
Indirect:Diffuser

Power

20W

Beam Angle

Direct:85°,Indirect:105°

LED

2835 SMD

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<22

SDCM

<3

Dimension

L800 x W75 x H90mm

Lumen

2000lm/pc

IP

IP22

Efficiency

100lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-7590,   Optical: DirectP:Prismatic,Indirect:Diffuser,    Efficiency: 100lm/W,    LED: 2835 SMD,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

DIRECT

INDIRECT

POWER

LUMEN

RA

CCT

DIM

DirectP:Prismatic
Indirect:Diffuser

DirectP:85°
Indirect:105°

<22

L800mm

15.0W

1500lm

5.0W

500lm

20.0W

2000lm

90+

4000K

Dali,

0-10V,

on/off
