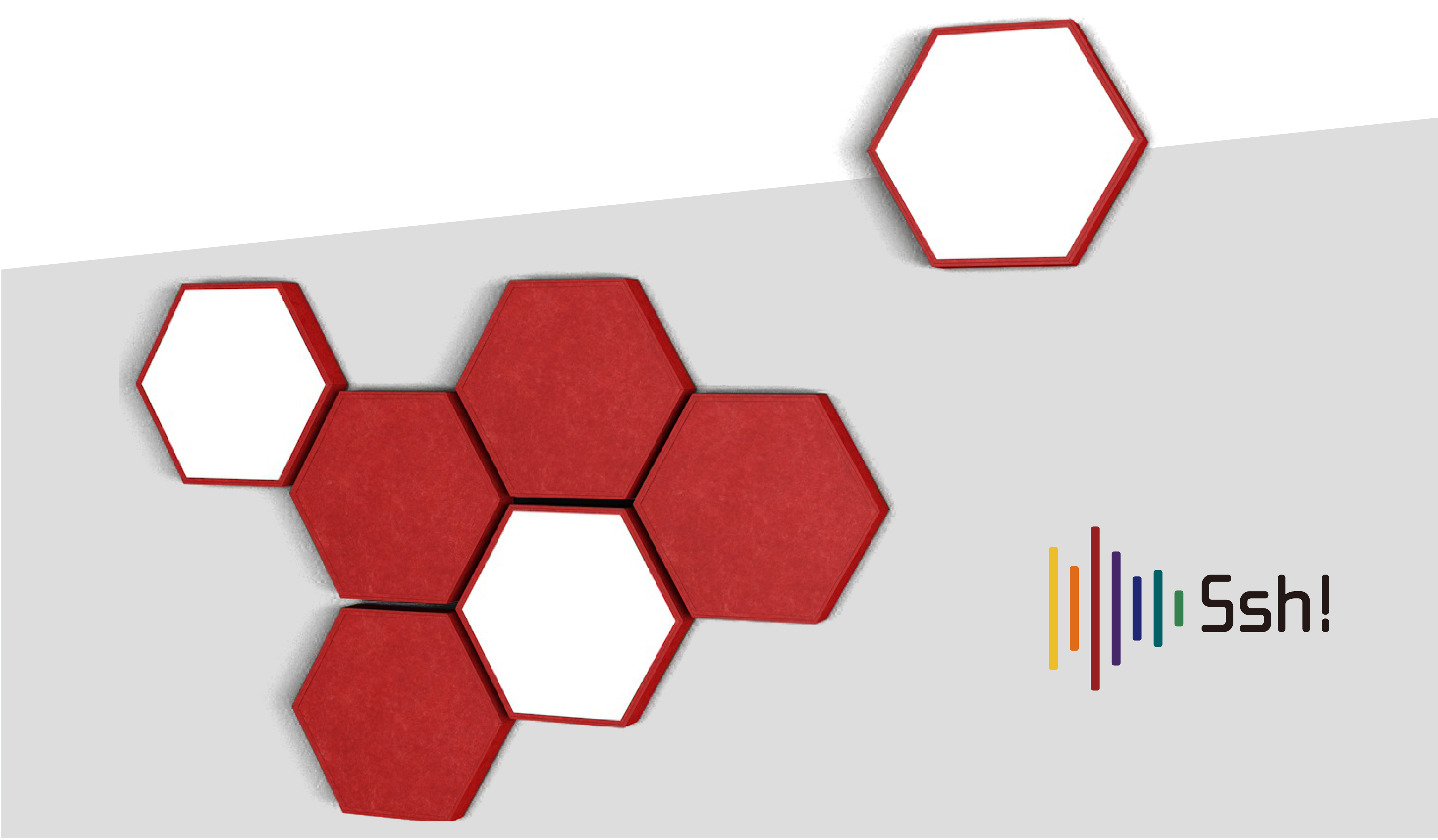

SSH-HEX Light Flexible installation Different Shape
Product Introduction

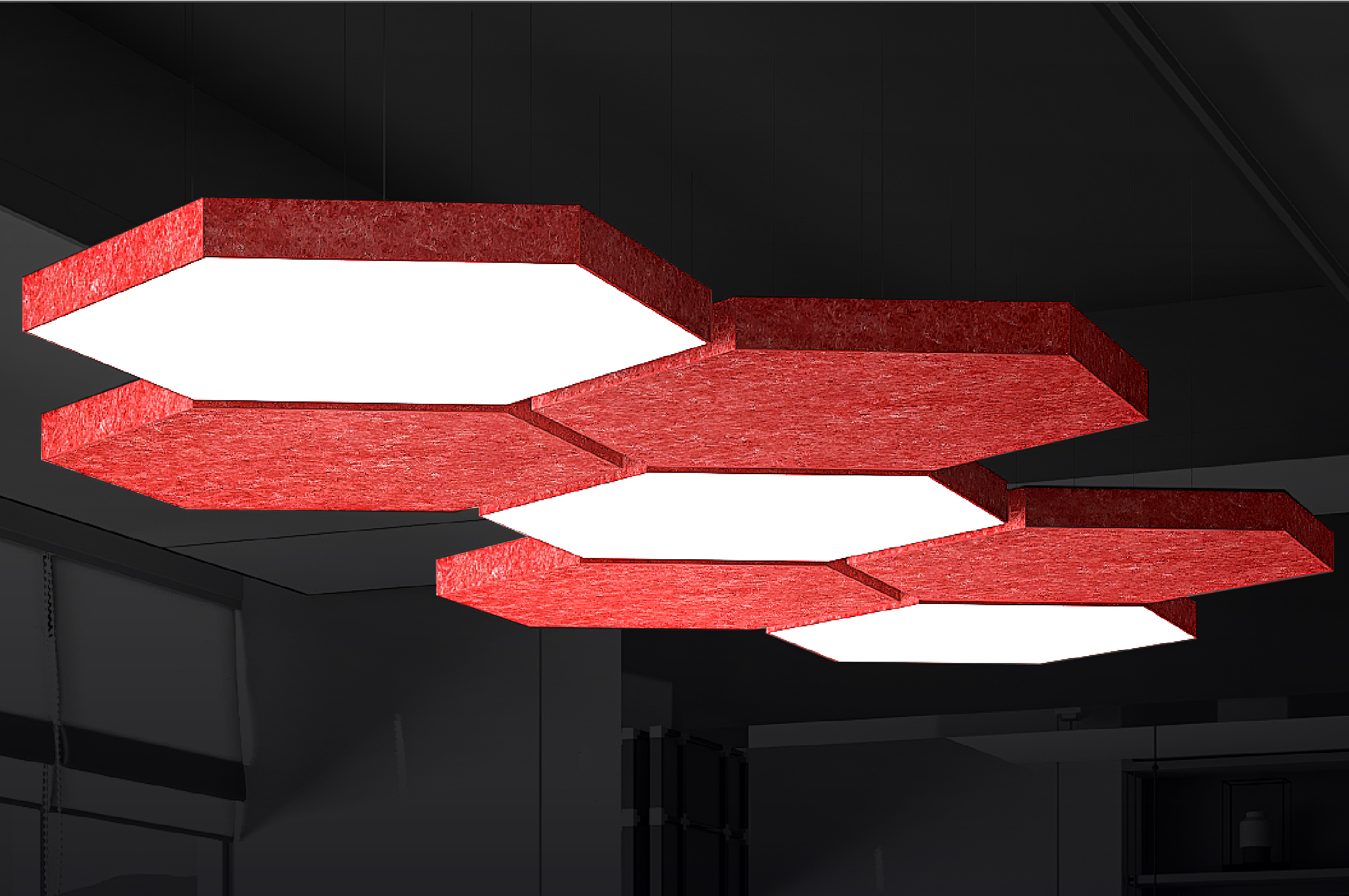

Ssh! Hex series system is ideal for open, multi-use or any interior spaces. It's a flexible system enable the optimization sound and light. Multi-installation in Sus-pendant, Ceiling Mounted, and wall Mounted. Our goal is offering the integrated solution for light & Sound, which will create a comfort Lighting environment, and also clear out the background noise, and deliver better acoustics to your room.
With an extensive range of LED options, including CRI95+, approximately 10 CCT choices from 1800K to 6500K, and diverse dimming methods (0-10V, DALI, DMX, Triac forward/Reverse Phase), our linear light offers both functional illumination and superb sound management, featuring NRC = 0.7 acoustic panels. Different sizes allow for two installation methods, type A and type B.
Furthermore, the SSH-HEX is equipped with an external driver and a patented bracket for connection, ensuring easy installation, maintenance, and effortless jointing for creating a seamless long line.
Feature
1. Customized Designs: Choose from 25 customizable acoustic colors.
2. Exceptional Color Rendering: Our lights ensure vivid color reproduction, enhancing your space's aesthetic, boasting a Color Rendering Index (CRI) above 95 and an R9 value surpassing 90.
3. Eco-friendly Materials: Dedicated to sustainability, our products are made from 100% recyclable, odorless materials, minimizing environmental impact.
4. Class A Fire Retardant: Emphasizing safety, our lights integrate Class A fire-retardant materials, providing an additional layer of security and peace of mind.
5, High Sound Absorption Performance in NRC = 0.7 panels, Excellent illumination performance.
6, Improved Work Environment: Elevate work and living comfort by reducing noise and introducing high-quality lighting. Improved lighting and sound control not only enhance work efficiency but also boost employee satisfaction.
7, Effortless Installation: Our Acoustic Lighting is designed for a seamless and hassle-free setup, featuring effortless installation and rapid field joints for continuous runs.

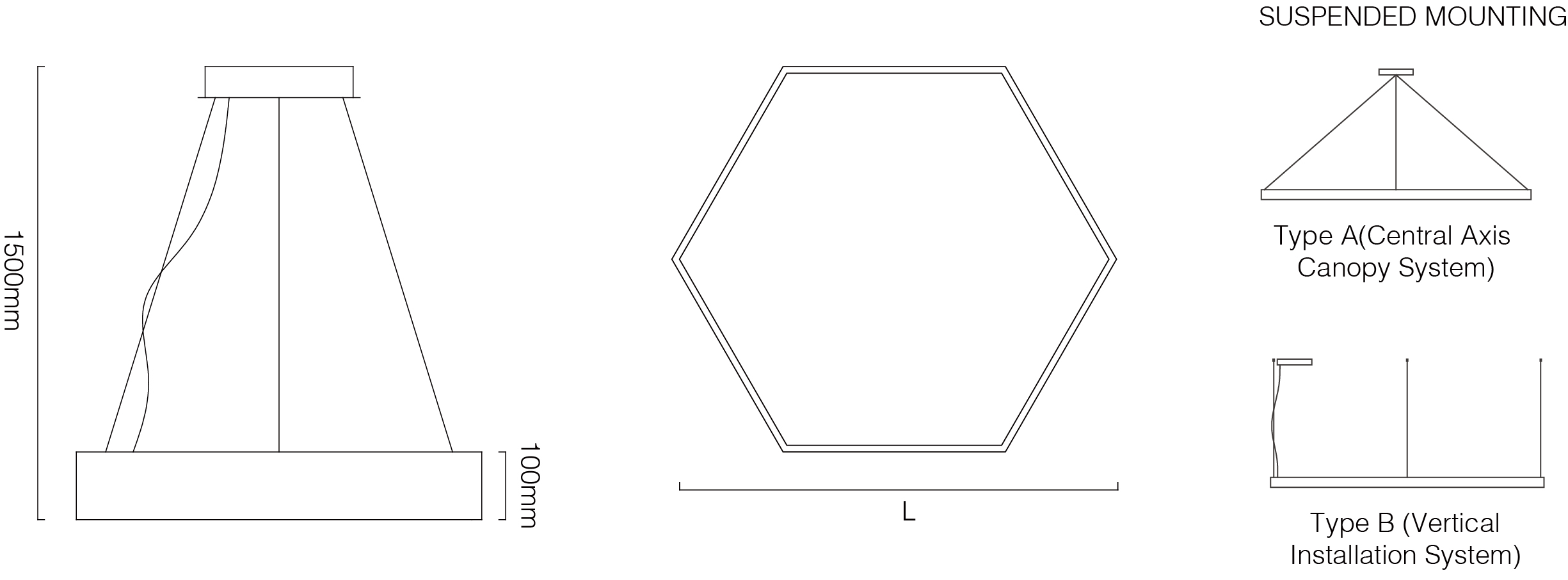

Size & Installation
Size:

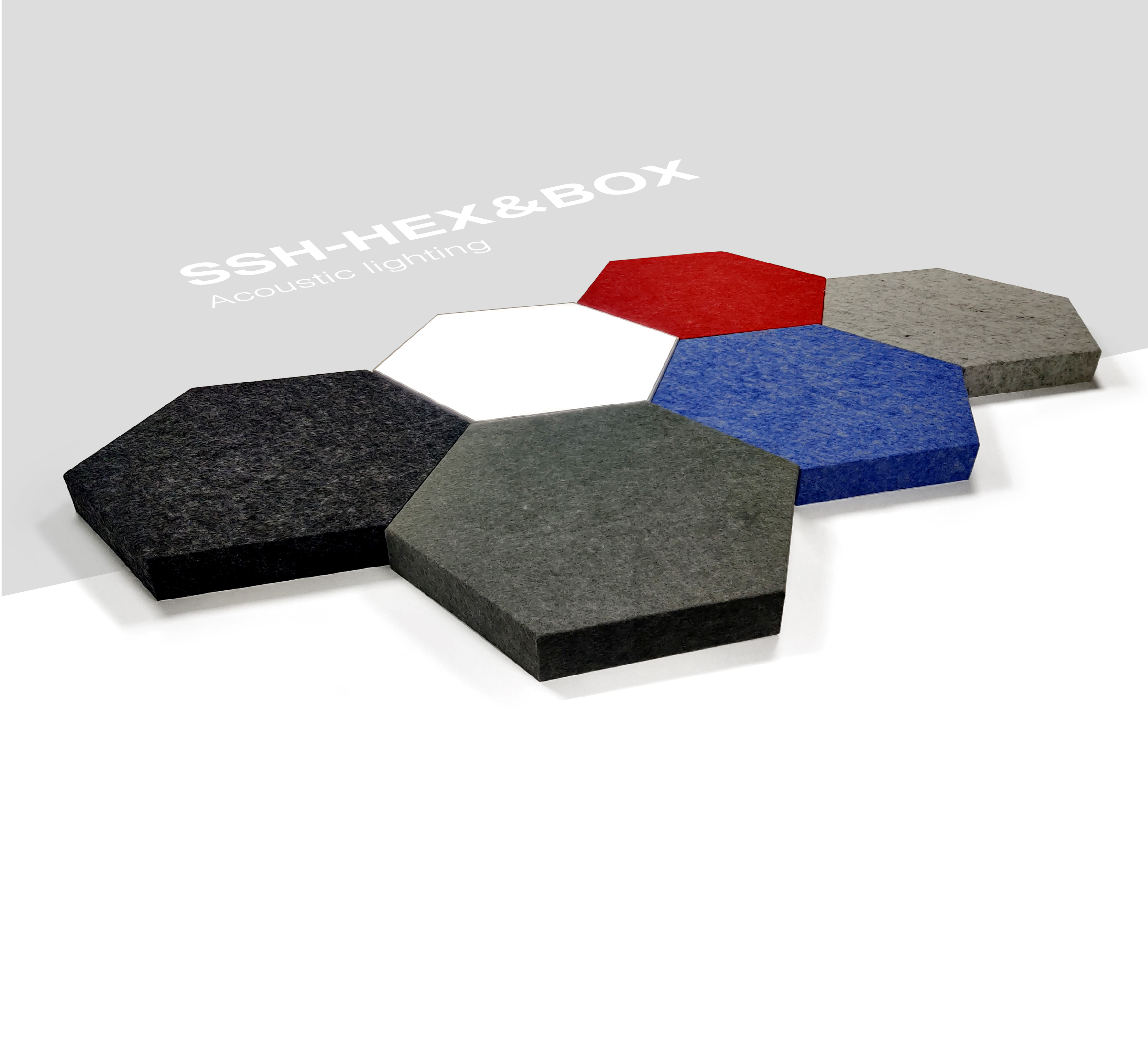

Finish
Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.
Other 15 colors for option.

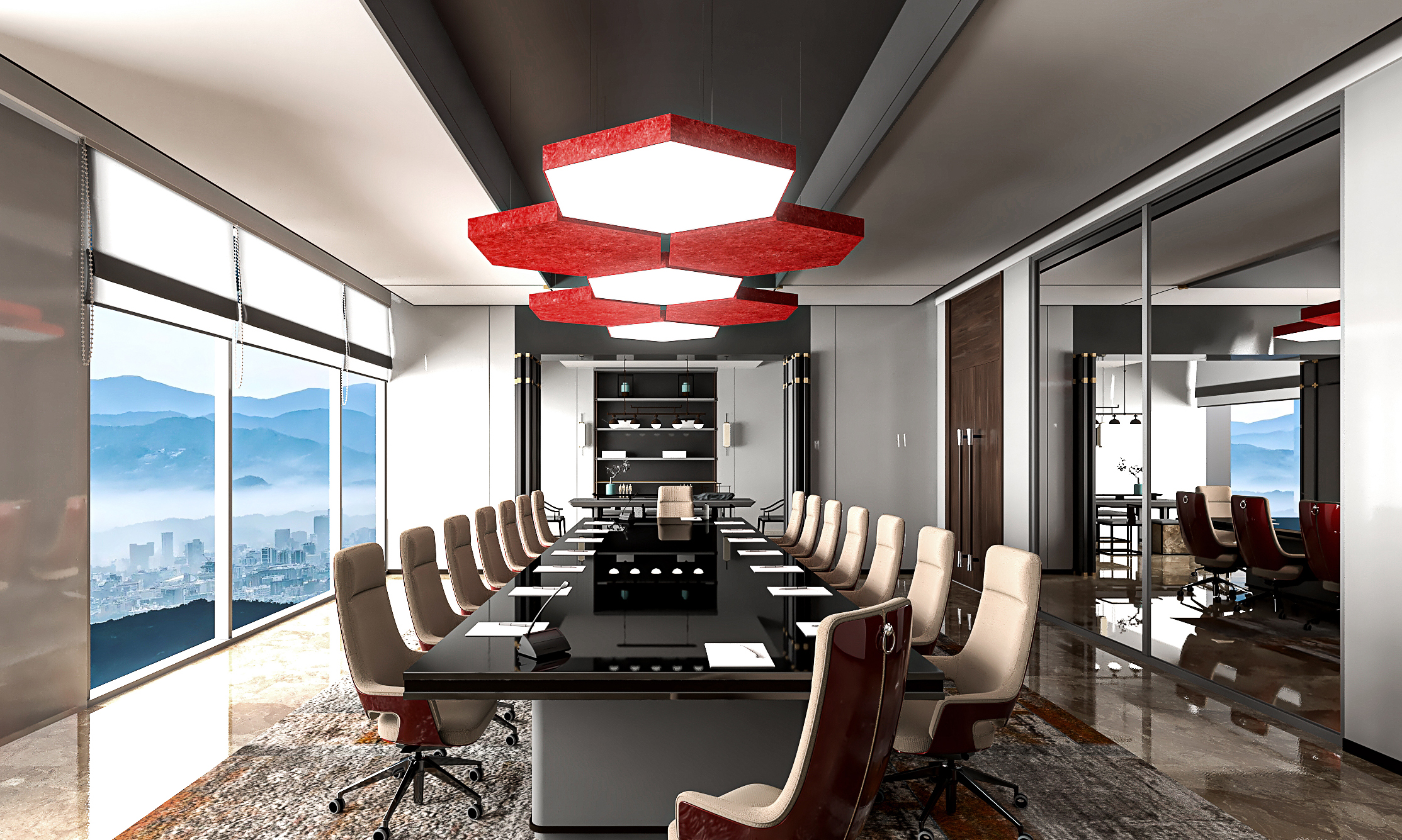

Range of Applications
Offering a versatile lighting solution, these sound-absorbing LED linear lights seamlessly blend quality illumination with effective sound absorption. Ideal for spaces requiring a pleasant working environment, such as offices, restaurants, meeting rooms, educational institutions, healthcare facilities, theaters, museums, and more.
Specification
| Model | SSH-HEX-4 | Input Vol. | 220-240VAC |
| Optical | PC Diffuser Lens | Power | 50W |
| Beam Angle | 105° | LED | SAMSUNG or OSRAM SMD2835 |
| UGR | <26 | SDCM | <3 |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| Dimension | L450 x W450 x H100mm | Lumen | 4500lm/pc |
| IP | IP22 | Efficiency | 90lm/W |
| Installation | Pendant | THD | <20% |
| Net Weight | / | Life Time L80B10 |
50,000hrs |
| Luminaire: SSH-HEX-4, Optical: PC lens, Efficiency: 90lm/W, LED: SAMSUNG, Driver: Mean Well | ||||||||
|
OPTICAL |
ANGLE |
UGR |
DIMENSION |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L450mm |
50.0W |
4500lm |
80+,90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L450mm |
50.0W |
4500lm |
80+,90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L450mm |
50.0W |
4500lm |
80+,90+ |
3000K |
DALI |
| Model | SSH-HEX-7 | Input Vol. | 220-240VAC |
| Optical | PC Diffuser Lens | Power | 72W |
| Beam Angle | 105° | LED | SAMSUNG or OSRAM SMD2835 |
| UGR | <26 | SDCM | <3 |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| Dimension | L745 x W745 x H100mm | Lumen | 6312lm/pc |
| IP | IP22 | Efficiency | 90lm/W |
| Installation | Pendant | THD | <20% |
| Net Weight | / | Life Time L80B10 |
50,000hrs |
| Luminaire: SSH-HEX-7, Optical: PC lens, Efficiency: 90lm/W, LED: SAMSUNG, Driver: Mean Well | ||||||||
|
OPTICAL |
ANGLE |
UGR |
DIMENSION |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L745mm |
72.0W |
6312lm |
80+,90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L745mm |
72.0W |
6312lm |
80+,90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L745mm |
72.0W |
6312lm |
80+,90+ |
3000K |
DALI |
| Model | SSH-HEX-12 | Input Vol. | 220-240VAC |
| Optical | PC Diffuser Lens | Power | 142W |
| Beam Angle | 105° | LED | SAMSUNG or OSRAM SMD2835 |
| UGR | <26 | SDCM | <3 |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| Dimension | L1200 x W1200 x H100mm | Lumen | 12365lm/pc |
| IP | IP22 | Efficiency | 90lm/W |
| Installation | Pendant | THD | <20% |
| Net Weight | / | Life Time L80B10 |
50,000hrs |
| Luminaire: SSH-HEX-12, Optical: PC lens, Efficiency: 90lm/W, LED: SAMSUNG, Driver: Mean Well | ||||||||
|
OPTICAL |
ANGLE |
UGR |
DIMENSION |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1200mm |
142.0W |
12365lm |
80+,90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1200mm |
142.0W |
12365lm |
80+,90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1200mm |
142.0W |
12365lm |
80+,90+ |
3000K |
DALI |
-
SSH-HEX Datasheet
