• SSH-HAO 5593 Versatile Acoustic Bell-Shaped LED Lamp with Direct and Indirect Lighting

SSH-HAO 5593 Versatile Acoustic Bell-Shaped LED Lamp with Direct and Indirect Lighting

Short Description:

The SSH-HAO 5593 Direct & Indirect Bell-Shaped Lamp combines a sleek, modern design with dual lighting options, while also featuring high sound absorption to reduce noise reverberation.

Available in white, black, and silver finishes, it offers a direct light angle of 12° and an indirect light angle of 24°.

Utilizing high-quality Nichia and Bridgelux 5050 LED chips, it delivers up to 3000 lumens with a CRI of 90+.

With dimensions of L1100mm x W55mm x H93mm and IP22 and IK06 ratings, this lamp is suitable for various indoor applications.

Control options include DALI, 0-10V, and on/off switches, ensuring versatile and efficient lighting management.


Product Detail

Download

Product Tags

Product Introduction

We provide a wide range of tests by our in-house Acoustics Lab, including NRC tests, E90 testing, and more. Our commitment to transparency means that we furnish our partners with detailed data and graphical presentations immediately after each test. The SSH-HAO 5593 lamp offers a high degree of customization, allowing you to choose from 25 different acoustic colors. This ensures that the lamp can be tailored to perfectly complement your interior design and aesthetic preferences, providing both functional and visual enhancement to any space.

The lamp provides a focused 12° beam angle for direct lighting, making it ideal for illuminating specific tasks or areas that require concentrated light. This feature ensures precision and clarity in lighting for workspaces, reading areas, or any task-oriented environment. With a 24° beam angle for indirect lighting, the lamp offers a broader and more ambient light distribution. This indirect illumination is perfect for creating a warm and inviting atmosphere, suitable for general lighting needs in living rooms, offices, and other communal spaces.

The lamp features panels with high sound absorption capabilities. This makes it an excellent choice for environments where noise control is important, such as open-plan offices, meeting rooms, and public spaces. The combination of sound absorption and lighting performance creates a more comfortable and productive environment. The SSH-HAO 5593 is designed to enhance the overall comfort of work and living environments. By reducing ambient noise and providing high-quality lighting, it helps to create a more pleasant atmosphere. This dual functionality not only improves work efficiency but also increases employee satisfaction, contributing to a healthier and more productive workspace.

Feature

1 Free Acoustical Testing report offer:

We provide a wide range of tests by our in-house Acoustics Lab, including NRC tests, E90 testing, and more. Our commitment to transparency means that we furnish our partners with detailed data and graphical presentations immediately after each test.

2, Customized Designs:

The SSH-HAO 5593 lamp offers a high degree of customization, allowing you to choose from 25 different acoustic colors. This ensures that the lamp can be tailored to perfectly complement your interior design and aesthetic preferences, providing both functional and visual enhancement to any space.

3, Dual Lighting Angles:

Direct Lighting (12°): The lamp provides a focused 12° beam angle for direct lighting, making it ideal for illuminating specific tasks or areas that require concentrated light. This feature ensures precision and clarity in lighting for workspaces, reading areas, or any task-oriented environment.

Indirect Lighting (24°): With a 24° beam angle for indirect lighting, the lamp offers a broader and more ambient light distribution. This indirect illumination is perfect for creating a warm and inviting atmosphere, suitable for general lighting needs in living rooms, offices, and other communal spaces.

4, High Sound Absorption:

The lamp features panels with high sound absorption capabilities. This makes it an excellent choice for environments where noise control is important, such as open-plan offices, meeting rooms, and public spaces. The combination of sound absorption and lighting performance creates a more comfortable and productive environment.

5, Improved Work Environment:

The SSH-HAO 5593 is designed to enhance the overall comfort of work and living environments. By reducing ambient noise and providing high-quality lighting, it helps to create a more pleasant atmosphere. This dual functionality not only improves work efficiency but also increases employee satisfaction, contributing to a healthier and more productive workspace.

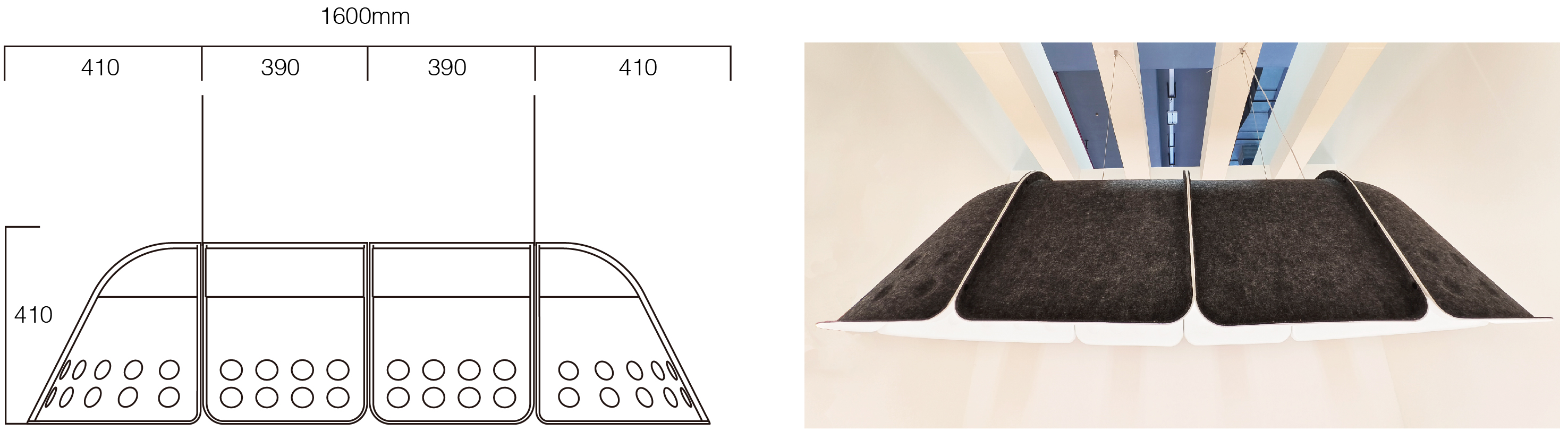

Size & Installation

未标题-1_画板 1

Finish

Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.

33_画板 1

Other 15 colors for option.

1231_画板 1

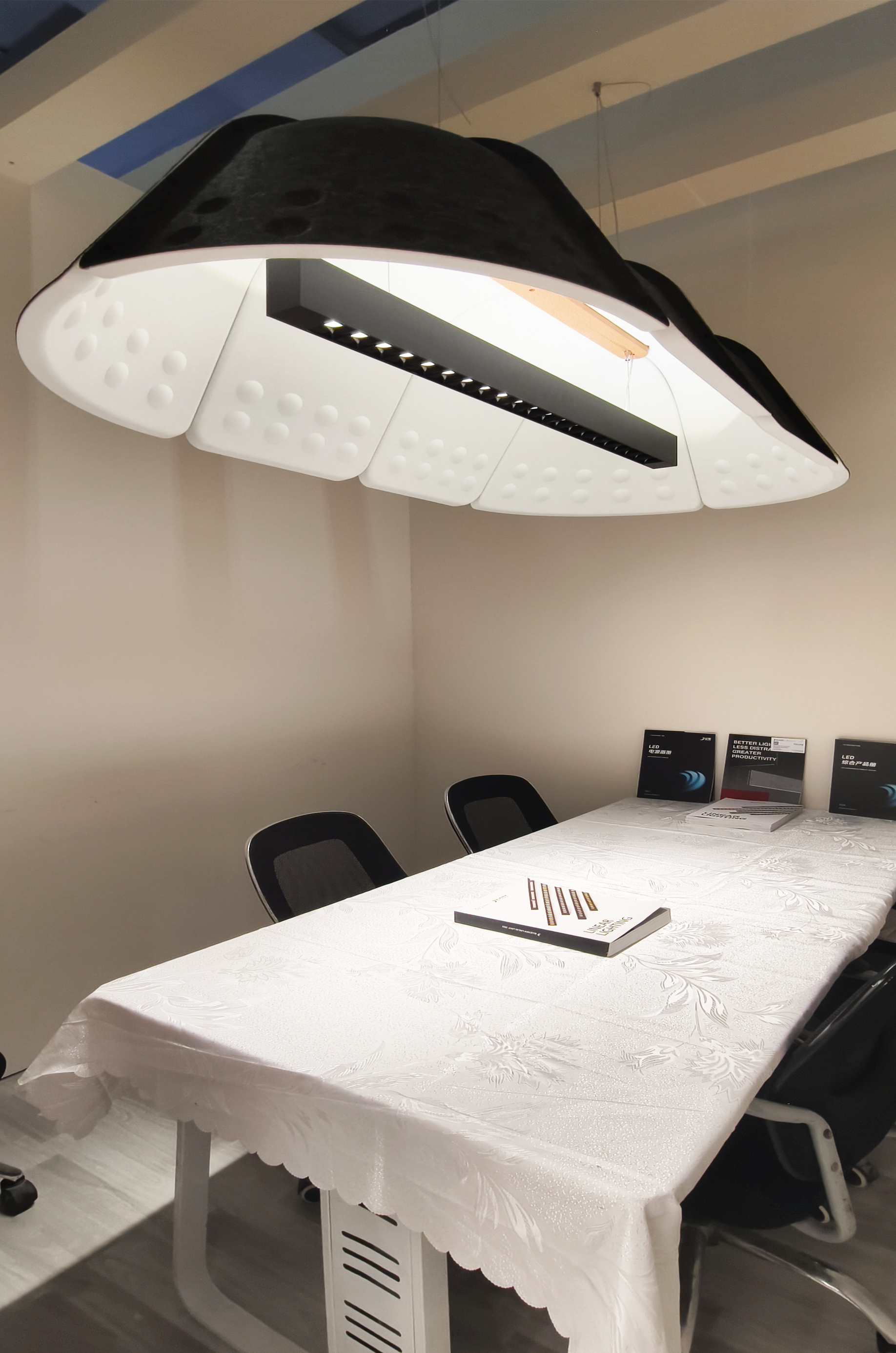

Range of Applications

Acoustic lights combine high-quality illumination with effective sound absorption, making them ideal for spaces where a pleasant working environment is essential. These lights are perfect for offices, restaurants, meeting rooms, educational institutions, healthcare facilities, theaters, museums, and more.

1 (36)

Specification

Model

SSH-5593

Input Vol.

220-240VAC

Optical

Louver & Reflector

Power

30W

Beam Angle

Direct:12°,Indirect:24°

LED

Bridgelux 5050

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1100 x W55 x H93mm

Lumen

3000lm/pc

IP

IP22

Efficiency

100lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-5593,   Optical: Louver & Reflector,    Efficiency: 100lm/W,    LED: Bridgelux,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

DIRECT

INDIRECT

POWER

LUMEN

RA

CCT

DIM

Louver & Reflector

Direct:12°

Indirect:24°

<19

L1100mm

20.0W

2000lm

10.0W

1000lm

30.0W

3000lm

90+

4000K

Dali

0-10V

on/off
