SSH-Double Color for Acoustic with Slim Luminaire

Short Description:

Discover the cutting-edge Acoustic Slim Lighting, featuring an ultra-slim width of just 16mm and customizable shapes with dual-color options.
This luminaire delivers direct lighting at a beam angle of 105°, providing excellent illumination with a high-quality LED system.

Send email to us

+86 -150 1296 2268（Ivy Chen）

+86 -132 2957 2611（Kelsie Liang）

ACOUSTICAL CALCULATOR TOOL

Product Detail

Download

Product Tags

Product Introduction

Introducing the Acoustic Slim Series, an innovative lighting solution that combines superior illumination with enhanced sound absorption. Designed for a wide range of environments including workspaces, entertainment venues, and homes, this series offers customizable shapes and dual-color options, creating a dynamic visual effect.

Crafted from 100% recyclable, fire-retardant, and odorless materials, the Acoustic Slim Series prioritizes sustainability and safety. With an ultra-slim design of just 16mm width, this luminaire fits effortlessly into any space, providing both aesthetic and functional lighting. The shape can be customized to meet the unique needs of your project.

The Acoustic Slim Series offers direct lighting with a beam angle of 105°, using a high-quality LED system with silicone and PC diffusers to ensure even and efficient light distribution.

Feature

1、Customized Designs: Choose from a diverse palette of 25 panel colors and customizable shapes for a personalized touch.
2、Slim Profile: Slim design with a width of just 35mm.
3、Superior Sound Absorption: Efficient sound absorption properties with an NRC rating of 0.7.
4、Exceptional Color Rendering: CRI over 95 with an R9 value surpassing 90, ensuring vibrant color reproduction.
5、Eco-friendly Materials: Constructed from 100% recyclable, fire-retardant, and odorless materials.
6、Wide Beam Angle: Different options for the cover
7、High Luminous Efficiency: Ensures bright and energy-efficient lighting.
8、Easy Installation: Designed for effortless setup with clear installation guides provided.

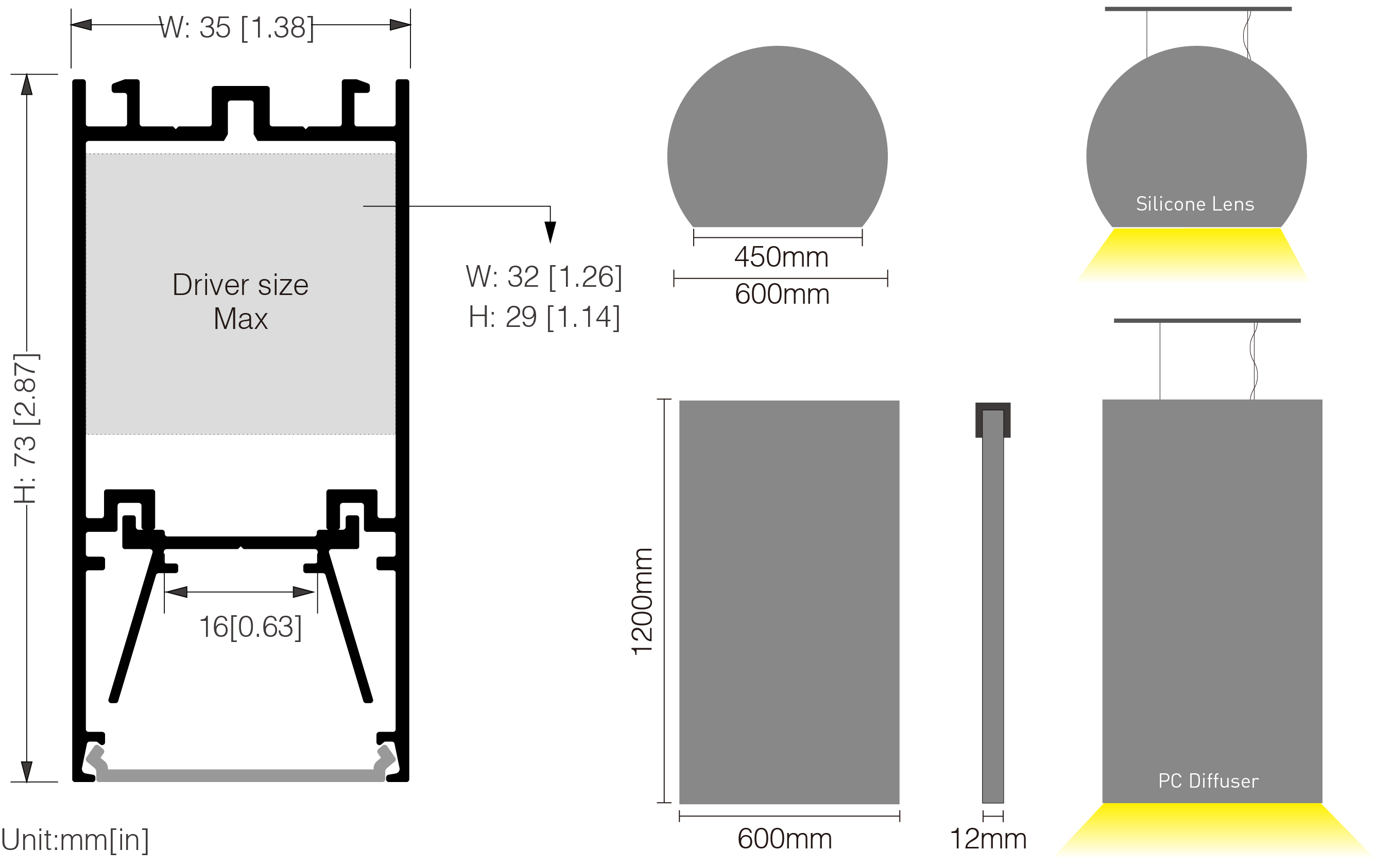

Size & Installation

Finish

Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.

Other 15 colors for option.

Range of Applications

The Acoustic Slim Series is ideal for offices, restaurants, meeting rooms, educational institutions, healthcare facilities, theaters, museums, and any space where combining superior lighting with effective sound absorption is essential.

Specification

Model	SSH-SLIM	Input Vol.	220-240VAC
Optical	Silicone Lens	Power	10.5W
Beam Angle	105°	LED	2835 SMD
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<24	SDCM	<3
Dimension	L450 x W35 x H72mm	Lumen	1050lm/pc
IP	IP22	Efficiency	100lm/W
Installation	Pendant	Life Time L80B10	50,000hrs
Net Weight	/	THD	<20%

Luminaire: SSH-SLIM, Optical: Silicone Lens, Efficiency: 100lm/W, LED: 2835 SMD, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	POWER	LUMEN	RA	CCT	DIM
Silicone Lens	105°	<24	L450mm	10.5W	1050lm	90+	4000K	Dali, 0-10V, on/off

Model	SSH-SLIM	Input Vol.	220-240VAC
Optical	PC Diffuser	Power	15.0W
Beam Angle	105°	LED	2835 SMD
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<24	SDCM	<3
Dimension	L600 x W35 x H72mm	Lumen	1500lm/pc
IP	IP22	Efficiency	100lm/W
Installation	Pendant	Life Time L80B10	50,000hrs
Net Weight	/	THD	<20%

Luminaire: SSH-SLIM, Optical: PC Diffuser, Efficiency: 100lm/W, LED: 2835 SMD, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	POWER	LUMEN	RA	CCT	DIM
PC Diffuser	105°	<24	L600mm	15.0W	1500lm	90+	4000K	Dali, 0-10V, on/off
