SSH-DOM ROUND DOWN LIGHTING

Short Description:

Introducing the Acoustic Down Light, a versatile and customizable lighting solution that combines superior illumination with effective sound absorption.

Available in various shapes and customizable in dual colors, this fixture enhances the aesthetic and acoustic quality of any space.

Send email to us

+86 -150 1296 2268（Ivy Chen）

+86 -132 2957 2611（Kelsie Liang）

ACOUSTICAL CALCULATOR TOOL

Product Detail

Download

Product Tags

Product Introduction

The Acoustic Down Light offers an innovative approach to lighting by seamlessly integrating superior illumination and sound absorption. Available in multiple customizable shapes, this luminaire is designed to fit any interior space while providing an aesthetic appeal with its dual-color options, adding a unique visual layer to your design.

Crafted with precision, the Acoustic Down Light features a single downlight with a beam angle of 105°, ensuring focused and efficient lighting. The advanced acoustic materials used in this fixture significantly reduce background noise, creating a more comfortable and productive environment.

Ideal for various applications, this luminaire is perfect for offices, restaurants, meeting rooms, educational institutions, healthcare facilities, theaters, and museums.

Feature

1、Customized Designs: Available in various shapes, adding a unique and aesthetic appeal.

2、Superior Illumination: Provides efficient downlighting with a 24° beam angle.

3、Effective Sound Absorption: Made from high-quality acoustic materials that significantly reduce background noise.

4、Eco-friendly Materials: Constructed from 100% recyclable and odorless materials, minimizing environmental impact.

5、Class A Fire Retardant: Incorporates Class A fire-retardant materials, ensuring an added layer of safety.

6、Improved Work Environment: Enhances both work and living environments by reducing noise and providing high-quality lighting, boosting efficiency and satisfaction.

7、Effortless Installation: Designed for easy installation, making setup seamless and hassle-free.

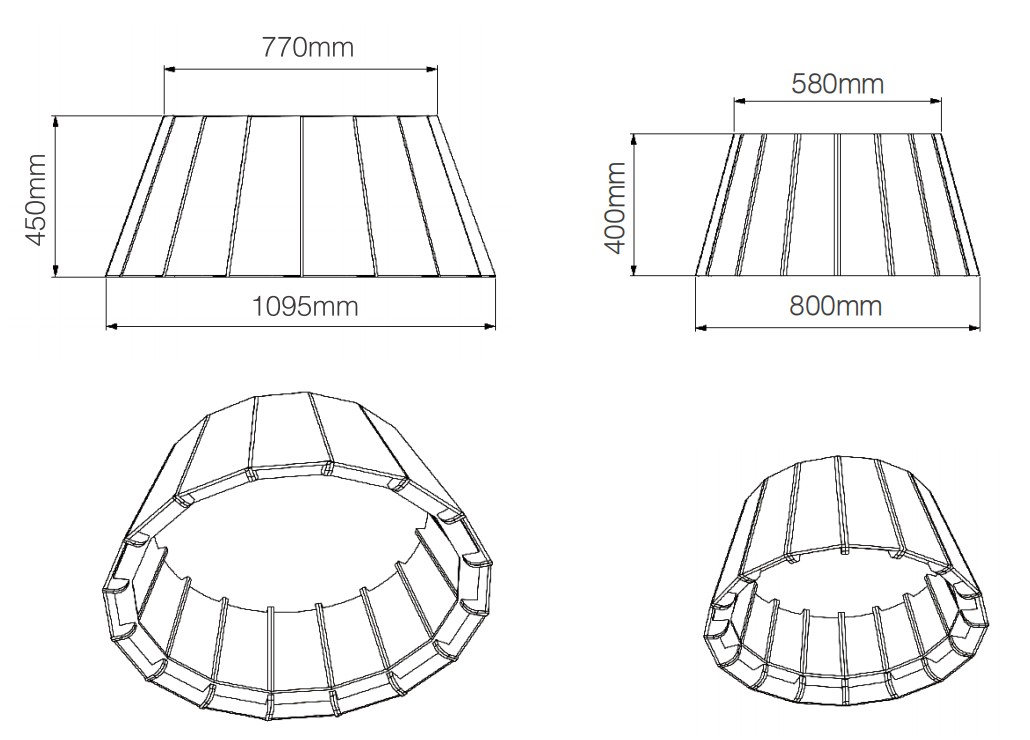

Size & Installation

Finish

Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.

Other 15 colors for option.

Range of Applications

This versatile lighting solution is ideal for spaces that require a pleasant working environment, such as offices, restaurants, meeting rooms, educational institutions, healthcare facilities, theaters, museums, and more. The combination of quality illumination and effective sound absorption makes it an excellent choice for any interior space.

Specification

Model	SSH-DOM	Input Vol.	220-240VAC
Optical	PC Diffuser	Power	40W
Beam Angle	90°	LED	2835 SMD
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<22	SDCM	<3
Dimension	Φ400mm	Lumen	3160lm/pc
IP	IP22	Efficiency	80lm/W
Installation	Pendant	Life Time L80B10	50,000hrs
Net Weight	/	THD	<20%

Luminaire: SSH-DOM, Optical: PC Diffuser, Efficiency: 80lm/W, LED: 2835 SMD, Driver: Lifud
OPTICAL	ANGLE	UGR	DIMENSION	POWER	LUMEN	RA	CCT	DIM
PC Diffuser	90°	<22	Φ400mm	40W	3160lm	90+	4000K	Dali, 0-10V, on/off

Model	SSH-DOM	Input Vol.	220-240VAC
Optical	PC Diffuser	Power	60W
Beam Angle	90°	LED	2835 SMD
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<22	SDCM	<3
Dimension	Φ600mm	Lumen	4740lm/pc
IP	IP22	Efficiency	80lm/W
Installation	Pendant	Life Time L80B10	50,000hrs
Net Weight	/	THD	<20%

Luminaire: SSH-DOM, Optical: PC Diffuser, Efficiency: 80lm/W, LED: 2835 SMD, Driver: Lifud
OPTICAL	ANGLE	UGR	DIMENSION	POWER	LUMEN	RA	CCT	DIM
PC Diffuser	90°	<22	Φ600mm	60W	4740lm	90+	4000K	Dali, 0-10V, on/off
