SSH-DOM Light Suspended mounting different size and shape

Short Description:

This Acoustic Dom light Luminaire and Box, there are five diameter sizes to choose from 450 to 1200mm, and the lumen can reach a maximum of 12000lm.

Choose from an array of 25 panel colors, personalize your lighting further with a variety of LED options, including CRI95+ and 90+, available in approximately 10 CCT options ranging from 1800K to 6500K, dual White, and Tunable White. Experience versatile dimming methods like 0-10V, DALI, and 0-10v for complete lighting control.


Product Detail

Download

Product Tags

Product Introduction

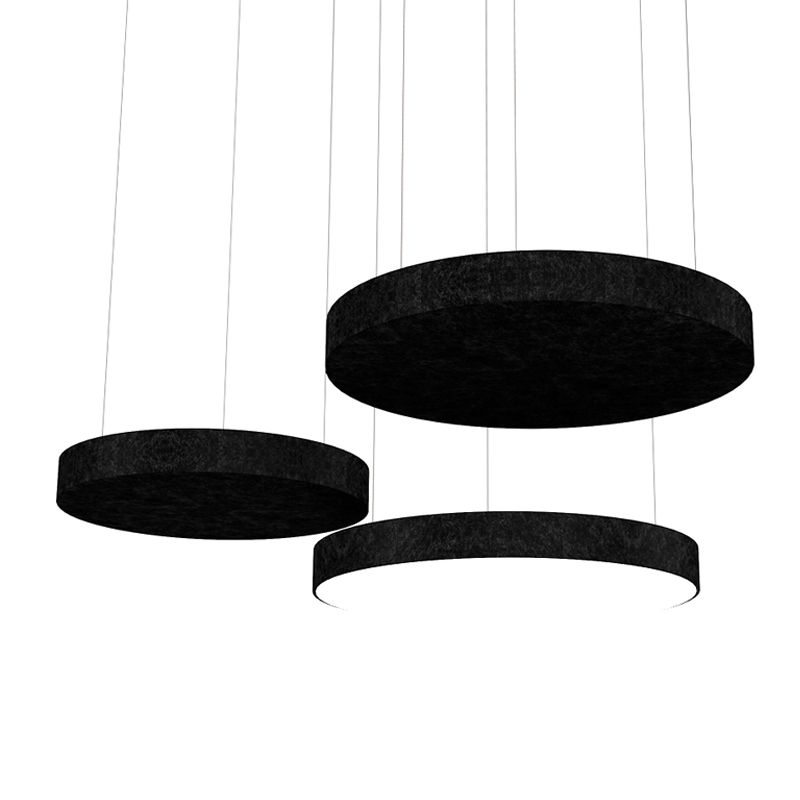

333

The SSH-Dom Series, an engineering-designed acoustic lighting, is transforming the way people experience work, worship, entertainment, and home environments. Through a suite of sound absorption and soundproofing solutions, this series offers a wide range of design options, including 4x8ft (1.22x2.44m) acoustic panels, crafted from 100% recyclable, fire-retardant, and odorless materials. Not only does this acoustic LED lighting enhance your space, but it also contributes to a greener planet.

Featuring more LED options in CRI95+, around 10 CCT options from 1800K to 6500K, and various dimming methods (0-10V, DALI, DMX, Triac forward/Reverse Phase), the linear light provides both functional illumination and excellent sound management with NRC = 0.7 acoustic panels. Two installation methods, type A and type B, are available based on different sizes.

Moreover, the SSH-DOM comes with an external driver, patented bracket for connection, ensuring easy installation, maintenance, and effortless joint to create a long line.

Feature

1. Customized Designs: 25 options acoustic colors can be customized.

2. Exceptional Color Rendering: Our lights guarantee precise and vibrant color reproduction, elevating your space's visual appeal, with a Color Rendering Index (CRI) surpassing 95 and an R9 value exceeding 90.

3. Eco-friendly Materials: Committed to sustainability, our products are crafted from 100% recyclable and odorless materials, minimizing their environmental footprint.

4. Class A Fire Retardant: Prioritizing safety, our lights incorporate Class A fire-retardant materials, ensuring an added layer of security and peace of mind.

5, High Sound Absorption Performance in NRC = 0.7 panels, Excellent illumination performance.

6, Improved Work Environment: Enhanced comfort in work and living spaces is achieved through reduced noise and high-quality lighting. Improved lighting and sound control not only contribute to higher work efficiency but also elevate employee satisfaction.

7, Effortless Installation: Designed for effortless installation and rapid field joints for continuous runs, our Acoustic Lighting ensures a seamless and hassle-free setup.

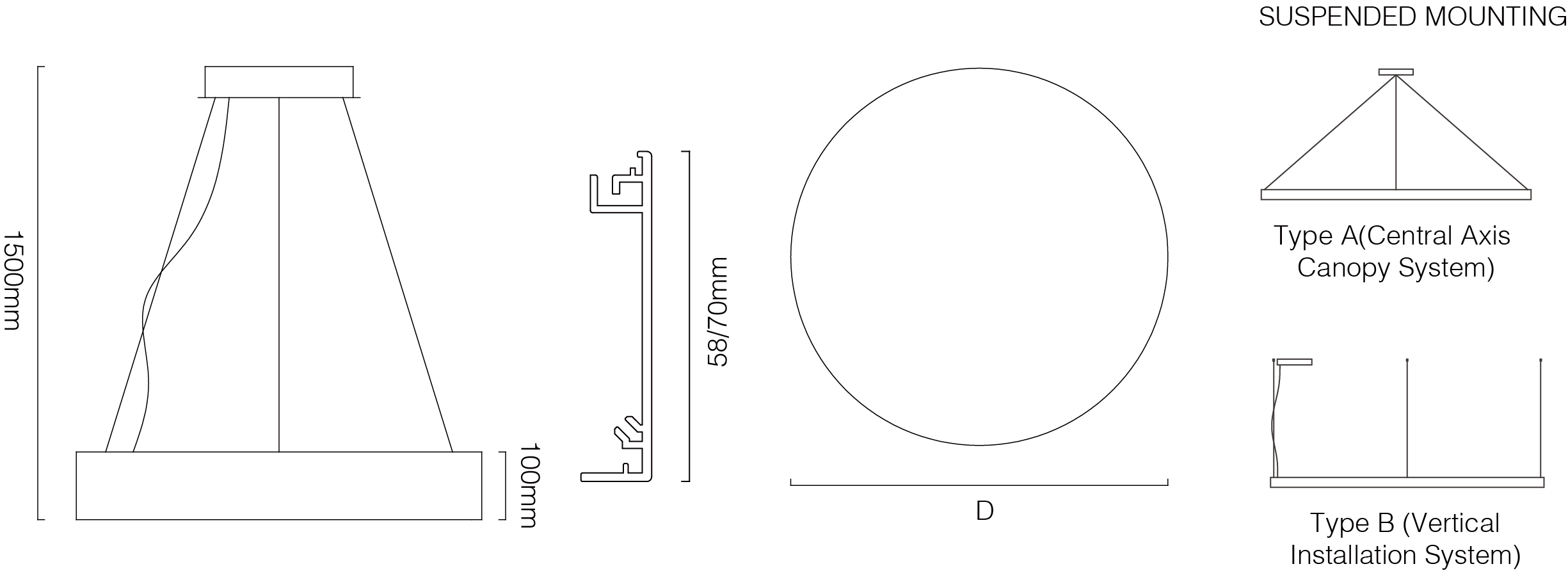

Size & Installation

Size:

尺寸_画板 1

Finish

Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.

33_画板 1

Other 15 colors for option.

1231_画板 1

Range of Applications

These sound-absorbing LED linear lights offer a versatile lighting solution, seamlessly combining quality illumination with effective sound absorption.

They are suitable for spaces where creating a pleasant working environment is essential, such as Offices, Restaurants, Meeting rooms, Educational Institutions, Healthcare, Theater, Museums, etc.

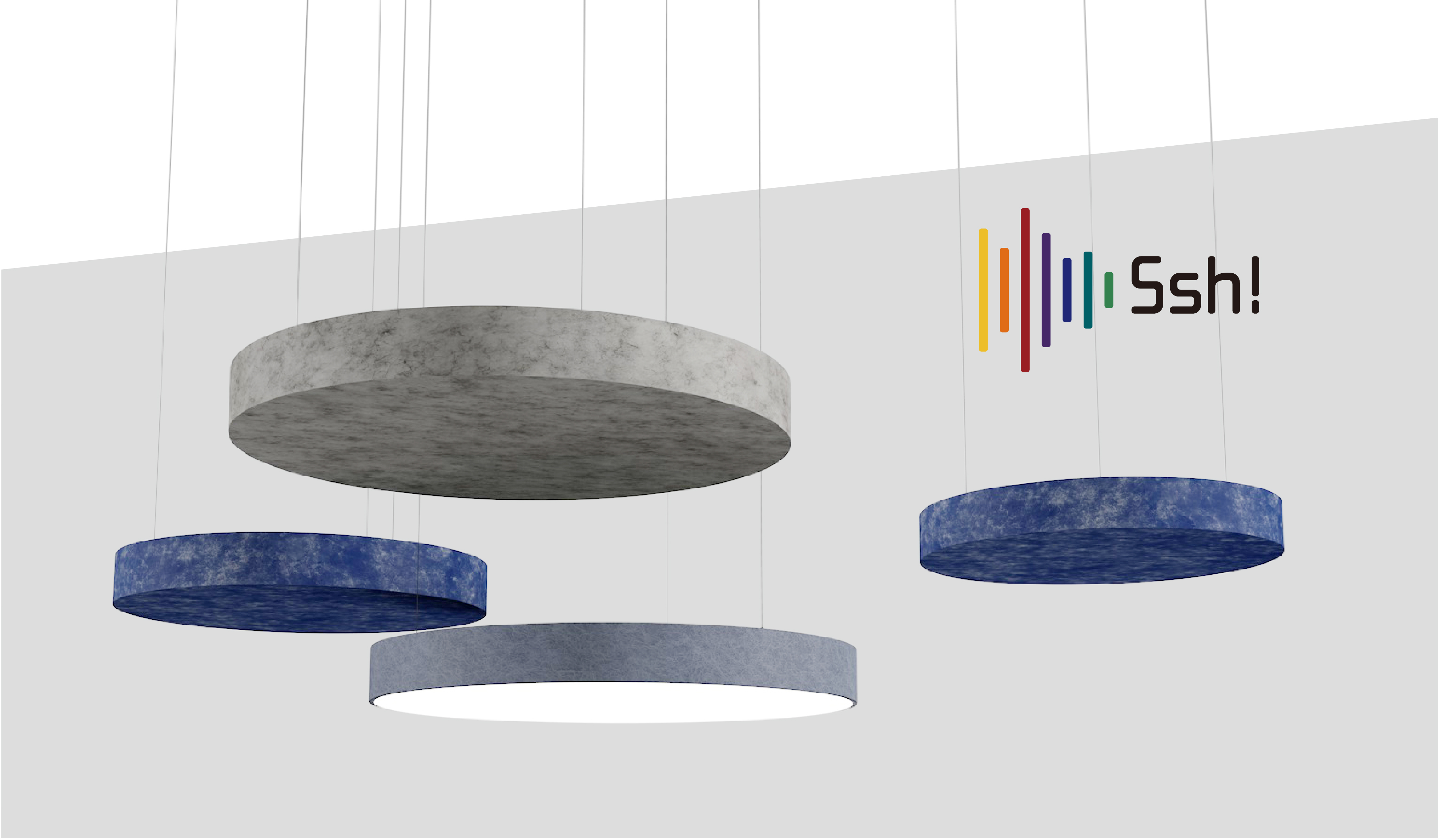

66_画板 1

Specification

Model SSH-DOM-4 Input Vol. 220-240VAC
Optical PC Diffuser Lens Power 40W
Beam Angle 105° LED SAMSUNG or OSRAM SMD2835
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ450mm Lumen 3164lm/pc
IP IP22 Efficiency 90lm/W
Installation Pendant THD <20%
Net Weight  / Life Time
L80B10
50,000hrs
Luminaire: SSH-DOM-4,             Optical: PC lens,              Efficiency: 90lm/W,            LED: SAMSUNG,         Driver: Mean Well

OPTICAL

ANGLE

UGR

 DIMENSION

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

Φ450mm

40.0W

3164lm

80+,90+

3000K

On-Off

PC Diffuser Lens

105°

<26

Φ450mm

40.0W

3164lm

80+,90+

3000K

0-10V

PC Diffuser Lens

105°

<26

Φ450mm

40.0W

3164lm

80+,90+

3000K

DALI

Model SSH-DOM-6 Input Vol. 220-240VAC
Optical PC Diffuser Lens Power 60W
Beam Angle 105° LED SAMSUNG or OSRAM SMD2835
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ600mm Lumen 4765lm/pc
IP IP22 Efficiency 90lm/W
Installation Pendant THD <20%
Net Weight  / Life Time
L80B10
50,000hrs
Luminaire: SSH-DOM-6,             Optical: PC lens,              Efficiency: 90lm/W,            LED: SAMSUNG,         Driver: Mean Well

OPTICAL

ANGLE

UGR

 DIMENSION

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

Φ600mm

60.0W

4765lm

80+,90+

3000K

On-Off

PC Diffuser Lens

105°

<26

Φ600mm

60.0W

4765lm

80+,90+

3000K

0-10V

PC Diffuser Lens

105°

<26

Φ600mm

60.0W

4765lm

80+,90+

3000K

DALI

Model SSH-DOM-7 Input Vol. 220-240VAC
Optical PC Diffuser Lens Power 72W
Beam Angle 105° LED SAMSUNG or OSRAM SMD2835
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ750mm Lumen 6048lm/pc
IP IP22 Efficiency 90lm/W
Installation Pendant THD <20%
Net Weight  / Life Time
L80B10
50,000hrs
Luminaire: SSH-DOM-7,             Optical: PC lens,              Efficiency: 90lm/W,            LED: SAMSUNG,         Driver: Mean Well

OPTICAL

ANGLE

UGR

 DIMENSION

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

Φ750mm

72.0W

6048lm

80+,90+

3000K

On-Off

PC Diffuser Lens

105°

<26

Φ750mm

72.0W

6048lm

80+,90+

3000K

0-10V

PC Diffuser Lens

105°

<26

Φ750mm

72.0W

6048lm

80+,90+

3000K

DALI

Model SSH-DOM-9 Input Vol. 220-240VAC
Optical PC Diffuser Lens Power 92W
Beam Angle 105° LED SAMSUNG or OSRAM SMD2835
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ900mm Lumen 9635lm/pc
IP IP22 Efficiency 90lm/W
Installation Pendant THD <20%
Net Weight  / Life Time
L80B10
50,000hrs
Luminaire: SSH-DOM-9,             Optical: PC lens,              Efficiency: 90lm/W,            LED: SAMSUNG,         Driver: Mean Well

OPTICAL

ANGLE

UGR

 DIMENSION

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

Φ900mm

92.0W

9635lm

80+,90+

3000K

On-Off

PC Diffuser Lens

105°

<26

Φ900mm

92.0W

9635lm

80+,90+

3000K

0-10V

PC Diffuser Lens

105°

<26

Φ900mm

92.0W

9635lm

80+,90+

3000K

DALI

Model SSH-DOM-12 Input Vol. 220-240VAC
Optical PC Diffuser Lens Power 140W
Beam Angle 105° LED SAMSUNG or OSRAM SMD2835
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ1200mm Lumen 12363lm/pc
IP IP22 Efficiency 90lm/W
Installation Pendant THD <20%
Net Weight  / Life Time
L80B10
50,000hrs
Luminaire: SSH-DOM-12,             Optical: PC lens,              Efficiency: 90lm/W,            LED: SAMSUNG,         Driver: Mean Well

OPTICAL

ANGLE

UGR

 DIMENSION

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

Φ1200mm

140.0W

12363lm

80+,90+

3000K

On-Off

PC Diffuser Lens

105°

<26

Φ1200mm

140.0W

12363lm

80+,90+

3000K

0-10V

PC Diffuser Lens

105°

<26

Φ1200mm

140.0W

12363lm

80+,90+

3000K

DALI
