SLIM-TRIMED RECESSED CONE LOUVER LINEAR LIGHT
Product Introduction
Our Slim Series, a revolutionary lighting solution meticulously designed to enhance any space with a seamless blend of style and functionality.
Featuring a sleek and slender design measuring just 35x72mm, our fixtures are available in lengths of 1200mm, 1500mm, or customizable options, providing unmatched flexibility to meet your specific needs.
Dive into a world of endless possibilities with our wide range of lens options, including Crystal Louver, Silicone&PC Diffuser, TIR Lens, Cone Louver, Nickle Louver, Wall Washer, and Reflector Louver, ensuring the perfect lighting effect for any application.
Control your lighting environment effortlessly with our Dimmable technology, offering On-Off, 0-10V, and DALI options to tailor the ambiance to your preference.
With easy installation options including Pendant, Surface Mounted, and Recessed Mounted, seamlessly integrate our Slim Series into any environment.
Experience unrivaled visual comfort with our UGR<19 rating, providing glare-free illumination for enhanced productivity and well-being.
Discover the pinnacle of style, versatility, and performance with our Slim Series, setting a new standard in modern lighting solutions.
Feature
1.Elegant design with internal driver by size in L1222/1522xW55xH73mm.
2.Optical options for Cone Louver(24°/38°).
3.More lighting options in 80+ or 90+ Ra, white color from 3000K/4000K.
4.More dimming/controlling options by Dali,0/1-10V, On/Off.
5.Pendant, Surface mounted, Recessed Mounted installation.
6.Gapless Joining in Filed.
7.Designed and engineered with the architectural specifier in mind.
Size & Installation
Finish
Classic White textured, sleek Black textured powder coating, and sophisticated Silver anodized.
But that's just the beginning. Unlock your creativity with our Customized service, offering an impressive array of up to 48 colors. Your vision, your palette – we're here to bring your space to life.

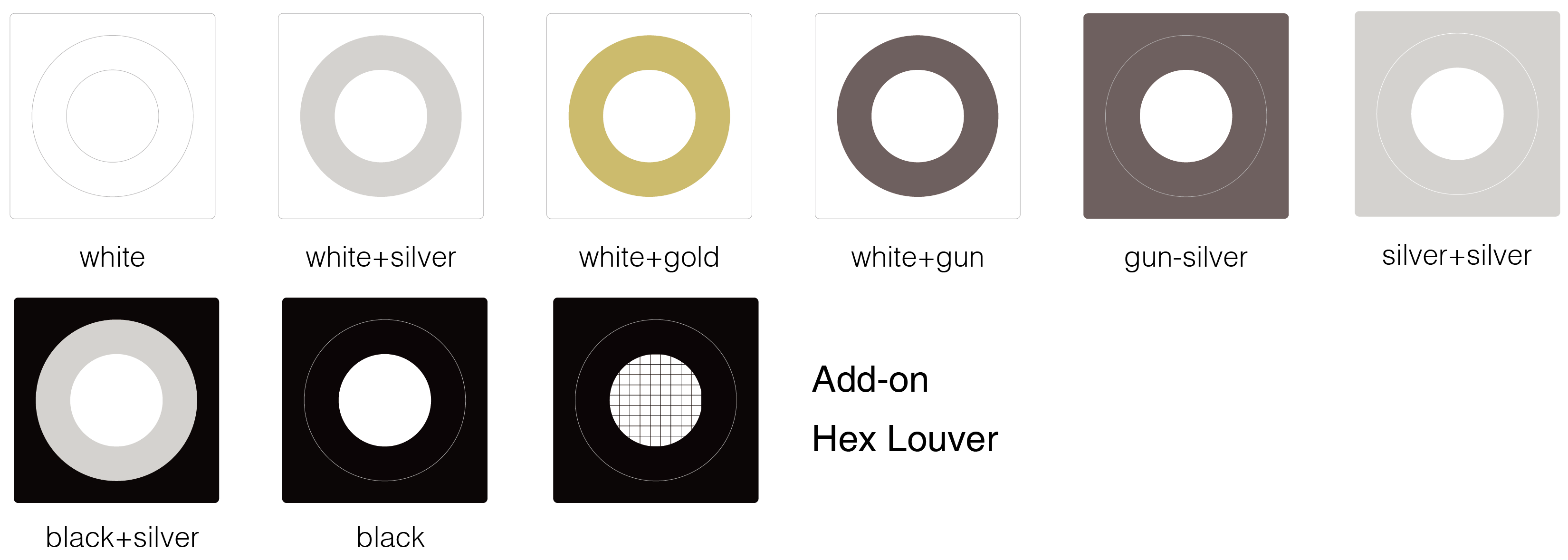

Color Option
Applications
Versatile and adaptable, our lighting fixtures excel across a spectrum of environments.
Whether illuminating offices, educational institutions, or conference rooms with general illumination or providing focused lighting in diverse workspaces, our fixtures offer the ideal lighting solution.
From boosting productivity in office settings to fostering optimal learning conditions in educational environments, our fixtures deliver unparalleled performance tailored to meet the needs of various settings.
Specification
|
Model |
SLIM 5573 |
Input Vol. |
220-240VAC |
|
Optical |
Cone Louver=4Sets |
Power |
21W |
|
Beam Angle |
24°/38° |
LED |
Osram |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<19 |
SDCM |
<3 |
|
Dimension |
L1222 x W55 x H73mm |
Lumen |
1701-1947lm/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
90lm/W |
|
Installation |
Trimed Recessed |
Life Time |
50,000hrs |
|
Net Weight |
1.5kg |
THD |
<20% |
|
Luminaire: SLIM(5573), Optical: Cone Louver=4Sets, Power: 21W, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Cone Louver |
24°/38° |
<19 |
L1222mm |
21.0W |
1890lm |
80+ |
3000K |
On-Off |
|
Cone Louver |
24°/38° |
<19 |
L1222mm |
21.6W |
1890lm |
80+ |
3000K |
0-10V |
|
Cone Louver |
24°/38° |
<19 |
L1222mm |
21.6W |
1890lm |
80+ |
3000K |
DALI |
|
Cone Louver |
24°/38° |
<19 |
L1222mm |
21.0W |
1701lm |
90+ |
3000K |
On-Off |
|
Cone Louver |
24°/38° |
<19 |
L1222mm |
21.6W |
1701lm |
90+ |
3000K |
0-10V |
|
Cone Louver |
24°/38° |
<19 |
L1222mm |
21.6W |
1701lm |
90+ |
3000K |
DALI |
|
Cone Louver |
24°/38° |
<19 |
L1222mm |
21.0W |
1947lm |
80+ |
4000K |
On-Off |
|
Cone Louver |
24°/38° |
<19 |
L1222mm |
21.6W |
1947lm |
80+ |
4000K |
0-10V |
|
Cone Louver |
24°/38° |
<19 |
L1222mm |
21.6W |
1947lm |
80+ |
4000K |
DALI |
|
Cone Louver |
24°/38° |
<19 |
L1222mm |
21.0W |
1752lm |
90+ |
4000K |
On-Off |
|
Cone Louver |
24°/38° |
<19 |
L1222mm |
21.6W |
1752lm |
90+ |
4000K |
0-10V |
|
Cone Louver |
24°/38° |
<19 |
L1222mm |
21.6W |
1752lm |
90+ |
4000K |
DALI |
|
Model |
SLIM 5573 |
Input Vol. |
220-240VAC |
|
Optical |
Cone Louver=8Sets |
Power |
30W |
|
Beam Angle |
24°/38° |
LED |
Osram |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<19 |
SDCM |
<3 |
|
Dimension |
L1222 x W55 x H73mm |
Lumen |
2430-2781lm/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
90lm/W |
|
Installation |
Trimed Recessed |
Life Time |
50,000hrs |
|
Net Weight |
1.6kg |
THD |
<20% |
|
Luminaire: SLIM(5573), Optical: Cone Louver=8Sets, Power: 30W, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Cone Louve |
24°/38° |
<19 |
L1222mm |
30.0W |
2700lm |
80+ |
3000K |
On-Off |
|
Cone Louve |
24°/38° |
<19 |
L1222mm |
30.9W |
2700lm |
80+ |
3000K |
0-10V |
|
Cone Louve |
24°/38° |
<19 |
L1222mm |
30.9W |
2700lm |
80+ |
3000K |
DALI |
|
Cone Louve |
24°/38° |
<19 |
L1222mm |
30.0W |
2430lm |
90+ |
3000K |
On-Off |
|
Cone Louve |
24°/38° |
<19 |
L1222mm |
30.9W |
2430lm |
90+ |
3000K |
0-10V |
|
Cone Louve |
24°/38° |
<19 |
L1222mm |
30.9W |
2430lm |
90+ |
3000K |
DALI |
|
Cone Louve |
24°/38° |
<19 |
L1222mm |
30.0W |
2781lm |
80+ |
4000K |
On-Off |
|
Cone Louve |
24°/38° |
<19 |
L1222mm |
30.9W |
2781lm |
80+ |
4000K |
0-10V |
|
Cone Louve |
24°/38° |
<19 |
L1222mm |
30.9W |
2781lm |
80+ |
4000K |
DALI |
|
Cone Louve |
24°/38° |
<19 |
L1222mm |
30.0W |
2503lm |
90+ |
4000K |
On-Off |
|
Cone Louve |
24°/38° |
<19 |
L1222mm |
30.9W |
2503lm |
90+ |
4000K |
0-10V |
|
Cone Louve |
24°/38° |
<19 |
L1222mm |
30.9W |
2503lm |
90+ |
4000K |
DALI |
|
Model |
SLIM 5573 |
Input Vol. |
220-240VAC |
|
Optical |
Cone Louver=5Sets |
Power |
27W |
|
Beam Angle |
24°/38° |
LED |
Osram |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<19 |
SDCM |
<3 |
|
Dimension |
L1522 x W55 x H73mm |
Lumen |
2187-2503lm/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
90lm/W |
|
Installation |
Trimed Recessed |
Life Time |
50,000hrs |
|
Net Weight |
1.85kg |
THD |
<20% |
|
Luminaire: SLIM(5573), Optical:Cone Louver=5Sets, Power: 27W, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
27.0W |
2430lm |
80+ |
3000K |
On-Off |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
27.8W |
2430lm |
80+ |
3000K |
0-10V |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
27.8W |
2430lm |
80+ |
3000K |
DALI |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
27.0W |
2187lm |
90+ |
3000K |
On-Off |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
27.8W |
2187lm |
90+ |
3000K |
0-10V |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
27.8W |
2187lm |
90+ |
3000K |
DALI |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
27.0W |
2503lm |
80+ |
4000K |
On-Off |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
27.8W |
2503lm |
80+ |
4000K |
0-10V |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
27.8W |
2503lm |
80+ |
4000K |
DALI |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
27.0W |
2253lm |
90+ |
4000K |
On-Off |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
27.8W |
2253lm |
90+ |
4000K |
0-10V |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
27.8W |
2253lm |
90+ |
4000K |
DALI |
|
Model |
SLIM 5573 |
Input Vol. |
220-240VAC |
|
Optical |
Cone Louver=10Sets |
Power |
45W |
|
Beam Angle |
24°/38° |
LED |
Osram |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<19 |
SDCM |
<3 |
|
Dimension |
L1522 x W55 x H73mm |
Lumen |
3645-4172lm/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
90lm/W |
|
Installation |
Trimed Recessed |
Life Time |
50,000hrs |
|
Net Weight |
1.85kg |
THD |
<20% |
|
Luminaire: SLIM(5573), Optical: Cone Louver=10Sets, Power: 45W, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
45.0W |
4050lm |
80+ |
3000K |
On-Off |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
46.4W |
4050lm |
80+ |
3000K |
0-10V |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
46.4W |
4050lm |
80+ |
3000K |
DALI |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
45.0W |
3645lm |
90+ |
3000K |
On-Off |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
46.4W |
3645lm |
90+ |
3000K |
0-10V |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
46.4W |
3645lm |
90+ |
3000K |
DALI |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
45.0W |
4172lm |
80+ |
4000K |
On-Off |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
46.4W |
4172lm |
80+ |
4000K |
0-10V |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
46.4W |
4172lm |
80+ |
4000K |
DALI |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
45.0W |
3754lm |
90+ |
4000K |
On-Off |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
46.4W |
3754lm |
90+ |
4000K |
0-10V |
|
Cone Louver |
24°/38° |
<19 |
L1522mm |
46.4W |
3754lm |
90+ |
4000K |
DALI |
-
1 SLIM TRIMED RECESSED CONE LOUVER LINEAR LIGHT
-
2 U5573 TDR Installation
-
3 U5573 TDR Joining
