SLIM-SERIES TRIMED RECESSED REFLECTOR LOUVER LINEAR LIGHT
Product Introduction
Introducing our Slim Series, a groundbreaking lighting solution meticulously designed to elevate any space with a perfect balance of style and functionality.
Crafted with meticulous attention to detail, each fixture in this series showcases a sleek and slender design measuring just 35x72mm.
Whether you need lengths of 1200mm, 1500mm, or customizable options, our Slim Series offers unparalleled flexibility to meet your unique requirements.
Discover a diverse array of lighting possibilities with our extensive range of lens options, including Crystal Louver, Silicone&PC Diffuser, TIR Lens, Cone Louver, Nickle Louver, Wall Washer, and Reflector Louver, allowing you to achieve the ideal lighting effect for any application.
Take control of your lighting environment with our Dimmable technology, providing On-Off, 0-10V, and DALI options to seamlessly adjust the ambiance to your liking.
With versatile mounting options such as Pendant, Surface Mounted, and Recessed Mounted, installation is effortless and ensures seamless integration into any environment.
Experience unparalleled visual comfort with our UGR<19 rating, guaranteeing glare-free illumination for enhanced productivity and well-being.
Immerse yourself in the perfect harmony of style, versatility, and performance with our Slim Series, setting a new standard in modern lighting solutions.
Feature
1.Elegant design with internal driver by size in L1222/1522xW55xH73mm.
2.Optical options for Reflector Louver(15°/30°/45°).
3.More lighting options in 80+ or 90+ Ra, white color from 3000K/4000K.
4.More dimming/controlling options by Dali,0/1-10V, On/Off.
5.Pendant, Surface mounted, Recessed Mounted installation.
6.Gapless Joining in Filed.
7.Designed and engineered with the architectural specifier in mind.

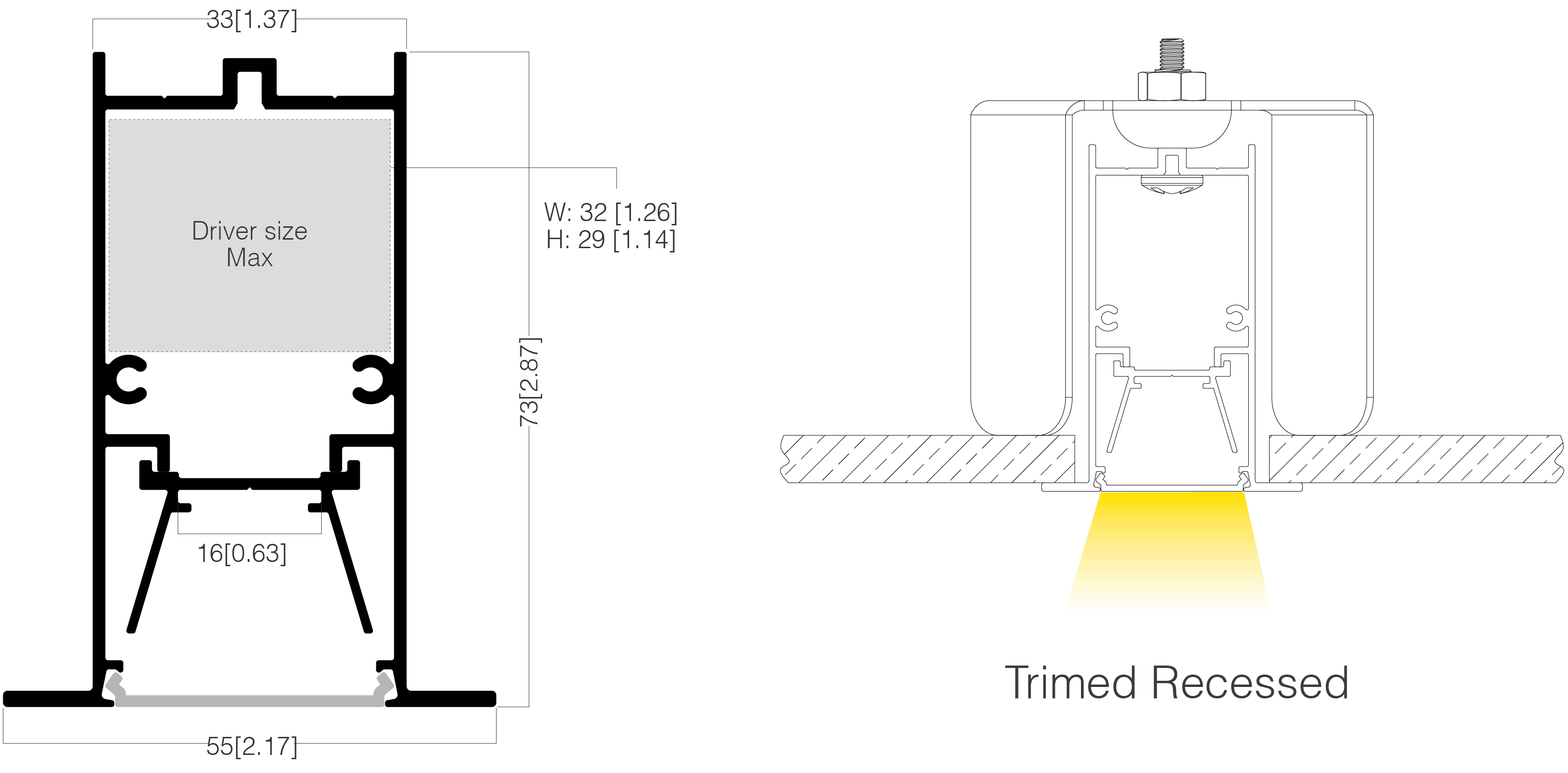

Dimension & Installation
Finish
Choose from our premium finishes: classic Matt White textured, sleek Matt Black textured powder coating, and sophisticated Silver anodized.Elevate your customization with over 48 more options available through our specialized service. Your vision, your palette – we're here to bring your design aspirations to life.
Color Option
Applications
Ideal for both general and localized lighting needs, our fixtures are perfectly suited for a diverse range of settings. Whether in offices, educational institutions, conference rooms, or any other workspace, our products excel at illuminating your environment with precision and style. Illuminate your surroundings with versatility and elegance, ensuring a comfortable and productive ambiance for any application.
Specification
|
Model |
SLIM |
Input Vol. |
220-240VAC |
|
Optical |
Reflector Louver=4sets |
Power |
21W |
|
Beam Angle |
15°/30°/45° |
LED |
Osram |
|
Finish |
Textured Black (RAL9004) |
CCT |
3000K 4000K |
|
Dim / PF |
On/Off >0.9 0-10V >0.9 DALI >0.9 |
CRI |
80+ 90+ |
|
UGR |
<19 |
SDCM |
<3 |
|
Dimension |
L1222 x W55 x H73mm |
Lumen |
1701-1947m/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
90lm/W |
|
Installation |
Trimed Recessed |
Life Time |
50,000hrs |
|
Net Weight |
1.5kg |
THD |
<20% |
|
Luminaire: SLIM(5573), Optical: 5in1 Louver& Reflector=4sets, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
21.0W |
1890lm |
80+ |
3000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
21.6W |
1890lm |
80+ |
3000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
21.6W |
1890lm |
80+ |
3000K |
DALI |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
21.0W |
1701lm |
90+ |
3000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
21.6W |
1701lm |
90+ |
3000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
21.6W |
1701lm |
90+ |
3000K |
DALI |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
21.0W |
1947lm |
80+ |
4000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
21.6W |
1947lm |
80+ |
4000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
21.6W |
1947lm |
80+ |
4000K |
DALI |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
21.0W |
1752lm |
90+ |
4000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
21.6W |
1752lm |
90+ |
4000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
21.6W |
1752lm |
90+ |
4000K |
DALI |
|
Model |
SLIM |
Input Vol. |
220-240VAC |
|
Optical |
Reflector Louver=8sets |
Power |
30W |
|
Beam Angle |
15°/30°/45° |
LED |
Osram |
|
Finish |
Textured Black (RAL9004) |
CCT |
3000K 4000K |
|
Dim / PF |
On/Off >0.9 0-10V >0.9 DALI >0.9 |
CRI |
80+ 90+ |
|
UGR |
<19 |
SDCM |
<3 |
|
Dimension |
L1222 x W55 x H73mm |
Lumen |
2430-2781m/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
90lm/W |
|
Installation |
Trimed Recessed |
Life Time |
50,000hrs |
|
Net Weight |
1.8kg |
THD |
<20% |
|
Luminaire: SLIM(5573), Optical: 5in1 Louver& Reflector=8sets, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
30.0W |
2700lm |
80+ |
3000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
30.9W |
2700lm |
80+ |
3000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
30.9W |
2700lm |
80+ |
3000K |
DALI |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
30.0W |
2430lm |
90+ |
3000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
30.9W |
2430lm |
90+ |
3000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
30.9W |
2430lm |
90+ |
3000K |
DALI |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
30.0W |
2781lm |
80+ |
4000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
30.9W |
2781lm |
80+ |
4000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
30.9W |
2781lm |
80+ |
4000K |
DALI |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
30.0W |
2503lm |
90+ |
4000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
30.9W |
2503lm |
90+ |
4000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1222mm |
30.9W |
2503lm |
90+ |
4000K |
DALI |
|
Model |
SLIM |
Input Vol. |
220-240VAC |
|
Optical |
Reflector Louver=5sets |
Power |
27W |
|
Beam Angle |
15°/30°/45° |
LED |
Osram |
|
Finish |
Textured Black (RAL9004) |
CCT |
3000K 4000K |
|
Dim / PF |
On/Off >0.9 0-10V >0.9 DALI >0.9 |
CRI |
80+ 90+ |
|
UGR |
<19 |
SDCM |
<3 |
|
Dimension |
L1522 x W55 x H73mm |
Lumen |
2187-2503m/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
90lm/W |
|
Installation |
Trimed Recessed |
Life Time |
50,000hrs |
|
Net Weight |
1.9kg |
THD |
<20% |
|
Luminaire: SLIM(5573), Optical: 5in1 Louver& Reflector=5sets, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
27.0W |
2430lm |
80+ |
3000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
27.8W |
2430lm |
80+ |
3000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
27.8W |
2430lm |
80+ |
3000K |
DALI |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
27.0W |
2187lm |
90+ |
3000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
27.8W |
2187lm |
90+ |
3000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
27.8W |
2187lm |
90+ |
3000K |
DALI |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
27.0W |
2503lm |
80+ |
4000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
27.8W |
2503lm |
80+ |
4000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
27.8W |
2503lm |
80+ |
4000K |
DALI |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
27.0W |
2253lm |
90+ |
4000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
27.8W |
2253lm |
90+ |
4000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
27.8W |
2253lm |
90+ |
4000K |
DALI |
|
Model |
SLIM |
Input Vol. |
220-240VAC |
|
Optical |
Reflector Louver=10sets |
Power |
45W |
|
Beam Angle |
15°/30°/45° |
LED |
Osram |
|
Finish |
Textured Black (RAL9004) |
CCT |
3000K 4000K |
|
Dim / PF |
On/Off >0.9 0-10V >0.9 DALI >0.9 |
CRI |
80+ 90+ |
|
UGR |
<19 |
SDCM |
<3 |
|
Dimension |
L1522 x W55 x H73mm |
Lumen |
3645-4172m/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
90lm/W |
|
Installation |
Trimed Recessed |
Life Time |
50,000hrs |
|
Net Weight |
2kg |
THD |
<20% |
|
Luminaire: SLIM(5573), Optical: 5in1 Louver& Reflector=10sets, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
45.0W |
4050lm |
80+ |
3000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
46.4W |
4050lm |
80+ |
3000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
46.4W |
4050lm |
80+ |
3000K |
DALI |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
45.0W |
3645lm |
90+ |
3000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
46.4W |
3645lm |
90+ |
3000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
46.4W |
3645lm |
90+ |
3000K |
DALI |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
45.0W |
4172lm |
80+ |
4000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
46.4W |
4172lm |
80+ |
4000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
46.4W |
4172lm |
80+ |
4000K |
DALI |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
45.0W |
3754lm |
90+ |
4000K |
On-Off |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
46.4W |
3754lm |
90+ |
4000K |
0-10V |
|
5in1 Louver& Reflector |
15°/30°/45° |
<19 |
L1522mm |
46.4W |
3754lm |
90+ |
4000K |
DALI |
-
