SLIM-Seamless joint Led linear office light PC diffuser or Silicone lens
Product Introduction
The slim luminaire U3572 is an engineering-designed sus-pendant linear light that facilitates easy and stable connection.
The joint brackets will be re-put in the profile, people only need to fix one nut to complete the joining for longer connection.
The driver of this line light is fixed inside the profile, with the optical lens easy to be moved or fixed, it allows effortless installation and maintenance.
What’s more, it contributes to creating a neater environment overall.
To ensure optical lighting conditions, the U3572 utilizes a PC diffuser lens. This lens promotes efficient light transmission while controlling glare to a significant extent.
For more soft and comfortable light, Silicone lens will be the selection. Additionally, silicone lens can be 30M in a line, easy to be shipped by roll, meanwhile make the light better on a straight line, without any gap.
Feature
1, Customizable Length: This linear light offers a range of customizable lengths to suit various applications and installation requirements.
2, Color Temperature Range (2200k~6500k): provides a wide range of color temperature options, spanning from warm, cozy lighting at 2200 Kelvin to cooler, daylight-like illumination at 6500 Kelvin.
This feature enables you to tailor the ambiance of your space according to your preference or specific needs.
3, CRI80 or CRI90: The lighting solution offers two options for color rendering index (CRI): CRI80 and CRI90.
CRI80 ensures good color accuracy, while CRI90 provides even higher color fidelity, making it ideal for applications where accurate color representation is crucial, such as in art galleries or retail displays.
4, Power and Efficiency Variability: designed with flexibility in mind, offering different power and efficiency levels to meet diverse requirements.
5, Easy Connection Brackets: equipped with user-friendly connection brackets that simplify the installation process.
These brackets facilitate quick and secure connections, reducing the need for extensive labor and technical expertise during setup, get flawless, continuous lighting effect.
6, Internal driver: save the space for the driver installation, keeps the environment neat.
7, Big space in the profile: the back cover of the profile is easy to be opened, easy the entire installation process.
8, Flexible installation Methods: Sus-pendant or surface-mounted.

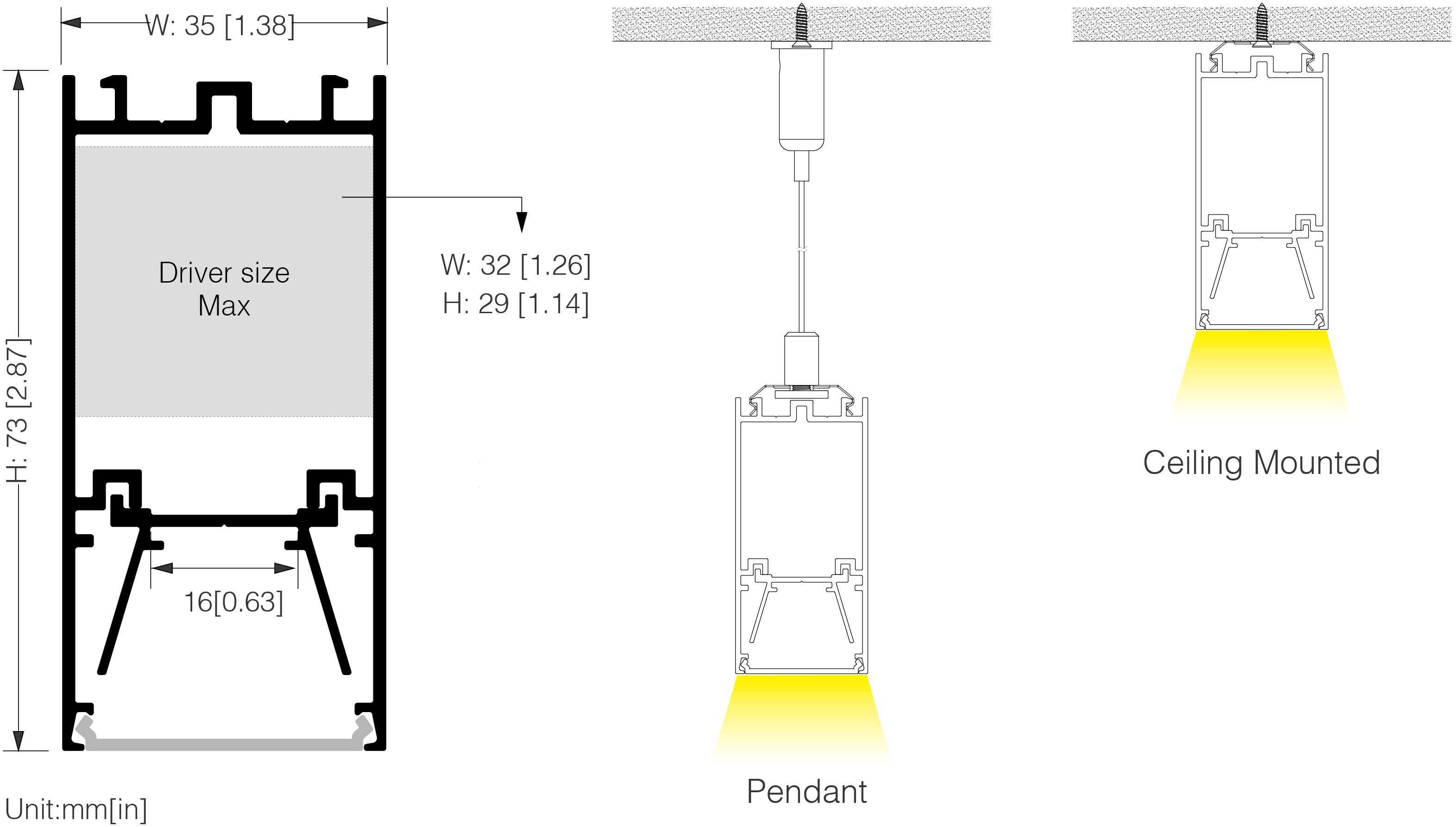

Size & Installation
Finish
This linear lighting solution is designed to offer standard color choices of elegant matt white, sleek black, and refined silver.
Furthermore, for those seeking to infuse a touch of personalization and vibrancy, we provide an exquisite range of 48 colors for powder coating.
Color Option

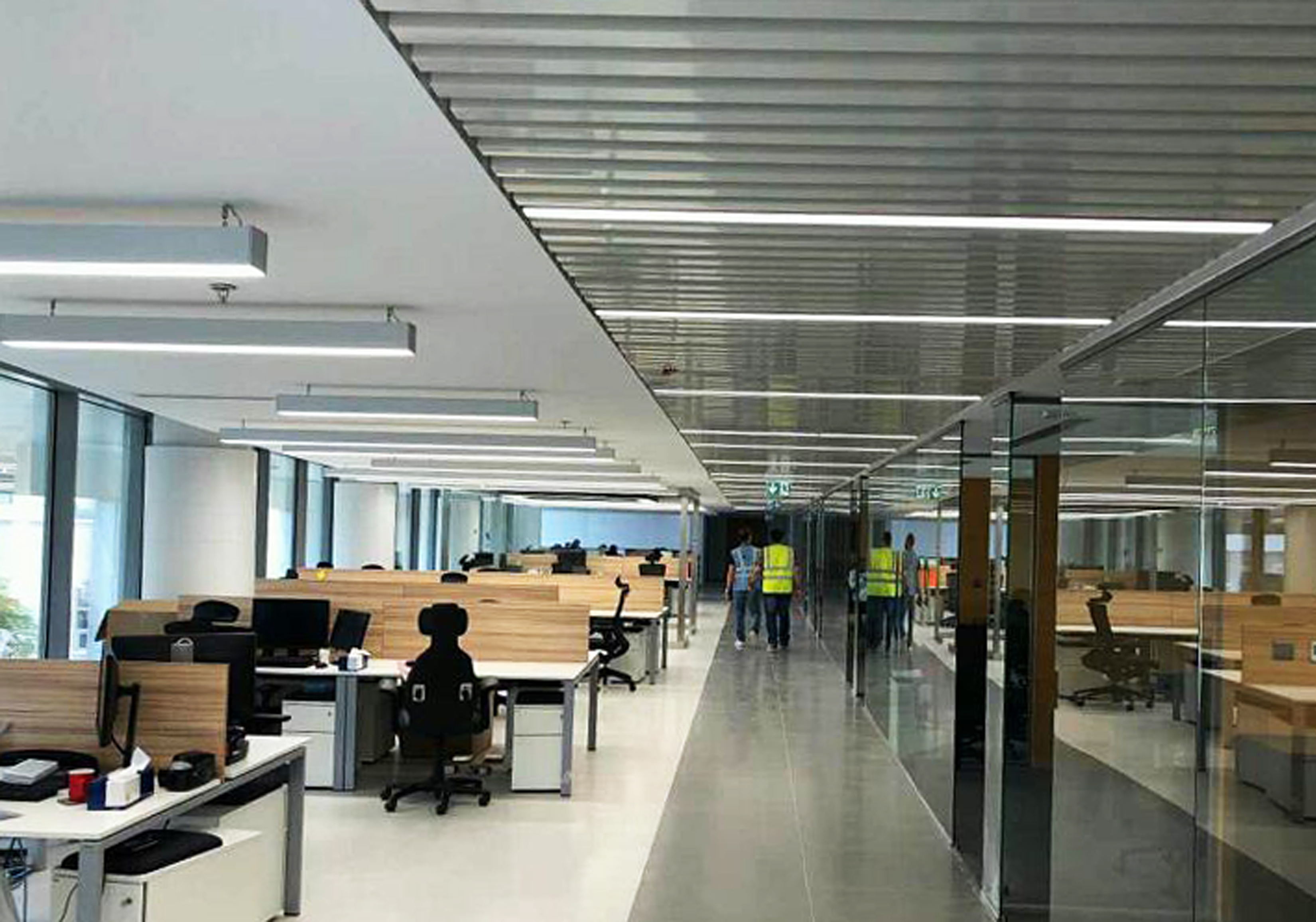

Range of Applications
It finds extensive utilization in corporate environments, academic establishments, meeting venues, and various professional workspaces.
Specification
|
Model |
SLIM (3572) |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser |
Power |
15W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<24 |
SDCM |
<3 |
|
Dimension |
L1208 x W35 x H72mm |
Lumen |
1215-1545lm/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
90-100lm/W |
|
Installation |
Pendant, Ceiling Mounting |
Life Time |
50,000hrs |
|
Net Weight |
1.5kgs |
THD |
<20% |
|
Luminaire: SLIM(3572), Optical: PC Diffuser, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.0W |
1350lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1350lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1350lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.0W |
1215lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1215lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1215lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.0W |
1391lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1391lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1391lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.0W |
1251lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1251lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1251lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.0W |
1350lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1350lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1350lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.0W |
1215lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1215lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1215lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: SLIM(3572), Optical: PC Diffuser, Efficiency: 100lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.0W |
1500lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1500lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1500lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.0W |
1350lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1350lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1350lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.0W |
1545lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1545lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1545lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.0W |
1391lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1391lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1391lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.0W |
1500lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1500lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1500lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.0W |
1350lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1350lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
15.5W |
1350lm |
90+ |
2700-4000K |
DALI |
|
Model |
SLIM (3572) |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser |
Power |
21W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<24 |
SDCM |
<3 |
|
Dimension |
L1208 x W35 x H72mm |
Lumen |
1701-2163lm/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
90-100lm/W |
|
Installation |
Pendant, Ceiling Mounting |
Life Time |
50,000hrs |
|
Net Weight |
1.5kgs |
THD |
<20% |
|
Luminaire: SLIM(3572), Optical: PC Diffuser, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.0W |
1890lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1890lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1890lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.0W |
1701lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1701lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1701lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.0W |
1947lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1947lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1947lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.0W |
1752lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1752lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1752lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.0W |
1890lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1890lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1890lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.0W |
1701lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1701lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1701lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: SLIM(3572), Optical: PC Diffuser, Efficiency: 100lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.0W |
2100lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
2100lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
2100lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.0W |
1890lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1890lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1890lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.0W |
2163lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
2163lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
2163lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.0W |
1947lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1947lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1947lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.0W |
2100lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
2100lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
2100lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.0W |
1890lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1890lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1208mm |
21.6W |
1890lm |
90+ |
2700-4000K |
DALI |
|
Model |
SLIM (3572) |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser |
Power |
21W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<24 |
SDCM |
<3 |
|
Dimension |
L1508 x W35 x H72mm |
Lumen |
1701-2163lm/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
90-100lm/W |
|
Installation |
Pendant, Ceiling Mounting |
Life Time |
50,000hrs |
|
Net Weight |
1.5kgs |
THD |
<20% |
|
Luminaire: SLIM(3572), Optical: PC Diffuser, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.0W |
1890lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1890lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1890lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.0W |
1701lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1701lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1701lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.0W |
1947lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1947lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1947lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.0W |
1752lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1752lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1752lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.0W |
1890lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1890lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1890lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.0W |
1701lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1701lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1701lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: SLIM(3572), Optical: PC Diffuser, Efficiency: 100lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.0W |
2100lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
2100lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
2100lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.0W |
1890lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1890lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1890lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.0W |
2163lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
2163lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
2163lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.0W |
1947lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1947lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1947lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.0W |
2100lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
2100lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
2100lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.0W |
1890lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1890lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
21.6W |
1890lm |
90+ |
2700-4000K |
DALI |
|
Model |
SLIM (3572) |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser |
Power |
27W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<24 |
SDCM |
<3 |
|
Dimension |
L1508 x W35 x H72mm |
Lumen |
2187-2781lm/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
90-100lm/W |
|
Installation |
Pendant, Ceiling Mounting |
Life Time |
50,000hrs |
|
Net Weight |
1.5kgs |
THD |
<20% |
|
Luminaire: SLIM(3572), Optical: PC Diffuser, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.0W |
2430lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2430lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2430lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.0W |
2187lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2187lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2187lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.0W |
2503lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2503lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2503lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.0W |
2253lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2253lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2253lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.0W |
2430lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2430lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2430lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.0W |
2187lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2187lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2187lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: SLIM(3572), Optical: PC Diffuser, Efficiency: 100lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.0W |
2700lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2700lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2700lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.0W |
2430lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2430lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2430lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.0W |
2781lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2781lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2781lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.0W |
2503lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2503lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2503lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.0W |
2700lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2700lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2700lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.0W |
2430lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2430lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<24 |
L1508mm |
27.8W |
2430lm |
90+ |
2700-4000K |
DALI |
|
Model |
SLIM (3572) |
Input Vol. |
220-240VAC |
|
Optical |
Silicone Lens |
Power |
15W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<24 |
SDCM |
<3 |
|
Dimension |
L1208 x W35 x H72mm |
Lumen |
1080-1391lm/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
80-90lm/W |
|
Installation |
Pendant, Ceiling Mounting |
Life Time |
50,000hrs |
|
Net Weight |
1.5kgs |
THD |
<20% |
|
Luminaire: SLIM(3572), Optical: Silicone Lens, Efficiency: 80lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.0W |
1200lm |
80+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1200lm |
80+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1200lm |
80+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.0W |
1080lm |
90+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1080lm |
90+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1080lm |
90+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.0W |
1236lm |
80+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1236lm |
80+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1236lm |
80+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.0W |
1112lm |
90+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1112lm |
90+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1112lm |
90+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.0W |
1200lm |
80+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1200lm |
80+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1200lm |
80+ |
2700-4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.0W |
1080lm |
90+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1080lm |
90+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1080lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: SLIM(3572), Optical: Silicone Lens, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.0W |
1350lm |
80+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1350lm |
80+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1350lm |
80+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.0W |
1215lm |
90+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1215lm |
90+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1215lm |
90+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.0W |
1391lm |
80+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1391lm |
80+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1391lm |
80+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.0W |
1251lm |
90+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1251lm |
90+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1251lm |
90+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.0W |
1350lm |
80+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1350lm |
80+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1350lm |
80+ |
2700-4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.0W |
1215lm |
90+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1215lm |
90+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
15.5W |
1215lm |
90+ |
2700-4000K |
DALI |
|
Model |
SLIM (3572) |
Input Vol. |
220-240VAC |
|
Optical |
Silicone Lens |
Power |
21W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<24 |
SDCM |
<3 |
|
Dimension |
L1208 x W35 x H72mm |
Lumen |
1512-1947lm/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
80-90lm/W |
|
Installation |
Pendant, Ceiling Mounting |
Life Time |
50,000hrs |
|
Net Weight |
1.5kgs |
THD |
<20% |
|
Luminaire: SLIM(3572), Optical: Silicone Lens, Efficiency: 80lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.0W |
1680lm |
80+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1680lm |
80+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1680lm |
80+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.0W |
1512lm |
90+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1512lm |
90+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1512lm |
90+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.0W |
1730lm |
80+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1730lm |
80+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1730lm |
80+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.0W |
1557lm |
90+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1557lm |
90+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1557lm |
90+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.0W |
1680lm |
80+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1680lm |
80+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1680lm |
80+ |
2700-4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.0W |
1512lm |
90+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1512lm |
90+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1512lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: SLIM(3572), Optical: Silicone Lens, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.0W |
1890lm |
80+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1890lm |
80+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1890lm |
80+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.0W |
1701lm |
90+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1701lm |
90+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1701lm |
90+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.0W |
1947lm |
80+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1947lm |
80+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1947lm |
80+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.0W |
1752lm |
90+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1752lm |
90+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1752lm |
90+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.0W |
1890lm |
80+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1890lm |
80+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1890lm |
80+ |
2700-4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.0W |
1701lm |
90+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1701lm |
90+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1208mm |
21.6W |
1701lm |
90+ |
2700-4000K |
DALI |
|
Model |
SLIM (3572) |
Input Vol. |
220-240VAC |
|
Optical |
Silicone Lens |
Power |
21W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<24 |
SDCM |
<3 |
|
Dimension |
L1508 x W35 x H72mm |
Lumen |
1512-1947lm/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
80-90lm/W |
|
Installation |
Pendant, Ceiling Mounting |
Life Time |
50,000hrs |
|
Net Weight |
1.5kgs |
THD |
<20% |
|
Luminaire: SLIM(3572), Optical: Silicone Lens, Efficiency: 80lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.0W |
1680lm |
80+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1680lm |
80+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1680lm |
80+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.0W |
1512lm |
90+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1512lm |
90+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1512lm |
90+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.0W |
1730lm |
80+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1730lm |
80+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1730lm |
80+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.0W |
1557lm |
90+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1557lm |
90+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1557lm |
90+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.0W |
1680lm |
80+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1680lm |
80+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1680lm |
80+ |
2700-4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.0W |
1512lm |
90+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1512lm |
90+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1512lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: SLIM(3572), Optical: Silicone Lens, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.0W |
1890lm |
80+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1890lm |
80+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1890lm |
80+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.0W |
1701lm |
90+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1701lm |
90+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1701lm |
90+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.0W |
1947lm |
80+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1947lm |
80+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1947lm |
80+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.0W |
1752lm |
90+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1752lm |
90+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1752lm |
90+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.0W |
1890lm |
80+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1890lm |
80+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1890lm |
80+ |
2700-4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.0W |
1701lm |
90+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1701lm |
90+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
21.6W |
1701lm |
90+ |
2700-4000K |
DALI |
|
Model |
SLIM (3572) |
Input Vol. |
220-240VAC |
|
Optical |
Silicone Lens |
Power |
27W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<24 |
SDCM |
<3 |
|
Dimension |
L1508 x W35 x H72mm |
Lumen |
1944-2503lm/pc |
|
IP / IK |
IP22 / IK06 |
Efficiency |
80-90lm/W |
|
Installation |
Pendant, Ceiling Mounting |
Life Time |
50,000hrs |
|
Net Weight |
1.5kgs |
THD |
<20% |
|
Luminaire: SLIM(3572), Optical: Silicone Lens, Efficiency: 80lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.0W |
2160lm |
80+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2160lm |
80+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2160lm |
80+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.0W |
1944lm |
90+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
1944lm |
90+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
1944lm |
90+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.0W |
2225lm |
80+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2225lm |
80+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2225lm |
80+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.0W |
2002lm |
90+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2002lm |
90+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2002lm |
90+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.0W |
2160lm |
80+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2160lm |
80+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2160lm |
80+ |
2700-4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.0W |
1944lm |
90+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
1944lm |
90+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
1944lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: SLIM(3572), Optical: Silicone Lens, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.0W |
2430lm |
80+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2430lm |
80+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2430lm |
80+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.0W |
2187lm |
90+ |
3000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2187lm |
90+ |
3000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2187lm |
90+ |
3000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.0W |
2503lm |
80+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2503lm |
80+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2503lm |
80+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.0W |
2253lm |
90+ |
4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2253lm |
90+ |
4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2253lm |
90+ |
4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.0W |
2430lm |
80+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2430lm |
80+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2430lm |
80+ |
2700-4000K |
DALI |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.0W |
2187lm |
90+ |
2700-4000K |
On-Off |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2187lm |
90+ |
2700-4000K |
0-10V |
|
Silicone Lens |
105° |
<24 |
L1508mm |
27.8W |
2187lm |
90+ |
2700-4000K |
DALI |
-
01-SLIM SERIES SILICONE ＆ PC DIFFUSER LINEAR LIGHT
-
02-U3572 Pendant Installation
-
03--Slim U3572 Ceiling Installation
Related Products
-
Acoustic Slim Lighting With TIR Louver Optical ...
-
Acoustic Modules with Slim linear lighting system
-
Tailored Office and Commercial Lighting: U4633 ...
-
Zoli U5141 LED Linear Lighting: Enhanced Illumi...
-
50mm width Circular Led light with diameter 100...
-
ZOLI(U6741) -Architecturally Designed Recessed ...
CONTACT
-
address: No. 1 TianQin St., Wusha Industrial Zone, Henglan Town, ZhongShan, Guangdong, China
-
Phone
-
E-mail
-
Whatsapp
-
Top
