• SLIM-Low bean angle Linear LED Light Fixture with Cone Louver UGR

SLIM-Low bean angle Linear LED Light Fixture with Cone Louver UGR

Short Description:

By width of 35mm, height of 72mm, this slim linear light is designed with internal driver, featured by easiest joint solution by tightening one nut.

With the Cone louver lens, this low UGR<16 anti-glaring Led linear light can realize small beam angle by 24°or 38°,  Elevate your space further with a choice of nine captivating Cone Louver colors.

Redefine your lighting experience with ease and elegance.


Product Detail

Download

Product Tags

Product Introduction

Elevate your space with our cutting-edge Architectural Lighting Fixtures, designed to transform your environment with precision and style.

Experience unparalleled lighting precision with our meticulously crafted Precision Cone Louver Set, featuring a focused 24° beam angle or 38° beam angle. This exceptional design ensures that light is precisely directed where needed, harmoniously blending ambiance and functionality.

Banish harsh glares and immerse yourself in a soothing lighting experience with our Anti-Glaring Brilliance boasting UGR<16. Say goodbye to discomforting reflections and welcome a visually comfortable atmosphere that enhances productivity and relaxation.

Tailor your space with Striking Cone Louver Color Variations, ranging from sleek Matte Black to timeless Matte White and captivating combinations like Matte White + Golden, each enhancing your space's aesthetics.

Our Seamlessly Elegant Gapless Joining Solution revolutionizes installation convenience, achieving uninterrupted, polished illumination with minimal labor. Experience the future of seamless lighting today. Illuminate brilliance effortlessly.

Feature

1, Precision Cone Louver Set in 24° Beam Angles: Experience lighting precision like never before with our meticulously crafted cone louver set, boasting a focused 24° beam angle. This exceptional design ensures that light is precisely directed where it's needed, creating a harmonious blend of ambiance and functionality.

2, Anti-Glaring Brilliance with UGR<16: Banish harsh glares and create a soothing lighting experience with our Anti-Glaring technology, achieving a Unified Glare Rating (UGR) of less than 16. Say goodbye to discomforting reflections and hello to a visually comfortable atmosphere that enhances both productivity and relaxation.

3, Striking Cone Louver Color Variations: Choose from an array of stunning cone louver color options to match your interior design vision. From the sleek and modern Matte Black to the timeless Matte White, or even the captivating combinations like Matte White + Black, Matte White + Golden, and Matte White + Chrome, each hue enhances the aesthetics of your space.

4, Seamlessly Elegant Gapless Joining Solution: Revolutionizing installation convenience, our gapless joining solution redefines the way architectural lighting fixtures are integrated. Experience the future of seamless lighting with minimal labor operations required. Achieve a clean, continuous illumination without interruptions, resulting in a polished and professional appearance.

5, Project-tailored customization: Specifications can be customized, including the luminaire length, the CRI, the power, the luminaire efficiency, to meet different applications.

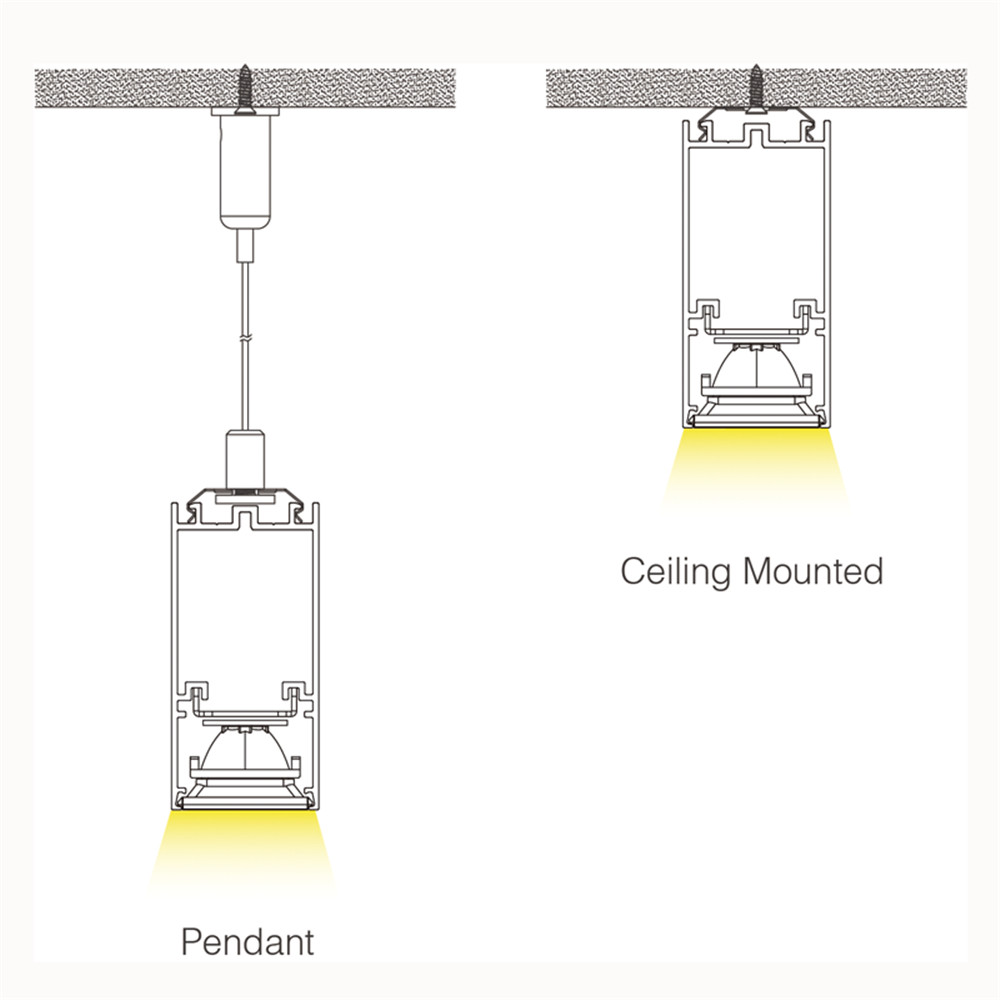

6, Flexible Installation: Mounted surfaced by metal clips, or pendant by ropes, easy to operate.

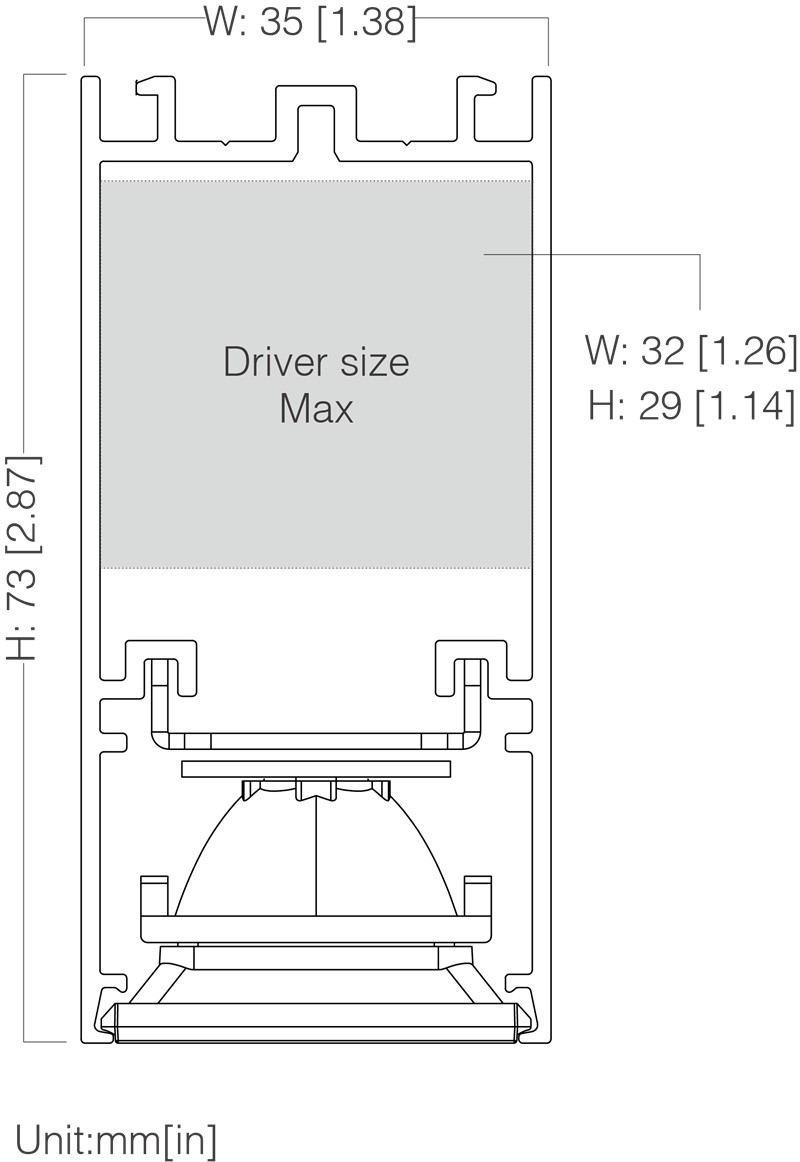

Size & Installation

Pendant Ceiling-Mounted Architectural lighting fixtures 24degree Slim Linear LED Light Fixture with Cone Louver UGR16-01 (6)
Pendant Ceiling-Mounted Architectural lighting fixtures 24degree Slim Linear LED Light Fixture with Cone Louver UGR16-01 (5)
HILA Linear Architecturally designed Direct & Indirect lighting with UGR16, TIR Lens & Diffuser (5)

Finish

Classic White textured, sleek Black textured powder coating, and sophisticated Silver anodized.

But that's just the beginning. Unlock your creativity with our Customized service, offering an impressive array of up to 48 colors. Your vision, your palette – we're here to bring your space to life.

Finish

Color Option

slim crystal louver-12

Applications

Versatile and adaptable, our lighting fixtures excel in various settings, whether providing general illumination in offices, educational institutions, and conference rooms or creating focused lighting in a range of workspaces.

From enhancing productivity in offices to fostering learning in educational environments, our fixtures offer the perfect lighting solution for diverse settings.

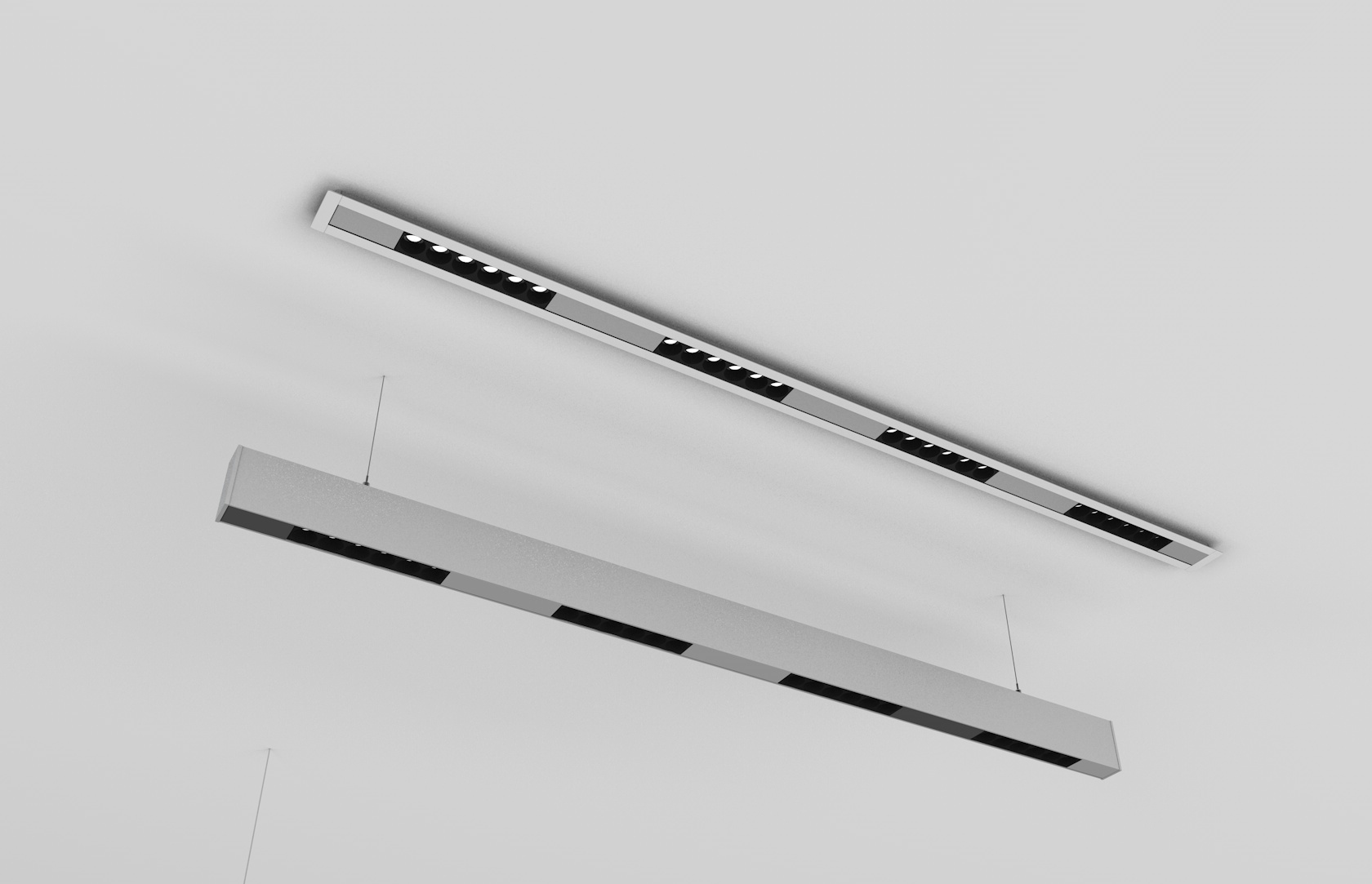

cone louver

Specification

Model

SLIM 3572

Input Vol.

220-240VAC

Optical

Cone Louver=4Sets

Power

21W

Beam Angle

24°/38°

LED

Osram

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1208 x W35 x H72mm

Lumen

1701-1947lm/pc

IP / IK

IP22 / IK06

Efficiency

90lm/W

Installation

Pendant,Ceiling Mounting

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SLIM(3572),    Optical: Cone Louver=4Sets,   Power: 21W,   Efficiency: 90lm/W,    LED: Osram,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Cone Louver

24°/38°

<19

L1208mm

21.0W

1890lm

80+

3000K

On-Off

Cone Louver

24°/38°

<19

L1208mm

21.6W

1890lm

80+

3000K

0-10V

Cone Louver

24°/38°

<19

L1208mm

21.6W

1890lm

80+

3000K

DALI

Cone Louver

24°/38°

<19

L1208mm

21.0W

1701lm

90+

3000K

On-Off

Cone Louver

24°/38°

<19

L1208mm

21.6W

1701lm

90+

3000K

0-10V

Cone Louver

24°/38°

<19

L1208mm

21.6W

1701lm

90+

3000K

DALI

Cone Louver

24°/38°

<19

L1208mm

21.0W

1947lm

80+

4000K

On-Off

Cone Louver

24°/38°

<19

L1208mm

21.6W

1947lm

80+

4000K

0-10V

Cone Louver

24°/38°

<19

L1208mm

21.6W

1947lm

80+

4000K

DALI

Cone Louver

24°/38°

<19

L1208mm

21.0W

1752lm

90+

4000K

On-Off

Cone Louver

24°/38°

<19

L1208mm

21.6W

1752lm

90+

4000K

0-10V

Cone Louver

24°/38°

<19

L1208mm

21.6W

1752lm

90+

4000K

DALI

Model

SLIM 3572

Input Vol.

220-240VAC

Optical

Cone Louver=8Sets

Power

30W

Beam Angle

24°/38°

LED

Osram

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1208 x W35 x H72mm

Lumen

2430-2781lm/pc

IP / IK

IP22 / IK06

Efficiency

90lm/W

Installation

Pendant,Ceiling Mounting

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SLIM(3572),    Optical: Cone Louver=8Sets,   Power: 30W,   Efficiency: 90lm/W,    LED: Osram,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Cone Louve

24°/38°

<19

L1208mm

30.0W

2700lm

80+

3000K

On-Off

Cone Louve

24°/38°

<19

L1208mm

30.9W

2700lm

80+

3000K

0-10V

Cone Louve

24°/38°

<19

L1208mm

30.9W

2700lm

80+

3000K

DALI

Cone Louve

24°/38°

<19

L1208mm

30.0W

2430lm

90+

3000K

On-Off

Cone Louve

24°/38°

<19

L1208mm

30.9W

2430lm

90+

3000K

0-10V

Cone Louve

24°/38°

<19

L1208mm

30.9W

2430lm

90+

3000K

DALI

Cone Louve

24°/38°

<19

L1208mm

30.0W

2781lm

80+

4000K

On-Off

Cone Louve

24°/38°

<19

L1208mm

30.9W

2781lm

80+

4000K

0-10V

Cone Louve

24°/38°

<19

L1208mm

30.9W

2781lm

80+

4000K

DALI

Cone Louve

24°/38°

<19

L1208mm

30.0W

2503lm

90+

4000K

On-Off

Cone Louve

24°/38°

<19

L1208mm

30.9W

2503lm

90+

4000K

0-10V

Cone Louve

24°/38°

<19

L1208mm

30.9W

2503lm

90+

4000K

DALI

Model

SLIM 3572

Input Vol.

220-240VAC

Optical

Cone Louver=5Sets

Power

27W

Beam Angle

24°/38°

LED

Osram

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1508 x W35 x H72mm

Lumen

2187-2503lm/pc

IP / IK

IP22 / IK06

Efficiency

90lm/W

Installation

Pendant,Ceiling Mounting

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SLIM(3572),    Optical:Cone Louver=5Sets,   Power: 27W,   Efficiency: 90lm/W,    LED: Osram,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Cone Louver

24°/38°

<19

L1508mm

27.0W

2430lm

80+

3000K

On-Off

Cone Louver

24°/38°

<19

L1508mm

27.8W

2430lm

80+

3000K

0-10V

Cone Louver

24°/38°

<19

L1508mm

27.8W

2430lm

80+

3000K

DALI

Cone Louver

24°/38°

<19

L1508mm

27.0W

2187lm

90+

3000K

On-Off

Cone Louver

24°/38°

<19

L1508mm

27.8W

2187lm

90+

3000K

0-10V

Cone Louver

24°/38°

<19

L1508mm

27.8W

2187lm

90+

3000K

DALI

Cone Louver

24°/38°

<19

L1508mm

27.0W

2503lm

80+

4000K

On-Off

Cone Louver

24°/38°

<19

L1508mm

27.8W

2503lm

80+

4000K

0-10V

Cone Louver

24°/38°

<19

L1508mm

27.8W

2503lm

80+

4000K

DALI

Cone Louver

24°/38°

<19

L1508mm

27.0W

2253lm

90+

4000K

On-Off

Cone Louver

24°/38°

<19

L1508mm

27.8W

2253lm

90+

4000K

0-10V

Cone Louver

24°/38°

<19

L1508mm

27.8W

2253lm

90+

4000K

DALI

Model

SLIM 3572

Input Vol.

220-240VAC

Optical

Cone Louver=10Sets

Power

45W

Beam Angle

24°/38°

LED

Osram

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1508 x W35 x H72mm

Lumen

3645-4172lm/pc

IP / IK

IP22 / IK06

Efficiency

90lm/W

Installation

Pendant,Ceiling Mounting

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SLIM(3572),    Optical: Cone Louver=10Sets,   Power: 45W,   Efficiency: 90lm/W,    LED: Osram,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Cone Louver

24°/38°

<19

L1508mm

45.0W

4050lm

80+

3000K

On-Off

Cone Louver

24°/38°

<19

L1508mm

46.4W

4050lm

80+

3000K

0-10V

Cone Louver

24°/38°

<19

L1508mm

46.4W

4050lm

80+

3000K

DALI

Cone Louver

24°/38°

<19

L1508mm

45.0W

3645lm

90+

3000K

On-Off

Cone Louver

24°/38°

<19

L1508mm

46.4W

3645lm

90+

3000K

0-10V

Cone Louver

24°/38°

<19

L1508mm

46.4W

3645lm

90+

3000K

DALI

Cone Louver

24°/38°

<19

L1508mm

45.0W

4172lm

80+

4000K

On-Off

Cone Louver

24°/38°

<19

L1508mm

46.4W

4172lm

80+

4000K

0-10V

Cone Louver

24°/38°

<19

L1508mm

46.4W

4172lm

80+

4000K

DALI

Cone Louver

24°/38°

<19

L1508mm

45.0W

3754lm

90+

4000K

On-Off

Cone Louver

24°/38°

<19

L1508mm

46.4W

3754lm

90+

4000K

0-10V

Cone Louver

24°/38°

<19

L1508mm

46.4W

3754lm

90+

4000K

DALI
