• SLIM-Office LED Tunable white Linear light in 24Degree 38Degree Crystal Louver UGR

SLIM-Office LED Tunable white Linear light in 24Degree 38Degree Crystal Louver UGR

Short Description:

By width of 35mm, height of 72mm, this slim linear light is designed with internal driver, featured by easiest joint solution by tightening one nut.

With the help of crystal louver lens, this linear lighting solutions offers superior UGR<19 glare control, creating a comfortable, productive environment where aesthetics meet functionality.

Immerse yourself in the transformative art of tunable white technology, tailoring your lighting to perfection, from vibrant energy to soothing warmth.


Product Detail

Download

Product Tags

Product Detail

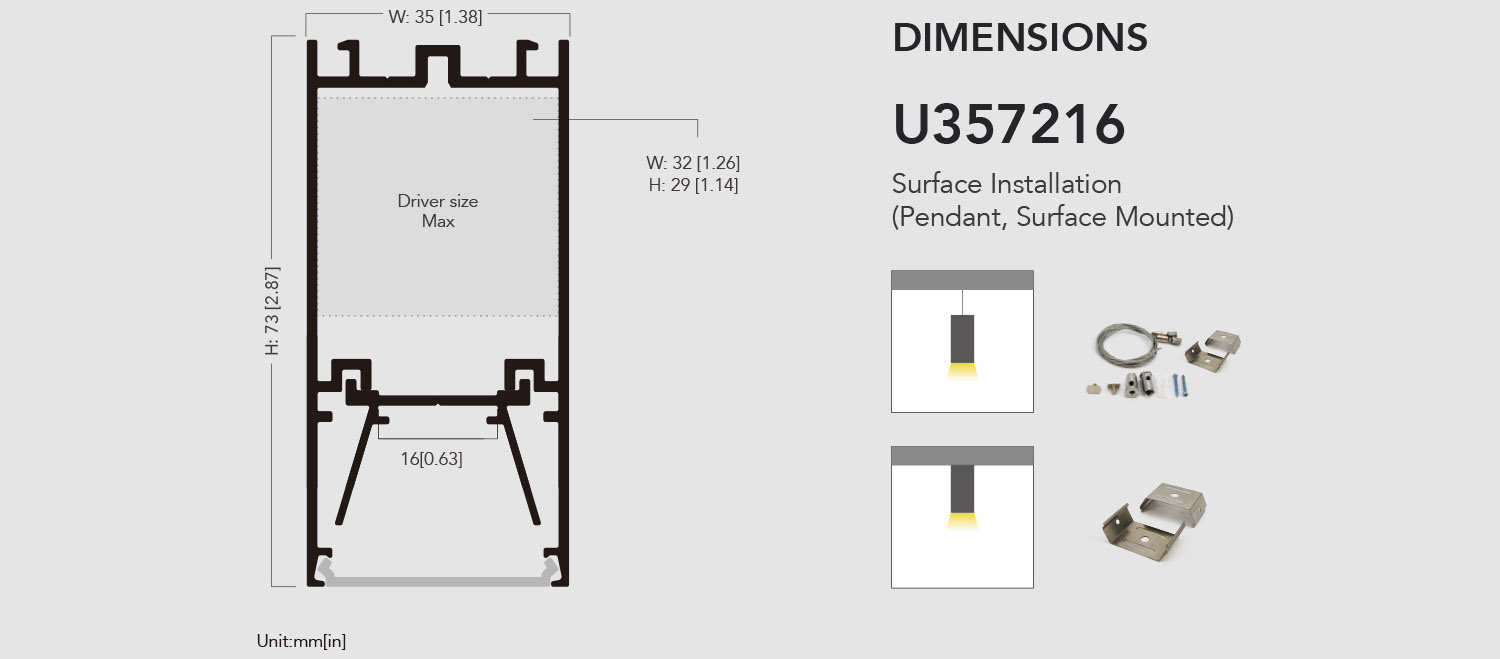

slim crystal louver-04

Product Introduction

Elevate your space with our visionary architectural lighting collection.

Experience the brilliance of Linear Light, where seamless illumination adds modern elegance, creating captivating environments.

Optic for Louver Linear Light, a masterpiece of precision engineering with exceptional glare control (UGR<19), balancing style and comfort. The Crystal Louver series combines artistry and efficiency, providing enchanting light diffusion that transforms spaces.

Discover the Tunable White, offering dynamic lighting ambiances from invigorating daylight to soothing tones, perfect for setting the ideal atmosphere. Illuminate your workspace with our Precision-Crafted Office LED solutions, enhancing productivity and well-being.

Our Flexible Crystal Louvers bring customization to new heights with adjustable angles and a UGR<19 rating, allowing precise lighting control. Choose from Smoky, White, or Black finishes to seamlessly blend with your design vision. Illuminate with versatility, create with elegance.

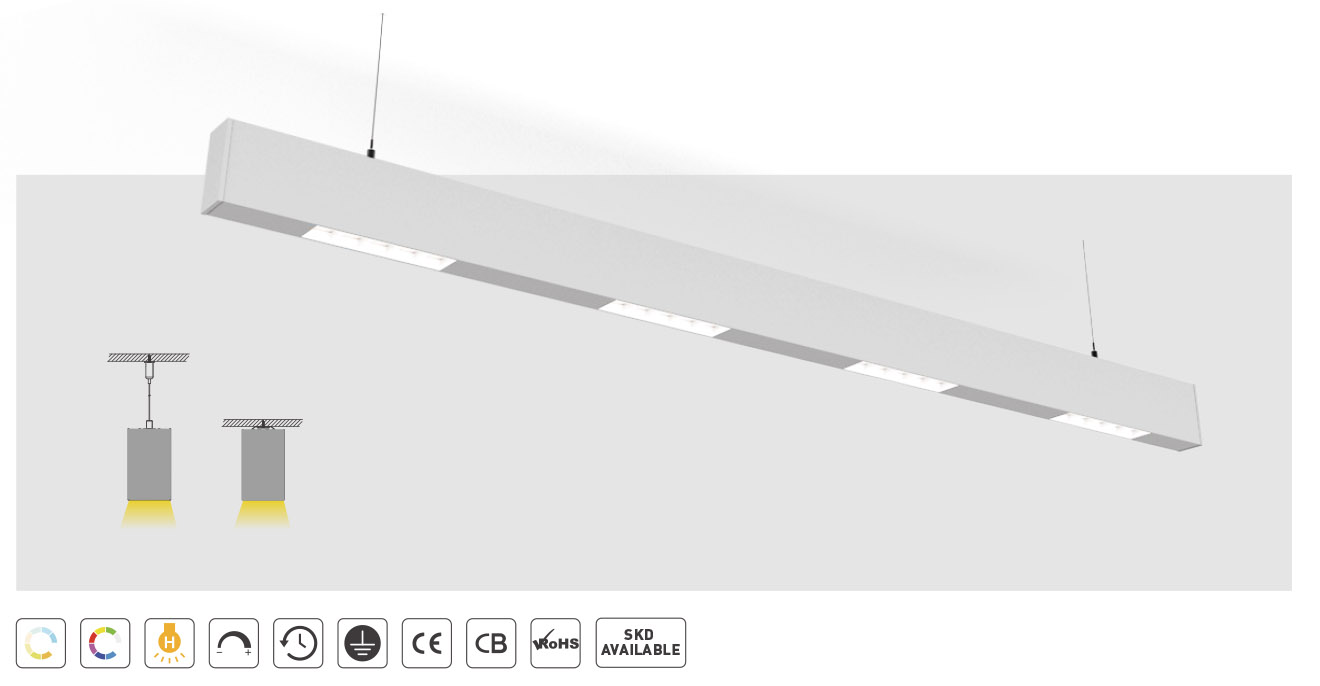

slim crystal louver-05

Feature

1, Linear Light Brilliance: Our linear lighting fixtures redefine the way you perceive illumination. Experience seamless and uniform lighting that adds a touch of modern elegance to any environment. Ideal for creating visually stunning and continuous lighting effects that enhance the ambiance of your space.
2, Louver Linear Light: Elevate your lighting experience with our Louver Linear Light, a masterpiece in precision engineering. The innovative louver design ensures exceptional glare control (UGR<19), making it perfect for environments where visual comfort is paramount. Achieve the perfect blend of style and performance with this versatile fixture.
3, Crystal Louver Elegance: Discover the allure of our Crystal Louver series, where artistry meets efficiency. The crystal louver not only enhances the aesthetics of the fixture but also provides superior light diffusion, creating an enchanting play of light and shadow. Experience illumination like never before with this captivating addition.
4, Precision-Crafted for Offices: Illuminate your office space with unparalleled precision and style. Our Office LED lighting solutions are designed to enhance productivity, focus, and overall well-being. With a 24-degree beam angle, these fixtures provide precise and controlled lighting, making them an ideal choice for modern workspaces.
5, Flexible Cystal louver : with flexible Crystal Louvers, boasting an impressive UGR<19 for superior visual comfort. Tailor your lighting to perfection with adjustable angles of 24 and 38 degrees, giving you precise control over light direction. Plus, enjoy the freedom of a 132.5mm flexible length, allowing you to adapt the fixture to unique spaces. Illuminate with versatility, create with elegance.
6, Available Cystal louver finish:  Choose from sophisticated finishes - Smoky, White, or Black - ensuring seamless integration with your design vision.
7, Tunable White: Immerse yourself in a world of dynamic lighting with our Tunable White fixtures. Achieve the perfect lighting ambiance for any moment, from crisp and invigorating daylight to warm and soothing tones. Experience  tunable white lighting, a game-changer for creating the ideal atmosphere in any setting.

Tunable White 1800K~6500K

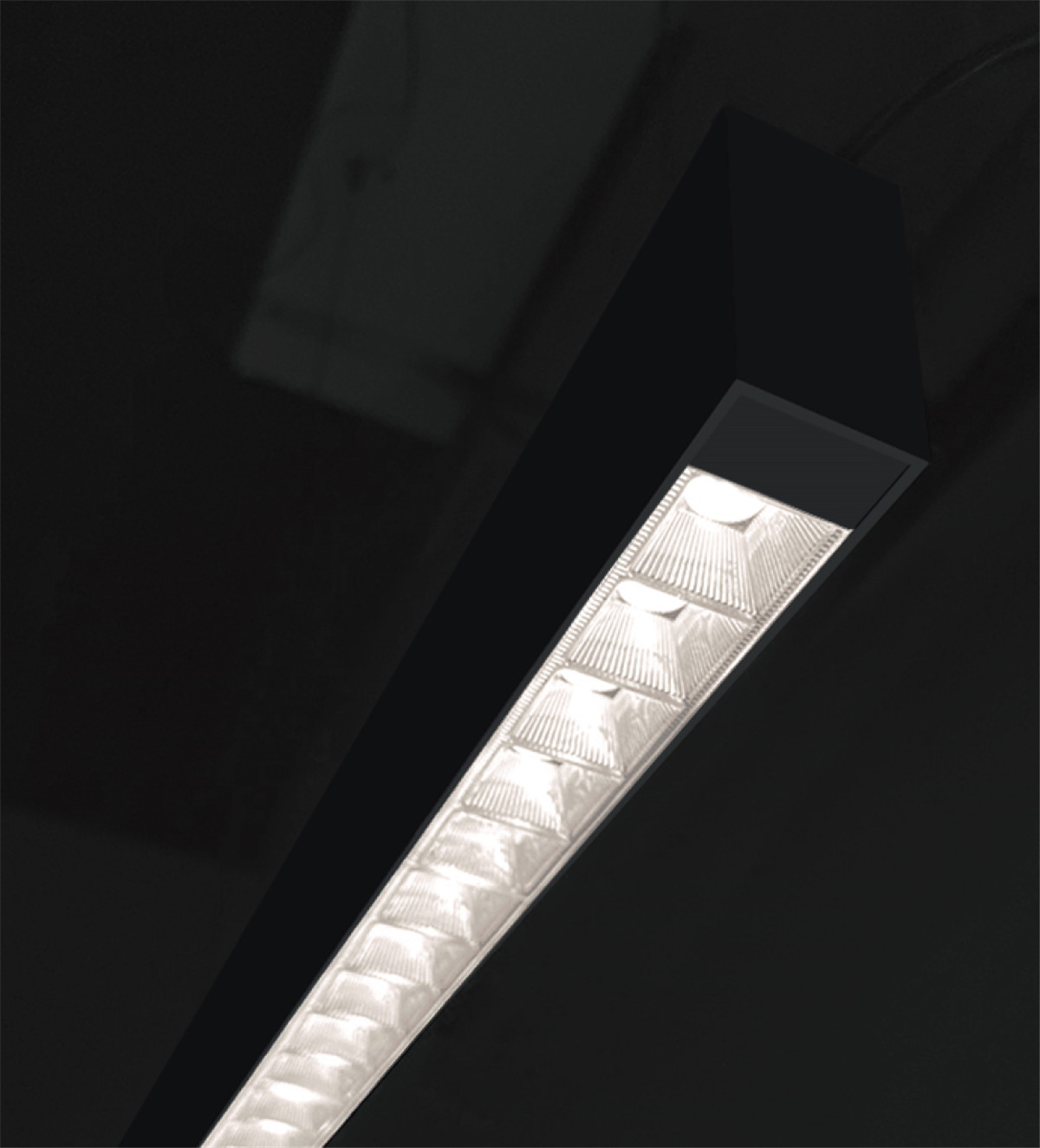

slim crystal louver-06

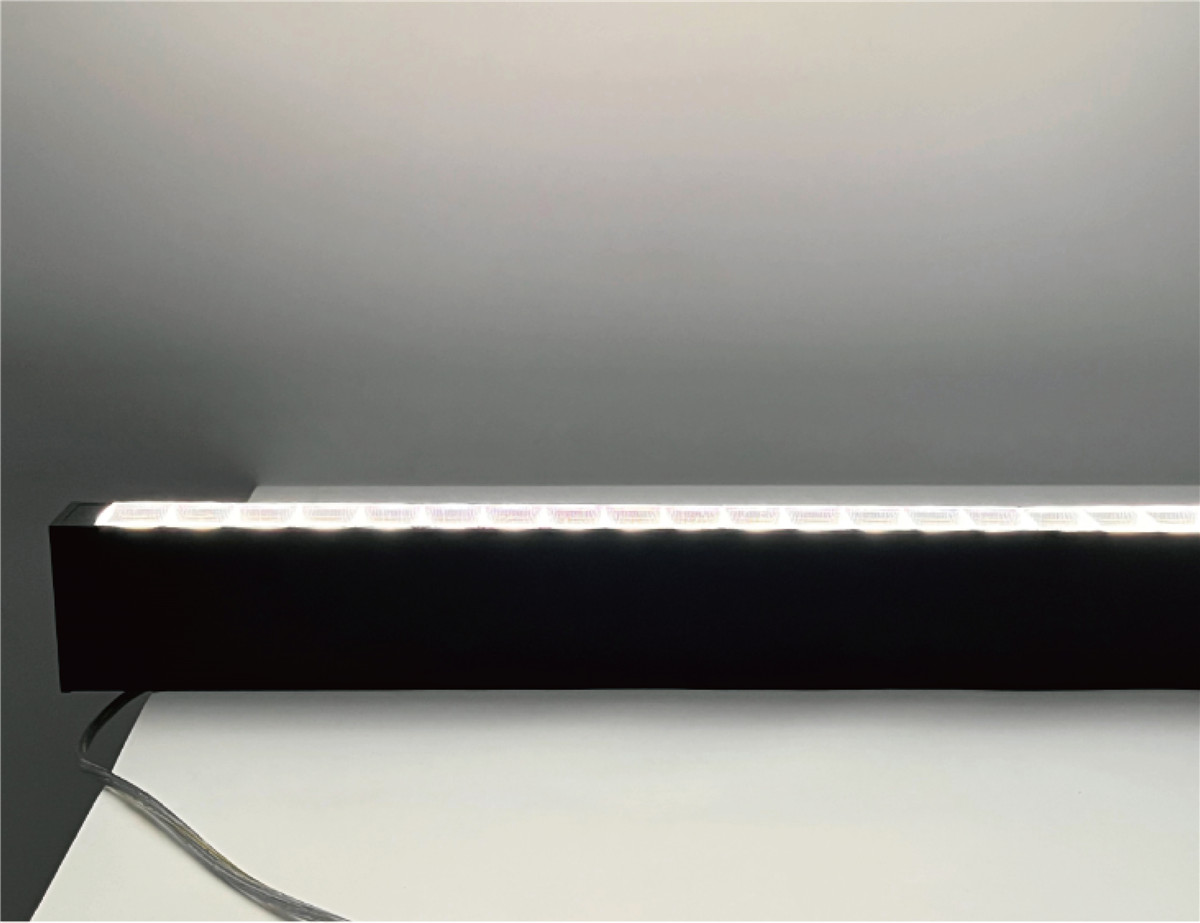

slim crystal louver-07
slim crystal louver-08

Finish

Our product comes standard in Matt White textured, Matt Black textured powder coating, and Silver anodized finishes.

Additionally, we offer up to 48 customized color options to cater to your individual preferences.

Providing you with a wide array of choices to make your space truly shine.

Finish

Color Option

slim crystal louver-12

Range of Applications

Experience the perfect lighting solution for a multitude of workspaces.

Whether it's for widespread or localized illumination in office settings, creating a conducive environment in educational institutions, or adding a touch of sophistication to conference rooms.

14-SLIM

Specification

Model

SLIM

Input Vol.

220-240VAC

Optical

Crystal Louver& Lens

Power

21W

Beam Angle

24°/38°

LED

Osram

UGR

<19

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1208 x W35 x H72mm

Lumen

1701-1947lm/pc

IP / IK

IP22 / IK06

Efficiency

90lm/W

Installation

Pendant, Ceiling Mounting

THD

<20%

Net Weight

1.4kg

Life Time
L80B10

50,000hrs

Luminaire: SLIM(3572),    Optical: Crystal Louver& Lens=4Sets,    Efficiency: 90lm/W,    LED: Osram,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.0W

1890lm

80+

3000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.6W

1890lm

80+

3000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.6W

1890lm

80+

3000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.0W

1701lm

90+

3000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.6W

1701lm

90+

3000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.6W

1701lm

90+

3000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.0W

1947lm

80+

4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.6W

1947lm

80+

4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.6W

1947lm

80+

4000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.0W

1752lm

90+

4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.6W

1752lm

90+

4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.6W

1752lm

90+

4000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.0W

1470lm

80+

2700-4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.6W

1470lm

80+

2700-4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.6W

1470lm

80+

2700-4000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.0W

1323lm

90+

2700-4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.6W

1323lm

90+

2700-4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1208mm

21.6W

1323lm

90+

2700-4000K

DALI

Model

SLIM

Input Vol.

220-240VAC

Optical

Crystal Louver

Power

30W

Beam Angle

24°/38°

LED

Osram

UGR

<19

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1208 x W35 x H72mm

Lumen

2430-2781lm/pc

IP

IP22 / IK06

Efficiency

90lm/W

Installation

Pendant, Ceiling Mounting

THD

<20%

Net Weight

1.4kg

Life Time
L80B10

50,000hrs

Luminaire: SLIM(3572),    Optical: Crystal Louver& Lens=8Sets,    Efficiency: 90lm/W,    LED: Osram,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.0W

2700lm

80+

3000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.9W

2700lm

80+

3000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.9W

2700lm

80+

3000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.0W

2430lm

90+

3000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.9W

2430lm

90+

3000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.9W

2430lm

90+

3000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.0W

2781lm

80+

4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.9W

2781lm

80+

4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.9W

2781lm

80+

4000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.0W

2503lm

90+

4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.9W

2503lm

90+

4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.9W

2503lm

90+

4000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.0W

2100lm

80+

2700-4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.9W

2100lm

80+

2700-4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.9W

2100lm

80+

2700-4000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.0W

1890lm

90+

2700-4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.9W

1890lm

90+

2700-4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1208mm

30.9W

1890lm

90+

2700-4000K

DALI

Model

SLIM

Input Vol.

220-240VAC

Optical

Crystal Louver& Lens

Power

27W

Beam Angle

24°/38°

LED

Osram

UGR

<19

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1508 x W35 x H72mm

Lumen

2187-2503lm/pc

IP / IK

IP22 / IK06

Efficiency

90lm/W

Installation

Pendant, Ceiling Mounting

THD

<20%

Net Weight

/

Life Time
L80B10

50,000hrs

Luminaire: SLIM(3572),    Optical: Crystal Louver& Lens=5Sets,     Efficiency: 90lm/W,    LED: Osram,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.0W

2430lm

80+

3000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.8W

2430lm

80+

3000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.8W

2430lm

80+

3000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.0W

2187lm

90+

3000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.8W

2187lm

90+

3000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.8W

2187lm

90+

3000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.0W

2503lm

80+

4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.8W

2503lm

80+

4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.8W

2503lm

80+

4000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.0W

2253lm

90+

4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.8W

2253lm

90+

4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.8W

2253lm

90+

4000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.0W

1890lm

80+

2700-4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.8W

1890lm

80+

2700-4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.8W

1890lm

80+

2700-4000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.0W

1701lm

90+

2700-4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.8W

1701lm

90+

2700-4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1508mm

27.8W

1701lm

90+

2700-4000K

DALI

Model

SLIM

Input Vol.

220-240VAC

Optical

Crystal Louver& Lens

Power

45W

Beam Angle

24°/38°

LED

Osram

UGR

<19

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1508 x W35 x H72mm

Lumen

3645-4172lm/pc

IP

IP22 / IK06

Efficiency

90lm/W

Installation

Pendant, Ceiling Mounting

THD

<20%

Net Weight

/

Life Time
L80B10

50,000hrs

Luminaire: SLIM(3572),    Optical: Crystal Louver& Lens=10Sets,     Efficiency: 90lm/W,    LED: Osram,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Crystal Louver & Lens

24°/38°

<19

L1508mm

45.0W

4050lm

80+

3000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1508mm

46.4W

4050lm

80+

3000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1508mm

46.4W

4050lm

80+

3000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1508mm

45.0W

3645lm

90+

3000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1508mm

46.4W

3645lm

90+

3000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1508mm

46.4W

3645lm

90+

3000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1508mm

45.0W

4172lm

80+

4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1508mm

46.4W

4172lm

80+

4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1508mm

46.4W

4172lm

80+

4000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1508mm

45.0W

3754lm

90+

4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1508mm

46.4W

3754lm

90+

4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1508mm

46.4W

3754lm

90+

4000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1508mm

45.0W

3150lm

80+

2700-4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1508mm

46.4W

3150lm

80+

2700-4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1508mm

46.4W

3150lm

80+

2700-4000K

DALI

Crystal Louver & Lens

24°/38°

<19

L1508mm

45.0W

2835lm

90+

2700-4000K

On-Off

Crystal Louver & Lens

24°/38°

<19

L1508mm

46.4W

2835lm

90+

2700-4000K

0-10V

Crystal Louver & Lens

24°/38°

<19

L1508mm

46.4W

2835lm

90+

2700-4000K

DALI


  • Previous:
  • Next:

    • 01-SLIM SERIES Crystal Louver Linear Light
      01-SLIM SERIES Crystal Louver Linear Light
      01-SLIM SERIES Crystal Louver Linear Light
      01-SLIM SERIES Crystal Louver Linear Light
    • 02--Slim U3572 Pendant Installation
      02--Slim U3572 Pendant Installation
      02--Slim U3572 Pendant Installation
      02--Slim U3572 Pendant Installation
    • 03--Slim U3572 Ceiling Installation
      03--Slim U3572 Ceiling Installation
      03--Slim U3572 Ceiling Installation
      03--Slim U3572 Ceiling Installation
  • Write your message here and send it to us

    CONTACT

    • facebook (2)
    • youtube (1)
    • linkedin
