• SLIM-Architectural Slim Linear LED luminaire with Nickle Reflector Louver combinations UGR

SLIM-Architectural Slim Linear LED luminaire with Nickle Reflector Louver combinations UGR

Short Description:

By width of 35mm, height of 72mm, this slim linear light is designed with internal driver, featured by easiest joint solution by tightening one nut.

This architectural linear light adopts Nickle Reflector Louver optical lens, so it can prevent glare, has four optical lens angle options, including 24°、38°、50°、50×50°、35×75°.

Illuminate your space with refined precision, creating an ambiance that harmoniously balances style and functionality.


Product Detail

Download

Product Tags

Product Introduction

With exquisite Nickle Reflector Louver lens, this linear luminaire ensures not just enhanced aesthetics, but also optimized light distribution for a truly remarkable ambiance.

Our linear light designed to transform your space into a masterpiece of illumination. The availability of different beam angle, including 24°、38°、50°、50x50°、35x75° brings versatility to your lighting design, catering to a range of environments and preferences. Moreover, with Anti-Glaring technology achieving a UGR<16 rating, this linear led promise not just bright light, but also exceptional comfort by eliminating harsh glares.

From customized lengths to precision engineering, every detail has been meticulously crafted to cater to your needs.

Illuminate your surroundings with tailored brilliance that harmonizes innovation and aesthetics, and experience lighting like never before.

Feature

1, Elegance of Nickle Reflector Louver: Elevate aesthetics and light distribution with the inclusion of a sophisticated Nickle Reflector Louver, creating an ambiance of refined brilliance.

2, Versatile Beam Angle: Enjoy the freedom of lighting design with a 35x75° beam angle, catering to a wide spectrum of lighting scenarios.

3, Comfortable Illumination: Embrace both vibrant lighting and visual comfort with UGR<16 Anti-Glaring technology, ensuring a glare-free and soothing ambiance.

4, Color Temperature Range (2200k~6500k): provides a wide range of color temperature options, spanning from warm, cozy lighting at 2200 Kelvin to cooler, daylight-like illumination at 6500 Kelvin.

This feature enables you to tailor the ambiance of your space according to your preference or specific needs.

5, CRI80 or CRI90: The lighting solution offers two options for color rendering index (CRI): CRI80 and CRI90.

CRI80 ensures good color accuracy, while CRI90 provides even higher color fidelity, making it ideal for applications where accurate color representation is crucial, such as in art galleries or retail displays.

6, Power and Efficiency Variability: designed with flexibility in mind, offering different power and efficiency levels to meet diverse requirements.

7, Internal driver: save the space for the driver installation, keeps the environment neat.

8, Big space in the profile: the back cover of the profile is easy to be opened, easy the entire installation process.

9, Flexible installation Methods: Sus-pendant or surface-mounted.

10, Easy Connection Brackets: equipped with user-friendly connection brackets that simplify the installation process.

These brackets facilitate quick and secure connections, reducing the need for extensive labor and technical expertise during setup,get flawless, continuous lighting effect.

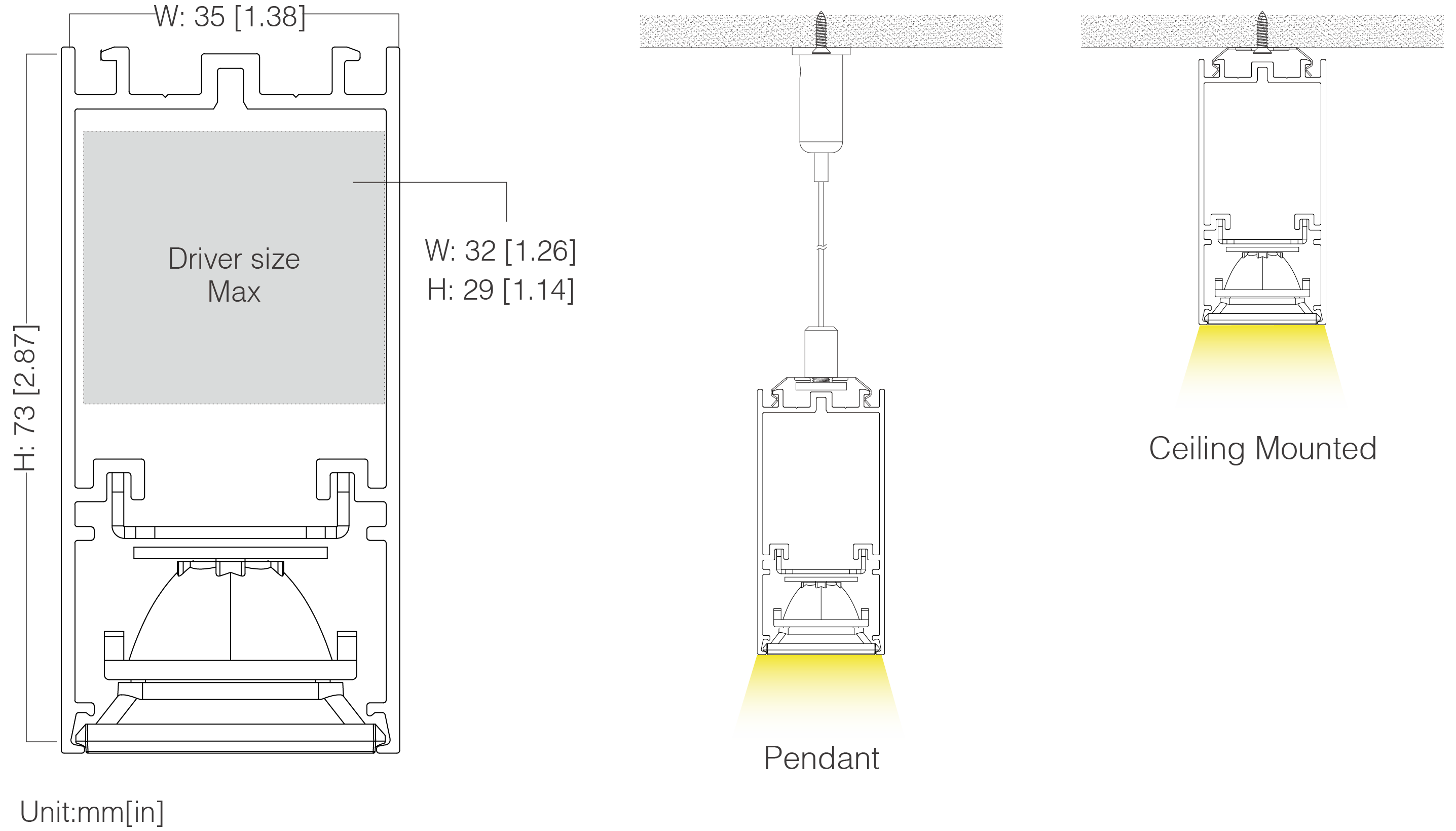

Dimension & Installation

未标题-1_画板 1
HILA Linear Architecturally designed Direct & Indirect lighting with UGR16, TIR Lens & Diffuser (5)

Finish

Choose from our premium finishes: classic Matt White textured, sleek Matt Black textured powder coating, and sophisticated Silver anodized.Elevate your customization with over 48 more options available through our specialized service. Your vision, your palette – we're here to bring your design aspirations to life.

Finish

Color Option

slim crystal louver-12

Applications

Ideal for both general and localized lighting needs, our fixtures are perfectly suited for a diverse range of settings. Whether in offices, educational institutions, conference rooms, or any other workspace, our products excel at illuminating your environment with precision and style. Illuminate your surroundings with versatility and elegance, ensuring a comfortable and productive ambiance for any application.

Accessories

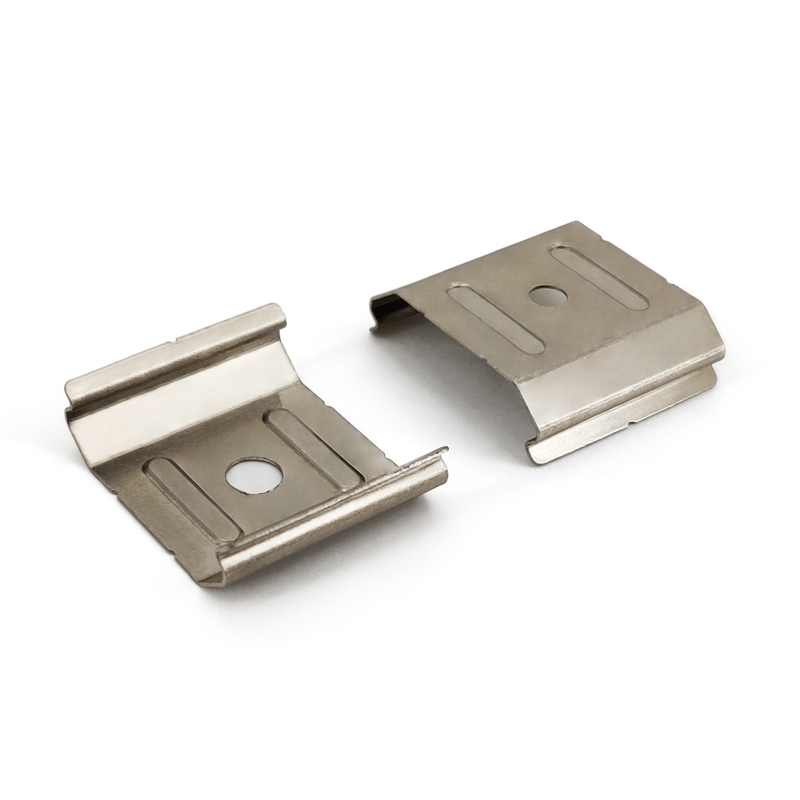

BVG Louver optical interior wall washer linear light UGR  16

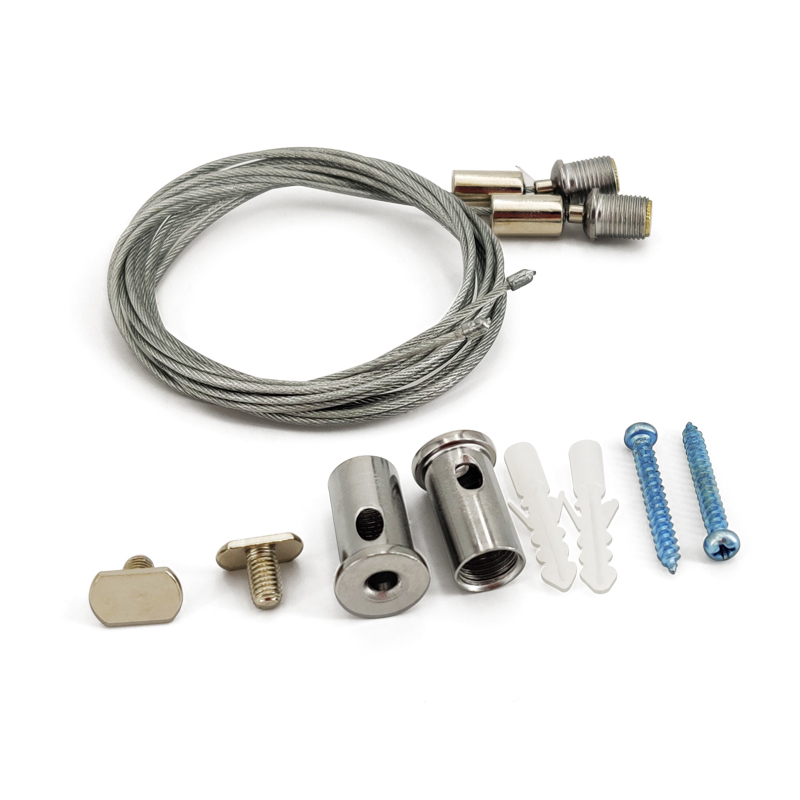

Easy joining Suspended Linear fixture 1200MM with PC lens U5168 (2)

Specification

Model

SLIM

Input Vol.

220-240VAC

Optical

Nickle Louver=4sets

Power

21W

Beam Angle

24° / 38° /50° /
50x50° / 35X75°

LED

Osram

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1208 x W35 x H72mm

Lumen

1701-1947lm/pc

IP / IK

IP22 / IK06

Efficiency

90lm/W

Installation

Pendant, Ceiling Mounting

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SLIM(3572),    Optical: Nickle Louver=4sets,   Power: 21W,    Efficiency: 90lm/W,    LED: Osram,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

21.0W

1890lm

80+

3000K

On-Off

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

21.6W

1890lm

80+

3000K

0-10V

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

21.6W

1890lm

80+

3000K

DALI

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

21.0W

1701lm

90+

3000K

On-Off

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

21.6W

1701lm

90+

3000K

0-10V

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

21.6W

1701lm

90+

3000K

DALI

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

21.0W

1947lm

80+

4000K

On-Off

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

21.6W

1947lm

80+

4000K

0-10V

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

21.6W

1947lm

80+

4000K

DALI

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

21.0W

1752lm

90+

4000K

On-Off

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

21.6W

1752lm

90+

4000K

0-10V

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

21.6W

1752lm

90+

4000K

DALI

Model

SLIM

Input Vol.

220-240VAC

Optical

Nickle Louver=8sets

Power

30W

Beam Angle

24° / 38° /50° /
50x50° / 35X75°

LED

Osram

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1208 x W35 x H72mm

Lumen

2430-2781lm/pc

IP / IK

IP22 / IK06

Efficiency

90lm/W

Installation

Pendant, Ceiling Mounting

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SLIM(3572),    Optical: Nickle Louver=8sets,    Power: 30W,    Efficiency: 90lm/W,    LED: Osram,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

30.0W

2700lm

80+

3000K

On-Off

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

30.9W

2700lm

80+

3000K

0-10V

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

30.9W

2700lm

80+

3000K

DALI

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

30.0W

2430lm

90+

3000K

On-Off

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

30.9W

2430lm

90+

3000K

0-10V

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

30.9W

2430lm

90+

3000K

DALI

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

30.0W

2781lm

80+

4000K

On-Off

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

30.9W

2781lm

80+

4000K

0-10V

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

30.9W

2781lm

80+

4000K

DALI

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

30.0W

2503lm

90+

4000K

On-Off

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

30.9W

2503lm

90+

4000K

0-10V

Nickle Louver

24° / 38° /50° / 50x50° / 35X75°

<19

L1208mm

30.9W

2503lm

90+

4000K

DALI

Model

SLIM

Input Vol.

220-240VAC

Optical

Nickle Louver=5sets

Power

27W

Beam Angle

24° / 38° /50° /
50x50° / 35X75°

LED

Osram

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1508 x W35 x H72mm

Lumen

2187-2503lm/pc

IP / IK

IP22 / IK06

Efficiency

90lm/W

Installation

Pendant, Ceiling Mounting

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SLIM(3572),   Optical: Nickle Louver=5sets,   Power: 27W,    Efficiency: 90lm/W,    LED: Osram,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

27.0W

2430lm

80+

3000K

On-Off

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

27.8W

2430lm

80+

3000K

0-10V

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

27.8W

2430lm

80+

3000K

DALI

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

27.0W

2187lm

90+

3000K

On-Off

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

27.8W

2187lm

90+

3000K

0-10V

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

27.8W

2187lm

90+

3000K

DALI

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

27.0W

2503lm

80+

4000K

On-Off

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

27.8W

2503lm

80+

4000K

0-10V

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

27.8W

2503lm

80+

4000K

DALI

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

27.0W

2253lm

90+

4000K

On-Off

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

27.8W

2253lm

90+

4000K

0-10V

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

27.8W

2253lm

90+

4000K

DALI

Model

SLIM

Input Vol.

220-240VAC

Optical

Nickle Louver=10sets

Power

45W

Beam Angle

24° / 38° /50° /
50x50° / 35X75°

LED

Osram

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1508 x W35 x H72mm

Lumen

3645-4172lm/pc

IP / IK

IP22 / IK06

Efficiency

90lm/W

Installation

Pendant, Ceiling Mounting

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SLIM(3572),   Optical: Nickle Louver=10sets,    Power: 45W,    Efficiency: 90lm/W,    LED: Osram,    Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

45.0W

4050lm

80+

3000K

On-Off

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

46.4W

4050lm

80+

3000K

0-10V

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

46.4W

4050lm

80+

3000K

DALI

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

45.0W

3645lm

90+

3000K

On-Off

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

46.4W

3645lm

90+

3000K

0-10V

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

46.4W

3645lm

90+

3000K

DALI

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

45.0W

4172lm

80+

4000K

On-Off

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

46.4W

4172lm

80+

4000K

0-10V

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

46.4W

4172lm

80+

4000K

DALI

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

45.0W

3754lm

90+

4000K

On-Off

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

46.4W

3754lm

90+

4000K

0-10V

Nickle Louver

24° / 38° /50° /50x50° / 35X75°

<19

L1508mm

46.4W

3754lm

90+

4000K

DALI
