Ssh-HONG Pendant Acoustic Led linear light with PC diffuser lens
Product Introduction
SSH-HONG series is an Engineering designed Acoustic Lighting, which is revolutionizing the way people experience work, worship, entertainment, and their home through a suite of sound absorption and soundproofing solutions.
Crafted from 100% recyclable, fire-retardant and odorless materials, this linear panel light offers a wide range of design options, including 4x8ft (1.22x2.44m) acoustic panels, to complement your interior decor needs, not only enhances your space but also contribute to a greener planet.
With an array up to 11 options in Direct, Asymmetric, Double Asymmetric, Prismatic lens, PC lens, TIR, Reflector, Louver, Beam angle from 15 ° to 110 °, more LED options in CRI95+, 90+ in around 10 CCT options from 1800K to 6500K, Dual White, Tunable white, different dimming methods 0-10V, DALI, DMX, Triac forward /Reverse Phase, NRC = 0.7 acoustic panels, this noise-reducing Led light provides functional illumination source as well as excellent sound management. With ANTI-GLARING LENS, this acoustic linear light has several choices of powers and lumens, to meet different requirements.
What’s more, this sound-absorbing linear light is with internal driver, patented bracket for connection, easy installation, maintenance, and effortless joint to long line.
Feature
1. Customized Designs: Choose from a variety of designs, including 4x8ft (1.22x2.44m) acoustic panels, to suit your interior decor needs.
2. Exceptional Color Rendering: With a CRI (Color Rendering Index) of over 95 and R9 value exceeding 90, our lights ensure accurate and vibrant color reproduction, making your space visually appealing.
3. Eco-friendly Materials: We are committed to sustainability. Our products are made from 100% recyclable and odorless materials, reducing their environmental impact.
4. Class A Fire Retardant: Safety is paramount. Our lights feature Class A fire-retardant materials, providing added security and peace of mind.
5, High Sound Absorption Performance in NRC = 0.7 panels Excellent illumination performance.
6, Improved Work Environment: Reduced noise and quality lighting improve the comfort of work and living spaces. Better lighting and sound control contribute to higher work efficiency and employee satisfactory
7, Effortless Installation: Our Acoustic LED Linear Lighting is designed for ease of installation and quick field joints for continuous runs, ensuring a seamless and hassle-free setup.

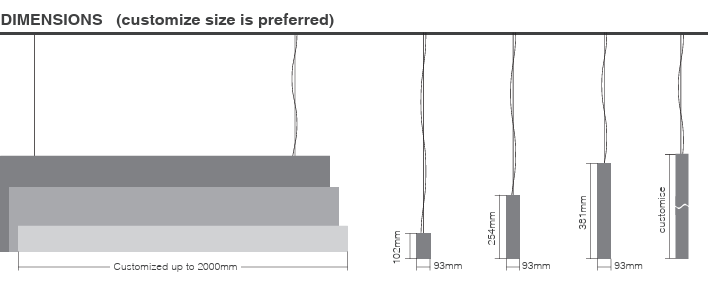

Size & Installation
Finish
Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.
Other 15 colors for option.

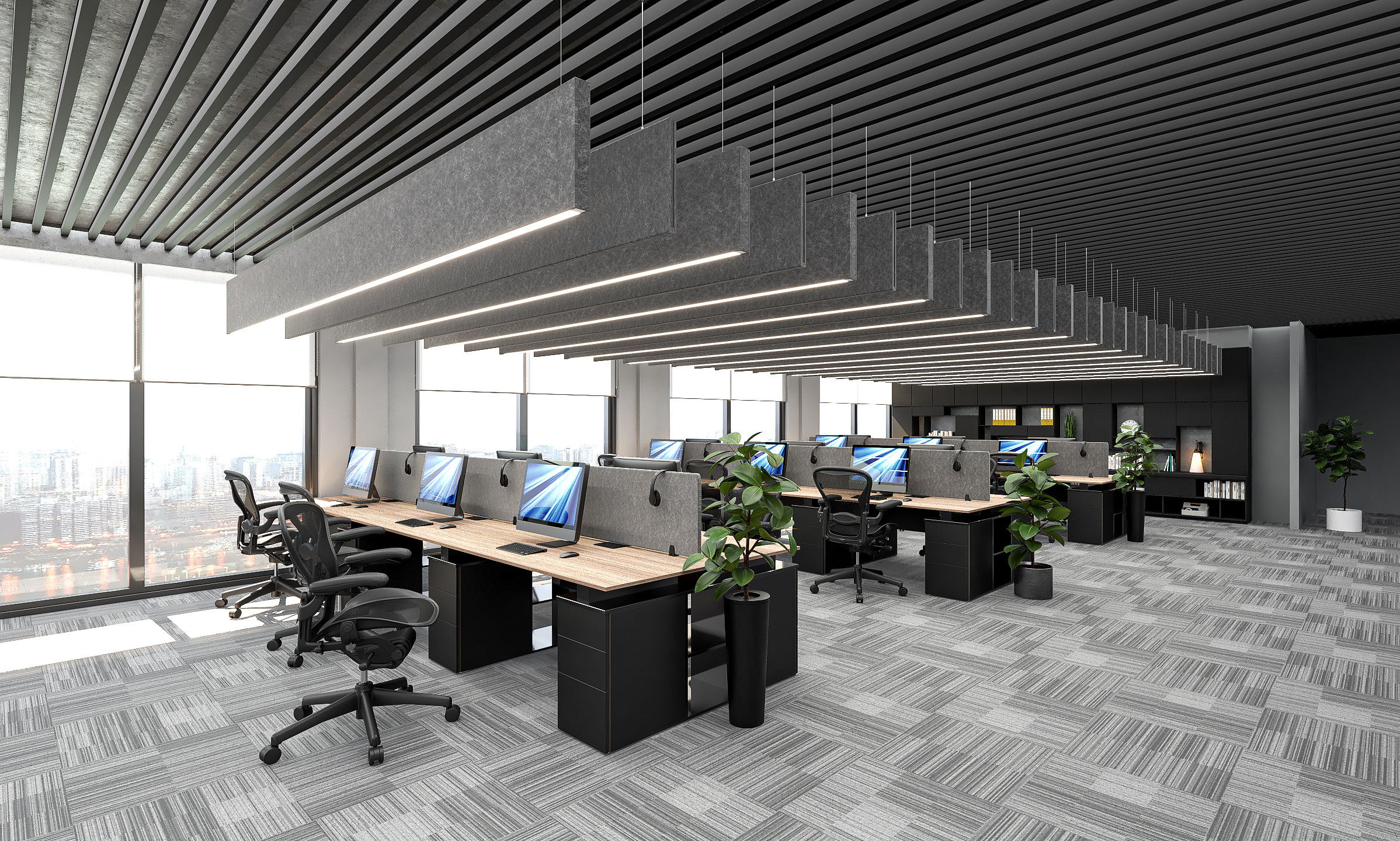

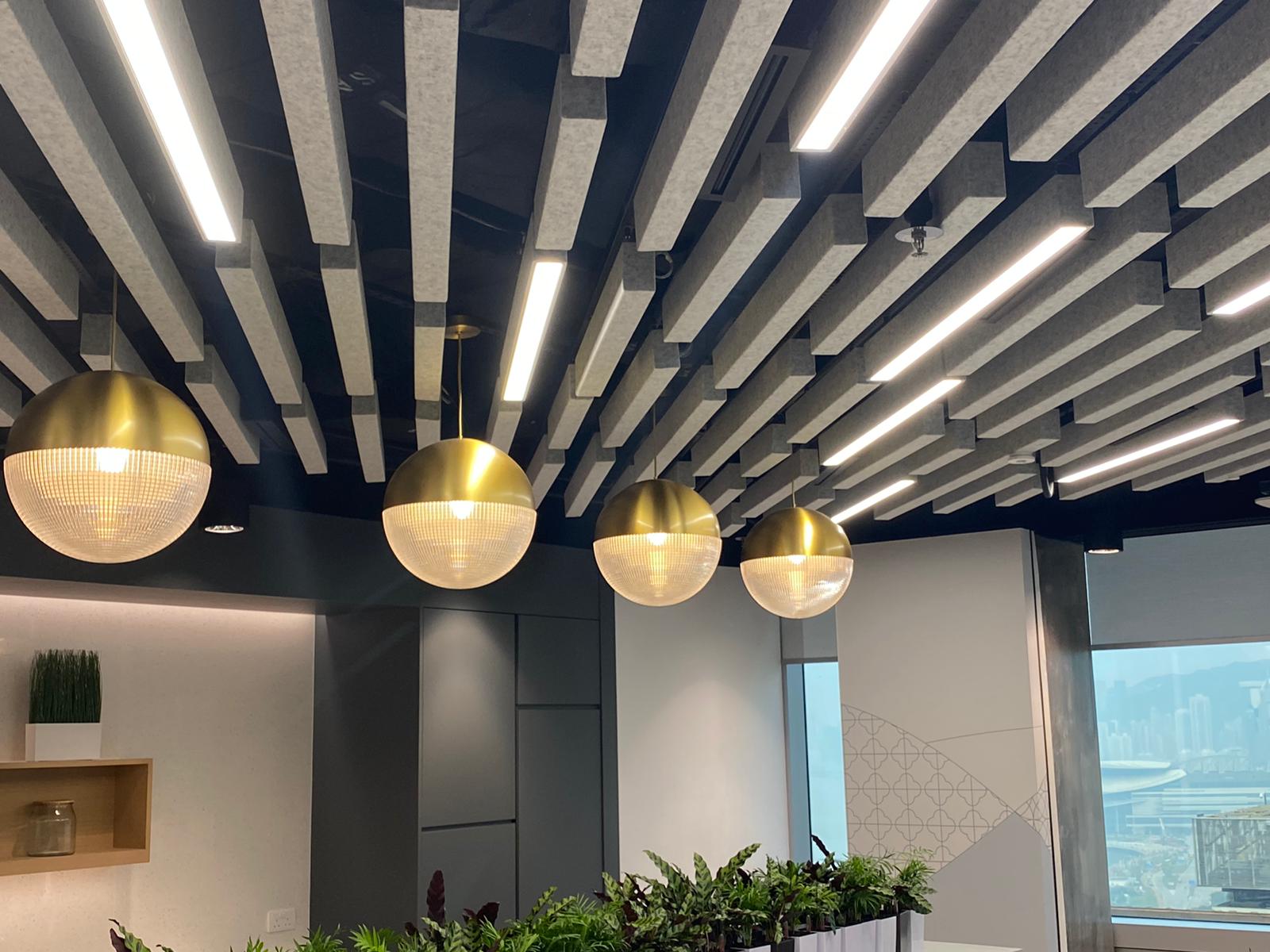

Range of Applications
This anti-glaring LED acoustic linear lights is a versatile lighting solution with dual functionality—providing quality lighting and sound absorption.
They are suitable for spaces where creating a pleasant working environment is essential, such as Offices, Restaurants, Meeting rooms, Educational Institutions, Healthcare, Theater, Museums, etc.
Specification
| Model | HONG acoustic | Input Vol. | 220-240VAC |
| Optical | PC Diffuser Lens | Power | 27W |
| Beam Angle | 105° | LED | Osram |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| UGR | <26 | SDCM | <3 |

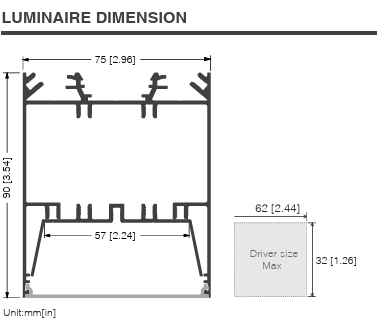

| Dimension | L1215 x W75 x H90mm | Lumen | 2187-3254lm/pc |
| IP / IK | IP22 | Efficiency | 90lm/W 110lm/W 130lm/W |
| Installation | Pendant | Life Time L80B10 |
50,000hrs |
| Net Weight | / | THD | <20% |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2430lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2430lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2430lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2187lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2187lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2187lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2503lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2503lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2503lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2253lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2253lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2253lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2309lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2309lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2309lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2078lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2078lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2078lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 110lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2970lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2970lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2970lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2673lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2673lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2673lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3059lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3059lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3059lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2753lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2753lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2753lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2822lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2822lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2822lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2539lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2539lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2539lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 130lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3510lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3510lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3510lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3159lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3159lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3159lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3615lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3615lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3615lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3254lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3254lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3254lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3335lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3335lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3335lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3001lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3001lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3001lm |
90+ |
2700-4000K |
DALI |
| Model | HONG acoustic | Input Vol. | 220-240VAC |
| Optical | PC Diffuser Lens | Power | 36W |
| Beam Angle | 105° | LED | Osram |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| UGR | <26 | SDCM | <3 |
| Dimension | L1215 x W75 x H90mm | Lumen | 2916-4338lm/pc |
| IP / IK | IP22 | Efficiency | 90lm/W 110lm/W 130lm/W |
| Installation | Pendant | Life Time L80B10 |
50,000hrs |
| Net Weight | / | THD | <20% |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
3240lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3240lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3240lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
2916lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
2916lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
2916lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
3337lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3337lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3337lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
3003lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3003lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3003lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
3078lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3078lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3078lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
2770lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
2770lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
2770lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 110lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
3960lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3960lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3960lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
3564lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3564lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3564lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
4079lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4079lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4079lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
3671lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3671lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3671lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
3762lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3762lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3762lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
3386lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3386lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
3386lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 130lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
3960lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
4680lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4680lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4680lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
4212lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4212lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4212lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
4820lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4820lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4820lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
4338lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4338lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4338lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
4446lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4446lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4446lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.0W |
4001lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4001lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
37.1W |
4001lm |
90+ |
2700-4000K |
DALI |
| Model | HONG acoustic | Input Vol. | 220-240VAC |
| Optical | PC Diffuser Lens | Power | 45W |
| Beam Angle | 105° | LED | Osram |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| UGR | <26 | SDCM | <3 |
| Dimension | L1215 x W75 x H90mm | Lumen | 3645-5423lm/pc |
| IP / IK | IP22 | Efficiency | 90lm/W 110lm/W 130lm/W |
| Installation | Pendant | Life Time L80B10 |
50,000hrs |
| Net Weight | / | THD | <20% |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
4050lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4050lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4050lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
3645lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
3645lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
3645lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
4172lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4172lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4172lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
3754lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
3754lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
3754lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
3848lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
3848lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
3848lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
3463lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
3463lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
3463lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 110lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
4950lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4950lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4950lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
4455lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4455lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4455lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
5099lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
5099lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
5099lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
4589lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4589lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4589lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
4703lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4703lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4703lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
4232lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4232lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
4232lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 130lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
5850lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
5850lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
5850lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
5265lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
5265lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
5265lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
6026lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
6026lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
6026lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
5423lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
5423lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
5423lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
5558lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
5558lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
5558lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
45.0W |
5002lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
5002lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1215mm |
46.4W |
5002lm |
90+ |
2700-4000K |
DALI |
| Model | HONG acoustic | Input Vol. | 220-240VAC |
| Optical | PC Diffuser Lens | Power | 36W |
| Beam Angle | 105° | LED | Osram |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| UGR | <26 | SDCM | <3 |
| Dimension | L1515 x W75 x H90mm | Lumen | 2916-4338lm/pc |
| IP / IK | IP22 | Efficiency | 90lm/W 110lm/W 130lm/W |
| Installation | Pendant | Life Time L80B10 |
50,000hrs |
| Net Weight | / | THD | <20% |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
3240lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3240lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3240lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
2916lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
2916lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
2916lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
3337lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3337lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3337lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
3003lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3003lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3003lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
3078lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3078lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3078lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
2770lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
2770lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
2770lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 110lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
3960lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3960lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3960lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
3564lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3564lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3564lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
4079lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4079lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4079lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
3671lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3671lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3671lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
3762lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3762lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3762lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
3386lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3386lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
3386lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 130lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
4680lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4680lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4680lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
4212lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4212lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4212lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
4820lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4820lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4820lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
4338lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4338lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4338lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
4446lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4446lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4446lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
36.0W |
4001lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4001lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
37.1W |
4001lm |
90+ |
2700-4000K |
DALI |
| Model | HONG acoustic | Input Vol. | 220-240VAC |
| Optical | PC Diffuser Lens | Power | 45W |
| Beam Angle | 105° | LED | Osram |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| UGR | <26 | SDCM | <3 |
| Dimension | L1515 x W75 x H90mm | Lumen | 3645-5423lm/pc |
| IP / IK | IP22 | Efficiency | 90lm/W 110lm/W 130lm/W |
| Installation | Pendant | Life Time L80B10 |
50,000hrs |
| Net Weight | / | THD | <20% |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
4050lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4050lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4050lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
3645lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
3645lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
3645lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
4172lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4172lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4172lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
3754lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
3754lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
3754lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
3848lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
3848lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
3848lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
3463lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
3463lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
3463lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 110lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
4950lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4950lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4950lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
4455lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4455lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4455lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
5099lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
5099lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
5099lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
4589lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4589lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4589lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
4703lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4703lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4703lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
4232lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4232lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
4232lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 130lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
5850lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
5850lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
5850lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
5265lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
5265lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
5265lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
6026lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
6026lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
6026lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
5423lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
5423lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
5423lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
5558lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
5558lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
5558lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
45.0W |
5002lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
5002lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
46.4W |
5002lm |
90+ |
2700-4000K |
DALI |
| Model | HONG acoustic | Input Vol. | 220-240VAC |
| Optical | PC Diffuser Lens | Power | 60W |
| Beam Angle | 105° | LED | Osram |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| UGR | <26 | SDCM | <3 |
| Dimension | L1515 x W75 x H90mm | Lumen | 4860-7231lm/pc |
| IP / IK | IP22 | Efficiency | 90lm/W 110lm/W 130lm/W |
| Installation | Pendant | Life Time L80B10 |
50,000hrs |
| Net Weight | / | THD | <20% |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 90lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
5400lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
5400lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
5400lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
4860lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
4860lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
4860lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
5562lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
5562lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
5562lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
5006lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
5006lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
5006lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
5130lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
5130lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
5130lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
4617lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
4617lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
4617lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 110lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
6600lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
6600lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
6600lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
5940lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
5940lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
5940lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
6798lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
6798lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
6798lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
6118lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
6118lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
6118lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
6270lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
6270lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
6270lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
5643lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
5643lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
5643lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: HONG acoustic, Optical: PC diffuser, Efficiency: 130lm/W, LED: Osram, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
7800lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
7800lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
7800lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
7020lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
7020lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
7020lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
8034lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
8034lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
8034lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
7231lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
7231lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
7231lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
7410lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
7410lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
7410lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
60.0W |
6669lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
6669lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1515mm |
61.8W |
6669lm |
90+ |
2700-4000K |
DALI |
-
1 H-U7590 Pendant
-
2 H-U7590 line acoustic light
-
SSH-HONG-PC SPECIFICATIONS
CONTACT
-
address: No. 1 TianQin St., Wusha Industrial Zone, Henglan Town, ZhongShan, Guangdong, China
-
Phone
-
E-mail
-
Whatsapp
-
Top
