Pendant Acoustic Led linear light with optical lens
Product Introduction
SSH-LUZ Series is an Engineering design Acoustic Lighting, which is revolutionizing the way people experience work, worship, entertainment, and their home through a suite of sound absorption and soundproofing solutions.
Crafted from 100% recyclable, fire-retardant and odorless materials, this acoustic led lighting offers a wide range of design options, including 4x8ft (1.22x2.44m) acoustic panels, to complement your interior decor needs, not only enhances your space but also contribute to a greener planet.
With an array up to 11 options in Direct, Asymmetric, Double Asymmetric, Prismatic lens, PC lens, TIR, Reflector, Louver, Beam angle from 15 ° to 110 °, more LED options in CRI95+, 90+ in around 10 CCT options from 1800K to 6500K, Dual White, Tunable white, different dimming methods 0-10V, DALI, DMX, Triac forward /Reverse Phase, NRC = 0.7 acoustic panels, this linear light provides functional illumination source as well as excellent sound management.
What’s more, this sound-absorbing linear light is with internal driver, patented bracket for connection, easy installation, maintenance, and effortless joint to long line.
Feature
1. Customized Designs: Choose from a variety of designs, including 4x8ft (1.22x2.44m) acoustic panels, to suit your interior decor needs.
2. Exceptional Color Rendering: With a CRI (Color Rendering Index) of over 95 and R9 value exceeding 90, our lights ensure accurate and vibrant color reproduction, making your space visually appealing.
3. Eco-friendly Materials: We are committed to sustainability. Our products are made from 100% recyclable and odorless materials, reducing their environmental impact.
4. Class A Fire Retardant: Safety is paramount. Our lights feature Class A fire-retardant materials, providing added security and peace of mind.
5, High Sound Absorption Performance in NRC = 0.7 panels Excellent illumination performance
6, Improved Work Environment: Reduced noise and quality lighting improve the comfort of work and living spaces. Better lighting and sound control contribute to higher work efficiency and employee satisfactory
7, Effortless Installation: Our Acoustic LED Linear Lighting is designed for ease of installation and quick field joints for continuous runs, ensuring a seamless and hassle-free setup.
Dimension & Installation
Finish
Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.
Other 15 colors for option.

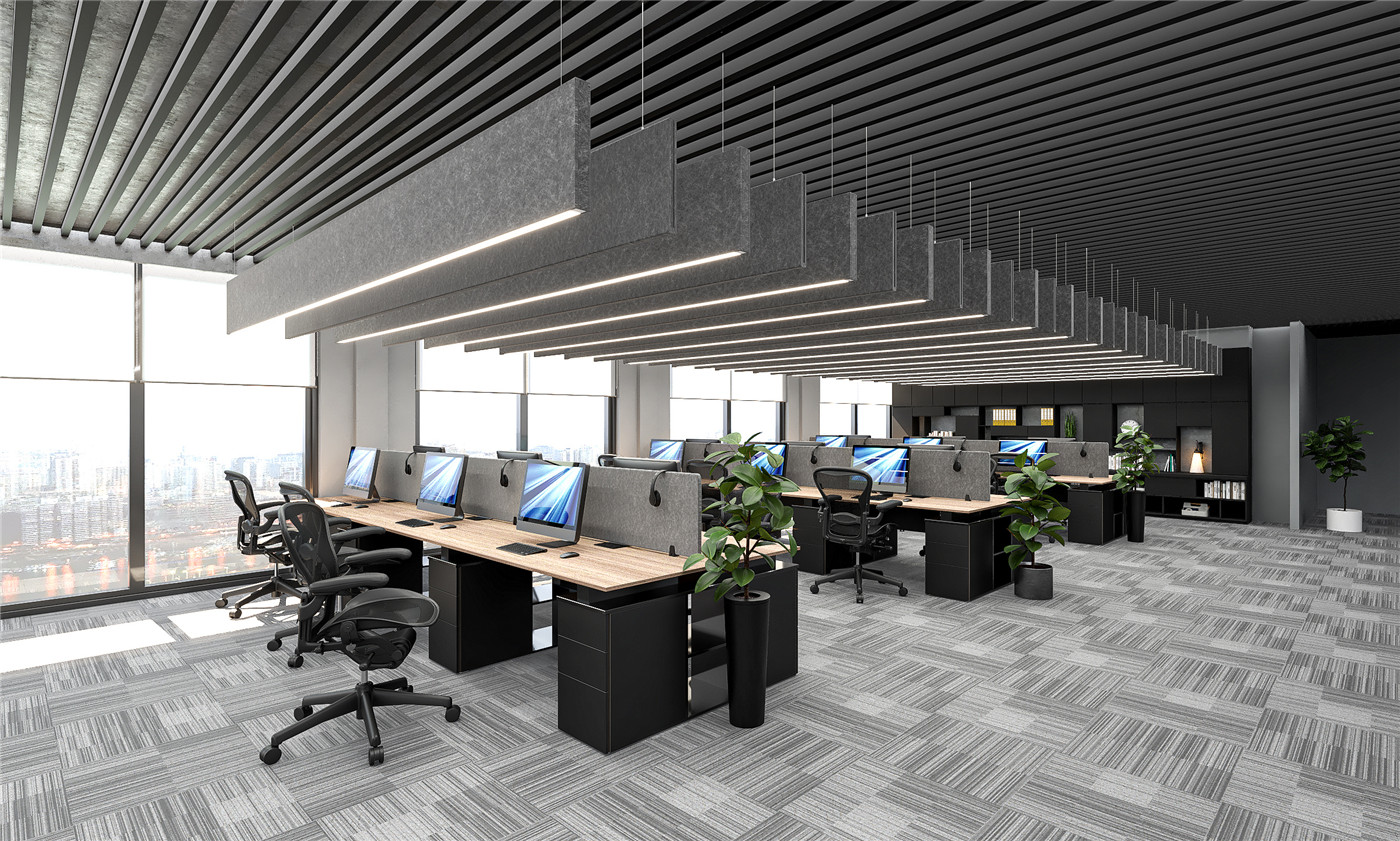

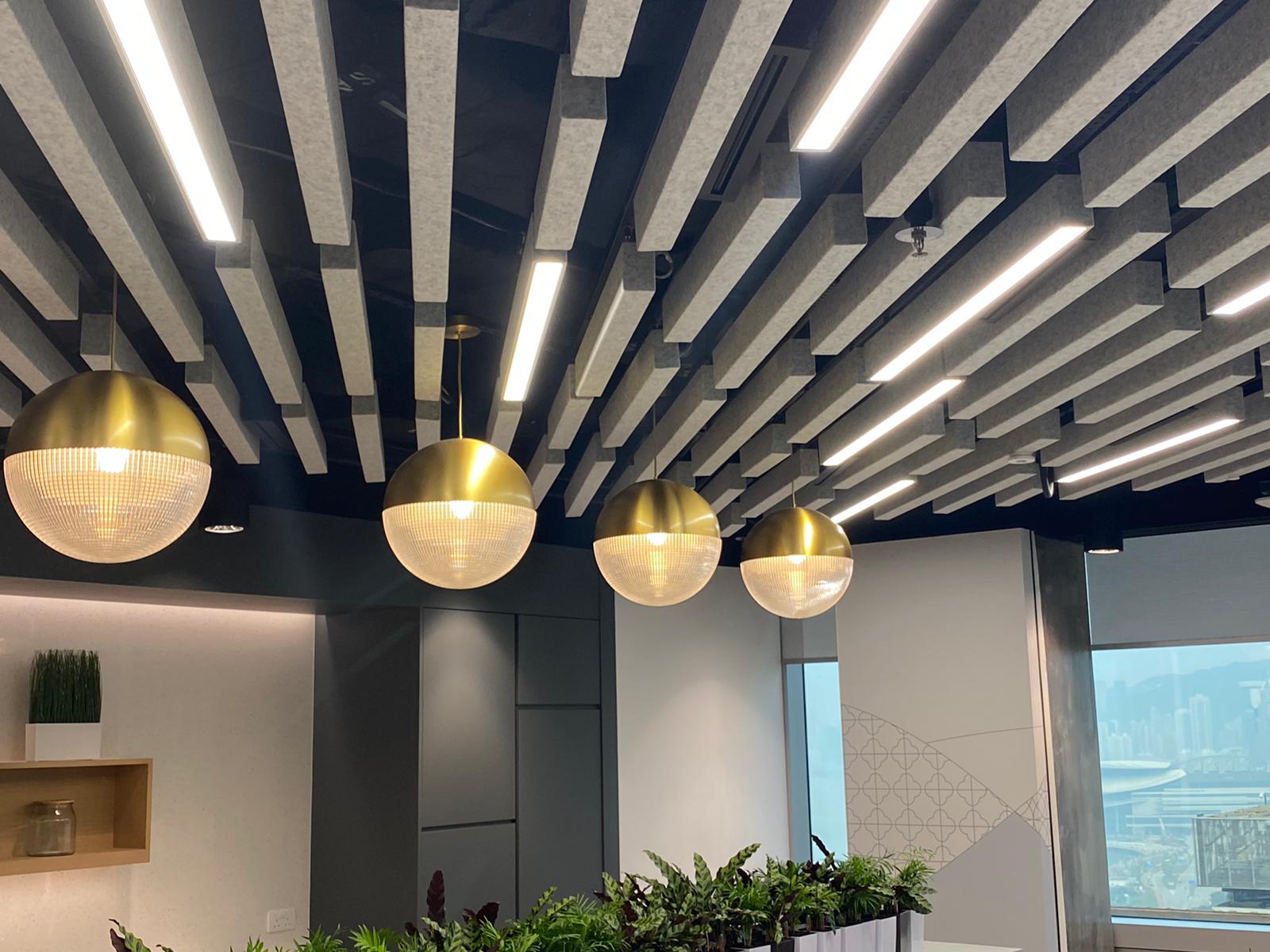

Applications
This sound-absorbing LED linear lights are a versatile lighting solution with dual functionality—providing quality lighting and sound absorption.
They are suitable for spaces where creating a pleasant working environment is essential, such as Offices, Restaurants, Meeting rooms, Educational Institutions, Healthcare, Theater, Museums, etc.
Specification
| Model | LUZ Acoustic | Input Vol. | 220-240VAC |
| Optical | PC Diffuser Lens | Power | 15W |
| Beam Angle | 105° | LED | SMD2835 |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| UGR | <26 | SDCM | <3 |
| Dimension | L1215 x W50 x H85mm | Lumen | 1215-2009lm/pc |
| IP / IK | IP22 | Efficiency | 90-130lm/W |
| Installation | Pendant | Life Time L80B10 |
50,000hrs |
| Net Weight | 1.55kgs | THD | <20% |
|
Luminaire: LUZ Acoustic, Optical: PC lens, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
|||||||||
|
ORDERING CODE |
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
LUZPC15W12830G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1350lm |
80+ |
3000K |
On-Off |
|
LUZPC15W12830G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1350lm |
80+ |
3000K |
0-10V |
|
LUZPC15W12830G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1350lm |
80+ |
3000K |
DALI |
|
LUZPC15W12930G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1215lm |
90+ |
3000K |
On-Off |
|
LUZPC15W12930G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1215lm |
90+ |
3000K |
0-10V |
|
LUZPC15W12930G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1215lm |
90+ |
3000K |
DALI |
|
LUZPC15W12840G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1391lm |
80+ |
4000K |
On-Off |
|
LUZPC15W12840G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1391lm |
80+ |
4000K |
0-10V |
|
LUZPC15W12840G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1391lm |
80+ |
4000K |
DALI |
|
LUZPC15W12940G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1251lm |
90+ |
4000K |
On-Off |
|
LUZPC15W12940G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1251lm |
90+ |
4000K |
0-10V |
|
LUZPC15W12940G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1251lm |
90+ |
4000K |
DALI |
|
LUZPC15W1282740G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1283lm |
80+ |
2700-4000K |
On-Off |
|
LUZPC15W1282740G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1283lm |
80+ |
2700-4000K |
0-10V |
|
LUZPC15W1282740G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1283lm |
80+ |
2700-4000K |
DALI |
|
LUZPC15W1292740G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1154lm |
90+ |
2700-4000K |
On-Off |
|
LUZPC15W1292740G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1154lm |
90+ |
2700-4000K |
0-10V |
|
LUZPC15W1292740G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1154lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: LUZ ACoustic, Optical: PC lens, Efficiency: 110lm/W, LED: Epistar, Driver: Lifud |
|||||||||
|
ORDERING CODE |
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
LUZPC15W12830M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1650lm |
80+ |
3000K |
On-Off |
|
LUZPC15W12830M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1650lm |
80+ |
3000K |
0-10V |
|
LUZPC15W12830M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1650lm |
80+ |
3000K |
DALI |
|
LUZPC15W12930M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1485lm |
90+ |
3000K |
On-Off |
|
LUZPC15W12930M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1485lm |
90+ |
3000K |
0-10V |
|
LUZPC15W12930M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1485lm |
90+ |
3000K |
DALI |
|
LUZPC15W12840M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1700lm |
80+ |
4000K |
On-Off |
|
LUZPC15W12840M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1700lm |
80+ |
4000K |
0-10V |
|
LUZPC15W12840M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1700lm |
80+ |
4000K |
DALI |
|
LUZPC15W12940M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1530lm |
90+ |
4000K |
On-Off |
|
LUZPC15W12940M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1530lm |
90+ |
4000K |
0-10V |
|
LUZPC15W12940M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1530lm |
90+ |
4000K |
DALI |
|
LUZPC15W1282740M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1568lm |
80+ |
2700-4000K |
On-Off |
|
LUZPC15W1282740M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1568lm |
80+ |
2700-4000K |
0-10V |
|
LUZPC15W1282740M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1568lm |
80+ |
2700-4000K |
DALI |
|
LUZPC15W1292740M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1411lm |
90+ |
2700-4000K |
On-Off |
|
LUZPC15W1292740M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1411lm |
90+ |
2700-4000K |
0-10V |
|
LUZPC15W1292740M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1411lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: LUZ Acoustic, Optical: PC lens, Efficiency: 130lm/W, LED: Epistar, Driver: Lifud |
|||||||||
|
ORDERING CODE |
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
LUZPC15W12830P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1950lm |
80+ |
3000K |
On-Off |
|
LUZPC15W12830P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1950lm |
80+ |
3000K |
0-10V |
|
LUZPC15W12830P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1950lm |
80+ |
3000K |
DALI |
|
LUZPC15W12930P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1755lm |
90+ |
3000K |
On-Off |
|
LUZPC15W12930P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1755lm |
90+ |
3000K |
0-10V |
|
LUZPC15W12930P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1755lm |
90+ |
3000K |
DALI |
|
LUZPC15W12840P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
2009lm |
80+ |
4000K |
On-Off |
|
LUZPC15W12840P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
2009lm |
80+ |
4000K |
0-10V |
|
LUZPC15W12840P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
2009lm |
80+ |
4000K |
DALI |
|
LUZPC15W12940P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1808lm |
90+ |
4000K |
On-Off |
|
LUZPC15W12940P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1808lm |
90+ |
4000K |
0-10V |
|
LUZPC15W12940P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1808lm |
90+ |
4000K |
DALI |
|
LUZPC15W1282740P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1853lm |
80+ |
2700-4000K |
On-Off |
|
LUZPC15W1282740P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1853lm |
80+ |
2700-4000K |
0-10V |
|
LUZPC15W1282740P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1853lm |
80+ |
2700-4000K |
DALI |
|
LUZPC15W1292740P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.0W |
1667lm |
90+ |
2700-4000K |
On-Off |
|
LUZPC15W1292740P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1667lm |
90+ |
2700-4000K |
0-10V |
|
LUZPC15W1292740P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
15.5W |
1667lm |
90+ |
2700-4000K |
DALI |
| Model | LUZ Acoustic | Input Vol. | 220-240VAC |
| Optial | PC Diffuser Lens | Power | 27W |
| Beam Angle | 105° | LED | SMD2835 |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| UGR | <26 | SDCM | <3 |
| Dimension | L1215 x W50 x H85mm | Lumen | 2187-3615lm/pc |
| IP / IK | IP22 | Efficiency | 90-130lm/W |
| Installation | Pendant | Life Time L80B10 |
50,000hrs |
| Net Weight | 1.55kgs | THD | <20% |
|
Luminaire: LUZ Acoustic, Optical: PC lens, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
|||||||||
|
ORDERING CODE |
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
LUZPC27W12830G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2430lm |
80+ |
3000K |
On-Off |
|
LUZPC27W12830G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2430lm |
80+ |
3000K |
0-10V |
|
LUZPC27W12830G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2430lm |
80+ |
3000K |
DALI |
|
LUZPC27W12930G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2187lm |
90+ |
3000K |
On-Off |
|
LUZPC27W12930G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2187lm |
90+ |
3000K |
0-10V |
|
LUZPC27W12930G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2187lm |
90+ |
3000K |
DALI |
|
LUZPC27W12840G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2503lm |
80+ |
4000K |
On-Off |
|
LUZPC27W12840G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2503lm |
80+ |
4000K |
0-10V |
|
LUZPC27W12840G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2503lm |
80+ |
4000K |
DALI |
|
LUZPC27W12940G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2253lm |
90+ |
4000K |
On-Off |
|
LUZPC27W12940G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2253lm |
90+ |
4000K |
0-10V |
|
LUZPC27W12940G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2253lm |
90+ |
4000K |
DALI |
|
LUZPC27W1282740G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2309lm |
80+ |
2700-4000K |
On-Off |
|
LUZPC27W1282740G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2309lm |
80+ |
2700-4000K |
0-10V |
|
LUZPC27W1282740G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2309lm |
80+ |
2700-4000K |
DALI |
|
LUZPC27W1292740G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2078lm |
90+ |
2700-4000K |
On-Off |
|
LUZPC27W1292740G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2078lm |
90+ |
2700-4000K |
0-10V |
|
LUZPC27W1292740G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2078lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: LUZ Acoustic, Optical: PC lens, Efficiency: 110lm/W, LED: Epistar, Driver: Lifud |
|||||||||
|
ORDERING CODE |
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
LUZPC27W12830M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2970lm |
80+ |
3000K |
On-Off |
|
LUZPC27W12830M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2970lm |
80+ |
3000K |
0-10V |
|
LUZPC27W12830M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2970lm |
80+ |
3000K |
DALI |
|
LUZPC27W12930M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2673lm |
90+ |
3000K |
On-Off |
|
LUZPC27W12930M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2673lm |
90+ |
3000K |
0-10V |
|
LUZPC27W12930M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2673lm |
90+ |
3000K |
DALI |
|
LUZPC27W12840M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3059lm |
80+ |
4000K |
On-Off |
|
LUZPC27W12840M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3059lm |
80+ |
4000K |
0-10V |
|
LUZPC27W12840M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3059lm |
80+ |
4000K |
DALI |
|
LUZPC27W12940M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2753lm |
90+ |
4000K |
On-Off |
|
LUZPC27W12940M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2753lm |
90+ |
4000K |
0-10V |
|
LUZPC27W12940M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2753lm |
90+ |
4000K |
DALI |
|
LUZPC27W1282740M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2822lm |
80+ |
2700-4000K |
On-Off |
|
LUZPC27W1282740M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2822lm |
80+ |
2700-4000K |
0-10V |
|
LUZPC27W1282740M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2822lm |
80+ |
2700-4000K |
DALI |
|
LUZPC27W1292740M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
2539lm |
90+ |
2700-4000K |
On-Off |
|
LUZPC27W1292740M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2539lm |
90+ |
2700-4000K |
0-10V |
|
LUZPC27W1292740M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
2539lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: LUZ Acoustic, Optical: PC lens, Efficiency: 130lm/W, LED: Epistar, Driver: Lifud |
|||||||||
|
ORDERING CODE |
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
LUZPC27W12830P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3510lm |
80+ |
3000K |
On-Off |
|
LUZPC27W12830P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3510lm |
80+ |
3000K |
0-10V |
|
LUZPC27W12830P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3510lm |
80+ |
3000K |
DALI |
|
LUZPC27W12930P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3159lm |
90+ |
3000K |
On-Off |
|
LUZPC27W12930P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3159lm |
90+ |
3000K |
0-10V |
|
LUZPC27W12930P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3159lm |
90+ |
3000K |
DALI |
|
LUZPC27W12840P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3615lm |
80+ |
4000K |
On-Off |
|
LUZPC27W12840P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3615lm |
80+ |
4000K |
0-10V |
|
LUZPC27W12840P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3615lm |
80+ |
4000K |
DALI |
|
LUZPC27W12940P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3254lm |
90+ |
4000K |
On-Off |
|
LUZPC27W12940P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3254lm |
90+ |
4000K |
0-10V |
|
LUZPC27W12940P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3254lm |
90+ |
4000K |
DALI |
|
LUZPC27W1282740P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3335lm |
80+ |
2700-4000K |
On-Off |
|
LUZPC27W1282740P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3335lm |
80+ |
2700-4000K |
0-10V |
|
LUZPC27W1282740P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3335lm |
80+ |
2700-4000K |
DALI |
|
LUZPC27W1292740P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.0W |
3001lm |
90+ |
2700-4000K |
On-Off |
|
LUZPC27W1292740P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3001lm |
90+ |
2700-4000K |
0-10V |
|
LUZPC27W1292740P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
27.8W |
3001lm |
90+ |
2700-4000K |
DALI |
| Model | LUZ Acoustic | Input Vol. | 220-240VAC |
| Optical | PC Diffuser Lens | Power | 35W |
| Beam Angle | 105° | LED | SMD2835 |
| Finish | Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| UGR | <26 | SDCM | <3 |
| Dimension | L1215 x W50 x H85mm | Lumen | 2835-4684lm/pc |
| IP / IK | IP22 | Efficiency | 90-130lm/W |
| Installation | Pendant | Life Time L80B10 |
50,000hrs |
| Net Weight | 1.55kgs | THD | <20% |
|
Luminaire: LUZ Acoustic, Optical: PC lens, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
|||||||||
|
ORDERING CODE |
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
LUZPC35W12830G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
3150lm |
80+ |
3000K |
On-Off |
|
LUZPC35W12830G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3150lm |
80+ |
3000K |
0-10V |
|
LUZPC35W12830G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3150lm |
80+ |
3000K |
DALI |
|
LUZPC35W12930G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
2835lm |
90+ |
3000K |
On-Off |
|
LUZPC35W12930G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
2835lm |
90+ |
3000K |
0-10V |
|
LUZPC35W12930G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
2835lm |
90+ |
3000K |
DALI |
|
LUZPC35W12840G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
3245lm |
80+ |
4000K |
On-Off |
|
LUZPC35W12840G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3245lm |
80+ |
4000K |
0-10V |
|
LUZPC35W12840G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3245lm |
80+ |
4000K |
DALI |
|
LUZPC35W12940G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
2920lm |
90+ |
4000K |
On-Off |
|
LUZPC35W12940G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
2920lm |
90+ |
4000K |
0-10V |
|
LUZPC35W12940G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
2920lm |
90+ |
4000K |
DALI |
|
LUZPC35W1282740G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
2993lm |
80+ |
2700-4000K |
On-Off |
|
LUZPC35W1282740G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
2993lm |
80+ |
2700-4000K |
0-10V |
|
LUZPC35W1282740G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
2993lm |
80+ |
2700-4000K |
DALI |
|
LUZPC35W1292740G1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
2693lm |
90+ |
2700-4000K |
On-Off |
|
LUZPC35W1292740G2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
2693lm |
90+ |
2700-4000K |
0-10V |
|
LUZPC35W1292740G3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
2693lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: LUZ Acoustic, Optical: PC lens, Efficiency: 110lm/W, LED: Epistar, Driver: Lifud |
|||||||||
|
ORDERING CODE |
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
LUZPC35W12830M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
3850lm |
80+ |
3000K |
On-Off |
|
LUZPC35W12830M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3850lm |
80+ |
3000K |
0-10V |
|
LUZPC35W12830M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3850lm |
80+ |
3000K |
DALI |
|
LUZPC35W12930M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
3465lm |
90+ |
3000K |
On-Off |
|
LUZPC35W12930M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3465lm |
90+ |
3000K |
0-10V |
|
LUZPC35W12930M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3465lm |
90+ |
3000K |
DALI |
|
LUZPC35W12840M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
3966lm |
80+ |
4000K |
On-Off |
|
LUZPC35W12840M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3966lm |
80+ |
4000K |
0-10V |
|
LUZPC35W12840M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3966lm |
80+ |
4000K |
DALI |
|
LUZPC35W12940M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
3569lm |
90+ |
4000K |
On-Off |
|
LUZPC35W12940M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3569lm |
90+ |
4000K |
0-10V |
|
LUZPC35W12940M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3569lm |
90+ |
4000K |
DALI |
|
LUZPC35W1282740M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
3658lm |
80+ |
2700-4000K |
On-Off |
|
LUZPC35W1282740M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3658lm |
80+ |
2700-4000K |
0-10V |
|
LUZPC35W1282740M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3658lm |
80+ |
2700-4000K |
DALI |
|
LUZPC35W1292740M1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
3292lm |
90+ |
2700-4000K |
On-Off |
|
LUZPC35W1292740M2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3292lm |
90+ |
2700-4000K |
0-10V |
|
LUZPC35W1292740M3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3292lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: LUZ Acoustic, Optical: PC lens, Efficiency: 130lm/W, LED: Epistar, Driver: Lifud |
|||||||||
|
ORDERING CODE |
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
LUZPC35W12830P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
4550lm |
80+ |
3000K |
On-Off |
|
LUZPC35W12830P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
4550lm |
80+ |
3000K |
0-10V |
|
LUZPC35W12830P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
4550lm |
80+ |
3000K |
DALI |
|
LUZPC35W12930P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
4095lm |
90+ |
3000K |
On-Off |
|
LUZPC35W12930P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
4095lm |
90+ |
3000K |
0-10V |
|
LUZPC35W12930P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
4095lm |
90+ |
3000K |
DALI |
|
LUZPC35W12840P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
4687lm |
80+ |
4000K |
On-Off |
|
LUZPC35W12840P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
4687lm |
80+ |
4000K |
0-10V |
|
LUZPC35W12840P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
4687lm |
80+ |
4000K |
DALI |
|
LUZPC35W12940P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
4218lm |
90+ |
4000K |
On-Off |
|
LUZPC35W12940P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
4218lm |
90+ |
4000K |
0-10V |
|
LUZPC35W12940P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
4218lm |
90+ |
4000K |
DALI |
|
LUZPC35W1282740P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
4323lm |
80+ |
2700-4000K |
On-Off |
|
LUZPC35W1282740P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
4323lm |
80+ |
2700-4000K |
0-10V |
|
LUZPC35W1282740P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
4323lm |
80+ |
2700-4000K |
DALI |
|
LUZPC35W1292740P1 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
35.0W |
3890lm |
90+ |
2700-4000K |
On-Off |
|
LUZPC35W1292740P2 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3890lm |
90+ |
2700-4000K |
0-10V |
|
LUZPC35W1292740P3 |
PC Diffuser Lens |
105° |
<26 |
L1215mm |
36.1W |
3890lm |
90+ |
2700-4000K |
DALI |
-
SSH-LUZ-PC SPECIFICATIONS
-
U5085 Pendant Installation
CONTACT
-
address: No. 1 TianQin St., Wusha Industrial Zone, Henglan Town, ZhongShan, Guangdong, China
-
Phone
-
E-mail
-
Whatsapp
-
Top
