OLI SERIES-360DEG. LUMINIARE
Product Introduction
Introducing OLI, the ultimate 360-degree luminaire designed to redefine your lighting experience.
With both vertical and horizontal pendant options available, OLI offers unparalleled versatility to suit any space.
Boasting a remarkable high lumen output of up to 2275 lumens per meter, OLI delivers spotless illumination with an impressive efficiency of 108 lumens per watt.
Available in lengths of 630mm, 1230mm, 1530mm, and 1830mm, OLI provides customizable solutions tailored to your specific needs.
With a color temperature range from 2700K to 6500K and CRI options of 85, 90, or 95, you can achieve the perfect lighting ambiance for any environment.
Experience seamless control and customization with dimming options including DALI, 0-10V, and ON-OFF switches, allowing you to tailor the lighting intensity to your preference.
Elevate your space with OLI and embrace the perfect blend of performance, efficiency, and style in modern lighting design.
Feature
1, Elegant design by size in L630/1230/1530/1830xD60/100mm.
2, Optical options for PC Diffuser.
3, More lighting options in 85+ or 90+ / 95+Ra, white color from 2200~6500K, and tunable white and RGB, RGBW.
4, More dimming/controlling options by Dali,0/1-10V, On/Off.
5, Pendant mounted installation.
6, Spotless Illumination.
7, Designed and engineered with the architectural specifier in mind.

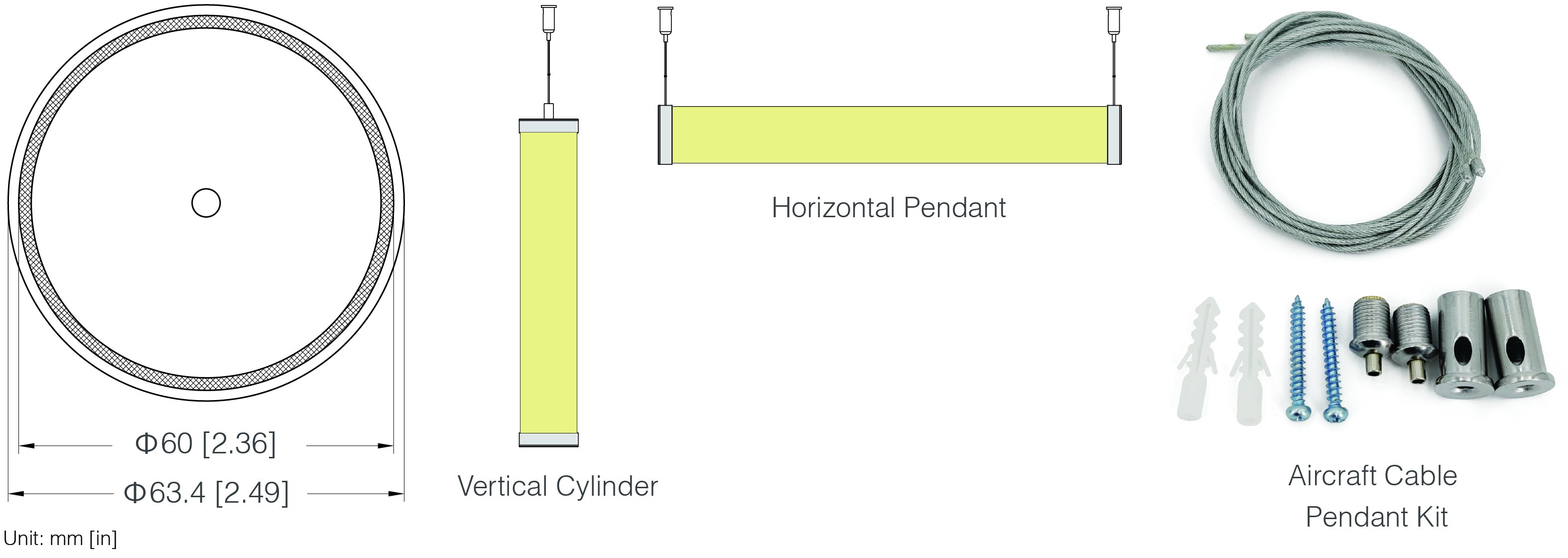

Size & Installation
Finish
Elevate your space with our linear lighting solution, offering standard color options like matte white, sleek black, and refined silver. Customize your look further with a choice of 48 powder coating colors, allowing you to create a personalized and vibrant ambiance.
Color Option

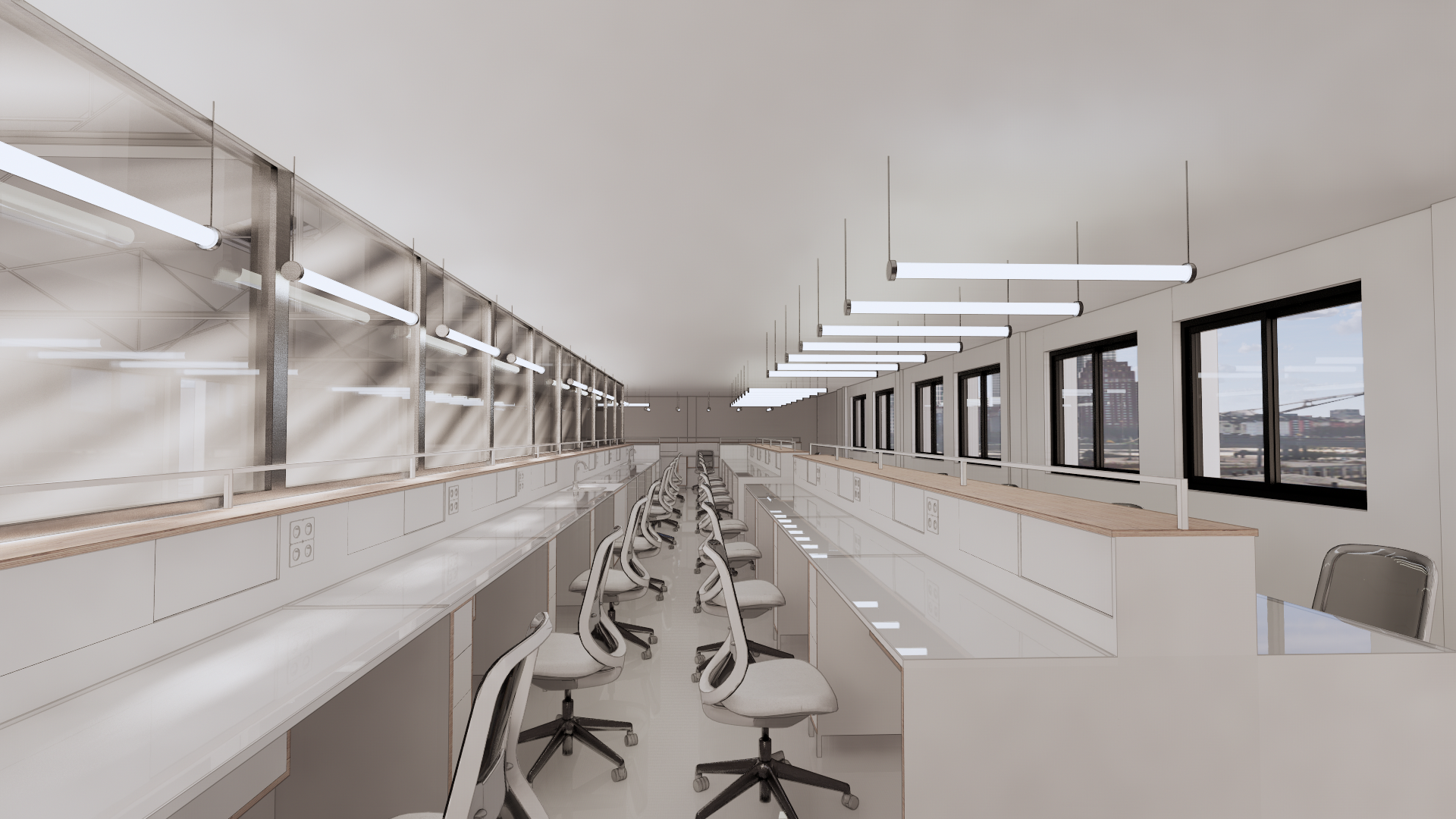

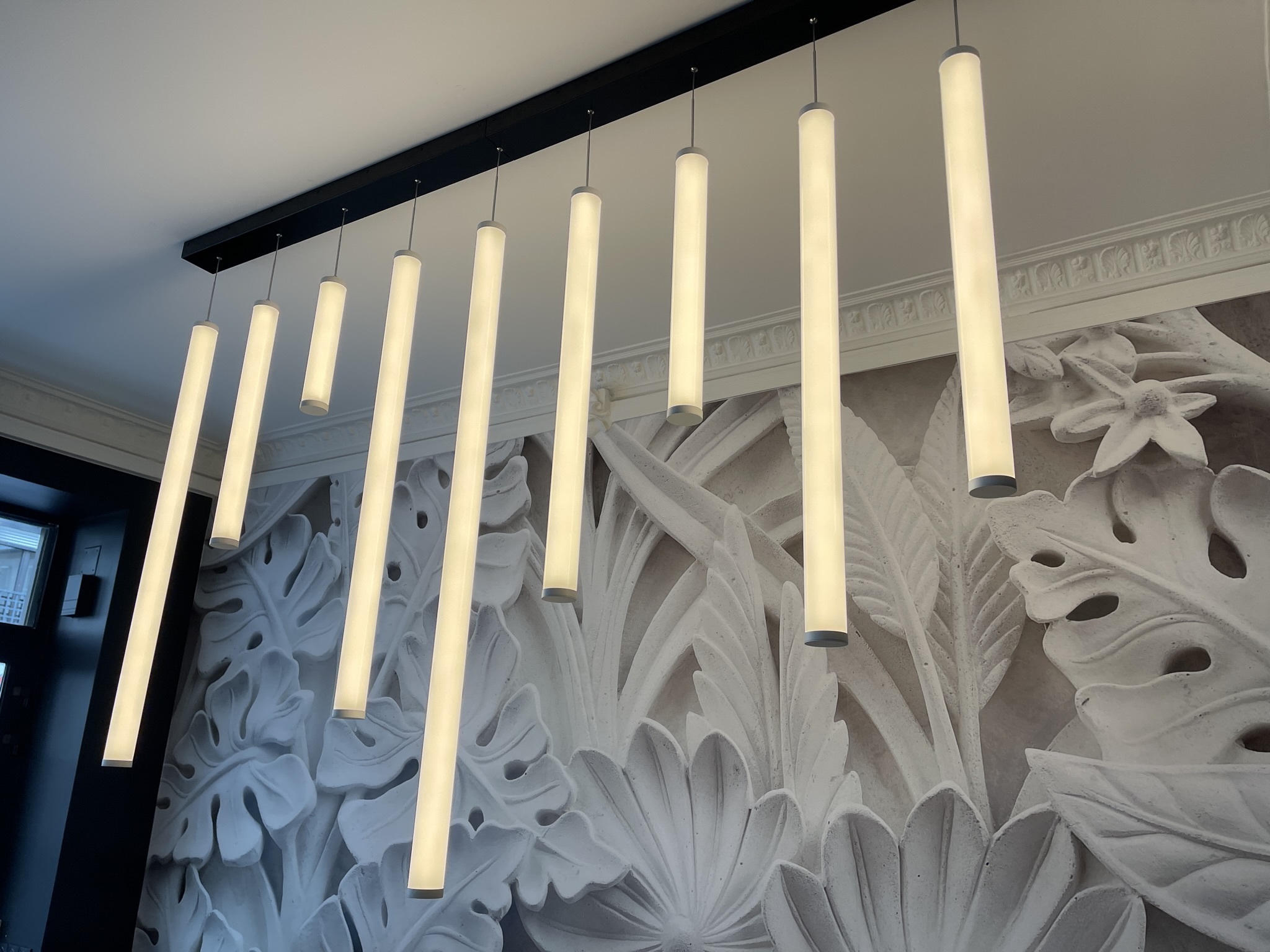

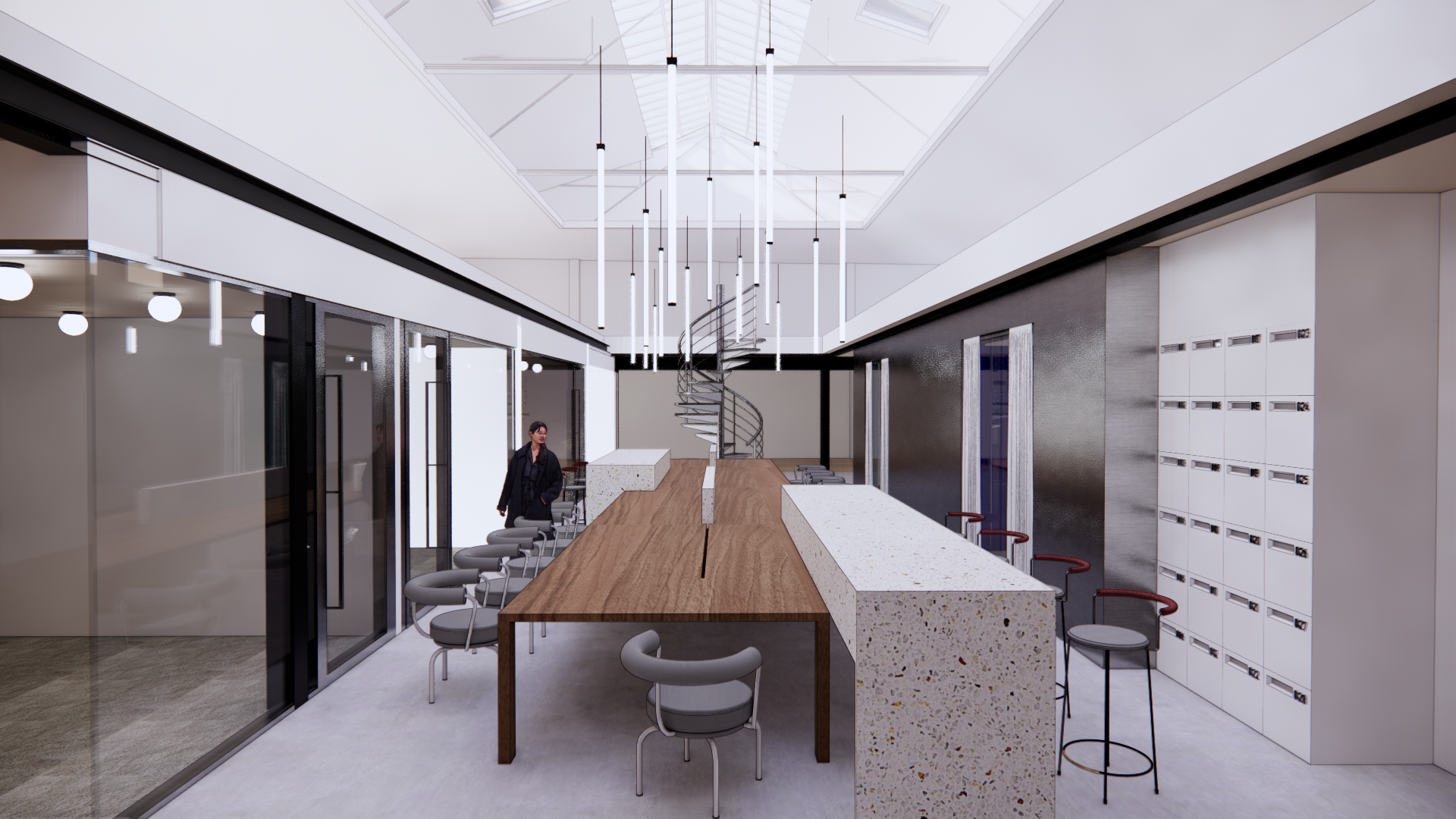

Range of Applications
Our versatile lighting solution is ideal for corporate environments, academic institutions, meeting venues, and professional workspaces, demonstrating its adaptability and effectiveness in various settings.
Specification
|
Model |
OLI6 |
Input Vol. |
220-240VAC |
|
Optical |
Diffuser |
Power |
13W |
|
Beam Angle |
360° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L630 x Φ63mm |
SDCM |
<3 |
|
IP / IK |
IP22 / IK07 |
Lumen |
1050-1272lm/pc |
|
Installation |
Pendant |
Efficiency |
95lm/W |
|
THD |
<20% |
Life Time |
50,000hrs |
|
Luminaire: OLI6, Optical: PC Diffuser, Efficiency: 95lm/W, LED: Epistar, Driver: Lifud |
|||||||
|
OPTICAL |
ANGLE |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
360° |
L630mm |
13.0W |
1235lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1235lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1235lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L630mm |
13.0W |
1112lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1112lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1112lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L630mm |
13.0W |
1272lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1272lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1272lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
360° |
L630mm |
13.0W |
1145lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1145lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1145lm |
90+ |
4000K |
DALI |
|
Model |
OLI6 |
Input Vol. |
220-240VAC |
|
Optical |
Diffuser |
Power |
13W |
|
Beam Angle |
360° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L630 x Φ63mm |
SDCM |
<3 |
|
IP / IK |
IP22 / IK07 |
Lumen |
1160-1406lm/pc |
|
Installation |
Pendant |
Efficiency |
105lm/W |
|
THD |
<20% |
Life Time |
50,000hrs |
|
Luminaire: OLI6, Optical: PC Diffuser, Efficiency: 95lm/W, LED: Epistar, Driver: Lifud |
|||||||
|
OPTICAL |
ANGLE |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
360° |
L630mm |
13.0W |
1365lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1365lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1365lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L630mm |
13.0W |
1229lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1229lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1229lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L630mm |
13.0W |
1406lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1406lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1406lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
360° |
L630mm |
13.0W |
1265lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1265lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L630mm |
13.4W |
1265lm |
90+ |
4000K |
DALI |
|
Model |
OLI6 |
Input Vol. |
220-240VAC |
|
Optical |
Diffuser |
Power |
27W |
|
Beam Angle |
360° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L1230 x Φ63mm |
SDCM |
<3 |
|
IP / IK |
IP22 / IK07 |
Lumen |
2180-2642lm/pc |
|
Installation |
Pendant |
Efficiency |
95lm/W |
|
THD |
<20% |
Life Time |
50,000hrs |
|
Luminaire: OLI6, Optical: PC Diffuser, Efficiency: 95lm/W, LED: Epistar, Driver: Lifud |
|||||||
|
OPTICAL |
ANGLE |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
360° |
L1230mm |
27.0W |
2565lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2565lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2565lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L1230mm |
27.0W |
2309lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2309lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2309lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L1230mm |
27.0W |
2642lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2642lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2642lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
360° |
L1230mm |
27.0W |
2378lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2378lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2378lm |
90+ |
4000K |
DALI |
|
Model |
OLI6 |
Input Vol. |
220-240VAC |
|
Optical |
Diffuser |
Power |
27W |
|
Beam Angle |
360° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L1230 x Φ63mm |
SDCM |
<3 |
|
IP / IK |
IP22 / IK07 |
Lumen |
2410-2920lm/pc |
|
Installation |
Pendant |
Efficiency |
105lm/W |
|
THD |
<20% |
Life Time |
50,000hrs |
|
Luminaire: OLI6, Optical: PC Diffuser, Efficiency: 105lm/W, LED: Epistar, Driver: Lifud |
|||||||
|
OPTICAL |
ANGLE |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
360° |
L1230mm |
27.0W |
2835lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2835lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2835lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L1230mm |
27.0W |
2552lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2552lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2552lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L1230mm |
27.0W |
2920lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2920lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2920lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
360° |
L1230mm |
27.0W |
2628lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2628lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L1230mm |
27.8W |
2628lm |
90+ |
4000K |
DALI |
|
Model |
OLI6 |
Input Vol. |
220-240VAC |
|
Optical |
Diffuser |
Power |
33.5W |
|
Beam Angle |
360° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L1530 x Φ63mm |
SDCM |
<3 |
|
IP / IK |
IP22 / IK07 |
Lumen |
2705-3278lm/pc |
|
Installation |
Pendant |
Efficiency |
95lm/W |
|
THD |
<20% |
Life Time |
50,000hrs |
|
Luminaire: OLI6, Optical: PC Diffuser, Efficiency: 95lm/W, LED: Epistar, Driver: Lifud |
|||||||
|
OPTICAL |
ANGLE |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
360° |
L1530mm |
33.5W |
3183lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
3183lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
3183lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L1530mm |
33.5W |
2864lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
2864lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
2864lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L1530mm |
33.5W |
3278lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
3278lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
3278lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
360° |
L1530mm |
33.5W |
2950lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
2950lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
2950lm |
90+ |
4000K |
DALI |
|
Model |
OLI6 |
Input Vol. |
220-240VAC |
|
Optical |
Diffuser |
Power |
33.5W |
|
Beam Angle |
360° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L1530 x Φ63mm |
SDCM |
<3 |
|
IP / IK |
IP22 / IK07 |
Lumen |
2990-3623lm/pc |
|
Installation |
Pendant |
Efficiency |
105lm/W |
|
THD |
<20% |
Life Time |
50,000hrs |
|
Luminaire: OLI6, Optical: PC Diffuser, Efficiency: 95lm/W, LED: Epistar, Driver: Lifud |
|||||||
|
OPTICAL |
ANGLE |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
360° |
L1530mm |
33.5W |
3518lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
3518lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
3518lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L1530mm |
33.5W |
3166lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
3166lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
3166lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L1530mm |
33.5W |
3623lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
3623lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
3623lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
360° |
L1530mm |
33.5W |
3261lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
3261lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L1530mm |
34.5W |
3261lm |
90+ |
4000K |
DALI |
|
Model |
OLI6 |
Input Vol. |
220-240VAC |
|
Optical |
Diffuser |
Power |
40W |
|
Beam Angle |
360° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L1830 x Φ63mm |
SDCM |
<3 |
|
IP / IK |
IP22 / IK07 |
Lumen |
3230-3914lm/pc |
|
Installation |
Pendant |
Efficiency |
95lm/W |
|
THD |
<20% |
Life Time |
50,000hrs |
|
Luminaire: OLI6, Optical: PC Diffuser, Efficiency: 95lm/W, LED: Epistar, Driver: Lifud |
|||||||
|
OPTICAL |
ANGLE |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
360° |
L1830mm |
40.0W |
3800lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
3800lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
3800lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L1830mm |
40.0W |
3420lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
3420lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
3420lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L1830mm |
40.0W |
3914lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
3914lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
3914lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
360° |
L1830mm |
40.0W |
3523lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
3523lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
3523lm |
90+ |
4000K |
DALI |
|
Model |
OLI6 |
Input Vol. |
220-240VAC |
|
Optical |
Diffuser |
Power |
40W |
|
Beam Angle |
360° |
LED |
2835 SMD |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L1830 x Φ63mm |
SDCM |
<3 |
|
IP / IK |
IP22 / IK07 |
Lumen |
3570-4326lm/pc |
|
Installation |
Pendant |
Efficiency |
105lm/W |
|
THD |
<20% |
Life Time |
50,000hrs |
|
Luminaire: OLI6, Optical: PC Diffuser, Efficiency: 105lm/W, LED: Epistar, Driver: Lifud |
|||||||
|
OPTICAL |
ANGLE |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
360° |
L1830mm |
40.0W |
4200lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
4200lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
4200lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L1830mm |
40.0W |
3780lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
3780lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
3780lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
360° |
L1830mm |
40.0W |
4326lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
4326lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
4326lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
360° |
L1830mm |
40.0W |
3893lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
3893lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
360° |
L1830mm |
41.2W |
3893lm |
90+ |
4000K |
DALI |
-
2 O600610P VERTICAL PENDANT INSTALLATION
-
3 O600610P HORIZONTAL PENDANT INSTALLATION
-
4 O600610P JOINING PENDANT INSTALLATION
-

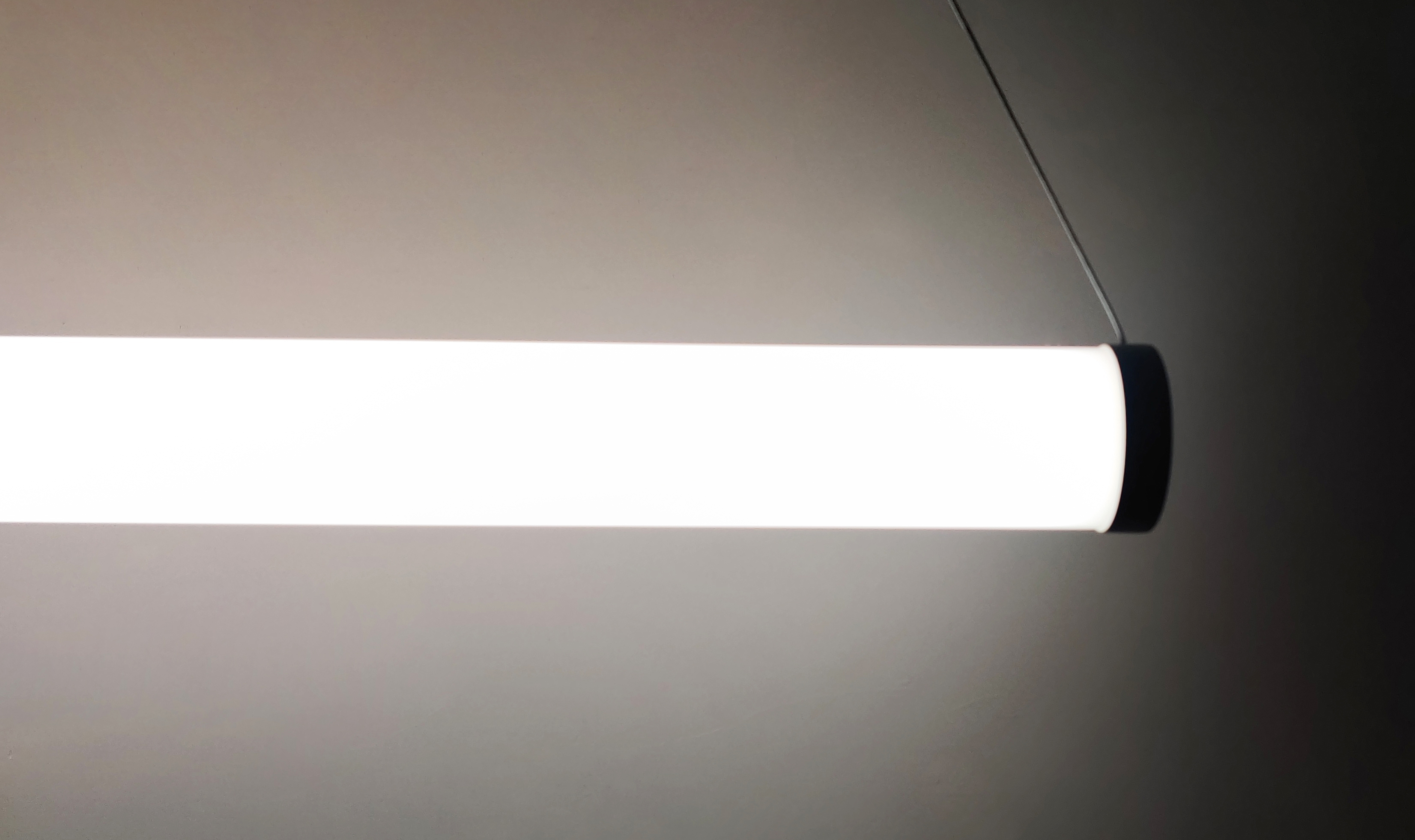

1 OLI6 360DEG LINEAR LIGHT
Related Products
CONTACT
-
address: No. 1 TianQin St., Wusha Industrial Zone, Henglan Town, ZhongShan, Guangdong, China
-
Phone
-
E-mail
-
Whatsapp
-
Top
