• OLA35 Direct & Indirect circular led light

OLA35 Direct & Indirect circular led light

Short Description:

OLA35 is a model from BV Inspiration’s bendable lighting system.

It features a direct& indirect lighting surface width of 30mm by a profile height of 35mm, with the circular diameter options of 450mm, 600mm, 900mm, 1200mm, and 1500mm.

This ring light can be controlled using different systems, including ON/OFF, 0-10V dimming, and DALI dimming.

With CRI80 or CRI90, CCT from 2200k to 6500k, this slim circular light offers uniform illumination and can enhance the aesthetics of any space.


Product Detail

Download

Product Tags

Product Introduction

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (6)

This Up& Down led light offers a wide range of housing color options to match any aesthetic or branding requirement including classic colors like white, black, and silver, or we can provide tailored colors to perfectly complement your space.

It gives you the choice between high-quality CRI 80 or CRI 90, ensuring that the colors and textures in your space are faithfully depicted.

With a CCT range of 2200k to 6500k, you can select the ideal color temperature to create the desired atmosphere.

Additionally, the tunable white options allow you to adjust the color temperature according to your specific needs.

Whether you prefer the simplicity of ON/OFF, the flexibility of 0-10V, or the advanced control of Dali, these rings led lights have got you covered, help you to create the perfect ambience with ease.

This Led circular offers multiple diameter choices, including450mm, 600mm, 900mm, 1000mm, 1200mm, 1500mm.

Feature

1, Up lighting and down lighting: This will make the overall light environment warmer and soft.

2, Finish Color options: You can choose from standard housing colors like white, black, and silver, or we can provide tailored colors if necessary.

3, Silicon lens, softens the light glaring to people's eyes: The circular Led lights are equipped with a silicon lens that helps reduce the glare emitted by the light, contributes to a more pleasant and enjoyable lighting experience for individuals in the space.

4, CCT (Correlated Color Temperature): This ring lighting system offers a wide CCT range of 2200k to 6500k, allowing you to select the perfect color temperature for your space. Meanwhile, option for tunable white, enables you to adjust the color temperature as you need.

5, CRI (Color Rendering Index): choose between CRI 80 or CRI 90, ensuring high-quality light output that accurately represents the colors and textures in your environment.

6, Dimming Options: versatile dimming options including ON/OFF, 0-10V, and Dali. This ensures you have precise control over the light intensity for creating the desired atmosphere.

7, Multiple Diameter Choices: We offer a variety of diameter options to cater to different lighting requirements.

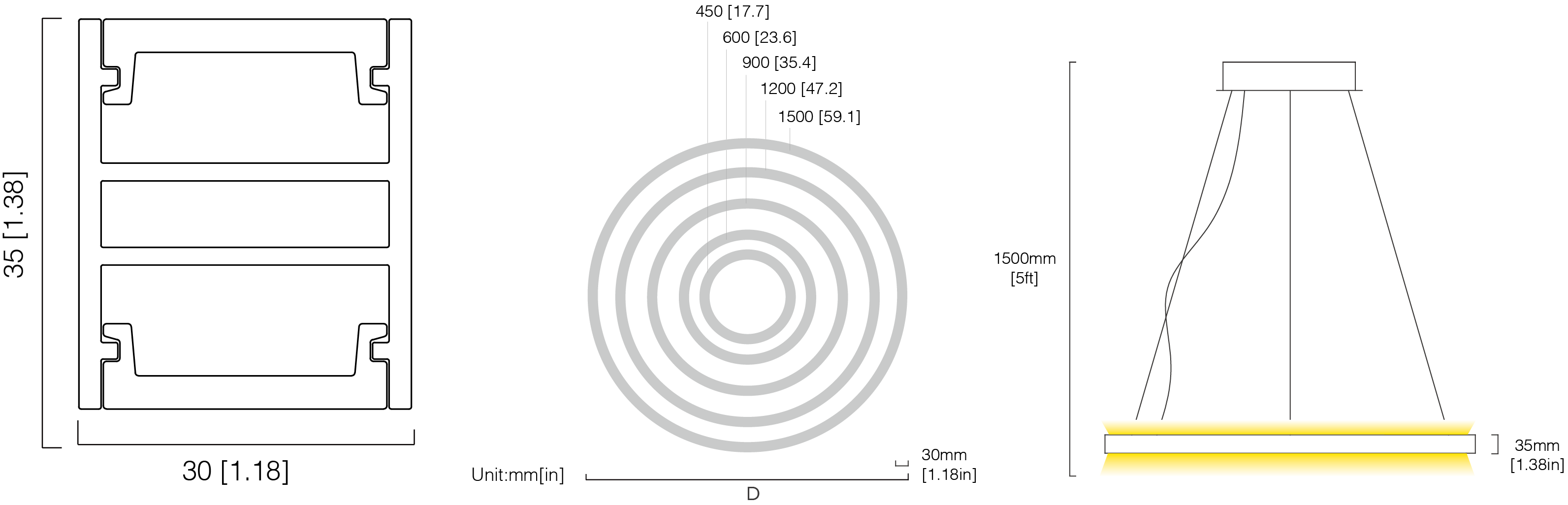

Size & Installation

33_画板 1

Pendant by canopy surface-mounted.

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (14)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (13)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (12)

Finish

We have Matt black, Matt white, and silver grey as standard.

Finish3

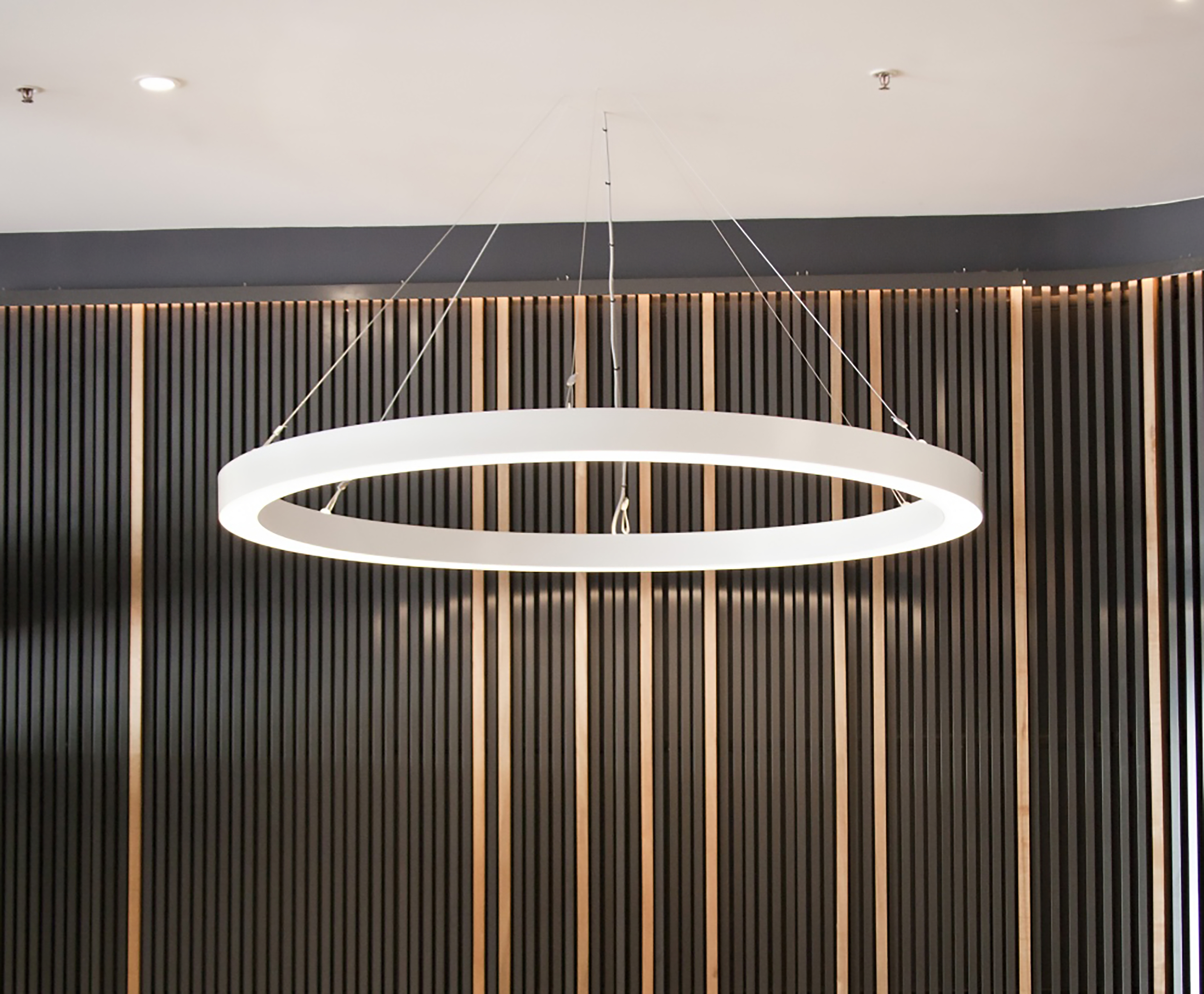

Range of Applications

General or local lighting in Resting Zoon, Reception, Club, Retail Restaurants, Residential, etc.

application

Specification

Model

OLA35

Input Vol.

220-240VAC

Direct Optical

Silicone

Power

25W

Direct Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

IN-Direct Beam Angle

105°

Efficiency

50-65lm/W

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Lumen

1181-1352lm

Dimension

Φ450 x W30 x H35mm

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

IP / IK

IP22 / IK06

Life Time
L80B10

50,000hrs

Installation

Pendant

THD

<20%

Luminaire: OLA35,     Diameter:450mm      Optical: Silicone,       Efficiency: 60lm/W,       LED: Epistar,     Driver: Lifud

OPTICAL

ANGLE

DIAMETER

DIRECT P.

D LUMEN

INDIRECT P.

IND LUMEN

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ450

12.5W

688lm

12.5W

625lm

25.0W

1313lm

80+

3000K

On-Off

Silicone

110°

Φ450

12.9W

688lm

12.9W

625lm

25.8W

1313lm

80+

3000K

0-10V

Silicone

110°

Φ450

12.9W

688lm

12.9W

625lm

25.8W

1313lm

80+

3000K

DALI

Silicone

110°

Φ450

12.5W

619lm

12.5W

563lm

25.0W

1181lm

90+

3000K

On-Off

Silicone

110°

Φ450

12.9W

619lm

12.9W

563lm

25.8W

1181lm

90+

3000K

0-10V

Silicone

110°

Φ450

12.9W

619lm

12.9W

563lm

25.8W

1181lm

90+

3000K

DALI

Silicone

110°

Φ450

12.5W

708lm

12.5W

644lm

25.0W

1352lm

80+

4000K

On-Off

Silicone

110°

Φ450

12.9W

708lm

12.9W

644lm

25.8W

1352lm

80+

4000K

0-10V

Silicone

110°

Φ450

12.9W

708lm

12.9W

644lm

25.8W

1352lm

80+

4000K

DALI

Silicone

110°

Φ450

12.5W

637lm

12.5W

579lm

25.0W

1217lm

90+

4000K

On-Off

Silicone

110°

Φ450

12.9W

637lm

12.9W

579lm

25.8W

1217lm

90+

4000K

0-10V

Silicone

110°

Φ450

12.9W

637lm

12.9W

579lm

25.8W

1217lm

90+

4000K

DALI

Model

OLA35

Input Vol.

220-240VAC

Direct Optical

Silicone

Power

36W

Direct Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

IN-Direct Beam Angle

105°

Efficiency

50-65lm/W

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Lumen

1575-1803lm

Dimension

Φ600 x W30 x H35mm

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

IP / IK

IP22 / IK06

Life Time
L80B10

50,000hrs

Installation

Pendant

THD

<20%

Luminaire: OLA35,     Diameter: 600mm     Optical: Silicone,     Efficiency: 60lm/W,     LED: Epistar,     Driver: Lifud

OPTICAL

ANGLE

DIAMETER

DIRECT P.

D LUMEN

INDIRECT P.

IND LUMEN

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ600

17.5W

875lm

17.5W

875lm

35.0W

1750lm

80+

3000K

On-Off

Silicone

110°

Φ600

18.0W

875lm

18.0W

875lm

36.1W

1750lm

80+

3000K

0-10V

Silicone

110°

Φ600

18.0W

875lm

18.0W

875lm

36.1W

1750lm

80+

3000K

DALI

Silicone

110°

Φ600

17.5W

788lm

17.5W

788lm

35.0W

1575lm

90+

3000K

On-Off

Silicone

110°

Φ600

18.0W

788lm

18.0W

788lm

36.1W

1575lm

90+

3000K

0-10V

Silicone

110°

Φ600

18.0W

788lm

18.0W

788lm

36.1W

1575lm

90+

3000K

DALI

Silicone

110°

Φ600

17.5W

901lm

17.5W

901lm

35.0W

1803lm

80+

4000K

On-Off

Silicone

110°

Φ600

18.0W

901lm

18.0W

901lm

36.1W

1803lm

80+

4000K

0-10V

Silicone

110°

Φ600

18.0W

901lm

18.0W

901lm

36.1W

1803lm

80+

4000K

DALI

Silicone

110°

Φ600

17.5W

811lm

17.5W

811lm

35.0W

1622lm

90+

4000K

On-Off

Silicone

110°

Φ600

18.0W

811lm

18.0W

811lm

36.1W

1622lm

90+

4000K

0-10V

Silicone

110°

Φ600

18.0W

811lm

18.0W

811lm

36.1W

1622lm

90+

4000K

DALI

Model

OLA35

Input Vol.

220-240VAC

Direct Optical

Silicone

Power

51W

Direct Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

IN-Direct Beam Angle

105°

Efficiency

50-65lm/W

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Lumen

2250-2575lm

Dimension

Φ900 x W30 x H35mm

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

IP / IK

IP22 / IK06

Life Time
L80B10

50,000hrs

Installation

Pendant

THD

<20%

 Luminaire: OLA35,     Diameter: 900mm     Optical: Silicone,     Efficiency: 60lm/W,     LED: Epistar,     Driver: Lifud

OPTICAL

ANGLE

DIAMETER

DIRECT P.

D LUMEN

INDIRECT P.

IND LUMEN

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ900

25.0W

1250lm

25.0W

1250lm

50.0W

2500lm

80+

3000K

On-Off

Silicone

110°

Φ900

25.8W

1250lm

25.8W

1250lm

51.5W

2500lm

80+

3000K

0-10V

Silicone

110°

Φ900

25.8W

1250lm

25.8W

1250lm

51.5W

2500lm

80+

3000K

DALI

Silicone

110°

Φ900

25.0W

1125lm

25.0W

1125lm

50.0W

2250lm

90+

3000K

On-Off

Silicone

110°

Φ900

25.8W

1125lm

25.8W

1125lm

51.5W

2250lm

90+

3000K

0-10V

Silicone

110°

Φ900

25.8W

1125lm

25.8W

1125lm

51.5W

2250lm

90+

3000K

DALI

Silicone

110°

Φ900

25.0W

1288lm

25.0W

1288lm

50.0W

2575lm

80+

4000K

On-Off

Silicone

110°

Φ900

25.8W

1288lm

25.8W

1288lm

51.5W

2575lm

80+

4000K

0-10V

Silicone

110°

Φ900

25.8W

1288lm

25.8W

1288lm

51.5W

2575lm

80+

4000K

DALI

Silicone

110°

Φ900

25.0W

1159lm

25.0W

1159lm

50.0W

2318lm

90+

4000K

On-Off

Silicone

110°

Φ900

25.8W

1159lm

25.8W

1159lm

51.5W

2318lm

90+

4000K

0-10V

Silicone

110°

Φ900

25.8W

1159lm

25.8W

1159lm

51.5W

2318lm

90+

4000K

DALI

Model

OLA35

Input Vol.

220-240VAC

Direct Optical

Silicone

Power

70W

Direct Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

IN-Direct Beam Angle

105°

Efficiency

50-65lm/W

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Lumen

3150-3605lm

Dimension

Φ1200 x W30 x H35mm

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

IP / IK

IP22 / IK06

Life Time
L80B10

50,000hrs

Installation

Pendant

THD

<20%

Luminaire: OLA35,    Diameter: 1200mm    Optical: Silicone,    Efficiency: 60lm/W,    LED: Epistar,    Driver: Lifud

OPTICAL

ANGLE

DIAMETER

DIRECT P.

D LUMEN

INDIRECT P.

IND LUMEN

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ1200

35.0W

1750lm

35.0W

1750lm

70.0W

3500lm

80+

3000K

On-Off

Silicone

110°

Φ1200

36.1W

1750lm

36.1W

1750lm

72.1W

3500lm

80+

3000K

0-10V

Silicone

110°

Φ1200

36.1W

1750lm

36.1W

1750lm

72.1W

3500lm

80+

3000K

DALI

Silicone

110°

Φ1200

35.0W

1575lm

35.0W

1575lm

70.0W

3150lm

90+

3000K

On-Off

Silicone

110°

Φ1200

36.1W

1575lm

36.1W

1575lm

72.1W

3150lm

90+

3000K

0-10V

Silicone

110°

Φ1200

36.1W

1575lm

36.1W

1575lm

72.1W

3150lm

90+

3000K

DALI

Silicone

110°

Φ1200

35.0W

1803lm

35.0W

1803lm

70.0W

3605lm

80+

4000K

On-Off

Silicone

110°

Φ1200

36.1W

1803lm

36.1W

1803lm

72.1W

3605lm

80+

4000K

0-10V

Silicone

110°

Φ1200

36.1W

1803lm

36.1W

1803lm

72.1W

3605lm

80+

4000K

DALI

Silicone

110°

Φ1200

35.0W

1622lm

35.0W

1622lm

70.0W

3245lm

90+

4000K

On-Off

Silicone

110°

Φ1200

36.1W

1622lm

36.1W

1622lm

72.1W

3245lm

90+

4000K

0-10V

Silicone

110°

Φ1200

36.1W

1622lm

36.1W

1622lm

72.1W

3245lm

90+

4000K

DALI

Model

OLA35

Input Vol.

220-240VAC

Direct Optical

Silicone

Power

92W

Direct Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

IN-Direct Beam Angle

105°

Efficiency

50-65lm/W

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Lumen

4050-4635lm

Dimension

Φ1500 x W30 x H35mm

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

IP / IK

IP22 / IK06

Life Time
L80B10

50,000hrs

Installation

Pendant

THD

<20%

 Luminaire: OLA35,     Diameter: 1500mm      Optical: Silicone,      Efficiency: 60lm/W,      LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

DIAMETER

DIRECT P.

D LUMEN

INDIRECT P.

IND LUMEN

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ1500

45.0W

2250lm

45.0W

2250lm

90.0W

4500lm

80+

3000K

On-Off

Silicone

110°

Φ1500

46.4W

2250lm

46.4W

2250lm

92.7W

4500lm

80+

3000K

0-10V

Silicone

110°

Φ1500

46.4W

2250lm

46.4W

2250lm

92.7W

4500lm

80+

3000K

DALI

Silicone

110°

Φ1500

45.0W

2025lm

45.0W

2025lm

90.0W

4050lm

90+

3000K

On-Off

Silicone

110°

Φ1500

46.4W

2025lm

46.4W

2025lm

92.7W

4050lm

90+

3000K

0-10V

Silicone

110°

Φ1500

46.4W

2025lm

46.4W

2025lm

92.7W

4050lm

90+

3000K

DALI

Silicone

110°

Φ1500

45.0W

2318lm

45.0W

2318lm

90.0W

4635lm

80+

4000K

On-Off

Silicone

110°

Φ1500

46.4W

2318lm

46.4W

2318lm

92.7W

4635lm

80+

4000K

0-10V

Silicone

110°

Φ1500

46.4W

2318lm

46.4W

2318lm

92.7W

4635lm

80+

4000K

DALI

Silicone

110°

Φ1500

45.0W

2086lm

45.0W

2086lm

90.0W

4172lm

90+

4000K

On-Off

Silicone

110°

Φ1500

46.4W

2086lm

46.4W

2086lm

92.7W

4172lm

90+

4000K

0-10V

Silicone

110°

Φ1500

46.4W

2086lm

46.4W

2086lm

92.7W

4172lm

90+

4000K

DALI


  • Previous:
  • Next:

    • 01 OLA3035 RING LIGHT-
      01 OLA3035 RING LIGHT-
      01 OLA3035 RING LIGHT-
      01 OLA3035 RING LIGHT-
    • 02 OLA-3035 PENDANT INSTALLATION
      02 OLA-3035 PENDANT INSTALLATION
      02 OLA-3035 PENDANT INSTALLATION
      02 OLA-3035 PENDANT INSTALLATION
  • Write your message here and send it to us

    CONTACT

    • facebook (2)
    • youtube (1)
    • linkedin
