• OLA–30mm width&length square Led light

OLA–30mm width&length square Led light

Short Description:

OLA30FY is a model from BV Inspiration’s bendable lighting system.

It features a lighting surface width of 30mm and a profile height of 30mm, with various options of the width*length, including 450mm, 600mm, 900mm, 1200mm.

This square linear light can be controlled using different systems, including ON/OFF, 0-10V dimming, and DALI dimming.

With CRI80 or CRI90, CCT from 2200k to 6500k, this slim circular light offers uniform illumination and can enhance the aesthetics of any space.


Product Detail

Download

Product Tags

Product Introduction

This square led light offers a wide range of housing color options to match any aesthetic or branding requirement including classic colors like white, black, and silver, or we can provide tailored colors to perfectly complement your space.

It gives you the choice between high-quality CRI 80 or CRI 90, ensuring that the colors and textures in your space are faithfully depicted.

With a CCT range of 2200k to 6500k, you can select the ideal color temperature to create the desired atmosphere.

Additionally, the tunable white options allow you to adjust the color temperature according to your specific needs.

Whether you prefer the simplicity of ON/OFF, the flexibility of 0-10V, or the advanced control of Dali, these rings led lights have got you covered, help you to create the perfect ambience with ease.

This Led square offers multiple diameter choices, including450mm, 600mm, 900mm, 1000mm, or bigger, depending on the desired lighting effect and the scale of your space.

Many other customizable shapes are available to be customized to match different projects.

Feature

1, Finish Color options: You can choose from standard housing colors like white, black, and silver, or we can provide tailored colors if necessary.

2, Silicon lens, softens the light glaring to people's eyes: The circular Led lights are equipped with a silicon lens that helps reduce the glare emitted by the light, contributes to a more pleasant and enjoyable lighting experience for individuals in the space.

3,CCT (Correlated Color Temperature): This ring lighting system offers a wide CCT range of 2200k to 6500k, allowing you to select the perfect color temperature for your space.

Meanwhile, option for tunable white, enables you to adjust the color temperature as you need.

4,CRI (Color Rendering Index): choose between CRI 80 or CRI 90, ensuring high-quality light output that accurately represents the colors and textures in your environment.

5, Dimming Options: versatile dimming options including ON/OFF, 0-10V, and Dali.

This ensures you have precise control over the light intensity for creating the desired atmosphere.

6,Multiple Diameter Choices: We offer a variety of diameter options to cater to different lighting requirements.

7, Customizable Shapes: Whether you require linear fixtures, square panels, circular luminaires, or any other specific shape, we can accommodate your needs.

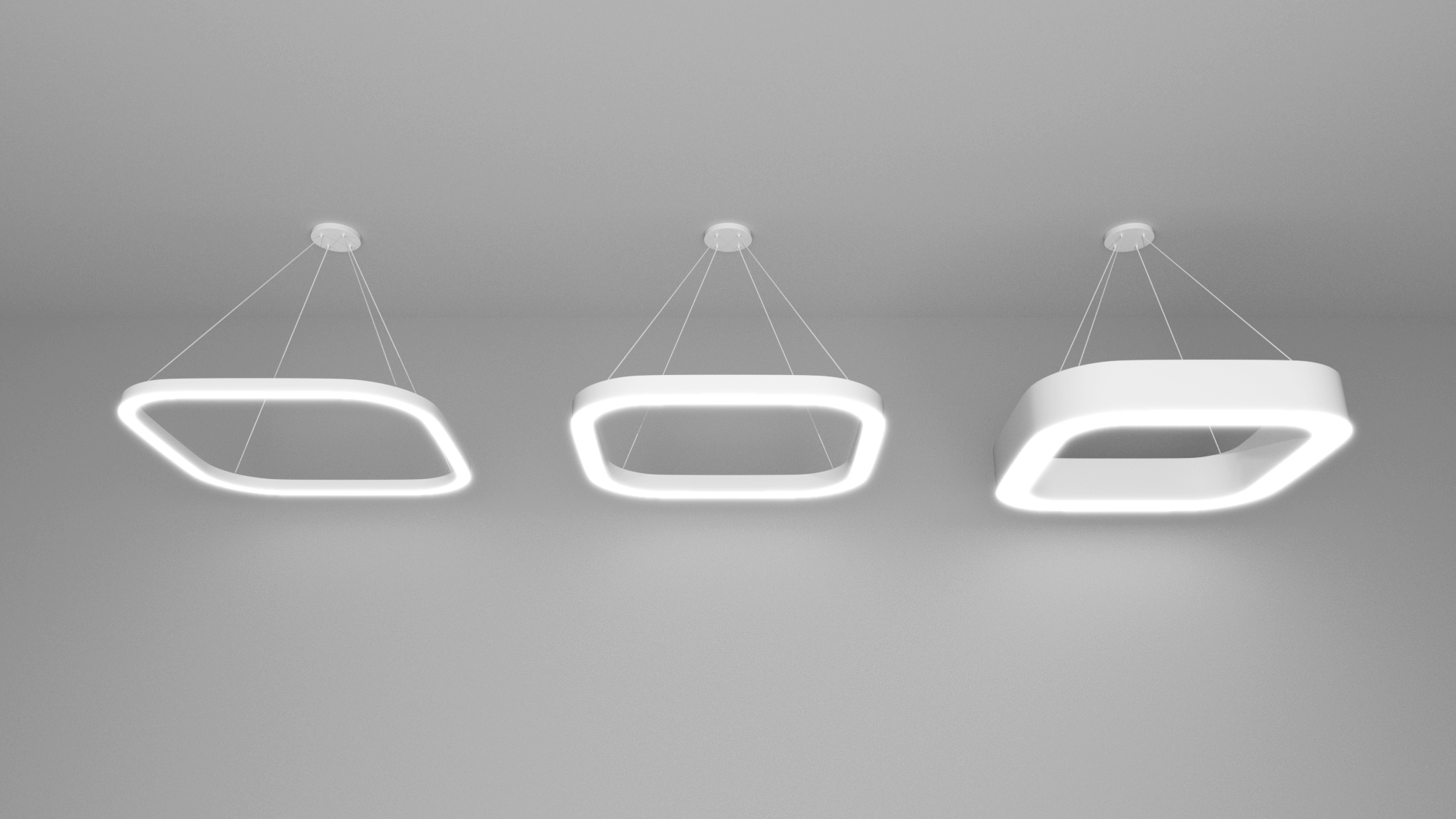

Square light3
2-OLA白皮书

Size & Installation

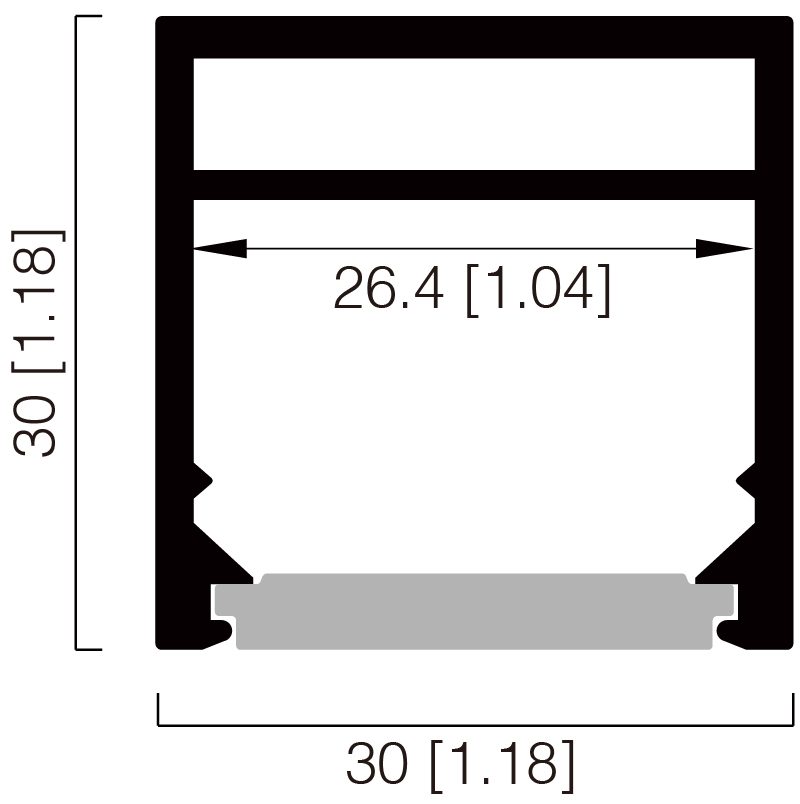

2_画板 1

Pendant by canopy surface-mounted.

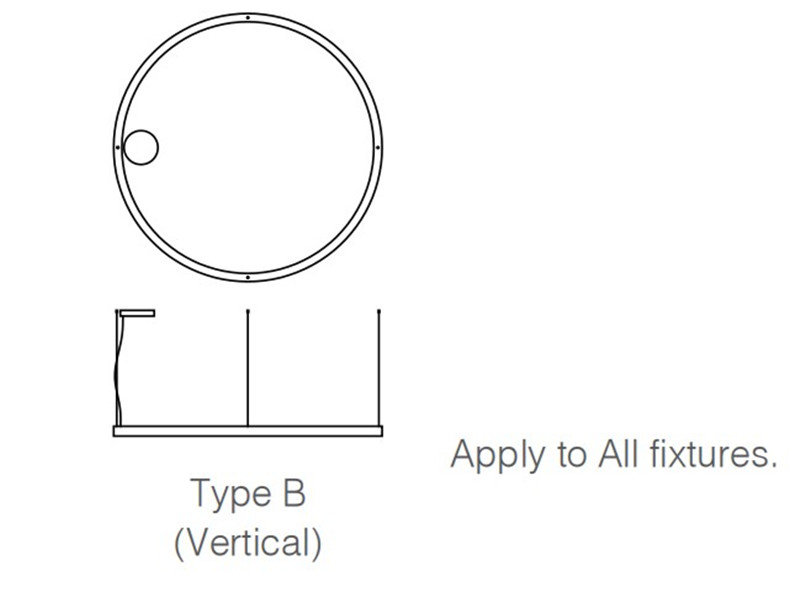

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (14)

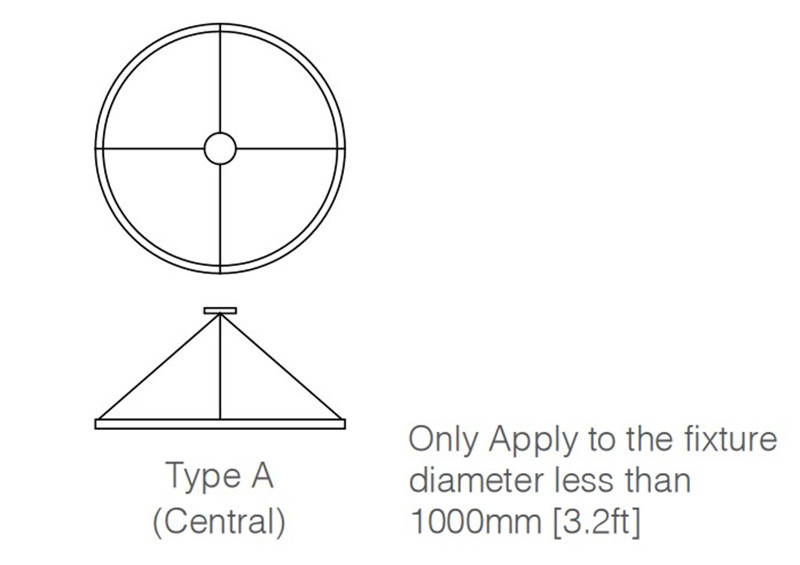

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (13)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (12)

Finish

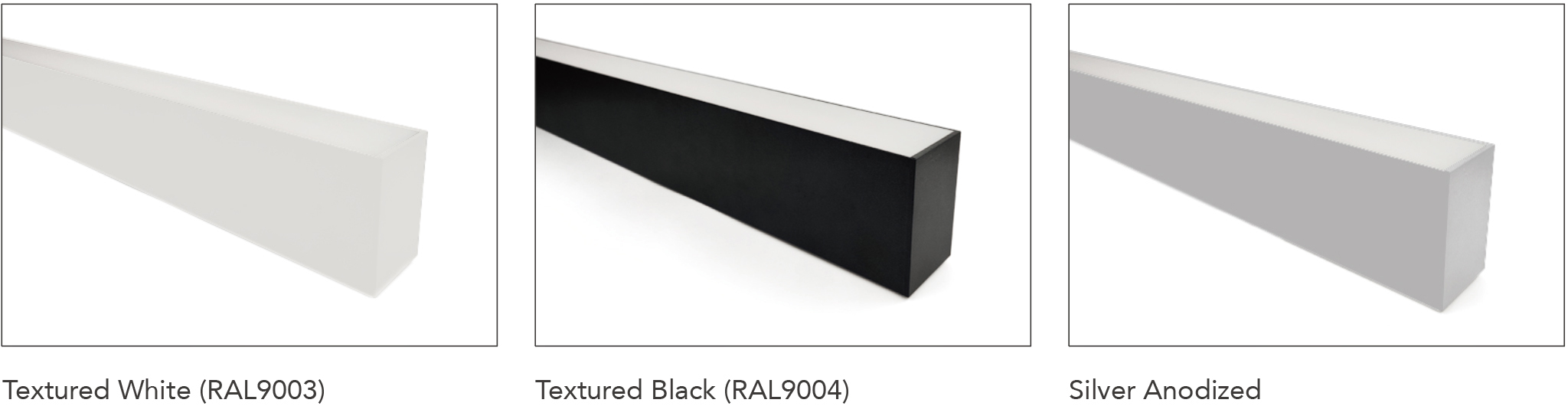

The Aluminum housing standard colors are: Textured white, black, and silver grey.

And other 48 colors can be tailored to meet different requirements.

Finish3

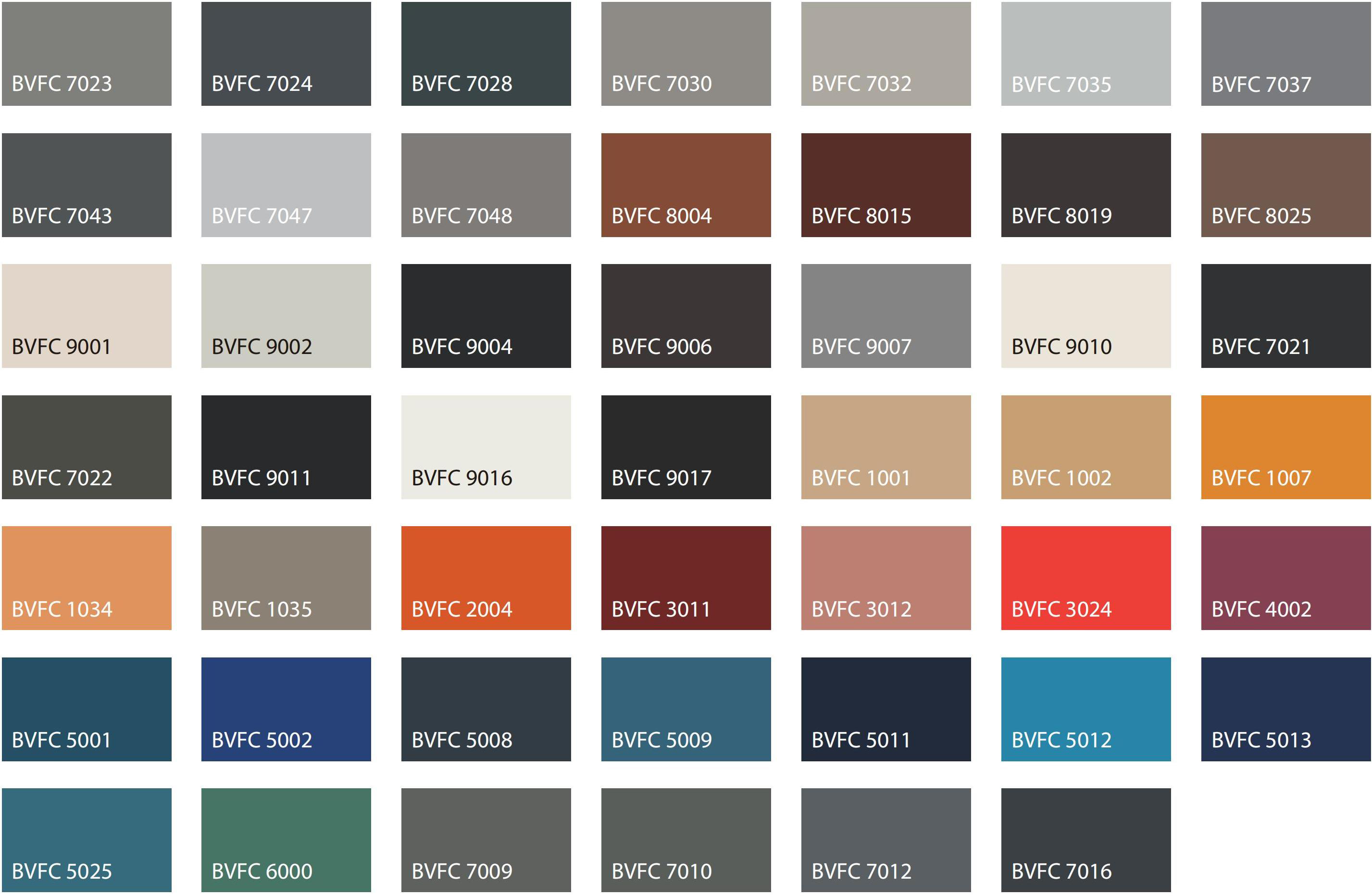

Color Options

Range of Applications

Mainly used in offices, conference rooms, educational institutions, other commercial buildings, and government buildings.

Specification

Model

OLA30FY

Input Vol.

220-240VAC

Optical

Silicone

Power

21W

Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L450 x W450
Luminaire W30 x H30mm

Lumen

893-1082lm/pc

IP

IP22

Efficiency

40-50lm/W

Installation

Pendant

THD

<20%

Life Time
L80B10

50,000hrs

Luminaire: OLA30FY,             Optical: Silicone,              Efficiency: 50lm/W,            LED: Epistar,          Driver: Lifud

OPTICAL

ANGLE

SIZE

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

L450 x W450mm

21.0W

1050lm

80+

3000K

On-Off

Silicone

110°

L450 x W450mm

21.6W

1050lm

80+

3000K

0-10V

Silicone

110°

L450 x W450mm

21.6W

1050lm

80+

3000K

DALI

Silicone

110°

L450 x W450mm

21.0W

945lm

90+

3000K

On-Off

Silicone

110°

L450 x W450mm

21.6W

945lm

90+

3000K

0-10V

Silicone

110°

L450 x W450mm

21.6W

945lm

90+

3000K

DALI

Silicone

110°

L450 x W450mm

21.0W

1082lm

80+

4000K

On-Off

Silicone

110°

L450 x W450mm

21.6W

1082lm

80+

4000K

0-10V

Silicone

110°

L450 x W450mm

21.6W

1082lm

80+

4000K

DALI

Silicone

110°

L450 x W450mm

21.0W

973lm

90+

4000K

On-Off

Silicone

110°

L450 x W450mm

21.6W

973lm

90+

4000K

0-10V

Silicone

110°

L450 x W450mm

21.6W

973lm

90+

4000K

DALI

Model

OLA30FY

Input Vol.

220-240VAC

Optical

Silicone

Power

38W

Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L600 x W600
Luminaire W30 x H30mm

Lumen

1615-1957lm/pc

IP

IP22

Efficiency

40-50lm/W

Installation

Pendant

THD

<20%

Life Time
L80B10

50,000hrs

Luminaire: OLA30FY,             Optical: Silicone,              Efficiency: 50lm/W,            LED: Epistar,         Driver: Lifud

OPTICAL

ANGLE

SIZE

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

L600 x W600mm

38.0W

1900lm

80+

3000K

On-Off

Silicone

110°

L600 x W600mm

39.1W

1900lm

80+

3000K

0-10V

Silicone

110°

L600 x W600mm

39.1W

1900lm

80+

3000K

DALI

Silicone

110°

L600 x W600mm

38.0W

1710lm

90+

3000K

On-Off

Silicone

110°

L600 x W600mm

39.1W

1710lm

90+

3000K

0-10V

Silicone

110°

L600 x W600mm

39.1W

1710lm

90+

3000K

DALI

Silicone

110°

L600 x W600mm

38.0W

1957lm

80+

4000K

On-Off

Silicone

110°

L600 x W600mm

39.1W

1957lm

80+

4000K

0-10V

Silicone

110°

L600 x W600mm

39.1W

1957lm

80+

4000K

DALI

Silicone

110°

L600 x W600mm

38.0W

1761lm

90+

4000K

On-Off

Silicone

110°

L600 x W600mm

39.1W

1761lm

90+

4000K

0-10V

Silicone

110°

L600 x W600mm

39.1W

1761lm

90+

4000K

DALI

Model

OLA30FY

Input Vol.

220-240VAC

Optical

Silicone

Power

59W

Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1000 x W1000
Luminaire W30 x H30mm

Lumen

2508-3039lm/pc

IP

IP22

Efficiency

40-50lm/W

Installation

Pendant

THD

<20%

Life Time
L80B10

50,000hrs

Luminaire: OLA30FY,              Optical: Silicone,              Efficiency: 50lm/W,            LED: Epistar,              Driver: Lifud

OPTICAL

ANGLE

SIZE

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

L1000 x W1000mm

59.0W

2950lm

80+

3000K

On-Off

Silicone

110°

L1000 x W1000mm

60.8W

2950lm

80+

3000K

0-10V

Silicone

110°

L1000 x W1000mm

60.8W

2950lm

80+

3000K

DALI

Silicone

110°

L1000 x W1000mm

59.0W

2655lm

90+

3000K

On-Off

Silicone

110°

L1000 x W1000mm

60.8W

2655lm

90+

3000K

0-10V

Silicone

110°

L1000 x W1000mm

60.8W

2655lm

90+

3000K

DALI

Silicone

110°

L1000 x W1000mm

59.0W

3039lm

80+

4000K

On-Off

Silicone

110°

L1000 x W1000mm

60.8W

3039lm

80+

4000K

0-10V

Silicone

110°

L1000 x W1000mm

60.8W

3039lm

80+

4000K

DALI

Silicone

110°

L1000 x W1000mm

59.0W

2735lm

90+

4000K

On-Off

Silicone

110°

L1000 x W1000mm

60.8W

2735lm

90+

4000K

0-10V

Silicone

110°

L1000 x W1000mm

60.8W

2735lm

90+

4000K

DALI

Model

OLA30FY

Input Vol.

220-240VAC

Optical

Silicone

Power

68W

Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1200 x W1200
Luminaire W30 x H30mm

Lumen

2890-3502lm/pc

IP

IP22

Efficiency

40-50lm/W

Installation

Pendant

THD

<20%

Life Time
L80B10

50,000hrs

Luminaire: OLA30FY,              Optical: Silicone,              Efficiency: 50lm/W,            LED: Epistar,              Driver: Lifud

OPTICAL

ANGLE

SIZE

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

L1200 x W1200mm

68.0W

3400lm

80+

3000K

On-Off

Silicone

110°

L1200 x W1200mm

70.0W

3400lm

80+

3000K

0-10V

Silicone

110°

L1200 x W1200mm

70.0W

3400lm

80+

3000K

DALI

Silicone

110°

L1200 x W1200mm

68.0W

3060lm

90+

3000K

On-Off

Silicone

110°

L1200 x W1200mm

70.0W

3060lm

90+

3000K

0-10V

Silicone

110°

L1200 x W1200mm

70.0W

3060lm

90+

3000K

DALI

Silicone

110°

L1200 x W1200mm

68.0W

3502lm

80+

4000K

On-Off

Silicone

110°

L1200 x W1200mm

70.0W

3502lm

80+

4000K

0-10V

Silicone

110°

L1200 x W1200mm

70.0W

3502lm

80+

4000K

DALI

Silicone

110°

L1200 x W1200mm

68.0W

3152lm

90+

4000K

On-Off

Silicone

110°

L1200 x W1200mm

70.0W

3152lm

90+

4000K

0-10V

Silicone

110°

L1200 x W1200mm

70.0W

3152lm

90+

4000K

DALI
