• OLA-20mm width square LED light with diameter

OLA-20mm width square LED light with diameter

Short Description:

The square LED light is a slim and stylish lighting solution.

It has different options of width& length, including 450mm, 600mm, 1000mm, 1200mm, and a sleek profile of 20mm and silicone lens.

CCT from 2200k to 6500k, no flickering effects, color rendering indexes in the CRI> 80, or CRI>90 on request, dimmable or non-dimmable are the main characteristics.


Product Detail

Download

Product Tags

Product Introduction

Due to its innovative features, stylish design, high quality of its components, the square light ring gives wider, more uniform illumination and offers exceptional performance, functionally and aesthetically.

Featuring a high Color Rendering Index (CRI) of 90 or 80, it ensures accurate and vibrant color representation.

People can choose the right color temperature from 2200~6500k, offer customizable lighting options for different settings.

This square linear light can be non-dimmable, 0~10v dimmable, or Dali dimmable for different lighting requirements.

During the sus-pendant installation, the LED drivers, which are responsible for regulating and supplying power to the circular led lights, are strategically positioned within the ceiling canopy. This placement not only allows for increased space and airflow for the drivers, ensuring optimal performance and longevity, but also contributes to a seamless and streamlined appearance of the overall installation.

In its family named OLA series, a bendable lighting system, there are other members with different diameters and shapes available.

Feature

1, Curved corners give the luminaires a more sophisticated and stylish design: This design element adds a touch of elegance and sophistication to the overall aesthetic of the lighting fixtures.

2, Silicon lens, softens the light glaring to people's eyes: The square Led lights are equipped with a silicon lens that helps reduce the glare emitted by the light, contributes to a more pleasant and enjoyable lighting experience for individuals in the space.

3, High-quality components, 5-year warranty: The ring LED light fixtures are built using high-quality components, ensuring their durability and long lifespan.

4, CRI80 or CRI90 for selection: With the choice between CRI80 or CRI90, users can select the level of color accuracy and vibrancy they desire for their specific lighting needs.

5, 3000k, 4000k, 6000k for choice: Users can choose from different color temperatures such as 3000K, 4000K, and 6000K, offering warm, neutral, or cool lighting options.

6, Tunable white is available: allowing users to adjust the color temperature according to their specific preferences or changing lighting needs.

7, Models with diameter of 450mm, 600mm, 900mm, 1200mm for choice: The LED light fixtures are available in multiple sizes to accommodate different spaces and lighting requirements.

8, Pendant installation with drivers hidden in the ceiling canopy: This setting makes the operation or maintenance easier, also gives the space more comfort.

Square light3
2-OLA白皮书

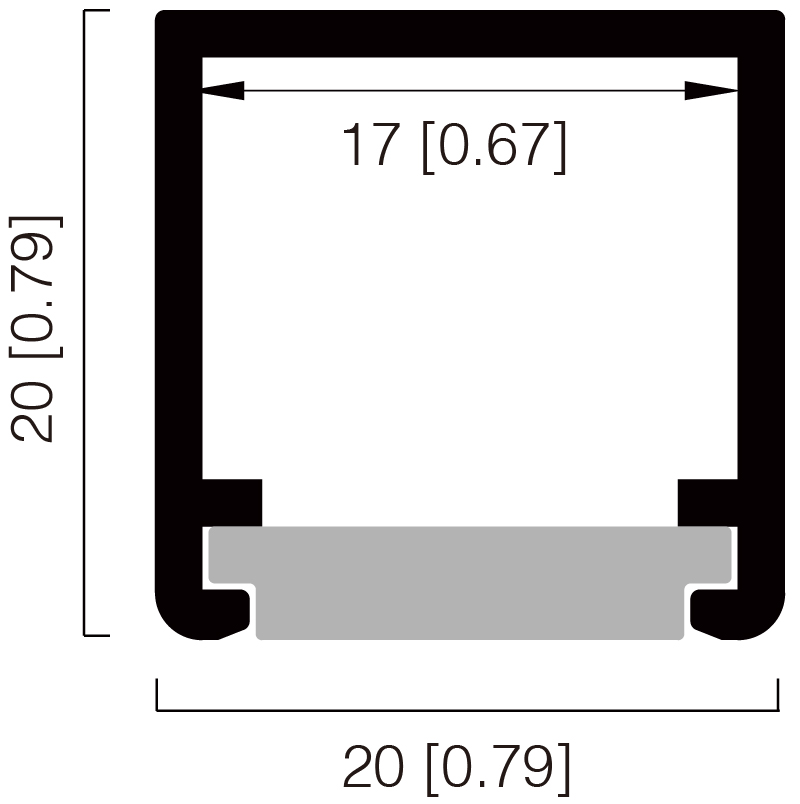

Size & Installation

1_画板 1

Pendant by canopy surface-mounted.

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (14)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (13)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (12)

Finish

The Aluminum housing standard colors are: Textured white, black, and silver grey.

And other 48 colors can be tailored to meet different requirements.

Finish3
Color Options

Range of Applications

Widely used in offices, retail stores, restaurants, and hotels,lobbies, reception areas, corridors, and hotel rooms, living rooms, bedrooms.

Specification

Model

OLA20FY

Input Vol.

220-240VAC

Optical

Silicone

Power

17W

Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L450 x W450
Luminaire W20 x H20mm

Lumen

723-876lm/pc

IP

IP22

Efficiency

40-50lm/W

Installation

Pendant

THD

<20%

Life Time
L80B10

50,000hrs

Luminaire: OLA20FY,             Optical: Silicone,              Efficiency: 50lm/W,            LED: Epistar,         Driver: Lifud

OPTICAL

ANGLE

SIZE

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

L450 x W450mm

17.0W

850lm

80+

3000K

On-Off

Silicone

110°

L450 x W450mm

17.5W

850lm

80+

3000K

0-10V

Silicone

110°

L450 x W450mm

17.5W

850lm

80+

3000K

DALI

Silicone

110°

L450 x W450mm

17.0W

765lm

90+

3000K

On-Off

Silicone

110°

L450 x W450mm

17.5W

765lm

90+

3000K

0-10V

Silicone

110°

L450 x W450mm

17.5W

765lm

90+

3000K

DALI

Silicone

110°

L450 x W450mm

17.0W

876lm

80+

4000K

On-Off

Silicone

110°

L450 x W450mm

17.5W

876lm

80+

4000K

0-10V

Silicone

110°

L450 x W450mm

17.5W

876lm

80+

4000K

DALI

Silicone

110°

L450 x W450mm

17.0W

788lm

90+

4000K

On-Off

Silicone

110°

L450 x W450mm

17.5W

788lm

90+

4000K

0-10V

Silicone

110°

L450 x W450mm

17.5W

788lm

90+

4000K

DALI

Model

OLA20FY

Input Vol.

220-240VAC

Optical

Silicone

Power

34W

Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L600 x W600
Luminaire W20 x H20mm

Lumen

1445-1751lm/pc

IP

IP22

Efficiency

40-50lm/W

Installation

Pendant

THD

<20%

Life Time
L80B10

50,000hrs

Luminaire: OLA20FY,             Optical: Silicone,              Efficiency: 50lm/W,            LED: Epistar,         Driver: Lifud

OPTICAL

ANGLE

SIZE

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

L600 x W600mm

34.0W

1700lm

80+

3000K

On-Off

Silicone

110°

L600 x W600mm

35.0W

1700lm

80+

3000K

0-10V

Silicone

110°

L600 x W600mm

35.0W

1700lm

80+

3000K

DALI

Silicone

110°

L600 x W600mm

34.0W

1530lm

90+

3000K

On-Off

Silicone

110°

L600 x W600mm

35.0W

1530lm

90+

3000K

0-10V

Silicone

110°

L600 x W600mm

35.0W

1530lm

90+

3000K

DALI

Silicone

110°

L600 x W600mm

34.0W

1751lm

80+

4000K

On-Off

Silicone

110°

L600 x W600mm

35.0W

1751lm

80+

4000K

0-10V

Silicone

110°

L600 x W600mm

35.0W

1751lm

80+

4000K

DALI

Silicone

110°

L600 x W600mm

34.0W

1576lm

90+

4000K

On-Off

Silicone

110°

L600 x W600mm

35.0W

1576lm

90+

4000K

0-10V

Silicone

110°

L600 x W600mm

35.0W

1576lm

90+

4000K

DALI

Model

OLA20FY

Input Vol.

220-240VAC

Optical

Silicone

Power

51W

Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1000 x W1000
Luminaire W20 x H20mm

Lumen

2168-2627lm/pc

IP

IP22

Efficiency

40-50lm/W

Installation

Pendant

THD

<20%

Life Time
L80B10

50,000hrs

Luminaire: OLA20FY,              Optical: Silicone,              Efficiency: 50lm/W,            LED: Epistar,              Driver: Lifud

OPTICAL

ANGLE

SIZE

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

L1000 x W1000mm

51.0W

2550lm

80+

3000K

On-Off

Silicone

110°

L1000 x W1000mm

52.5W

2550lm

80+

3000K

0-10V

Silicone

110°

L1000 x W1000mm

52.5W

2550lm

80+

3000K

DALI

Silicone

110°

L1000 x W1000mm

51.0W

2295lm

90+

3000K

On-Off

Silicone

110°

L1000 x W1000mm

52.5W

2295lm

90+

3000K

0-10V

Silicone

110°

L1000 x W1000mm

52.5W

2295lm

90+

3000K

DALI

Silicone

110°

L1000 x W1000mm

51.0W

2627lm

80+

4000K

On-Off

Silicone

110°

L1000 x W1000mm

52.5W

2627lm

80+

4000K

0-10V

Silicone

110°

L1000 x W1000mm

52.5W

2627lm

80+

4000K

DALI

Silicone

110°

L1000 x W1000mm

51.0W

2364lm

90+

4000K

On-Off

Silicone

110°

L1000 x W1000mm

52.5W

2364lm

90+

4000K

0-10V

Silicone

110°

L1000 x W1000mm

52.5W

2364lm

90+

4000K

DALI

Model

OLA20FY

Input Vol.

220-240VAC

Optical

Silicone

Power

59W

Beam Angle

110°

LED

2835 SMD

UGR

<26

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1200 x W1200
Luminaire W20 x H20mm

Lumen

2508-3039lm/pc

IP

IP22

Efficiency

40-50lm/W

Installation

Pendant

THD

<20%

Life Time
L80B10

50,000hrs

Luminaire: OLA20FY,              Optical: Silicone,              Efficiency: 50lm/W,            LED: Epistar,              Driver: Lifud

OPTICAL

ANGLE

SIZE

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

L1200 x W1200mm

59.0W

2950lm

80+

3000K

On-Off

Silicone

110°

L1200 x W1200mm

60.8W

2950lm

80+

3000K

0-10V

Silicone

110°

L1200 x W1200mm

60.8W

2950lm

80+

3000K

DALI

Silicone

110°

L1200 x W1200mm

59.0W

2655lm

90+

3000K

On-Off

Silicone

110°

L1200 x W1200mm

60.8W

2655lm

90+

3000K

0-10V

Silicone

110°

L1200 x W1200mm

60.8W

2655lm

90+

3000K

DALI

Silicone

110°

L1200 x W1200mm

59.0W

3039lm

80+

4000K

On-Off

Silicone

110°

L1200 x W1200mm

60.8W

3039lm

80+

4000K

0-10V

Silicone

110°

L1200 x W1200mm

60.8W

3039lm

80+

4000K

DALI

Silicone

110°

L1200 x W1200mm

59.0W

2735lm

90+

4000K

On-Off

Silicone

110°

L1200 x W1200mm

60.8W

2735lm

90+

4000K

0-10V

Silicone

110°

L1200 x W1200mm

60.8W

2735lm

90+

4000K

DALI
