LUZ-Trimmed recessed Led linear light with louver lens 19°, 24°, 38°, 50°, 50×50°, 35×70°
Product Introduction
The louver lens Led luminaire is an engineering-designed surface-installed linear light that facilitates easy and stable connection.
The joint brackets will be re-put in the profile, people only need to fix one nut to complete the joining for longer connection.
The driver of this line light is fixed inside the profile, with the optical lens easy to be moved or fixed, it allows effortless installation and maintenance.
What’s more, it contributes to creating a neater environment overall.
To meet more requirements about different beam angles, this exquisite line linear light utilizes louver lens, to get 6 kinds of beam angles, including 19°, 24°, 38°, 50°, 50x50°, 35x70°.
Feature
1, Customizable Length: This linear light offers a range of customizable lengths to suit various applications and installation requirements.
2, Color Temperature Range (2200k~6500k): provides a wide range of color temperature options, spanning from warm, cozy lighting at 2200 Kelvin to cooler, daylight-like illumination at 6500 Kelvin.
This feature enables you to tailor the ambiance of your space according to your preference or specific needs.
3, CRI80 or CRI90: The lighting solution offers two options for color rendering index (CRI): CRI80 and CRI90.
CRI80 ensures good color accuracy, while CRI90 provides even higher color fidelity, making it ideal for applications where accurate color representation is crucial, such as in art galleries or retail displays.
4, Power and Efficiency Variability: designed with flexibility in mind, offering different power and efficiency levels to meet diverse requirements.
5, 6 options of beam angles: 19°, 24°, 38°, 50°, 50x50°, 35x70° are available, to meet different application requirements.
6, Low UGR<19, create comfortable lighting environment.
7, Easy Connection Brackets: equipped with user-friendly connection brackets that simplify the installation process.
These brackets facilitate quick and secure connections, reducing the need for extensive labor and technical expertise during setup, get flawless, continuous lighting effect.
8, Internal buckle endcap: Keeps the light without light-leaking.
9, Internal driver: save the space for the driver installation, keeps the environment neat.
10, Big space in the profile: the back cover of the profile is easy to be opened, easy the entire installation process.

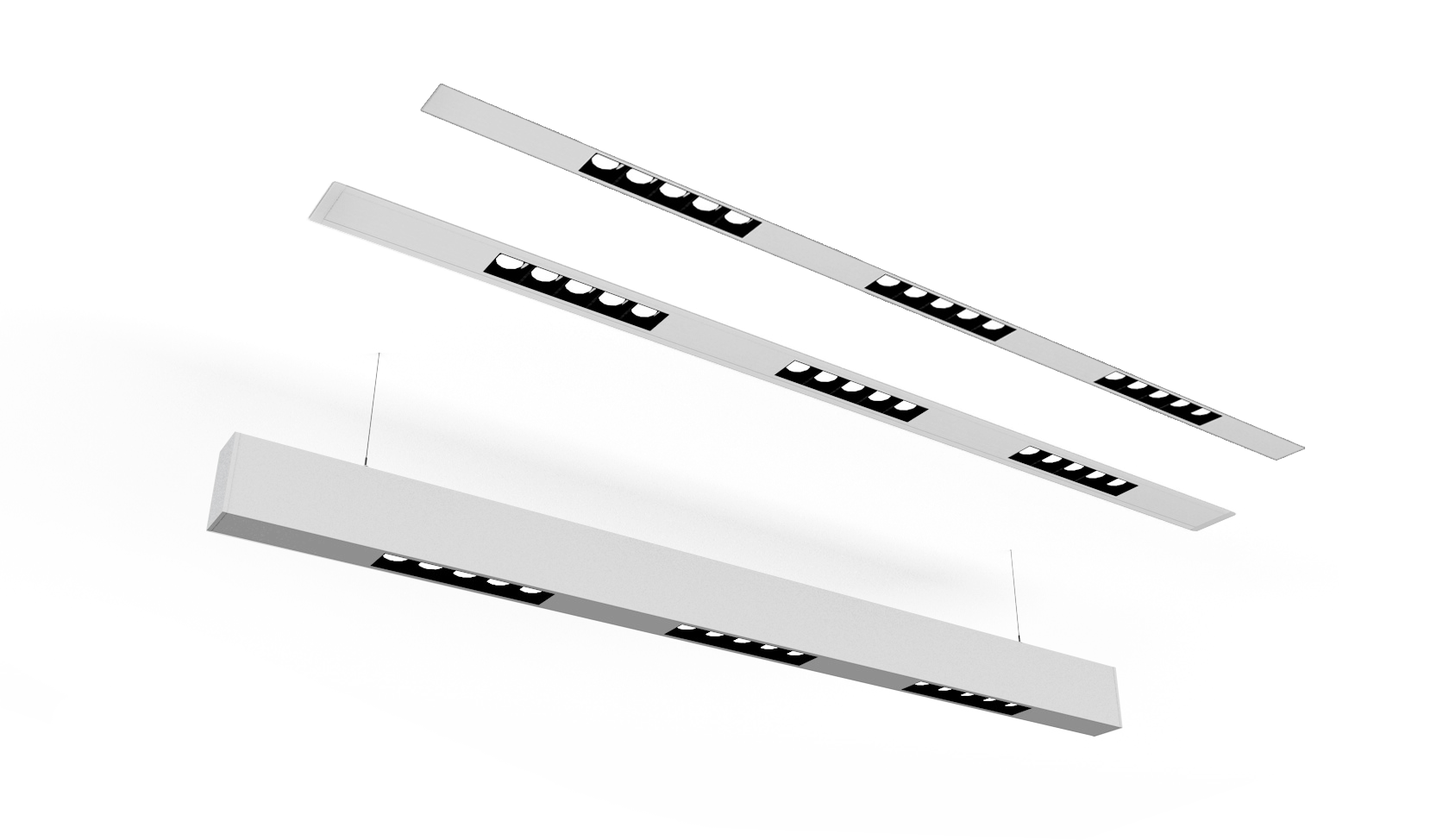

11, Flexible installation Methods: Pendant, Ceiling mounted, wall-mounted.
Dimension & Installation
Finish
This linear lighting solution is designed to offer standard color choices of elegant matt white, sleek black, and refined silver.
Furthermore, for those seeking to infuse a touch of personalization and vibrancy, we provide an exquisite range of 48 colors for powder coating.
Color Option
Applications
It finds extensive utilization in corporate environments, academic establishments, meeting venues, and various professional workspaces.
Specification
|
Model |
LUZ |
Input Vol. |
220-240VAC |
|
Optical |
Louver & Lens=3 sets |
Power |
25W |
|
Beam Angle |
12°/24°/38°/50°/50x50°/35x70° |
LED |
CREE |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<19 |
SDCM |
<3 |
|
Dimension |
L1229 x W70 x H85mm |
Lumen |
2070-2369lm/pc |
|
IP / IK |
IP22 |
Efficiency |
95lm/W |
|
Installation |
Trimmed recessed |
Life Time |
50,000hrs |
|
Net Weight |
1.55kgs |
THD |
<20% |
|
Luminaire: LUZ(7085), Optical: Louver & Lens=3 sets, Power:25W， Efficiency: 95lm/W, LED: CREE, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
25.0W |
2375lm |
80+ |
3000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
25.8W |
2375lm |
80+ |
3000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
25.8W |
2375lm |
80+ |
3000K |
DALI |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
25.0W |
2138lm |
90+ |
3000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
25.8W |
2138lm |
90+ |
3000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
25.8W |
2138lm |
90+ |
3000K |
DALI |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
25.0W |
2446lm |
80+ |
4000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
25.8W |
2446lm |
80+ |
4000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
25.8W |
2446lm |
80+ |
4000K |
DALI |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
25.0W |
2202lm |
90+ |
4000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
25.8W |
2202lm |
90+ |
4000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
25.8W |
2202lm |
90+ |
4000K |
DALI |
|
Model |
LUZ |
Input Vol. |
220-240VAC |
|
Optical |
Louver & Lens=6 sets |
Power |
36W |
|
Beam Angle |
12°/24°/38°/50°/50x50°/35x70° |
LED |
CREE |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<19 |
SDCM |
<3 |
|
Dimension |
L1229 x W70 x H85mm |
Lumen |
3402-3893lm/pc |
|
IP / IK |
IP22 |
Efficiency |
105lm/W |
|
Installation |
Trimmed recessed |
Life Time |
50,000hrs |
|
Net Weight |
1.65kgs |
THD |
<20% |
|
Luminaire: LUZ(7085), Optical: Louver & Lens=3 sets, Power:36W， Efficiency: 95lm/W, LED: CREE, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
36.0W |
3780lm |
80+ |
3000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
37.1W |
3780lm |
80+ |
3000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
37.1W |
3780lm |
80+ |
3000K |
DALI |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
36.0W |
3402lm |
90+ |
3000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
37.1W |
3402lm |
90+ |
3000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
37.1W |
3402lm |
90+ |
3000K |
DALI |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
36.0W |
3893lm |
80+ |
4000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
37.1W |
3893lm |
80+ |
4000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
37.1W |
3893lm |
80+ |
4000K |
DALI |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
36.0W |
3504lm |
90+ |
4000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
37.1W |
3504lm |
90+ |
4000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1229mm |
37.1W |
3504lm |
90+ |
4000K |
DALI |
|
Model |
LUZ |
Input Vol. |
220-240VAC |
|
Optical |
Louver & Lens=4 sets |
Power |
31W |
|
Beam Angle |
12°/24°/38°/50°/50x50°/35x70° |
LED |
CREE |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<19 |
SDCM |
<3 |
|
Dimension |
L1529 x W70 x H85mm |
Lumen |
3402-3893lm/pc |
|
IP / IK |
IP22 |
Efficiency |
95lm/W |
|
Installation |
Trimmed recessed |
Life Time |
50,000hrs |
|
Net Weight |
2kgs |
THD |
<20% |
|
Luminaire: LUZ(7085), Optical: Louver & Lens=4 sets, Power:31W， Efficiency: 95lm/W, LED: CREE, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
31.0W |
2945lm |
80+ |
3000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
31.9W |
2945lm |
80+ |
3000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
31.9W |
2945lm |
80+ |
3000K |
DALI |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
31.0W |
2651lm |
90+ |
3000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
31.9W |
2651lm |
90+ |
3000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
31.9W |
2651lm |
90+ |
3000K |
DALI |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
31.0W |
3033lm |
80+ |
4000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
31.9W |
3033lm |
80+ |
4000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
31.9W |
3033lm |
80+ |
4000K |
DALI |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
31.0W |
2730lm |
90+ |
4000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
31.9W |
2730lm |
90+ |
4000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
31.9W |
2730lm |
90+ |
4000K |
DALI |
|
Model |
LUZ |
Input Vol. |
220-240VAC |
|
Optical |
Louver & Lens=7 sets |
Power |
45W |
|
Beam Angle |
12°/24°/38°/50°/50x50°/35x70° |
LED |
CREE |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<19 |
SDCM |
<3 |
|
Dimension |
L1529 x W70 x H85mm |
Lumen |
3402-3893lm/pc |
|
IP / IK |
IP22 |
Efficiency |
105lm/W |
|
Installation |
Trimmed recessed |
Life Time |
50,000hrs |
|
Net Weight |
2.1kgs |
THD |
<20% |
|
Luminaire: LUZ(7085), Optical: Louver & Lens=7 sets, Power:45W， Efficiency: 105lm/W, LED: CREE, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
45.0W |
4725lm |
80+ |
3000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
46.4W |
4725lm |
80+ |
3000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
46.4W |
4725lm |
80+ |
3000K |
DALI |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
45.0W |
4253lm |
90+ |
3000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
46.4W |
4253lm |
90+ |
3000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
46.4W |
4253lm |
90+ |
3000K |
DALI |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
45.0W |
4867lm |
80+ |
4000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
46.4W |
4867lm |
80+ |
4000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
46.4W |
4867lm |
80+ |
4000K |
DALI |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
45.0W |
4380lm |
90+ |
4000K |
On-Off |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
46.4W |
4380lm |
90+ |
4000K |
0-10V |
|
Louver & Lens |
12°/24°/38°/50°/50x50°/35x70° |
<19 |
L1529mm |
46.4W |
4380lm |
90+ |
4000K |
DALI |
-
01 LUZ TRIMED RECESSED LOUVER LENS LINEAR LIGHT
-
02 U7085 TDR Joining Installation
