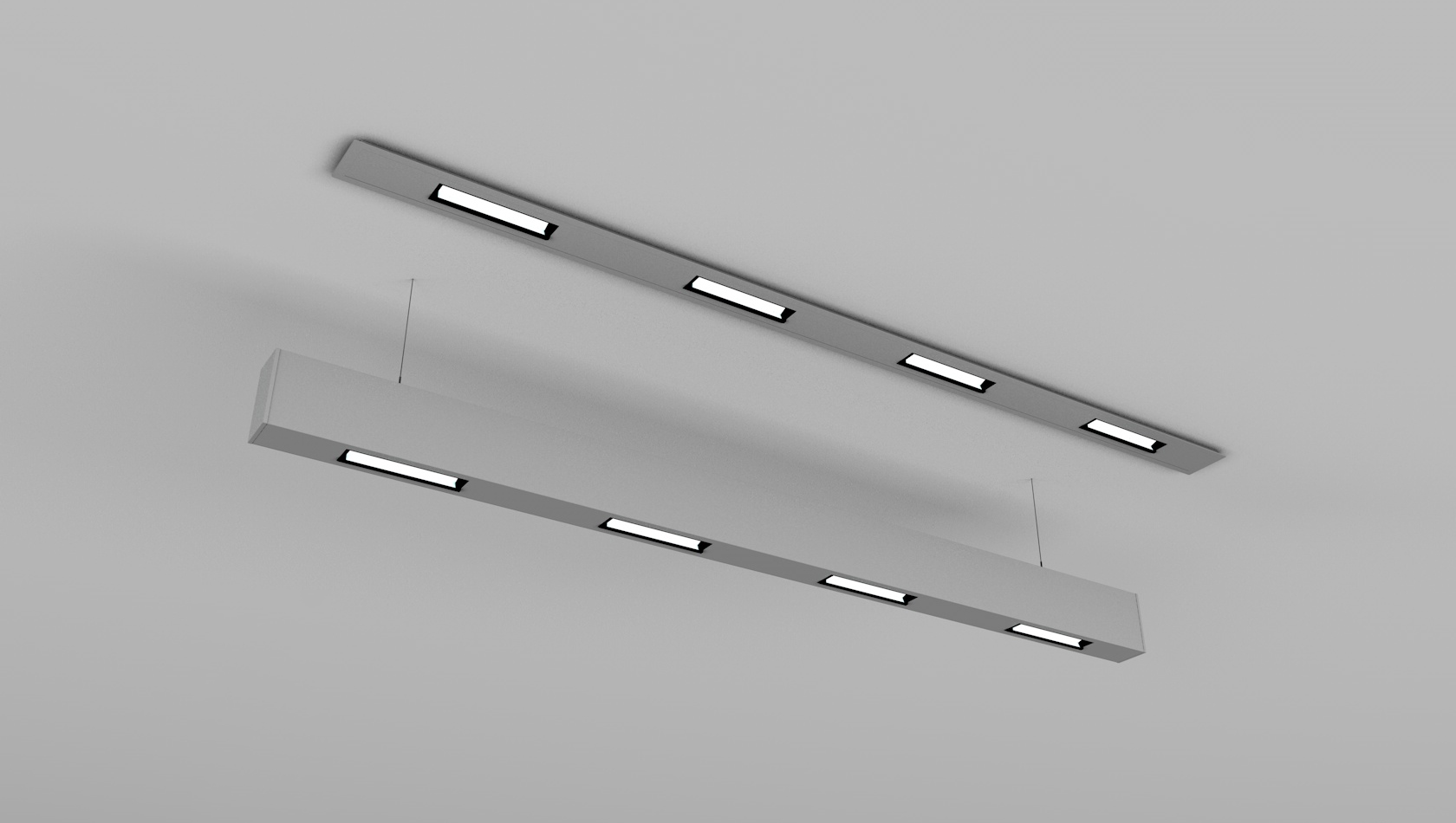

• LUZ-Surface mounted Wall washer Led linear light Wall washer

LUZ-Surface mounted Wall washer Led linear light Wall washer

Short Description:

By width of 50mm, height of 85mm, this linear light is designed with internal driver, featured by easiest joint solution by tightening only one nut.

With the wall washer lens, the linear light can make focusing lighting for special areas, offers the light and brightness of the space uniform, create a comfortable and healthy office lighting environment.

Whether for commercial spaces, educational spaces, this led linear lighting solution provides the flexibility to create tailored lighting experiences.


Product Detail

Download

Product Tags

Product Introduction

The wall washer Led luminaires an engineering-designed surface-installed linear light that facilitates easy and stable connection.

The joint brackets will be re-put in the profile, people only need to fix one nut to complete the joining for longer connection.

The driver of this line light is fixed inside the profile, with the optical lens easy to be moved or fixed, it allows effortless installation and maintenance.

What’s more, it contributes to creating a neater environment overall.

To ensure uniform lighting conditions, the U5085 utilizes wall washer lens, which can give focusing lighting to special spaces, create uniform and healthy lighting environment.

Feature

1, Customizable Length: This linear light offers a range of customizable lengths to suit various applications and installation requirements.

2, Color Temperature Range (2200k~6500k): provides a wide range of color temperature options, spanning from warm, cozy lighting at 2200 Kelvin to cooler, daylight-like illumination at 6500 Kelvin.

This feature enables you to tailor the ambiance of your space according to your preference or specific needs.

3, CRI80 or CRI90: The lighting solution offers two options for color rendering index (CRI): CRI80 and CRI90.

CRI80 ensures good color accuracy, while CRI90 provides even higher color fidelity, making it ideal for applications where accurate color representation is crucial, such as in art galleries or retail displays.

4, Power and Efficiency Variability: designed with flexibility in mind, offering different power and efficiency levels to meet diverse requirements.

5, Wall washer lens: makes focusing lighting for special spaces, create uniform lighting environment.

6, Easy Connection Brackets: equipped with user-friendly connection brackets that simplify the installation process.

These brackets facilitate quick and secure connections, reducing the need for extensive labor and technical expertise during setup, get flawless, continuous lighting effect.

7, Internal buckle endcap: Keeps the light without light-leaking.

8, Internal driver: save the space for the driver installation, keeps the environment neat.

9, Big space in the profile: the back cover of the profile is easy to be opened, easy the entire installation process.

10, Flexible installation Methods: Pendant, ceiling-mounted, wall-mounted, apply to different applications.

Dimension & Installation

ACCESSORIES-01

Finish

This linear lighting solution is designed to offer standard color choices of elegant matt white, sleek black, and refined silver.

Furthermore, for those seeking to infuse a touch of personalization and vibrancy, we provide an exquisite range of 48 colors for powder coating.

Finish

Color Option

slim crystal louver-12

Applications

It finds extensive utilization in corporate environments, academic establishments, meeting venues, and various professional workspaces.

Wall washer linear light

Specification

Model

LUZ

Input Vol.

220-240VAC

Optical

Louver & Lens=3 sets

Power

25W

Beam Angle

Wall Washer

LED

CREE

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1229 x W70 x H85mm

Lumen

1350-1545m/pc

IP

IP22

Efficiency

60lm/W

Installation

Trimmed recessed

Life Time
L80B10

50,000hrs

Net Weight

1.55kgs

THD

<20%

Luminaire: LUZ(7085),      Optical: Louver & Lens=3sets,      Power:25W,      Efficiency: 60lm/W,       LED: CREE,       Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

Wall Washer

<19

L1229mm

25.0W

1500lm

80+

3000K

On-Off

Louver & Lens

Wall Washer

<19

L1229mm

25.8W

1500lm

80+

3000K

0-10V

Louver & Lens

Wall Washer

<19

L1229mm

25.8W

1500lm

80+

3000K

DALI

Louver & Lens

Wall Washer

<19

L1229mm

25.0W

1350lm

90+

3000K

On-Off

Louver & Lens

Wall Washer

<19

L1229mm

25.8W

1350lm

90+

3000K

0-10V

Louver & Lens

Wall Washer

<19

L1229mm

25.8W

1350lm

90+

3000K

DALI

Louver & Lens

Wall Washer

<19

L1229mm

25.0W

1545lm

80+

4000K

On-Off

Louver & Lens

Wall Washer

<19

L1229mm

25.8W

1545lm

80+

4000K

0-10V

Louver & Lens

Wall Washer

<19

L1229mm

25.8W

1545lm

80+

4000K

DALI

Louver & Lens

Wall Washer

<19

L1229mm

25.0W

1391lm

90+

4000K

On-Off

Louver & Lens

Wall Washer

<19

L1229mm

25.8W

1391lm

90+

4000K

0-10V

Louver & Lens

Wall Washer

<19

L1229mm

25.8W

1391lm

90+

4000K

DALI

Model

LUZ

Input Vol.

220-240VAC

Optical

Louver & Lens=6 sets

Power

36W

Beam Angle

Wall Washer

LED

CREE

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1229 x W70 x H85mm

Lumen

2138-2447m/pc

IP

IP22

Efficiency

60lm/W

Installation

Trimmed recessed

Life Time
L80B10

50,000hrs

Net Weight

1.65kgs

THD

<20%

Luminaire: LUZ(7085),      Optical: Louver & Lens=6 sets,       Power:36W,       Efficiency: 60lm/W,        LED: CREE,       Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

Wall Washer

<19

L1229mm

36.0W

2376lm

80+

3000K

On-Off

Louver & Lens

Wall Washer

<19

L1229mm

37.1W

2376lm

80+

3000K

0-10V

Louver & Lens

Wall Washer

<19

L1229mm

37.1W

2376lm

80+

3000K

DALI

Louver & Lens

Wall Washer

<19

L1229mm

36.0W

2138lm

90+

3000K

On-Off

Louver & Lens

Wall Washer

<19

L1229mm

37.1W

2138lm

90+

3000K

0-10V

Louver & Lens

Wall Washer

<19

L1229mm

37.1W

2138lm

90+

3000K

DALI

Louver & Lens

Wall Washer

<19

L1229mm

36.0W

2447lm

80+

4000K

On-Off

Louver & Lens

Wall Washer

<19

L1229mm

37.1W

2447lm

80+

4000K

0-10V

Louver & Lens

Wall Washer

<19

L1229mm

37.1W

2447lm

80+

4000K

DALI

Louver & Lens

Wall Washer

<19

L1229mm

36.0W

2203lm

90+

4000K

On-Off

Louver & Lens

Wall Washer

<19

L1229mm

37.1W

2203lm

90+

4000K

0-10V

Louver & Lens

Wall Washer

<19

L1229mm

37.1W

2203lm

90+

4000K

DALI

Model

LUZ

Input Vol.

220-240VAC

Optical

Louver & Lens=4 sets

Power

31W

Beam Angle

Wall Washer

LED

CREE

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1529 x W70 x H85mm

Lumen

1674-1916lm/pc

IP

IP22

Efficiency

60lm/W

Installation

Trimmed recessed

Life Time
L80B10

50,000hrs

Net Weight

2kgs

THD

<20%

Luminaire: LUZ(7085),      Optical: Louver & Lens=4 sets,      Power:31W       Efficiency: 60lm/W,       LED: CREE,       Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

Wall Washer

<19

L1529mm

31.0W

1860lm

80+

3000K

On-Off

Louver & Lens

Wall Washer

<19

L1529mm

31.9W

1860lm

80+

3000K

0-10V

Louver & Lens

Wall Washer

<19

L1529mm

31.9W

1860lm

80+

3000K

DALI

Louver & Lens

Wall Washer

<19

L1529mm

31.0W

1674lm

90+

3000K

On-Off

Louver & Lens

Wall Washer

<19

L1529mm

31.9W

1674lm

90+

3000K

0-10V

Louver & Lens

Wall Washer

<19

L1529mm

31.9W

1674lm

90+

3000K

DALI

Louver & Lens

Wall Washer

<19

L1529mm

31.0W

1916lm

80+

4000K

On-Off

Louver & Lens

Wall Washer

<19

L1529mm

31.9W

1916lm

80+

4000K

0-10V

Louver & Lens

Wall Washer

<19

L1529mm

31.9W

1916lm

80+

4000K

DALI

Louver & Lens

Wall Washer

<19

L1529mm

31.0W

1724lm

90+

4000K

On-Off

Louver & Lens

Wall Washer

<19

L1529mm

31.9W

1724lm

90+

4000K

0-10V

Louver & Lens

Wall Washer

<19

L1529mm

31.9W

1724lm

90+

4000K

DALI

Model

LUZ

Input Vol.

220-240VAC

Optical

Louver & Lens=7 sets

Power

45W

Beam Angle

Wall Washer

LED

CREE

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1529 x W70 x H85mm

Lumen

2673-3059m/pc

IP

IP22

Efficiency

66lm/W

Installation

Trimmed recessed

Life Time
L80B10

50,000hrs

Net Weight

2kgs

THD

<20%

Luminaire: LUZ(7085),     Optical: Louver & Lens=7 sets,      Power:45W      Efficiency: 66lm/W,       LED: CREE,        Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

Wall Washer

<19

L1529mm

45.0W

2970lm

80+

3000K

On-Off

Louver & Lens

Wall Washer

<19

L1529mm

46.4W

2970lm

80+

3000K

0-10V

Louver & Lens

Wall Washer

<19

L1529mm

46.4W

2970lm

80+

3000K

DALI

Louver & Lens

Wall Washer

<19

L1529mm

45.0W

2673lm

90+

3000K

On-Off

Louver & Lens

Wall Washer

<19

L1529mm

46.4W

2673lm

90+

3000K

0-10V

Louver & Lens

Wall Washer

<19

L1529mm

46.4W

2673lm

90+

3000K

DALI

Louver & Lens

Wall Washer

<19

L1529mm

45.0W

3059lm

80+

4000K

On-Off

Louver & Lens

Wall Washer

<19

L1529mm

46.4W

3059lm

80+

4000K

0-10V

Louver & Lens

Wall Washer

<19

L1529mm

46.4W

3059lm

80+

4000K

DALI

Louver & Lens

Wall Washer

<19

L1529mm

45.0W

2753lm

90+

4000K

On-Off

Louver & Lens

Wall Washer

<19

L1529mm

46.4W

2753lm

90+

4000K

0-10V

Louver & Lens

Wall Washer

<19

L1529mm

46.4W

2753lm

90+

4000K

DALI
