• LUZ-Injected TIR LENS Led linear light with beam angle of Asymmetric, Batwing

LUZ-Injected TIR LENS Led linear light with beam angle of Asymmetric, Batwing

Short Description:

By width of 50mm, height of 85mm, this linear light is designed with internal driver, featured by easiest joint solution by tightening only one nut.

With the Injected TIR louver lens, this linear light offers 4 options of beam angles, including 60°, 90°,Asymmetric, Batwing, to meet different lighting requirements.

Whether for commercial spaces, educational spaces, this led linear lighting solution provides the flexibility to create tailored lighting experiences.


Product Detail

Download

Product Tags

Product Introduction

The injected lens Led luminaires an engineering-designed surface-installed linear lighting that facilitates easy and stable connection.

The joint brackets will be re-put in the profile, people only need to fix one nut to complete the joining for longer connection.

The driver of this line light is fixed inside the profile, with the optical lens easy to be moved or fixed, it allows effortless installation and maintenance.

What’s more, it contributes to creating a neater environment overall.

To get beam angle of Asymmetric, Batwing, this linear luminaire utilizes TIR lens, to meet different requirements from different projects.

Feature

1, Customizable Length: This linear light offers a range of customizable lengths to suit various applications and installation requirements.

2, Color Temperature Range (2200k~6500k): provides a wide range of color temperature options, spanning from warm, cozy lighting at 2200 Kelvin to cooler, daylight-like illumination at 6500 Kelvin.

This feature enables you to tailor the ambiance of your space according to your preference or specific needs.

3, CRI80 or CRI90: The lighting solution offers two options for color rendering index (CRI): CRI80 and CRI90.

CRI80 ensures good color accuracy, while CRI90 provides even higher color fidelity, making it ideal for applications where accurate color representation is crucial, such as in art galleries or retail displays.

4, Power and Efficiency Variability: designed with flexibility in mind, offering different power and efficiency levels to meet diverse requirements.

5, 4 options of beam angles: choose from 60°, 90°,Asymmetric, Batwing, to meet different lighting requirements.

6, Easy Connection Brackets: equipped with user-friendly connection brackets that simplify the installation process.

These brackets facilitate quick and secure connections, reducing the need for extensive labor and technical expertise during setup, get flawless, continuous lighting effect.

7, Internal buckle endcap: Keeps the light without light-leaking.

8, Internal driver: save the space for the driver installation, keeps the environment neat.

9, Big space in the profile: the back cover of the profile is easy to be opened, easy the entire installation process.

10, Flexible installation Methods: Pendant, ceiling-mounted, wall-mounted, apply to different applications.

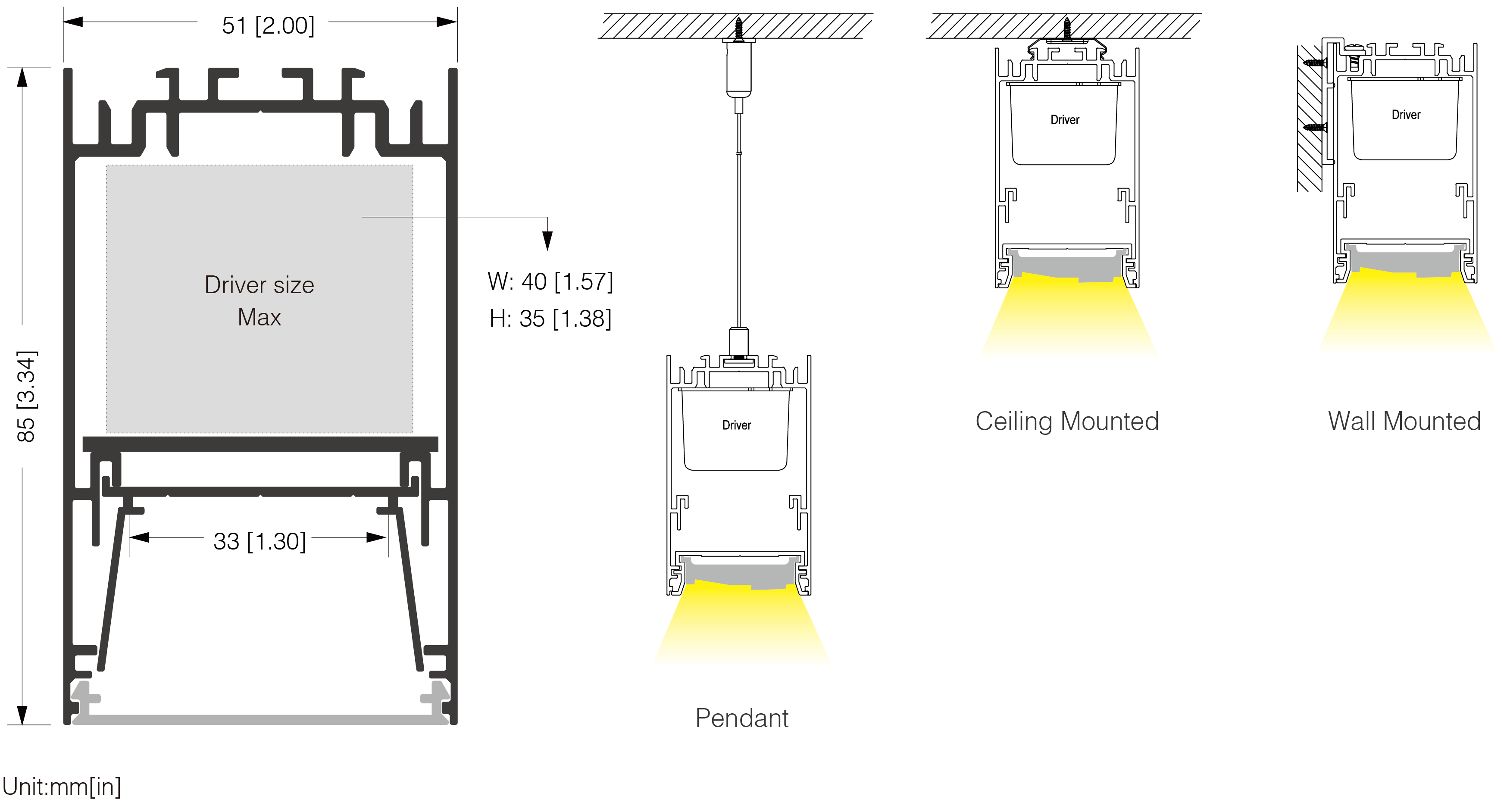

Dimension & Installation

Size

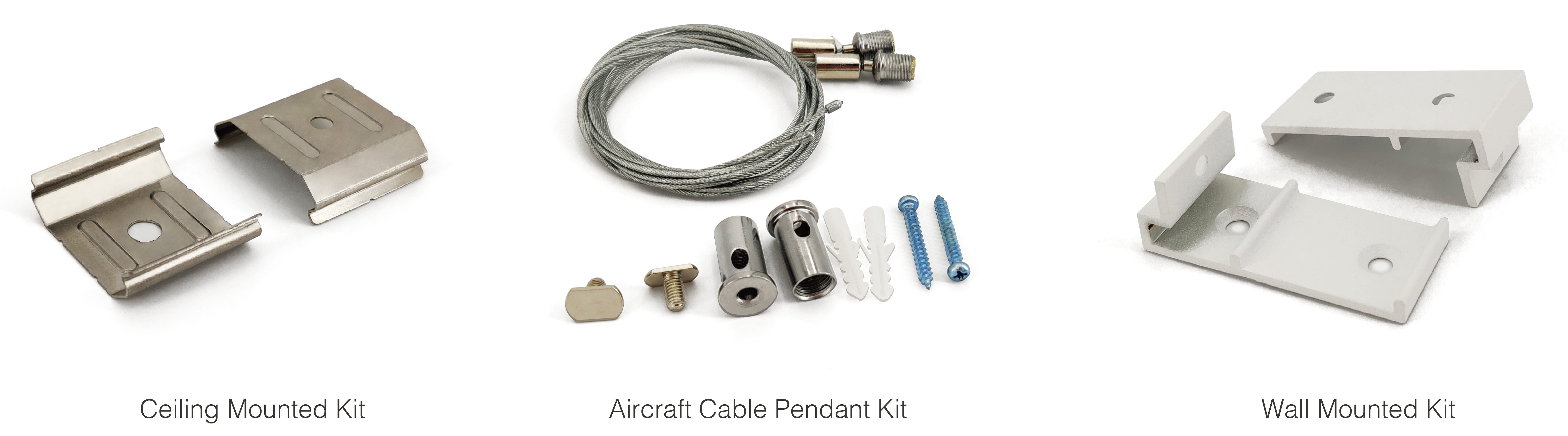

Accessories

ACCESSORIES & TOOLS

Finish

This linear lighting solution is designed to offer standard color choices of elegant matt white, sleek black, and refined silver.

Furthermore, for those seeking to infuse a touch of personalization and vibrancy, we provide an exquisite range of 48 colors for powder coating.

Finish

Color Option

slim crystal louver-12

Applications

It finds extensive utilization in corporate environments, academic establishments, meeting venues, and various professional workspaces.

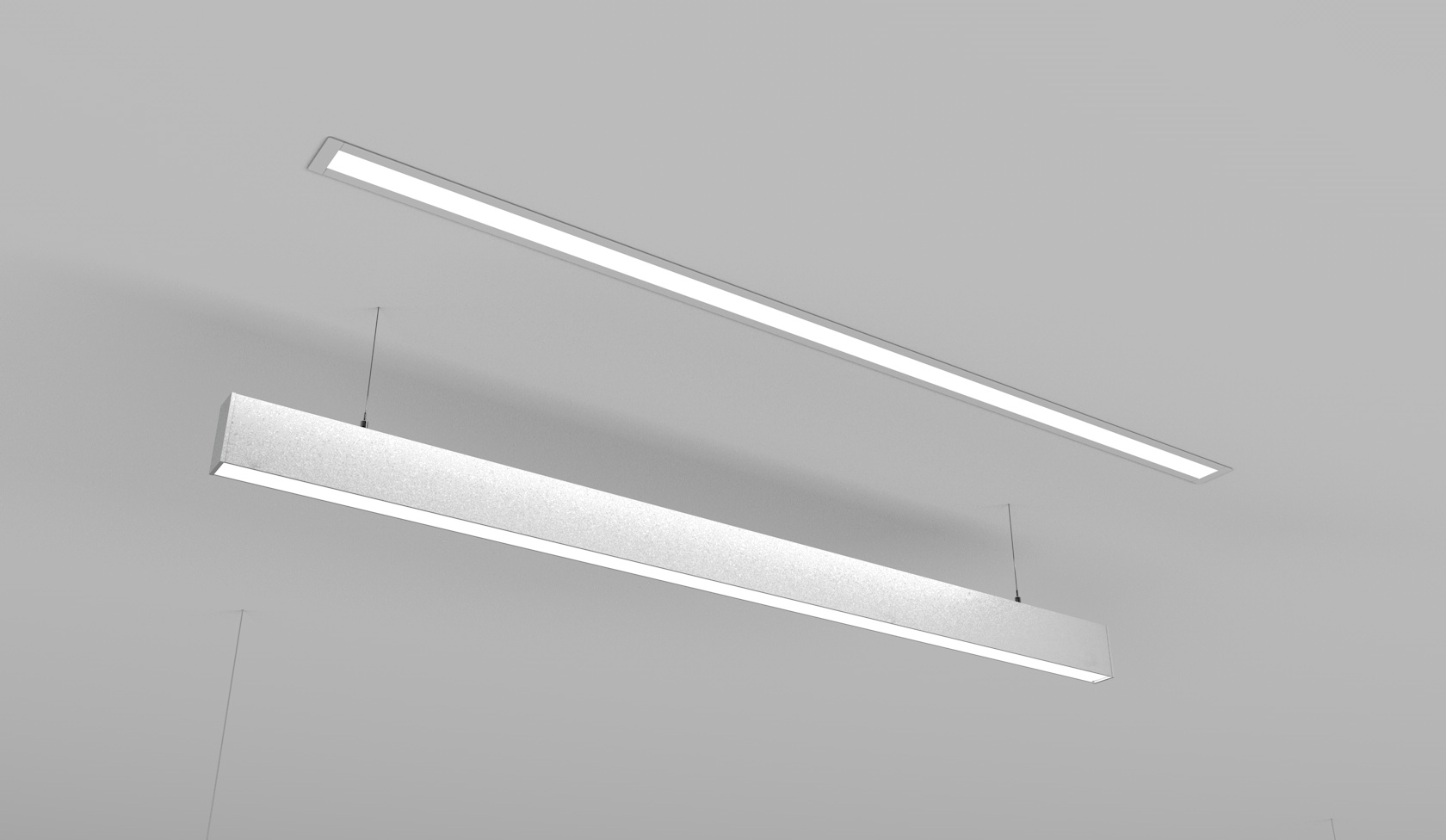

PC

Specification

Model

LUZ

Input Vol.

220-240VAC

Optical

TIR Lens

Power

21W

Beam Angle

60° / 90° / Assy metric / Batwing

LED

2835 SMD

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1182 x W50 x H85mm

Lumen

1890-2163lm/pc

IP

IP22

Efficiency

100lm/W

Installation

Pendant; Ceiling mounted;
Wall mounted

Life Time
L80B10

50,000hrs

Net Weight

1.55kgs

THD

<20%

Luminaire: LUZ(5085),      Optical: TIR Lens       Power:21W       Efficiency: 100lm/W,       LED: Epistar,       Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

21.0W

2100lm

80+

3000K

On-Off

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

21.6W

2100lm

80+

3000K

0-10V

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

21.6W

2100lm

80+

3000K

DALI

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

21.0W

1890lm

90+

3000K

On-Off

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

21.6W

1890lm

90+

3000K

0-10V

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

21.6W

1890lm

90+

3000K

DALI

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

21.0W

2163lm

80+

4000K

On-Off

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

21.6W

2163lm

80+

4000K

0-10V

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

21.6W

2163lm

80+

4000K

DALI

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

21.0W

1947lm

90+

4000K

On-Off

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

21.6W

1947lm

90+

4000K

0-10V

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

21.6W

1947lm

90+

4000K

DALI

Model

LUZ

Input Vol.

220-240VAC

Optical

TIR Lens

Power

30W

Beam Angle

60° / 90° / Assy metric / Batwing

LED

2835 SMD

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1182 x W50 x H85mm

Lumen

2700-3090lm/pc

IP

IP22

Efficiency

100lm/W

Installation

Pendant; Ceiling mounted;
Wall mounted

Life Time
L80B10

50,000hrs

Net Weight

1.55kgs

THD

<20%

Luminaire: LUZ(5085),      Optical: TIR Lens       Power:30W        Efficiency: 100lm/W,       LED: Epistar,       Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

30.0W

3000lm

80+

3000K

On-Off

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

30.9W

3000lm

80+

3000K

0-10V

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

30.9W

3000lm

80+

3000K

DALI

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

30.0W

2700lm

90+

3000K

On-Off

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

30.9W

2700lm

90+

3000K

0-10V

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

30.9W

2700lm

90+

3000K

DALI

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

30.0W

3090lm

80+

4000K

On-Off

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

30.9W

3090lm

80+

4000K

0-10V

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

30.9W

3090lm

80+

4000K

DALI

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

30.0W

2781lm

90+

4000K

On-Off

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

30.9W

2781lm

90+

4000K

0-10V

TIR Lens

60° / 90° / Assy metric / Batwing

<19

L1182mm

30.9W

2781lm

90+

4000K

DALI
