• LUZ-Low beam angle Led linear light with louver lens 19°, 24°, 38°, 50°, 50×50°, 35×70°

LUZ-Low beam angle Led linear light with louver lens 19°, 24°, 38°, 50°, 50×50°, 35×70°

Short Description:

By width of 50mm, height of 85mm, this linear light is designed with internal driver, featured by easiest joint solution by tightening one nut.

Due to the function of louver lens, this office lamp provides low UGR<19, and offer 6 options of beam angles, including super beam angle 19°, 24°, 38°, 50°, 50×50°, 35×70°, to meet different application requirements.

Whether for commercial spaces, educational spaces, or government offices, this led linear lighting solution provides the flexibility to create tailored lighting experiences.


Product Detail

Download

Product Tags

Product Introduction

The louver lens Led luminaire is an engineering-designed surface-installed linear light that facilitates easy and stable connection.

The joint brackets will be re-put in the profile, people only need to fix one nut to complete the joining for longer connection.

The driver of this line light is fixed inside the profile, with the optical lens easy to be moved or fixed, it allows effortless installation and maintenance.

What’s more, it contributes to creating a neater environment overall.

To meet more requirements about different beam angles, this exquisite line linear light utilizes louver lens, to get 6 kinds of beam angles, including 19°, 24°, 38°, 50°, 50x50°, 35x70°.

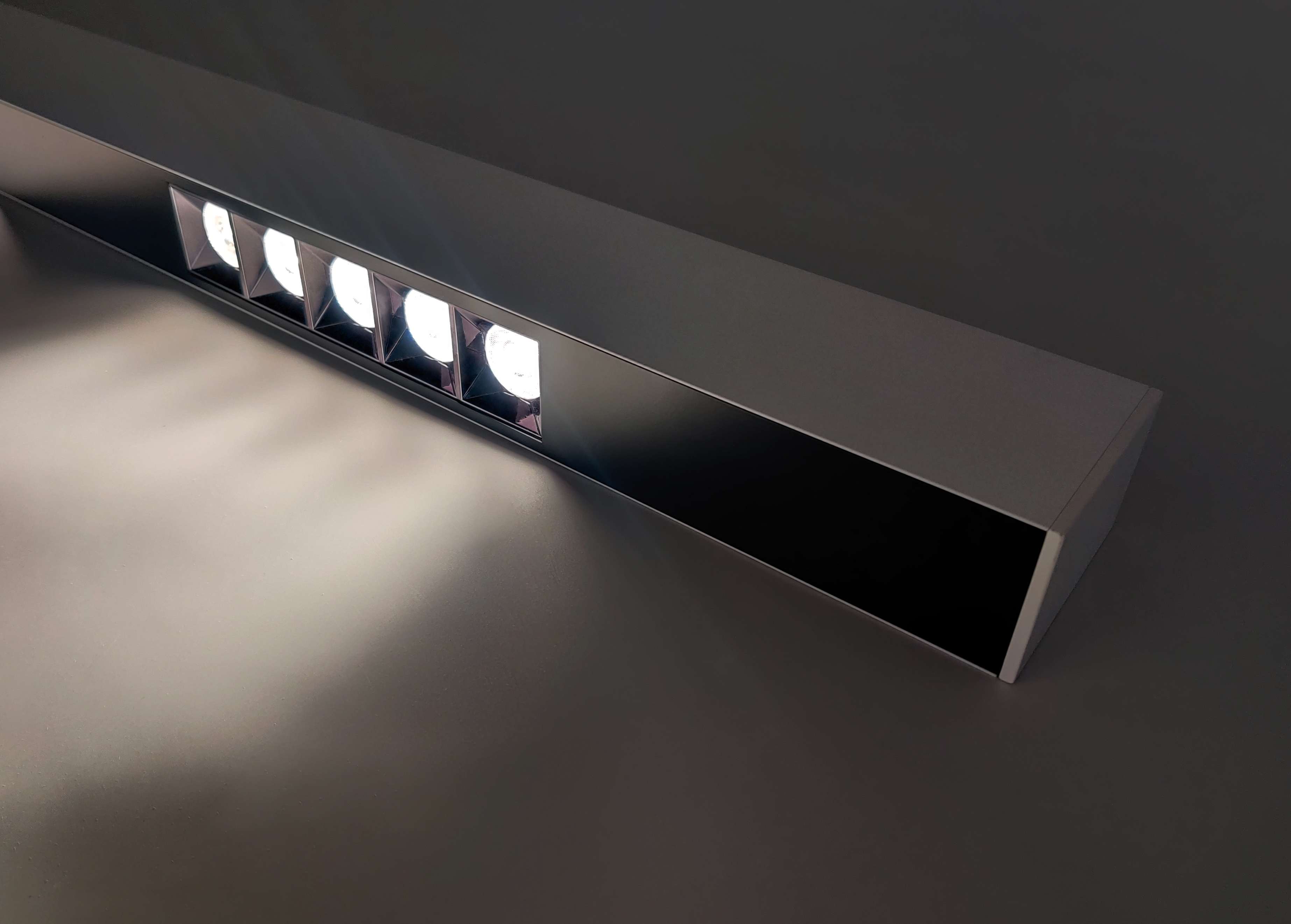

38mm louver lens linear light

Feature

1, Customizable Length: This linear light offers a range of customizable lengths to suit various applications and installation requirements.

2, Color Temperature Range (2200k~6500k): provides a wide range of color temperature options, spanning from warm, cozy lighting at 2200 Kelvin to cooler, daylight-like illumination at 6500 Kelvin.

This feature enables you to tailor the ambiance of your space according to your preference or specific needs.

3, CRI80 or CRI90: The lighting solution offers two options for color rendering index (CRI): CRI80 and CRI90.

CRI80 ensures good color accuracy, while CRI90 provides even higher color fidelity, making it ideal for applications where accurate color representation is crucial, such as in art galleries or retail displays.

4, Power and Efficiency Variability: designed with flexibility in mind, offering different power and efficiency levels to meet diverse requirements.

5, 6 options of beam angles: 19°, 24°, 38°, 50°, 50x50°, 35x70° are available, to meet different application requirements.

6, Low UGR<19, create comfortable lighting environment.

7, Easy Connection Brackets: equipped with user-friendly connection brackets that simplify the installation process.

These brackets facilitate quick and secure connections, reducing the need for extensive labor and technical expertise during setup, get flawless, continuous lighting effect.

8, Internal buckle endcap: Keeps the light without light-leaking.

9, Internal driver: save the space for the driver installation, keeps the environment neat.

10, Big space in the profile: the back cover of the profile is easy to be opened, easy the entire installation process.

11, Flexible installation Methods: Pendant, Ceiling mounted, wall-mounted.

Dimension & Installation

Size

Accessories

ACCESSORIES & TOOLS

Finish

This linear lighting solution is designed to offer standard color choices of elegant matt white, sleek black, and refined silver.

Furthermore, for those seeking to infuse a touch of personalization and vibrancy, we provide an exquisite range of 48 colors for powder coating.

Finish

Color Option

slim crystal louver-12

Applications

It finds extensive utilization in corporate environments, academic establishments, meeting venues, and various professional workspaces.

LUZ 38mm reflector louver

Specification

Model

LUZ

Input Vol.

220-240VAC

Optical

Louver & Lens=3 sets

Power

25W

Beam Angle

12°/24°/38°/50°/50x50°/35x70°

LED

CREE

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1208 x W50 x H85mm

Lumen

2070-2369lm/pc

IP / IK

IP22

Efficiency

95lm/W

Installation

Pendant, Ceiling Mounting, Wall Mounting

Life Time
L80B10

50,000hrs

Net Weight

1.55kgs

THD

<20%

Luminaire: LUZ(5085),     Optical: Louver & Lens=3 sets,       Power:25W       Efficiency: 95lm/W,       LED: CREE,       Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

25.0W

2375lm

80+

3000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

25.8W

2375lm

80+

3000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

25.8W

2375lm

80+

3000K

DALI

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

25.0W

2138lm

90+

3000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

25.8W

2138lm

90+

3000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

25.8W

2138lm

90+

3000K

DALI

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

25.0W

2446lm

80+

4000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

25.8W

2446lm

80+

4000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

25.8W

2446lm

80+

4000K

DALI

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

25.0W

2202lm

90+

4000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

25.8W

2202lm

90+

4000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

25.8W

2202lm

90+

4000K

DALI

Model

LUZ

Input Vol.

220-240VAC

Optical

Louver & Lens=6 sets

Power

36W

Beam Angle

12°/24°/38°/50°/50x50°/35x70°

LED

CREE

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1208 x W50 x H85mm

Lumen

3402-3893lm/pc

IP / IK

IP22

Efficiency

105lm/W

Installation

Pendant, Ceiling Mounting, Wall Mounting

Life Time
L80B10

50,000hrs

Net Weight

1.65kgs

THD

<20%

Luminaire: LUZ(5085),      Optical: Louver & Lens=3 sets,       Power:36W       Efficiency: 95lm/W,       LED: CREE,       Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

36.0W

3780lm

80+

3000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

37.1W

3780lm

80+

3000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

37.1W

3780lm

80+

3000K

DALI

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

36.0W

3402lm

90+

3000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

37.1W

3402lm

90+

3000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

37.1W

3402lm

90+

3000K

DALI

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

36.0W

3893lm

80+

4000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

37.1W

3893lm

80+

4000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

37.1W

3893lm

80+

4000K

DALI

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

36.0W

3504lm

90+

4000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

37.1W

3504lm

90+

4000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1208mm

37.1W

3504lm

90+

4000K

DALI

Model

LUZ

Input Vol.

220-240VAC

Optical

Louver & Lens=4 sets

Power

31W

Beam Angle

12°/24°/38°/50°/50x50°/35x70°

LED

CREE

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1508 x W50 x H85mm

Lumen

3402-3893lm/pc

IP / IK

IP22

Efficiency

95lm/W

Installation

Pendant, Ceiling Mounting, Wall Mounting

Life Time
L80B10

50,000hrs

Net Weight

2kgs

THD

<20%

Luminaire: LUZ(5085),      Optical: Louver & Lens=4 sets,       Power:31W       Efficiency: 95lm/W,       LED: CREE,       Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

31.0W

2945lm

80+

3000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

31.9W

2945lm

80+

3000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

31.9W

2945lm

80+

3000K

DALI

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

31.0W

2651lm

90+

3000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

31.9W

2651lm

90+

3000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

31.9W

2651lm

90+

3000K

DALI

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

31.0W

3033lm

80+

4000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

31.9W

3033lm

80+

4000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

31.9W

3033lm

80+

4000K

DALI

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

31.0W

2730lm

90+

4000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

31.9W

2730lm

90+

4000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

31.9W

2730lm

90+

4000K

DALI

Model

LUZ

Input Vol.

220-240VAC

Optical

Louver & Lens=7 sets

Power

45W

Beam Angle

12°/24°/38°/50°/50x50°/35x70°

LED

CREE

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1508 x W50 x H85mm

Lumen

3402-3893lm/pc

IP / IK

IP22

Efficiency

105lm/W

Installation

Pendant, Ceiling Mounting, Wall Mounting

Life Time
L80B10

50,000hrs

Net Weight

2.1kgs

THD

<20%

Luminaire: LUZ(5085),      Optical: Louver & Lens=7 sets,       Power:45W       Efficiency: 105lm/W,       LED: CREE,       Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

45.0W

4725lm

80+

3000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

46.4W

4725lm

80+

3000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

46.4W

4725lm

80+

3000K

DALI

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

45.0W

4253lm

90+

3000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

46.4W

4253lm

90+

3000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

46.4W

4253lm

90+

3000K

DALI

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

45.0W

4867lm

80+

4000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

46.4W

4867lm

80+

4000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

46.4W

4867lm

80+

4000K

DALI

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

45.0W

4380lm

90+

4000K

On-Off

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

46.4W

4380lm

90+

4000K

0-10V

Louver & Lens

12°/24°/38°/50°/50x50°/35x70°

<19

L1508mm

46.4W

4380lm

90+

4000K

DALI
