• HONG(9190)- DIRECT LIGHTING-PC DIFFUSER

HONG(9190)- DIRECT LIGHTING-PC DIFFUSER

Short Description:

Introducing our HONG series: Lighting with PC Diffuser.

With its sleek design and compact size of 91x90mm, these lights are available in lengths of 600mm, 1200mm, 1500mm, 2400mm, or customizable options tailored to meet your specific needs.

Engineered for seamless integration, they offer versatile installation options including Sus-Pendant, Wall Mounted, and Trimless/Trimed Recessed installations.

The Linear Light series provides White color options ranging from 2700K to 6500K, with dimmable driver options available in on-off, Dali, and 0-10V.


Product Detail

Download

Product Tags

Product Introduction

Step into the future of lighting with our innovative Linear Light fixtures. Crafted for ultimate comfort, our UGR<19 compliant fixtures ensure a glare-free environment, promoting productivity and well-being. The combination of Anti-glare film+PC Diffuser lens guarantees uniform light distribution, creating a harmonious and inviting atmosphere.

Choose between Sus-pendant or Wall Mounted installations to seamlessly integrate lighting into your space. Achieve remarkable energy efficiency with efficacy up to 126lm/W, providing bright illumination while conserving energy.

Our tunable white technology allows you to adjust the lighting color temperature to suit various tasks and moods, enhancing versatility. Enjoy further control with dimming options through DALI, 1-10V, or ON-OFF switches, tailoring the lighting intensity to your preference.

Elevate your surroundings with lighting that harmonizes style, functionality, and efficiency. Find the perfect balance with our Linear Light solutions.

Feature

1、Elegant design with internal driver by size in L600/1200/1500/2400xW91xH90mm.

2、Optical options for PC Diffuser.

3、More lighting options in 80+ or 90+ Ra, white color from 2200~6500K, and tunable white.

4、More dimming/controlling options by Dali,0/1-10V, On/Off.

5、Pendant mounted, Ceiling mounted, Wall mounted, Recessed Mounted installation.

6、Gapless Joining in Filed.

7、Designed and engineered with the architectural specifier in mind.

Dimension & Installation

installation (2)

Finish

Our linear lighting solution offers a range of standard color options, including elegant matte white, sleek black, and refined silver. For those seeking personalized and vibrant choices, we provide an extensive selection of 48 powder coating colors to suit your unique preferences and design aesthetics.

Finish

Color Option

slim crystal louver-12

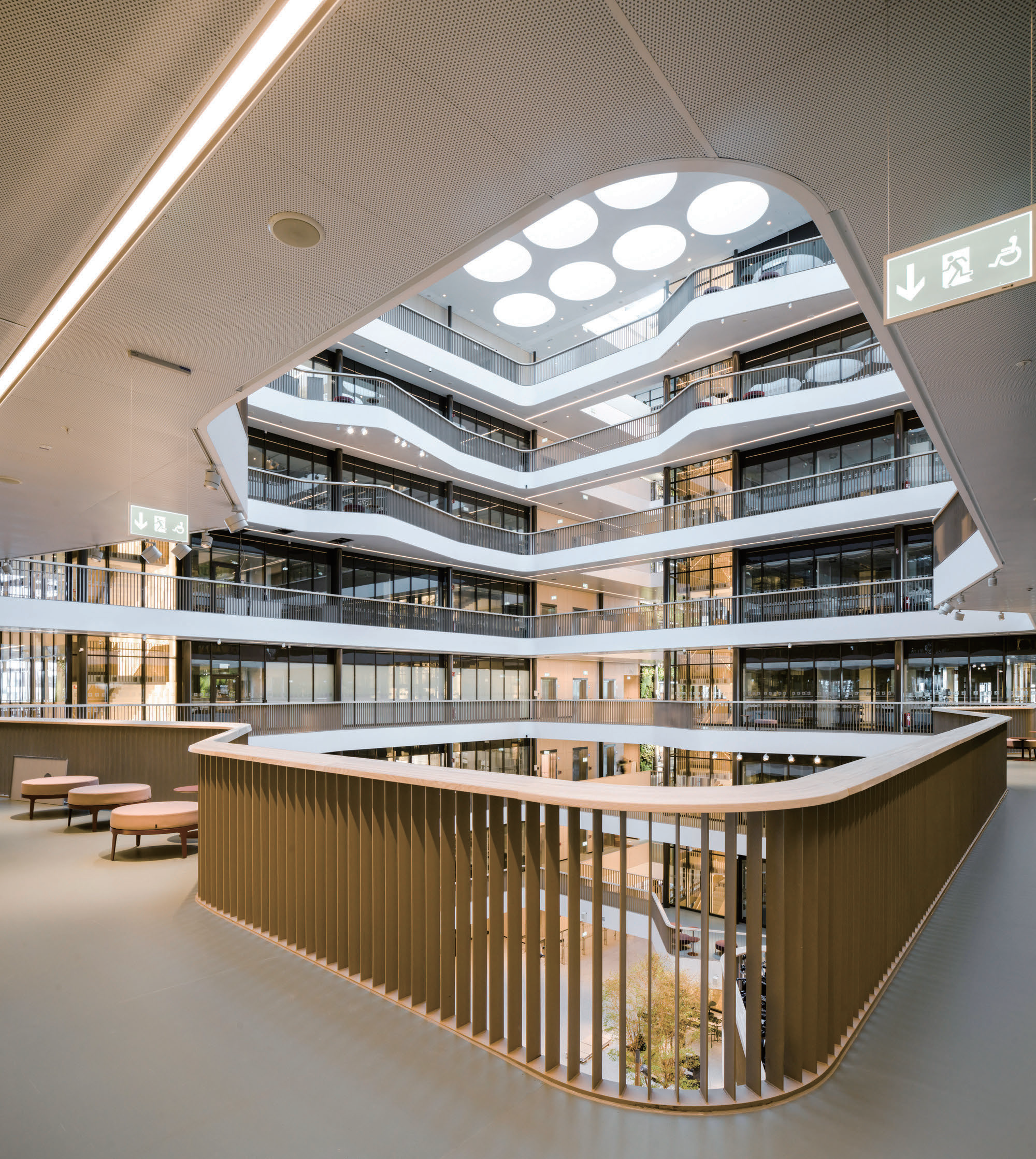

Applications

This versatile lighting solution is widely utilized in corporate environments, academic institutions, meeting venues, and various professional workspaces, showcasing its adaptability and effectiveness across diverse settings.

APPLY

Specification

Model

HONG

Input Vol.

220-240VAC

Optical

PC Diffuser

Power

27W

Beam Angle

105°

LED

Epistar

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<26

SDCM

<3

Dimension

L1229 x W91 x H90mm

Lumen

2187-3510lm/pc

IP

IP22

Efficiency

90-130lm/W

Installation

Pendant, Surface Mounted

Life Time
L80B10

50,000hrs

Net Weight

2.13kgs

THD

<20%

Luminaire: U9190,      Optical: PC Diffuser,      Efficiency: 90lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1229mm

27.0W

2430lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

2430lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

2430lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

2187lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

2187lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

2187lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

2503lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

2503lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

2503lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

2253lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

2253lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

2253lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

2309lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

2309lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

2309lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

2078lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

2078lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

2078lm

90+

2700-4000K

DALI

Luminaire: U9190,      Optical: PC Diffuser,      Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1229mm

27.0W

2970lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

2970lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

2970lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

2673lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

2673lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

2673lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

3059lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

3059lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

3059lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

2753lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

2753lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

2753lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

2822lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

2822lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

2822lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

2539lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

2539lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

2539lm

90+

2700-4000K

DALI

Luminaire: U9190,      Optical: PC Diffuser,       Efficiency: 130lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1229mm

27.0W

3510lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

3510lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

3510lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

3159lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

3159lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

3159lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

3615lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

3615lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

3615lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

3254lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

3254lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

3254lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

3335lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

3335lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

3335lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1229mm

27.0W

3001lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

27.8W

3001lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

27.8W

3001lm

90+

2700-4000K

DALI

Model

HONG

Input Vol.

220-240VAC

Optical

PC Diffuser

Power

36W

Beam Angle

105°

LED

Epistar

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<26

SDCM

<3

Dimension

L1229 x W91 x H90mm

Lumen

2916-4680lm/pc

IP

IP22

Efficiency

90-130lm/W

Installation

Trimed Recessed

Life Time
L80B10

50,000hrs

Net Weight

2.13kgs

THD

<20%

Luminaire: U9190,      Optical: PC Diffuser,       Efficiency: 80lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1229mm

36.0W

3240lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

3240lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

3240lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

2916lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

2916lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

2916lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

3337lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

3337lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

3337lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

3003lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

3003lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

3003lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

3078lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

3078lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

3078lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

2770lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

2770lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

2770lm

90+

2700-4000K

DALI

Luminaire: U9190,      Optical: PC Diffuser,      Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1229mm

36.0W

3960lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

3960lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

3960lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

3564lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

3564lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

3564lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

4079lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

4079lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

4079lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

3671lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

3671lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

3671lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

3762lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

3762lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

3762lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

3386lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

3386lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

3386lm

90+

2700-4000K

DALI

Luminaire: U9190,      Optical: PC Diffuser,       Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1229mm

36.0W

4680lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

4680lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

4680lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

4212lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

4212lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

4212lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

4820lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

4820lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

4820lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

4338lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

4338lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

4338lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

4446lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

4446lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

4446lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1229mm

36.0W

4001lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

37.1W

4001lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

37.1W

4001lm

90+

2700-4000K

DALI

Model

HONG

Input Vol.

220-240VAC

Optical

PC Diffuser

Power

45W

Beam Angle

105°

LED

Epistar

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<26

SDCM

<3

Dimension

L1229 x W91 x H90mm

Lumen

3645-5850lm/pc

IP

IP22

Efficiency

85-125lm/W

Installation

Trimed Recessed

Life Time
L80B10

50,000hrs

Net Weight

2.13kgs

THD

<20%

Luminaire: U9190,      Optical: PC Diffuser,      Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1229mm

45.0W

4050lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

4050lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

4050lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

3645lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

3645lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

3645lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

4172lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

4172lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

4172lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

3754lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

3754lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

3754lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

3848lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

3848lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

3848lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

3463lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

3463lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

3463lm

90+

2700-4000K

DALI

Luminaire: U9190,      Optical: PC Diffuser,       Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1229mm

45.0W

4950lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

4950lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

4950lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

4455lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

4455lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

4455lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

5099lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

5099lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

5099lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

4589lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

4589lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

4589lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

4703lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

4703lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

4703lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

4232lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

4232lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

4232lm

90+

2700-4000K

DALI

Luminaire: U9190,      Optical: PC Diffuser,      Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1229mm

45.0W

5850lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

5850lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

5850lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

5265lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

5265lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

5265lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

6026lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

6026lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

6026lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

5423lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

5423lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

5423lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

5558lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

5558lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

5558lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1229mm

45.0W

5002lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1229mm

46.4W

5002lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1229mm

46.4W

5002lm

90+

2700-4000K

DALI

Model

HONG

Input Vol.

220-240VAC

Optical

PC Diffuser

Power

36W

Beam Angle

105°

LED

Epistar

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<26

SDCM

<3

Dimension

L1529 x W91 x H90mm

Lumen

2916-4680lm/pc

IP

IP22

Efficiency

85-125lm/W

Installation

Trimed Recessed

Life Time
L80B10

50,000hrs

Net Weight

2.75kgs

THD

<20%

Luminaire: U9190,      Optical: PC Diffuser,       Efficiency: 90lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1529mm

36.0W

3240lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

3240lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

3240lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

2916lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

2916lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

2916lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

3337lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

3337lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

3337lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

3003lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

3003lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

3003lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

3078lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

3078lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

3078lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

2770lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

2770lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

2770lm

90+

2700-4000K

DALI

Luminaire: U9190,      Optical: PC Diffuser,      Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1529mm

36.0W

3960lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

3960lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

3960lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

3564lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

3564lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

3564lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

4079lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

4079lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

4079lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

3671lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

3671lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

3671lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

3762lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

3671lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

3671lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

3386lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

3386lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

3386lm

90+

2700-4000K

DALI

Luminaire: U9190,      Optical: PC Diffuser,      Efficiency: 130lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1529mm

36.0W

4680lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

4680lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

4680lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

4212lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

4212lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

4212lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

4820lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

4820lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

4820lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

4338lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

4338lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

4338lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

4446lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

4446lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

4446lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1529mm

36.0W

4001lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

37.1W

4001lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

37.1W

4001lm

90+

2700-4000K

DALI

Model

HONG

Input Vol.

220-240VAC

Optical

PC Diffuser

Power

45W

Beam Angle

105°

LED

Epistar

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<26

SDCM

<3

Dimension

L1529 x W91 x H90mm

Lumen

3645-5850lm/pc

IP

IP22

Efficiency

90-130lm/W

Installation

Trimed Recessed

Life Time
L80B10

50,000hrs

Net Weight

2.75kgs

THD

<20%

Luminaire: U9190,      Optical: PC Diffuser,       Efficiency: 90lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1529mm

45.0W

4050lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

4050lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

4050lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

3645lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

3645lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

3645lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

4172lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

4172lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

4172lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

3754lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

3754lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

3754lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

3848lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

3848lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

3848lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

3463lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

3463lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

3463lm

90+

2700-4000K

DALI

Luminaire: U9190,      Optical: PC Diffuser,       Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1529mm

45.0W

4950lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

4950lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

4950lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

4455lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

4455lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

4455lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

5099lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

5099lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

5099lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

4589lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

4589lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

4589lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

4703lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

4703lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

4703lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

4232lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

4232lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

4232lm

90+

2700-4000K

DALI

Luminaire: U9190,      Optical: PC Diffuser,       Efficiency: 130lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1529mm

45.0W

5850lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

5850lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

5850lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

5265lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

5265lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

5265lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

6026lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

6026lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

6026lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

5423lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

5423lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

5423lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

5558lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

5558lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

5558lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1529mm

45.0W

5002lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

46.4W

5002lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

46.4W

5002lm

90+

2700-4000K

DALI

Model

HONG

Input Vol.

220-240VAC

Optical

PC Diffuser

Power

60W

Beam Angle

105°

LED

Epistar

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<26

SDCM

<3

Dimension

L1529 x W91 x H90mm

Lumen

4860-7800lm/pc

IP

IP22

Efficiency

90-130lm/W

Installation

Trimed Recessed

Life Time
L80B10

50,000hrs

Net Weight

2.75kgs

THD

<20%

Luminaire: U9190,      Optical: PC Diffuser,       Efficiency: 90lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1529mm

60.0W

5400lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

5400lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

5400lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

4860lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

4860lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

4860lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

5562lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

5562lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

5562lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

5006lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

5006lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

5006lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

5130lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

5130lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

5130lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

4617lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

4617lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

4617lm

90+

2700-4000K

DALI

Luminaire: U9190,      Optical: PC Diffuser,       Efficiency: 110lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1529mm

60.0W

6600lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

6600lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

6600lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

5940lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

5940lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

5940lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

6798lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

6798lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

6798lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

6118lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

6118lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

6118lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

6270lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

6270lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

6270lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

5643lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

5643lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

5643lm

90+

2700-4000K

DALI

Luminaire: U9190,      Optical: PC Diffuser,       Efficiency: 130lm/W,       LED: Epistar,      Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

PC Diffuser

105°

<26

L1529mm

60.0W

7800lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

7800lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

7800lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

7020lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

7020lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

7020lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

8034lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

8034lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

8034lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

7231lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

7231lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

7231lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

7410lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

7410lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

7410lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1529mm

60.0W

6669lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1529mm

61.8W

6669lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1529mm

61.8W

6669lm

90+

2700-4000K

DALI


  • Previous:
  • Next:

    • 2 U9190 TDR Installation
      2 U9190 TDR Installation
      2 U9190 TDR Installation
      2 U9190 TDR Installation
    • 3 U9190 TDR Joining Installation
      3 U9190 TDR Joining Installation
      3 U9190 TDR Joining Installation
      3 U9190 TDR Joining Installation
    • 4 U9190 TIRMED RECESSED SUQARE JOINIING
      4 U9190 TIRMED RECESSED SUQARE JOINIING
      4 U9190 TIRMED RECESSED SUQARE JOINIING
      4 U9190 TIRMED RECESSED SUQARE JOINIING
    • 1 HONG U9190 SERIES PC DIFFUSER TRIMED RECESSED LINEAR LIGHT
      1 HONG U9190 SERIES PC DIFFUSER TRIMED RECESSED LINEAR LIGHT
      1 HONG U9190 SERIES PC DIFFUSER TRIMED RECESSED LINEAR LIGHT
      1 HONG U9190 SERIES PC DIFFUSER TRIMED RECESSED LINEAR LIGHT
  • Write your message here and send it to us

    CONTACT

    • facebook (2)
    • youtube (1)
    • linkedin
