HONG DIRECT LIGHTING-PC DIFFUSER
Product Introduction
Experience the future of lighting with our innovative Linear Light fixtures. Crafted for ultimate comfort, our UGR<19 compliant fixtures ensure a glare-free environment, promoting productivity and well-being. The combination of Anti-glare film+PC Diffuser lens guarantees uniform light distribution, creating a harmonious and inviting atmosphere.
Choose between Sus-pendant or Wall Mounted installations to seamlessly integrate lighting into your space. Achieve remarkable energy efficiency with efficacy up to 126lm/W, providing bright illumination while conserving energy.
Our tunable white technology allows you to adjust the lighting color temperature to suit various tasks and moods, enhancing versatility. Enjoy further control with dimming options through DALI, 1-10V, or ON-OFF switches, tailoring the lighting intensity to your preference.
Elevate your surroundings with lighting that harmonizes style, functionality, and efficiency. Discover the perfect balance with our Linear Light solutions.
Feature
1，Elegant design with internal driver by size in L600/1200/1500/2400xW75xH90mm.
2，Optical options for PC Diffuser.
3，More lighting options in 80+ or 90+ Ra, white color from 2200~6500K, and tunable white
4，More dimming/controlling options by Dali,0/1-10V, On/Off.
5，Pendant mounted, Ceiling mounted, Wall mounted, Recessed Mounted installation.
6，Gapless Joining in Filed.
7，Designed and engineered with the architectural specifier in mind.

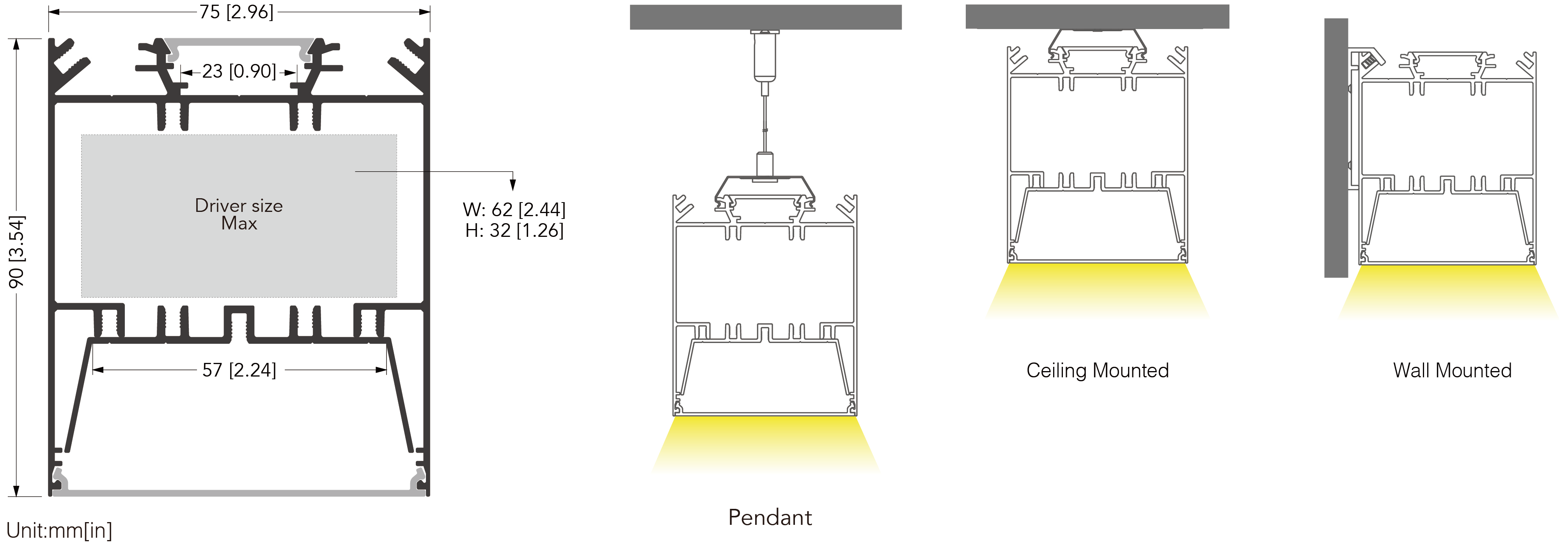

Dimension & Installation
Finish
This linear lighting solution provides standard color options including elegant matte white, sleek black, and refined silver. Additionally, for those desiring personalized and vibrant options, we offer a stunning selection of 48 powder coating colors.
Color Option

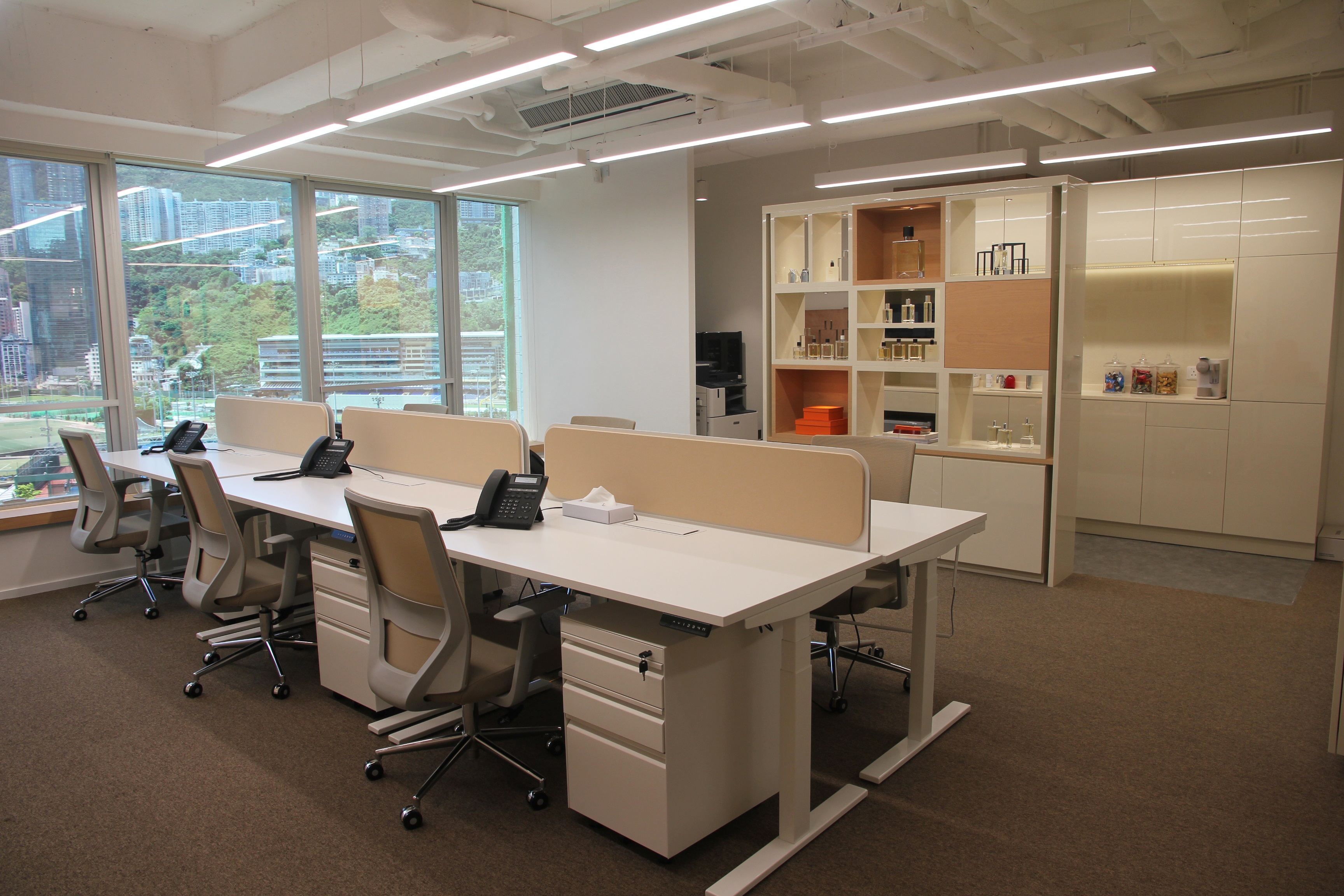

Applications
It finds extensive utilization in corporate environments, academic institutions, meeting venues, and various professional workspaces.
Specification
|
Model |
HONG |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser |
Power |
27W |
|
Beam Angle |
105° |
LED |
Epistar |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<26 |
SDCM |
<3 |
|
Dimension |
L1215 x W75 x H90mm |
Lumen |
2187-3510lm/pc |
|
IP |
IP22 |
Efficiency |
90-130lm/W |
|
Installation |
Pendant, Surface Mounted |
Life Time |
50,000hrs |
|
Net Weight |
2.13kgs |
THD |
<20% |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
2430lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2430lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2430lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
2187lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2187lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2187lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
2503lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2503lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2503lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
2253lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2253lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2253lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
2309lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2309lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2309lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
2078lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2078lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2078lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 110lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
2970lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2970lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2970lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
2673lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2673lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2673lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
3059lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3059lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3059lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
2753lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2753lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2753lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
2822lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2822lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2822lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
2539lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2539lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
2539lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 130lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
3510lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3510lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3510lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
3159lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3159lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3159lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
3615lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3615lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3615lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
3254lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3254lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3254lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
3335lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3335lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3335lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.0W |
3001lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3001lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
27.8W |
3001lm |
90+ |
2700-4000K |
DALI |
|
Model |
HONG |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser |
Power |
36W |
|
Beam Angle |
105° |
LED |
Epistar |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<26 |
SDCM |
<3 |
|
Dimension |
L1215 x W75 x H90mm |
Lumen |
2916-4680lm/pc |
|
IP |
IP22 |
Efficiency |
90-130lm/W |
|
Installation |
Pendant, Surface Mounted |
Life Time |
50,000hrs |
|
Net Weight |
2.13kgs |
THD |
<20% |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 80lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
3240lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3240lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3240lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
2916lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
2916lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
2916lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
3337lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3337lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3337lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
3003lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3003lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3003lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
3078lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3078lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3078lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
2770lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
2770lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
2770lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 110lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
3960lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3960lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3960lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
3564lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3564lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3564lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
4079lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4079lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4079lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
3671lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3671lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3671lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
3762lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3762lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3762lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
3386lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3386lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
3386lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 110lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
4680lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4680lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4680lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
4212lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4212lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4212lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
4820lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4820lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4820lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
4338lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4338lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4338lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
4446lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4446lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4446lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
36.0W |
4001lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4001lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
37.1W |
4001lm |
90+ |
2700-4000K |
DALI |
|
Model |
HONG |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser |
Power |
45W |
|
Beam Angle |
105° |
LED |
Epistar |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<26 |
SDCM |
<3 |
|
Dimension |
L1215 x W75 x H90mm |
Lumen |
3645-5850lm/pc |
|
IP |
IP22 |
Efficiency |
85-125lm/W |
|
Installation |
Pendant, Surface Mounted |
Life Time |
50,000hrs |
|
Net Weight |
2.13kgs |
THD |
<20% |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 110lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
4050lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4050lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4050lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
3645lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
3645lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
3645lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
4172lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4172lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4172lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
3754lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
3754lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
3754lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
3848lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
3848lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
3848lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
3463lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
3463lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
3463lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 110lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
4950lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4950lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4950lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
4455lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4455lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4455lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
5099lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
5099lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
5099lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
4589lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4589lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4589lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
4703lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4703lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4703lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
4232lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4232lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
4232lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 110lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
5850lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
5850lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
5850lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
5265lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
5265lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
5265lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
6026lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
6026lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
6026lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
5423lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
5423lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
5423lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
5558lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
5558lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
5558lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1215mm |
45.0W |
5002lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
5002lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1215mm |
46.4W |
5002lm |
90+ |
2700-4000K |
DALI |
|
Model |
HONG |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser |
Power |
36W |
|
Beam Angle |
105° |
LED |
Epistar |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<26 |
SDCM |
<3 |
|
Dimension |
L1515 x W75 x H90mm |
Lumen |
2916-4680lm/pc |
|
IP |
IP22 |
Efficiency |
85-125lm/W |
|
Installation |
Pendant, Surface Mounted |
Life Time |
50,000hrs |
|
Net Weight |
2.75kgs |
THD |
<20% |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
3240lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3240lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3240lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
2916lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
2916lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
2916lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
3337lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3337lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3337lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
3003lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3003lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3003lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
3078lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3078lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3078lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
2770lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
2770lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
2770lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 110lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
3960lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3960lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3960lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
3564lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3564lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3564lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
4079lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4079lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4079lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
3671lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3671lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3671lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
3762lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3671lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3671lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
3386lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3386lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
3386lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 130lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
4680lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4680lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4680lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
4212lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4212lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4212lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
4820lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4820lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4820lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
4338lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4338lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4338lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
4446lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4446lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4446lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
36.0W |
4001lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4001lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
37.1W |
4001lm |
90+ |
2700-4000K |
DALI |
|
Model |
HONG |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser |
Power |
45W |
|
Beam Angle |
105° |
LED |
Epistar |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<26 |
SDCM |
<3 |
|
Dimension |
L1515 x W75 x H90mm |
Lumen |
3645-5850lm/pc |
|
IP |
IP22 |
Efficiency |
90-130lm/W |
|
Installation |
Pendant, Surface Mounted |
Life Time |
50,000hrs |
|
Net Weight |
2.75kgs |
THD |
<20% |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
4050lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4050lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4050lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
3645lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
3645lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
3645lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
4172lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4172lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4172lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
3754lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
3754lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
3754lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
3848lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
3848lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
3848lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
3463lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
3463lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
3463lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 110lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
4950lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4950lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4950lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
4455lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4455lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4455lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
5099lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
5099lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
5099lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
4589lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4589lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4589lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
4703lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4703lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4703lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
4232lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4232lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
4232lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 130lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
5850lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
5850lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
5850lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
5265lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
5265lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
5265lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
6026lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
6026lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
6026lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
5423lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
5423lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
5423lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
5558lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
5558lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
5558lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
45.0W |
5002lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
5002lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
46.4W |
5002lm |
90+ |
2700-4000K |
DALI |
|
Model |
HONG |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser |
Power |
60W |
|
Beam Angle |
105° |
LED |
Epistar |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
UGR |
<26 |
SDCM |
<3 |
|
Dimension |
L1515 x W75 x H90mm |
Lumen |
4860-7800lm/pc |
|
IP |
IP22 |
Efficiency |
90-130lm/W |
|
Installation |
Pendant, Surface Mounted |
Life Time |
50,000hrs |
|
Net Weight |
2.75kgs |
THD |
<20% |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 90lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
5400lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
5400lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
5400lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
4860lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
4860lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
4860lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
5562lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
5562lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
5562lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
5006lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
5006lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
5006lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
5130lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
5130lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
5130lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
4617lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
4617lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
4617lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 110lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
6600lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
6600lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
6600lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
5940lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
5940lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
5940lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
6798lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
6798lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
6798lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
6118lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
6118lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
6118lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
6270lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
6270lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
6270lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
5643lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
5643lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
5643lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U7590, Optical: PC Diffuser, Efficiency: 130lm/W, LED: Epistar, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
7800lm |
80+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
7800lm |
80+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
7800lm |
80+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
7020lm |
90+ |
3000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
7020lm |
90+ |
3000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
7020lm |
90+ |
3000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
8034lm |
80+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
8034lm |
80+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
8034lm |
80+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
7231lm |
90+ |
4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
7231lm |
90+ |
4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
7231lm |
90+ |
4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
7410lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
7410lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
7410lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser |
105° |
<26 |
L1515mm |
60.0W |
6669lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
6669lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser |
105° |
<26 |
L1515mm |
61.8W |
6669lm |
90+ |
2700-4000K |
DALI |
-

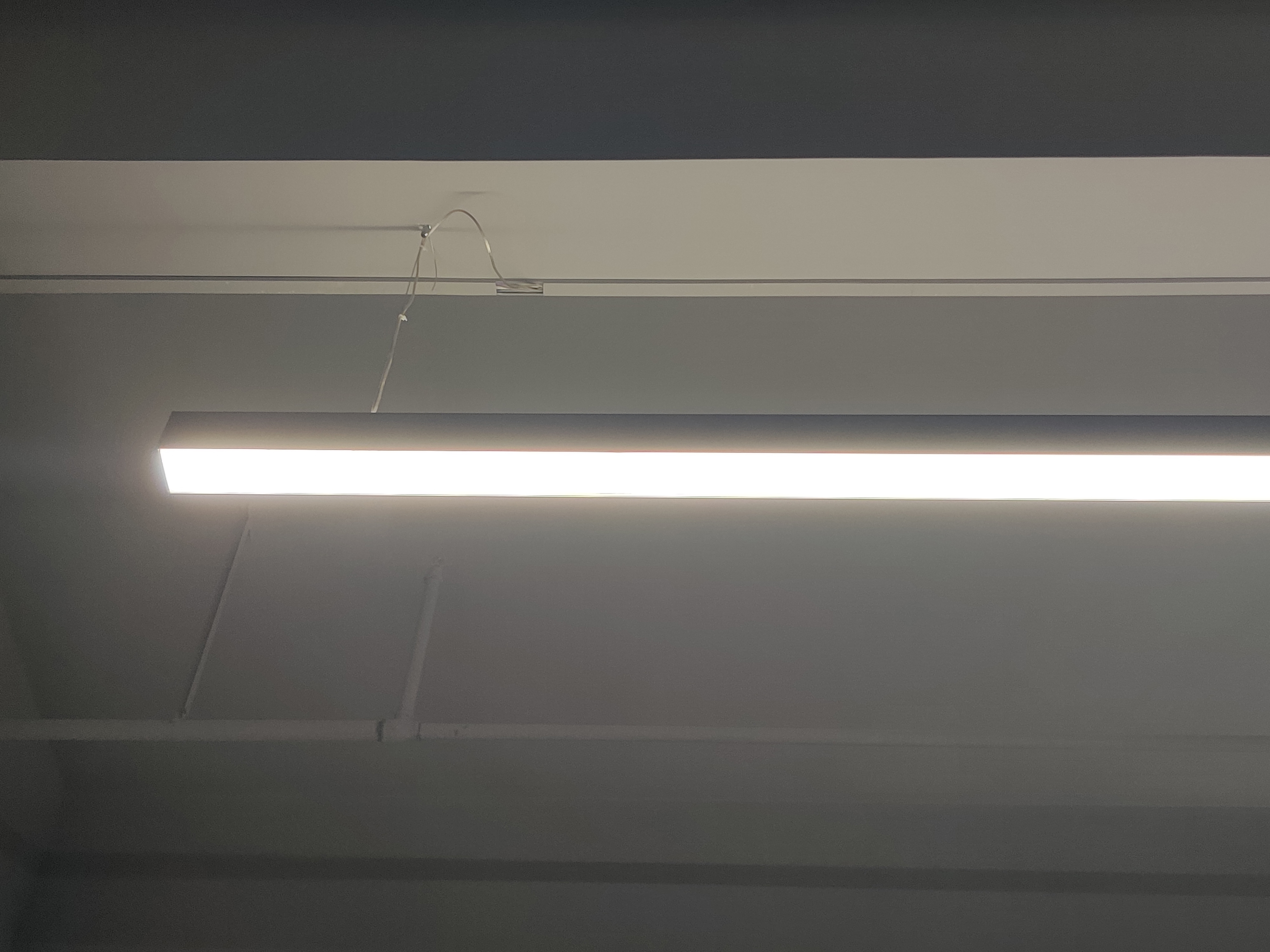

2 U7590 Pendant
-
3 U7590 Pendant-Joining
-
4 U7590 Ceiling Mounted
-
5 Ceiling Mounted-Joining
-
1 HONG U7590 SERIES PC DIFFUSER LINEAR LIGHT
CONTACT
-
address: No. 1 TianQin St., Wusha Industrial Zone, Henglan Town, ZhongShan, Guangdong, China
-
Phone
-
E-mail
-
Whatsapp
-
Top
