HONG DIRECT & INDIRECT LIGHTING – PC DIFFUSER

Short Description:

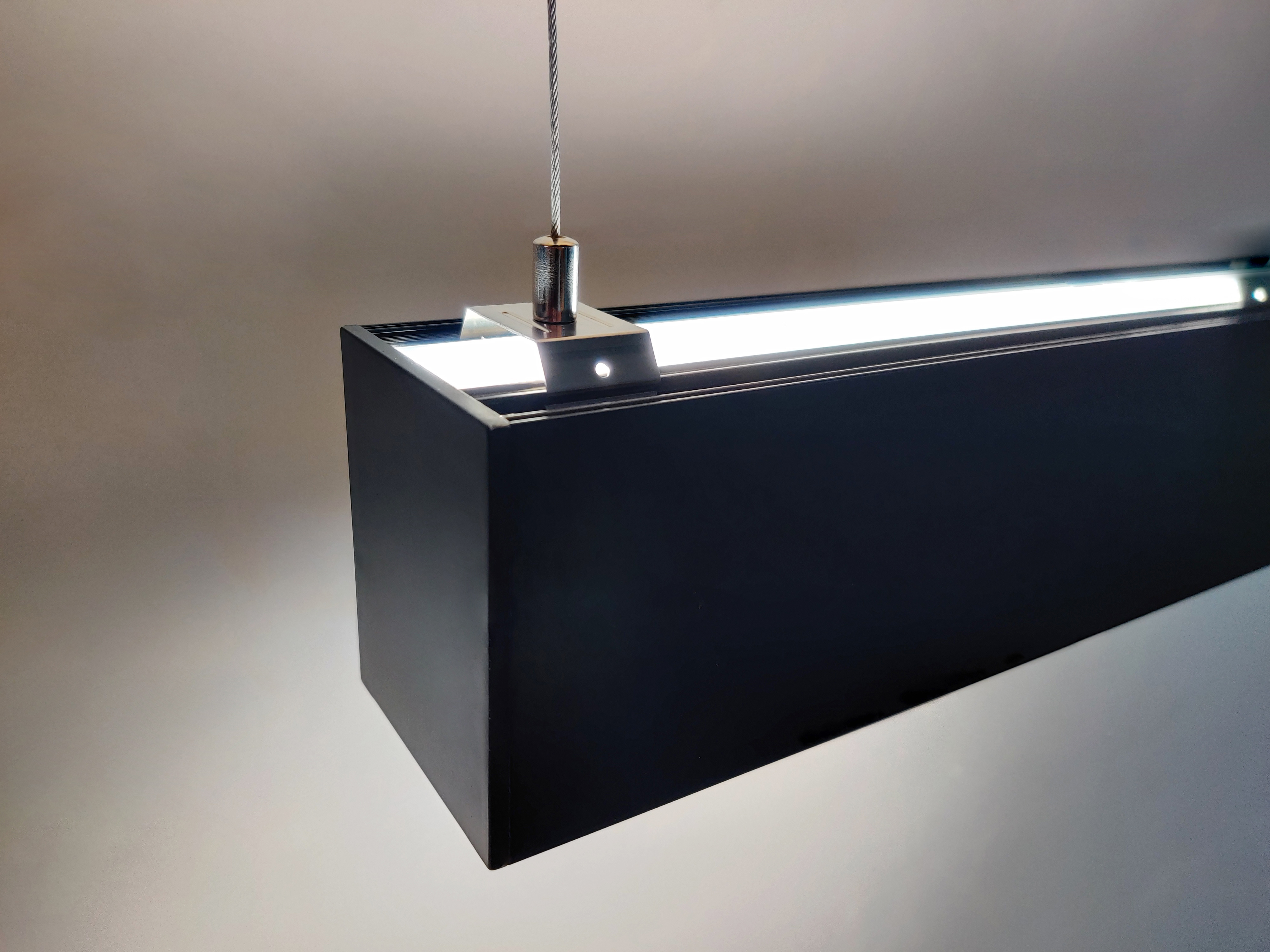

Introducing our HONG series: Direct & Indirect Lighting with Diffuser Lens.

With its sleek design and compact size of 75x90mm, these lights are offered in lengths of 600mm, 1200mm, 1500mm, 2400mm, or customizable options tailored to your specific needs.

Engineered for seamless integration, they provide versatile installation options including Sus-Pendant, Wall Mounted, and Trimless/Trimed Recessed installations.

Our UGR<22 Anti-Glare feature ensures optimal illumination without compromising comfort, allowing you to illuminate your space with style and sophistication.

The Linear Light series offers White color options ranging from 2700K to 6500K, with dimmable driver options available in on-off, Dali, and 0/1-10V.

Send email to us

+86 -150 1296 2268（Ivy Chen）

+86 -132 2957 2611（Kelsie Liang）

+86 -137 5101 2331（Wendy Wu）

ACOUSTICAL CALCULATOR TOOL

Product Detail

Download

Product Tags

Product Introduction

Step into the future of lighting with our revolutionary Linear Light fixtures. Engineered for optimal comfort, our UGR<26 compliant design ensures a glare-free environment, enhancing productivity and well-being. The combination of Anti-glare film+PC Diffuser lens guarantees uniform light distribution, fostering a harmonious and inviting atmosphere.

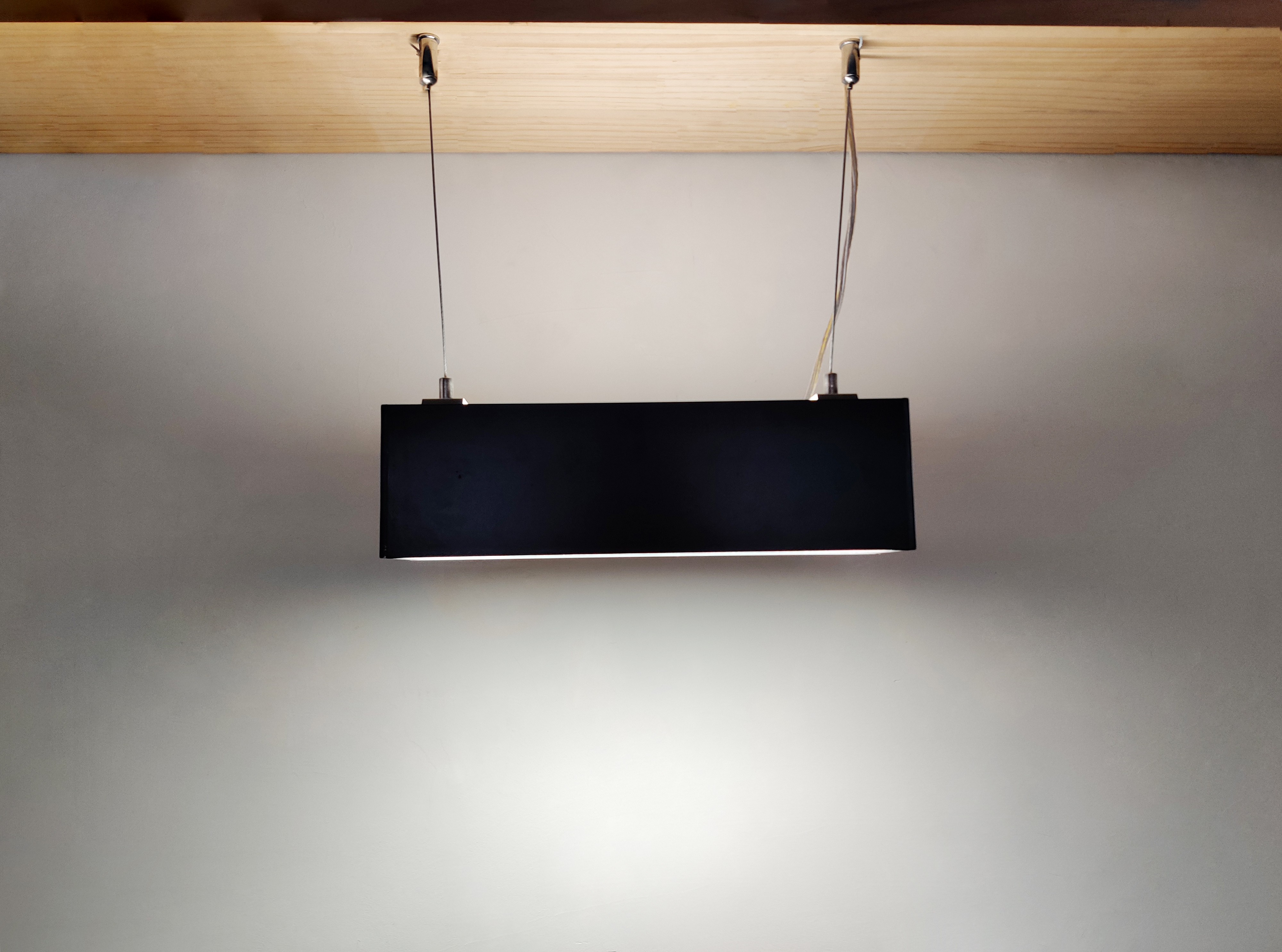

Choose between Sus-pendant or Wall Mounted installations for seamless integration into your space. Experience exceptional energy efficiency with efficacy up to 126lm/W, providing brilliant illumination while conserving energy.

Our tunable white technology allows you to customize the lighting color temperature to suit various tasks and moods, increasing versatility. Take control with dimming options through DALI, 1-10V, or ON-OFF switches, adjusting the lighting intensity to your preference.

Transform your surroundings with lighting that seamlessly blends style, functionality, and efficiency. Explore the perfect balance with our Linear Light solutions.

Feature

1，Elegant design with internal driver by size in L600/1200/1500/2400xW75xH90mm.

2， options for PC diffuser.

3，More lighting options in 80+ or 90+ Ra, white color from 2200~6500K, and tunable white

4，More dimming/controlling options by Dali,0/1-10V, On/Off.

5，Pendant mounted, Ceiling mounted, Wall mounted, Recessed Mounted installation.

6，Gapless Joining in Filed.

7，Designed and engineered with the architectural specifier in mind.

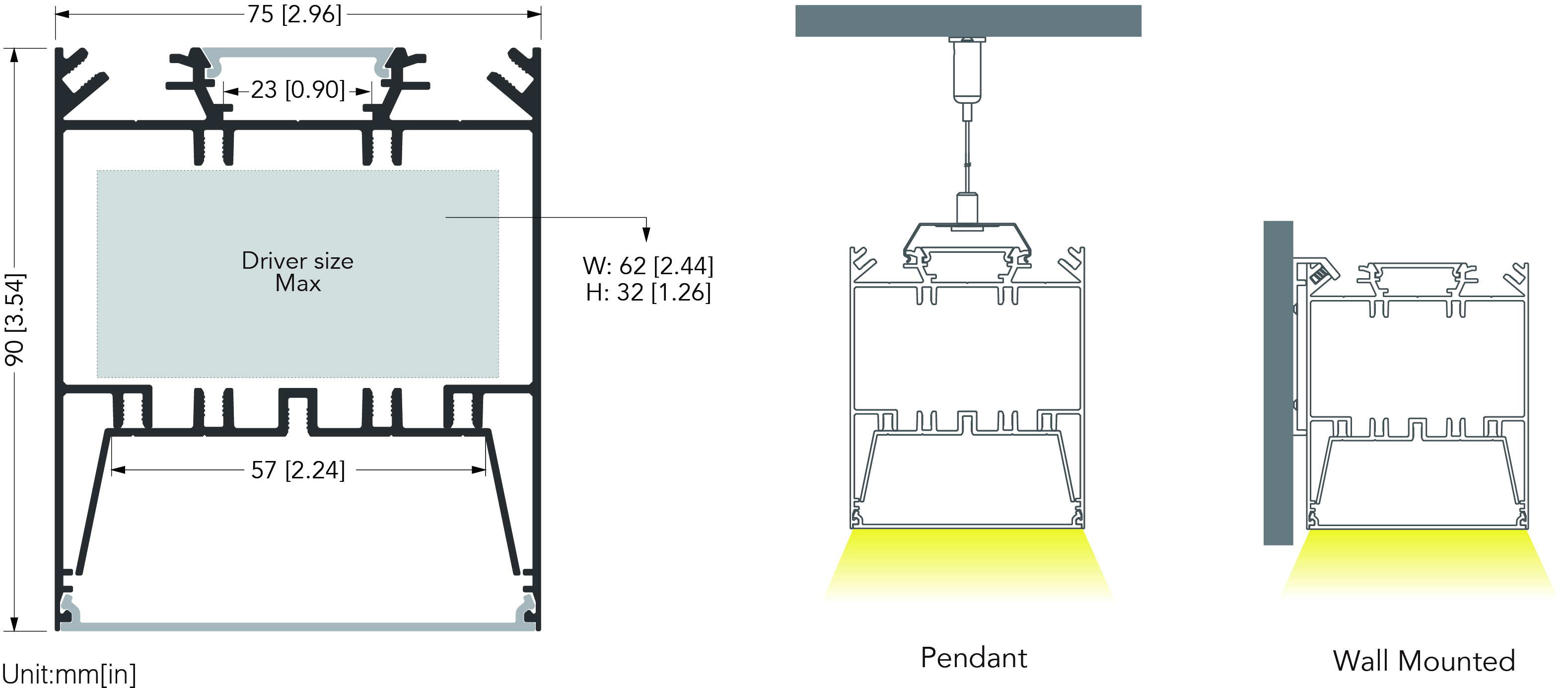

Dimension & Installation

Finish

This linear lighting solution provides standard color options including elegant matte white, sleek black, and refined silver. Additionally, for those desiring personalized and vibrant options, we offer a stunning selection of 48 powder coating colors.

Color Option

Applications

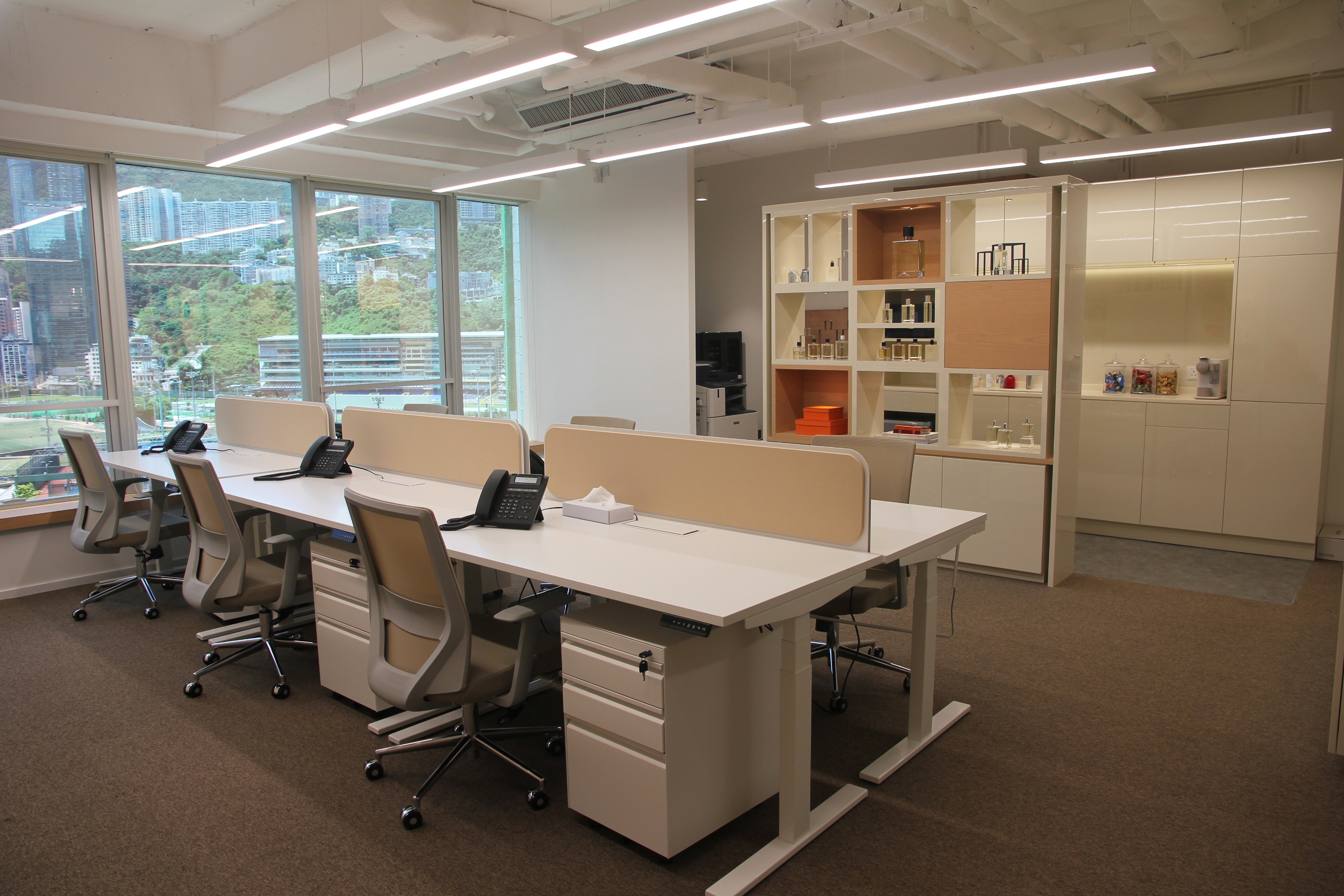

It finds extensive utilization in corporate environments, academic institutions, meeting venues, and various professional workspaces.

Specification

Model	H7590	Input Vol.	220-240VAC
Optical	Direct-Diffuser Indirect-Diffuser	Power	38W
Beam Angle	105°	LED	Epistar
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<26	SDCM	<3
Dimension	L1215 x W75 x H90mm	Lumen	3420-4940lm/pc
IP	IP22	Efficiency	90-130lm/W
Installation	Pendant, Surface Mounted	Life Time L80B10	50,000hrs
Net Weight	2.13kgs	THD	<20%

Luminaire: H7590, Optical: PC Diffuser， Power: 38W， Efficiency: 90lm/W, LED: Epistar, Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

DIRECT

INDIRECT

POWER

LUMEN

CCT

DIM

PC Diffuser

105°

<26

L1215mm

25.0W

2250lm

13.0W

1170lm

38.0W

3420lm

80+

3000K

On-Off

PC Diffuser

105°

<26

L1215mm

25.8W

2250lm

13.4W

1170lm

39.1W

3420lm

80+

3000K

0-10V

PC Diffuser

105°

<26

L1215mm

25.8W

2250lm

13.4W

1170lm

39.1W

3420lm

80+

3000K

DALI

PC Diffuser

105°

<26

L1215mm

25.0W

2025lm

13.0W

1053lm

38.0W

3078lm

90+

3000K

On-Off

PC Diffuser

105°

<26

L1215mm

25.8W

2025lm

13.4W

1053lm

39.1W

3078lm

90+

3000K

0-10V

PC Diffuser

105°

<26

L1215mm

25.8W

2025lm

13.4W

1053lm

39.1W

3078lm

90+

3000K

DALI

PC Diffuser

105°

<26

L1215mm

25.0W

2318lm

13.0W

1205lm

38.0W

3523lm

80+

4000K

On-Off

PC Diffuser

105°

<26

L1215mm

25.8W

2318lm

13.4W

1205lm

39.1W

3523lm

80+

4000K

0-10V

PC Diffuser

105°

<26

L1215mm

25.8W

2318lm

13.4W

1205lm

39.1W

3523lm

80+

4000K

DALI

PC Diffuser

105°

<26

L1215mm

25.0W

2086lm

13.0W

1085lm

38.0W

3170lm

90+

4000K

On-Off

PC Diffuser

105°

<26

L1215mm

25.8W

2086lm

13.4W

1085lm

39.1W

3170lm

90+

4000K

0-10V

PC Diffuser

105°

<26

L1215mm

25.8W

2086lm

13.4W

1085lm

39.1W

3170lm

90+

4000K

DALI

PC Diffuser

105°

<26

L1215mm

25.0W

2138lm

13.0W

1241lm

38.0W

3379lm

80+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1215mm

25.8W

2138lm

13.4W

1241lm

39.1W

3379lm

80+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1215mm

25.8W

2138lm

13.4W

1241lm

39.1W

3379lm

80+

2700-4000K

DALI

PC Diffuser

105°

<26

L1215mm

25.0W

2031lm

13.0W

1117lm

38.0W

3148lm

90+

2700-4000K

On-Off

PC Diffuser

105°

<26

L1215mm

25.8W

2031lm

13.4W

1117lm

39.1W

3148lm

90+

2700-4000K

0-10V

PC Diffuser

105°

<26

L1215mm

25.8W

2031lm

13.4W

1117lm

39.1W

3148lm

90+

2700-4000K

DALI

Luminaire: H7590, Optical: PC Diffuser， Efficiency: 110lm/W, LED: Epistar, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	DIRECT		INDIRECT		POWER	LUMEN	RA	CCT
PC Diffuser	105°	<26	L1215mm	25.0W	2750lm	13.0W	1430lm	38.0W	4180lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	25.8W	2750lm	13.4W	1430lm	39.1W	4180lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	25.8W	2750lm	13.4W	1430lm	39.1W	4180lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	25.0W	2475lm	13.0W	1287lm	38.0W	3762lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	25.8W	2475lm	13.4W	1287lm	39.1W	3762lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	25.8W	2475lm	13.4W	1287lm	39.1W	3762lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	25.0W	2833lm	13.0W	1473lm	38.0W	4305lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	25.8W	2833lm	13.4W	1473lm	39.1W	4305lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	25.8W	2833lm	13.4W	1473lm	39.1W	4305lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	25.0W	2549lm	13.0W	1326lm	38.0W	3875lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	25.8W	2549lm	13.4W	1326lm	39.1W	3875lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	25.8W	2549lm	13.4W	1326lm	39.1W	3875lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	25.0W	2613lm	13.0W	1517lm	38.0W	4130lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	25.8W	2613lm	13.4W	1517lm	39.1W	4130lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	25.8W	2613lm	13.4W	1517lm	39.1W	4130lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	25.0W	2482lm	13.0W	1365lm	38.0W	3847lm	90+	2700-4000K
PC Diffuser	105°	<26	L1215mm	25.8W	2482lm	13.4W	1365lm	39.1W	3847lm	90+	2700-4000K
PC Diffuser	105°	<26	L1215mm	25.8W	2482lm	13.4W	1365lm	39.1W	3847lm	90+	2700-4000K

Luminaire: H7590, Optical: PC Diffuser， Efficiency: 130lm/W, LED: Epistar, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	DIRECT		INDIRECT		POWER	LUMEN	RA	CCT
PC Diffuser	105°	<26	L1215mm	25.0W	3250lm	13.0W	1690lm	38.0W	4940lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	25.8W	3250lm	13.4W	1690lm	39.1W	4940lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	25.8W	3250lm	13.4W	1690lm	39.1W	4940lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	25.0W	2925lm	13.0W	1521lm	38.0W	4446lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	25.8W	2925lm	13.4W	1521lm	39.1W	4446lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	25.8W	2925lm	13.4W	1521lm	39.1W	4446lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	25.0W	3348lm	13.0W	1741lm	38.0W	5088lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	25.8W	3348lm	13.4W	1741lm	39.1W	5088lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	25.8W	3348lm	13.4W	1741lm	39.1W	5088lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	25.0W	3013lm	13.0W	1567lm	38.0W	4579lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	25.8W	3013lm	13.4W	1567lm	39.1W	4579lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	25.8W	3013lm	13.4W	1567lm	39.1W	4579lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	25.0W	3088lm	13.0W	1793lm	38.0W	4880lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	25.8W	3088lm	13.4W	1793lm	39.1W	4880lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	25.8W	3088lm	13.4W	1793lm	39.1W	4880lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	25.0W	2933lm	13.0W	1614lm	38.0W	4547lm	90+	2700-4000K
PC Diffuser	105°	<26	L1215mm	25.8W	2933lm	13.4W	1614lm	39.1W	4547lm	90+	2700-4000K
PC Diffuser	105°	<26	L1215mm	25.8W	2933lm	13.4W	1614lm	39.1W	4547lm	90+	2700-4000K

Model	H7590	Input Vol.	220-240VAC
Optical	Direct-Diffuser Indirect-Diffuser	Power	54W
Beam Angle	105°	LED	Epistar
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<26	SDCM	<3
Dimension	L1215 x W75 x H90mm	Lumen	4860-7020lm/pc
IP	IP22	Efficiency	90-130lm/W
Installation	Pendant, Surface Mounted	Life Time L80B10	50,000hrs
Net Weight	2.13kgs	THD	<20%

Luminaire: H7590, Optical: PC Diffuser， Power: 54W， Efficiency: 86lm/W, LED: Epistar, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	DIRECT		INDIRECT		POWER	LUMEN	RA	CCT
PC Diffuser	105°	<26	L1215mm	36.0W	3240lm	18.0W	1620lm	54.0W	4860lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	37.1W	3240lm	18.5W	1620lm	55.6W	4860lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	37.1W	3240lm	18.5W	1620lm	55.6W	4860lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	36.0W	2916lm	18.0W	1458lm	54.0W	4374lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	37.1W	2916lm	18.5W	1458lm	55.6W	4374lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	37.1W	2916lm	18.5W	1458lm	55.6W	4374lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	36.0W	3337lm	18.0W	1669lm	54.0W	5006lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	37.1W	3337lm	18.5W	1669lm	55.6W	5006lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	37.1W	3337lm	18.5W	1669lm	55.6W	5006lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	36.0W	3003lm	18.0W	1502lm	54.0W	4505lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	37.1W	3003lm	18.5W	1502lm	55.6W	4505lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	37.1W	3003lm	18.5W	1502lm	55.6W	4505lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	36.0W	3078lm	18.0W	1719lm	54.0W	4797lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	37.1W	3078lm	18.5W	1719lm	55.6W	4797lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	37.1W	3078lm	18.5W	1719lm	55.6W	4797lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	36.0W	2924lm	18.0W	1547lm	54.0W	4471lm	90+	2700-4000K
PC Diffuser	105°	<26	L1215mm	37.1W	2924lm	18.5W	1547lm	55.6W	4471lm	90+	2700-4000K
PC Diffuser	105°	<26	L1215mm	37.1W	2924lm	18.5W	1547lm	55.6W	4471lm	90+	2700-4000K

Luminaire: H7590, Optical: PC Diffuser， Efficiency: 110lm/W, LED: Epistar, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	DIRECT		INDIRECT		POWER	LUMEN	RA	CCT
PC Diffuser	105°	<26	L1215mm	36.0W	3960lm	18.0W	1980lm	54.0W	5940lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	37.1W	3960lm	18.5W	1980lm	55.6W	5940lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	37.1W	3960lm	18.5W	1980lm	55.6W	5940lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	36.0W	3564lm	18.0W	1782lm	54.0W	5346lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	37.1W	3564lm	18.5W	1782lm	55.6W	5346lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	37.1W	3564lm	18.5W	1782lm	55.6W	5346lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	36.0W	4079lm	18.0W	2039lm	54.0W	6118lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	37.1W	4079lm	18.5W	2039lm	55.6W	6118lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	37.1W	4079lm	18.5W	2039lm	55.6W	6118lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	36.0W	3671lm	18.0W	1835lm	54.0W	5506lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	37.1W	3671lm	18.5W	1835lm	55.6W	5506lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	37.1W	3671lm	18.5W	1835lm	55.6W	5506lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	36.0W	3762lm	18.0W	2101lm	54.0W	5863lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	37.1W	3762lm	18.5W	2101lm	55.6W	5863lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	37.1W	3762lm	18.5W	2101lm	55.6W	5863lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	36.0W	3574lm	18.0W	1891lm	54.0W	5464lm	90+	2700-4000K
PC Diffuser	105°	<26	L1215mm	37.1W	3574lm	18.5W	1891lm	55.6W	5464lm	90+	2700-4000K
PC Diffuser	105°	<26	L1215mm	37.1W	3574lm	18.5W	1891lm	55.6W	5464lm	90+	2700-4000K

Luminaire: H7590, Optical: PC Diffuser， Efficiency: 130lm/W, LED: Epistar, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	DIRECT		INDIRECT		POWER	LUMEN	RA	CCT
PC Diffuser	105°	<26	L1215mm	54.0W	7020lm	18.0W	2340lm	72.0W	9360lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	55.6W	7020lm	18.5W	2340lm	74.2W	9360lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	55.6W	7020lm	18.5W	2340lm	74.2W	9360lm	80+	3000K
PC Diffuser	105°	<26	L1215mm	54.0W	6318lm	18.0W	2106lm	72.0W	8424lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	55.6W	6318lm	18.5W	2106lm	74.2W	8424lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	55.6W	6318lm	18.5W	2106lm	74.2W	8424lm	90+	3000K
PC Diffuser	105°	<26	L1215mm	54.0W	7231lm	18.0W	2410lm	72.0W	9641lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	55.6W	7231lm	18.5W	2410lm	74.2W	9641lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	55.6W	7231lm	18.5W	2410lm	74.2W	9641lm	80+	4000K
PC Diffuser	105°	<26	L1215mm	54.0W	6508lm	18.0W	2169lm	72.0W	8677lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	55.6W	6508lm	18.5W	2169lm	74.2W	8677lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	55.6W	6508lm	18.5W	2169lm	74.2W	8677lm	90+	4000K
PC Diffuser	105°	<26	L1215mm	54.0W	6669lm	18.0W	2483lm	72.0W	9152lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	55.6W	6669lm	18.5W	2483lm	74.2W	9152lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	55.6W	6669lm	18.5W	2483lm	74.2W	9152lm	80+	2700-4000K
PC Diffuser	105°	<26	L1215mm	54.0W	6336lm	18.0W	2234lm	72.0W	8570lm	90+	2700-4000K
PC Diffuser	105°	<26	L1215mm	55.6W	6336lm	18.5W	2234lm	74.2W	8570lm	90+	2700-4000K
PC Diffuser	105°	<26	L1215mm	55.6W	6336lm	18.5W	2234lm	74.2W	8570lm	90+	2700-4000K

Model	H7590	Input Vol.	220-240VAC
Optical	Direct-Diffuser Indirect-Diffuser	Power	47W
Beam Angle	105°	LED	Epistar
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<26	SDCM	<3
Dimension	L1515 x W75 x H90mm	Lumen	4860-7020lm/pc
IP	IP22	Efficiency	90-130lm/W
Installation	Pendant, Surface Mounted	Life Time L80B10	50,000hrs
Net Weight	2.75kgs	THD	<20%

Luminaire: H7590, Optical: PC Diffuser Power: 47W， Efficiency: 90lm/W, LED: Epistar, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	DIRECT		INDIRECT		POWER	LUMEN	RA	CCT
PC Diffuser	105°	<26	L1515mm	31.0W	2790lm	16.0W	1440lm	47.0W	4230lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	31.9W	2790lm	16.5W	1440lm	48.4W	4230lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	31.9W	2790lm	16.5W	1440lm	48.4W	4230lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	31.0W	2511lm	16.0W	1296lm	47.0W	3807lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	31.9W	2511lm	16.5W	1296lm	48.4W	3807lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	31.9W	2511lm	16.5W	1296lm	48.4W	3807lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	31.0W	2874lm	16.0W	1483lm	47.0W	4357lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	31.9W	2874lm	16.5W	1483lm	48.4W	4357lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	31.9W	2874lm	16.5W	1483lm	48.4W	4357lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	31.0W	2586lm	16.0W	1335lm	47.0W	3921lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	31.9W	2586lm	16.5W	1335lm	48.4W	3921lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	31.9W	2586lm	16.5W	1335lm	48.4W	3921lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	31.0W	2651lm	16.0W	1528lm	47.0W	4178lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.9W	2651lm	16.5W	1528lm	48.4W	4178lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.9W	2651lm	16.5W	1528lm	48.4W	4178lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.0W	2518lm	16.0W	1375lm	47.0W	3893lm	90+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.9W	2518lm	16.5W	1375lm	48.4W	3893lm	90+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.9W	2518lm	16.5W	1375lm	48.4W	3893lm	90+	2700-4000K

Luminaire: H7590, Optical: PC Diffuser， Efficiency: 110lm/W, LED: Epistar, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	DIRECT		INDIRECT		POWER	LUMEN	RA	CCT
PC Diffuser	105°	<26	L1515mm	31.0W	3410lm	16.0W	1760lm	47.0W	5170lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	31.9W	3410lm	16.5W	1760lm	48.4W	5170lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	31.9W	3410lm	16.5W	1760lm	48.4W	5170lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	31.0W	3069lm	16.0W	1584lm	47.0W	4653lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	31.9W	3069lm	16.5W	1584lm	48.4W	4653lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	31.9W	3069lm	16.5W	1584lm	48.4W	4653lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	31.0W	3512lm	16.0W	1813lm	47.0W	5325lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3512lm	16.5W	1813lm	48.4W	5325lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3512lm	16.5W	1813lm	48.4W	5325lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	31.0W	3161lm	16.0W	1632lm	47.0W	4793lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3161lm	16.5W	1632lm	48.4W	4793lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3161lm	16.5W	1632lm	48.4W	4793lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	31.0W	3240lm	16.0W	1867lm	47.0W	5107lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3240lm	16.5W	1867lm	48.4W	5107lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3240lm	16.5W	1867lm	48.4W	5107lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.0W	3078lm	16.0W	1680lm	47.0W	4758lm	90+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3078lm	16.5W	1680lm	48.4W	4758lm	90+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3078lm	16.5W	1680lm	48.4W	4758lm	90+	2700-4000K

Luminaire: H7590, Optical: PC Diffuser， Efficiency: 130lm/W, LED: Epistar, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	DIRECT		INDIRECT		POWER	LUMEN	RA	CCT
PC Diffuser	105°	<26	L1515mm	31.0W	4030lm	16.0W	2080lm	47.0W	6110lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	31.9W	4030lm	16.5W	2080lm	48.4W	6110lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	31.9W	4030lm	16.5W	2080lm	48.4W	6110lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	31.0W	3627lm	16.0W	1872lm	47.0W	5499lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	31.9W	3627lm	16.5W	1872lm	48.4W	5499lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	31.9W	3627lm	16.5W	1872lm	48.4W	5499lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	31.0W	4151lm	16.0W	2142lm	47.0W	6293lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	31.9W	4151lm	16.5W	2142lm	48.4W	6293lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	31.9W	4151lm	16.5W	2142lm	48.4W	6293lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	31.0W	3736lm	16.0W	1928lm	47.0W	5664lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3736lm	16.5W	1928lm	48.4W	5664lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3736lm	16.5W	1928lm	48.4W	5664lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	31.0W	3829lm	16.0W	2207lm	47.0W	6035lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3829lm	16.5W	2207lm	48.4W	6035lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3829lm	16.5W	2207lm	48.4W	6035lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.0W	3637lm	16.0W	1986lm	47.0W	5623lm	90+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3637lm	16.5W	1986lm	48.4W	5623lm	90+	2700-4000K
PC Diffuser	105°	<26	L1515mm	31.9W	3637lm	16.5W	1986lm	48.4W	5623lm	90+	2700-4000K

Model	H7590	Input Vol.	220-240VAC
Optical	Direct-Diffuser Indirect-Diffuser	Power	68W
Beam Angle	105°	LED	Epistar
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<26	SDCM	<3
Dimension	L1515 x W75 x H90mm	Lumen	5848-8568lm/pc
IP	IP22	Efficiency	90-130lm/W
Installation	Pendant, Surface Mounted	Life Time L80B10	50,000hrs
Net Weight	2.75kgs	THD	<20%

Luminaire: H7590, Optical: PC Diffuser， Efficiency: 90lm/W, LED: Epistar, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	DIRECT		INDIRECT		POWER	LUMEN	RA	CCT
PC Diffuser	105°	<26	L1515mm	45.0W	3825lm	23.0W	2070lm	68.0W	5895lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	46.4W	3825lm	23.7W	2070lm	70.0W	5895lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	46.4W	3825lm	23.7W	2070lm	70.0W	5895lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	45.0W	3443lm	23.0W	1863lm	68.0W	5306lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	46.4W	3443lm	23.7W	1863lm	70.0W	5306lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	46.4W	3443lm	23.7W	1863lm	70.0W	5306lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	45.0W	3940lm	23.0W	2132lm	68.0W	6072lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	46.4W	3940lm	23.7W	2132lm	70.0W	6072lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	46.4W	3940lm	23.7W	2132lm	70.0W	6072lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	45.0W	3546lm	23.0W	1919lm	68.0W	5465lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	46.4W	3546lm	23.7W	1919lm	70.0W	5465lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	46.4W	3546lm	23.7W	1919lm	70.0W	5465lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	45.0W	3634lm	23.0W	2196lm	68.0W	5830lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	46.4W	3634lm	23.7W	2196lm	70.0W	5830lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	46.4W	3634lm	23.7W	2196lm	70.0W	5830lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	45.0W	3634lm	23.0W	1976lm	68.0W	5429lm	90+	2700-4000K
PC Diffuser	105°	<26	L1515mm	46.4W	3634lm	23.7W	1976lm	70.0W	5429lm	90+	2700-4000K
PC Diffuser	105°	<26	L1515mm	46.4W	3634lm	23.7W	1976lm	70.0W	5429lm	90+	2700-4000K

Luminaire: H7590, Optical: PC Diffuser， Efficiency: 110lm/W, LED: Epistar, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	DIRECT		INDIRECT		POWER	LUMEN	RA	CCT
PC Diffuser	105°	<26	L1515mm	45.0W	4725lm	23.0W	2530lm	68.0W	7255lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	46.4W	4725lm	23.7W	2530lm	70.0W	7255lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	46.4W	4725lm	23.7W	2530lm	70.0W	7255lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	45.0W	4253lm	23.0W	2277lm	68.0W	6530lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	46.4W	4253lm	23.7W	2277lm	70.0W	6530lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	46.4W	4253lm	23.7W	2277lm	70.0W	6530lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	45.0W	4867lm	23.0W	2606lm	68.0W	7473lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	46.4W	4867lm	23.7W	2606lm	70.0W	7473lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	46.4W	4867lm	23.7W	2606lm	70.0W	7473lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	45.0W	4380lm	23.0W	2345lm	68.0W	6725lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	46.4W	4380lm	23.7W	2345lm	70.0W	6725lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	46.4W	4380lm	23.7W	2345lm	70.0W	6725lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	45.0W	4489lm	23.0W	2684lm	68.0W	7173lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	46.4W	4489lm	23.7W	2684lm	70.0W	7173lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	46.4W	4489lm	23.7W	2684lm	70.0W	7173lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	45.0W	4264lm	23.0W	2416lm	68.0W	6680lm	90+	2700-4000K
PC Diffuser	105°	<26	L1515mm	46.4W	4264lm	23.7W	2416lm	70.0W	6680lm	90+	2700-4000K
PC Diffuser	105°	<26	L1515mm	46.4W	4264lm	23.7W	2416lm	70.0W	6680lm	90+	2700-4000K

Luminaire: H7590, Optical: PC Diffuser， Efficiency: 130lm/W, LED: Epistar, Driver: Lifud
OPTICAL	ANGLE	UGR	LENGTH	DIRECT		INDIRECT		POWER	LUMEN	RA	CCT
PC Diffuser	105°	<26	L1515mm	45.0W	5625lm	23.0W	2990lm	68.0W	8615lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	46.4W	5625lm	23.7W	2990lm	70.0W	8615lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	46.4W	5625lm	23.7W	2990lm	70.0W	8615lm	80+	3000K
PC Diffuser	105°	<26	L1515mm	45.0W	5063lm	23.0W	2691lm	68.0W	7754lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	46.4W	5063lm	23.7W	2691lm	70.0W	7754lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	46.4W	5063lm	23.7W	2691lm	70.0W	7754lm	90+	3000K
PC Diffuser	105°	<26	L1515mm	45.0W	5794lm	23.0W	3080lm	68.0W	8873lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	46.4W	5794lm	23.7W	3080lm	70.0W	8873lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	46.4W	5794lm	23.7W	3080lm	70.0W	8873lm	80+	4000K
PC Diffuser	105°	<26	L1515mm	45.0W	5214lm	23.0W	2772lm	68.0W	7986lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	46.4W	5214lm	23.7W	2772lm	70.0W	7986lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	46.4W	5214lm	23.7W	2772lm	70.0W	7986lm	90+	4000K
PC Diffuser	105°	<26	L1515mm	45.0W	5344lm	23.0W	3172lm	68.0W	8516lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	46.4W	5344lm	23.7W	3172lm	70.0W	8516lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	46.4W	5344lm	23.7W	3172lm	70.0W	8516lm	80+	2700-4000K
PC Diffuser	105°	<26	L1515mm	45.0W	5077lm	23.0W	2855lm	68.0W	7931lm	90+	2700-4000K
PC Diffuser	105°	<26	L1515mm	46.4W	5077lm	23.7W	2855lm	70.0W	7931lm	90+	2700-4000K
PC Diffuser	105°	<26	L1515mm	46.4W	5077lm	23.7W	2855lm	70.0W	7931lm	90+	2700-4000K
