• HILA-U10097 Architecturally designed UGR < 16 Direct Lighting with Diffuser lens for refined illumination

HILA-U10097 Architecturally designed UGR < 16 Direct Lighting with Diffuser lens for refined illumination

Short Description:

Explore our Architectural Interior Light Fixture collection – Linear Lights measuring 100mm × 97mm. Featuring PC diffuser and tunable white technology, perfect for Office LED lighting.

Choose from Suspended, Direct, or Ceiling Linear Light options for versatile illumination solutions that elevate your space.


Product Detail

Download

Product Tags

Product Introduction

Elevate your lighting experience with our versatile Linear Light fixtures. Enjoy precise color consistency with 3-step MacAdam ellipses, ensuring uniform and reliable illumination. Choose from lengths of 1200mm, 1500mm, 2400mm, or customize to fit your space perfectly. The PC Diffuser lens creates balanced and visually pleasing light distribution, enhancing any environment.

Experience flexibility with Pendant and Ceiling mounted installation options, adapting seamlessly to your design vision. Achieve outstanding energy efficiency with an efficacy of up to 130 lumens per watt, providing both brilliant illumination and sustainability.

Personalize your lighting atmosphere with tunable white technology, adjusting color temperature for various tasks. Take control with dimming options through DALI, 1-10V, or ON-OFF switches.

Discover the future of lighting that's tailored to your needs. Illuminate your space with elegance and efficiency through our versatile Linear Light products.

14-SLIM

Feature

1. 3-step MacAdam: Our Linear Light fixtures offer precise color consistency with 3-step MacAdam ellipses, ensuring uniform and reliable lighting.

2. 1200mm, 1500mm, 2400mm, Customized: Choose from various lengths, including 1200mm, 1500mm, and 2400mm, or customize your Linear Light to suit your space perfectly.

3. PC Diffuser Lens: The inclusion of a PC Diffuser lens ensures even light distribution, creating a balanced and visually pleasing illumination.

4. Pendant and Ceiling Mounted Installation: Enjoy flexibility with both Pendant and Ceiling mounted installation options, adapting to your space and design preferences.

5. Efficacy up to 130lm/W: Experience outstanding energy efficiency with an efficacy of up to 130 lumens per watt, providing bright illumination while conserving energy.

6. Tunable White: Customize your lighting atmosphere with tunable white technology, adjusting the color temperature to suit various tasks and moods.

7. Dimming by DALI/1-10V/ON-OFF: Take control of your lighting experience with versatile dimming options. Whether using DALI, 1-10V, or ON-OFF switches, you can easily adjust lighting intensity as desired.

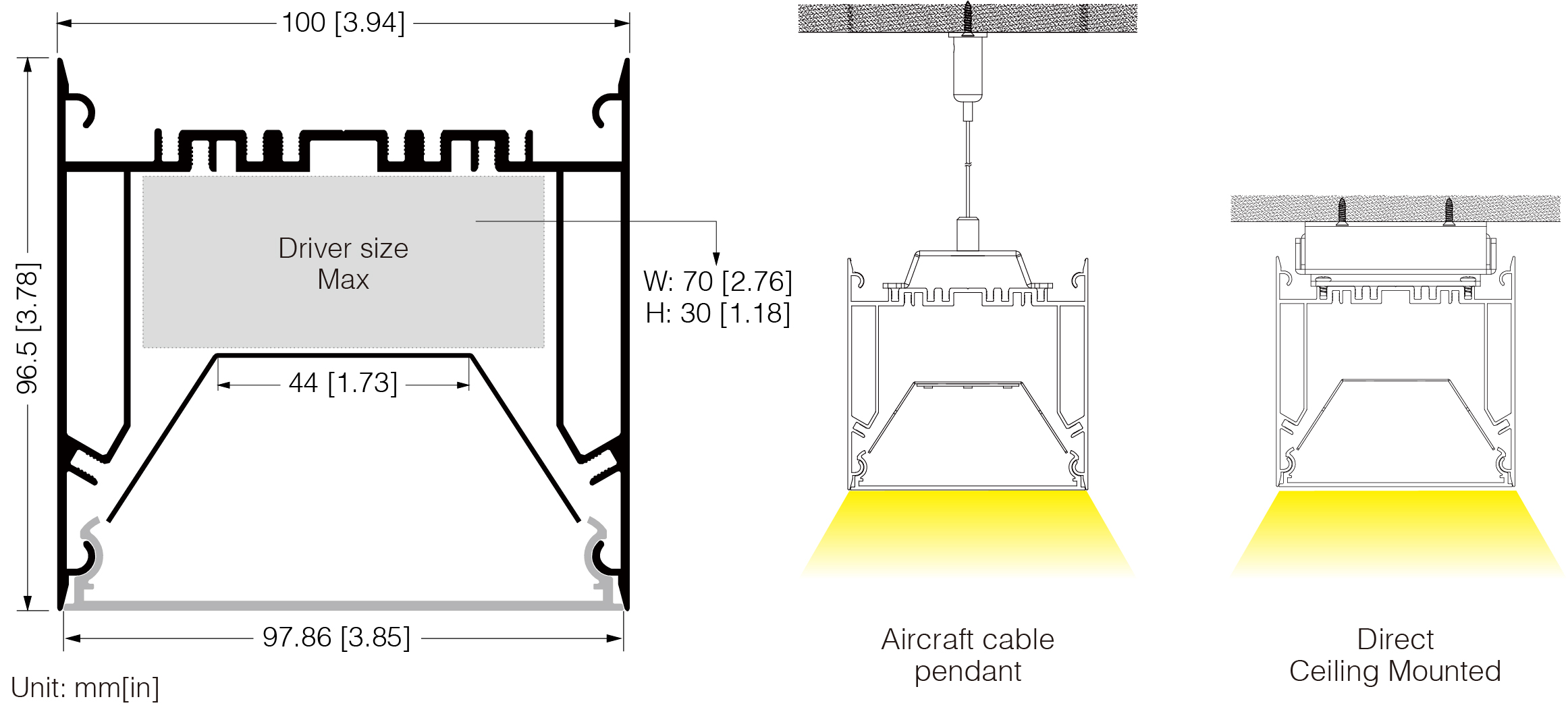

Size & Installation

HILA_画板 1

Finish

Standard in matt white textured, matt black textured powder coating and silver anodized. More customized colors up 48 options available in customized service.

Finish

Color Option

slim crystal louver-12

Range of Applications

Flawless illumination for varied spaces – Offices, Educational Institutions, and Conference Rooms. Versatile lighting solutions guarantee impeccable results.

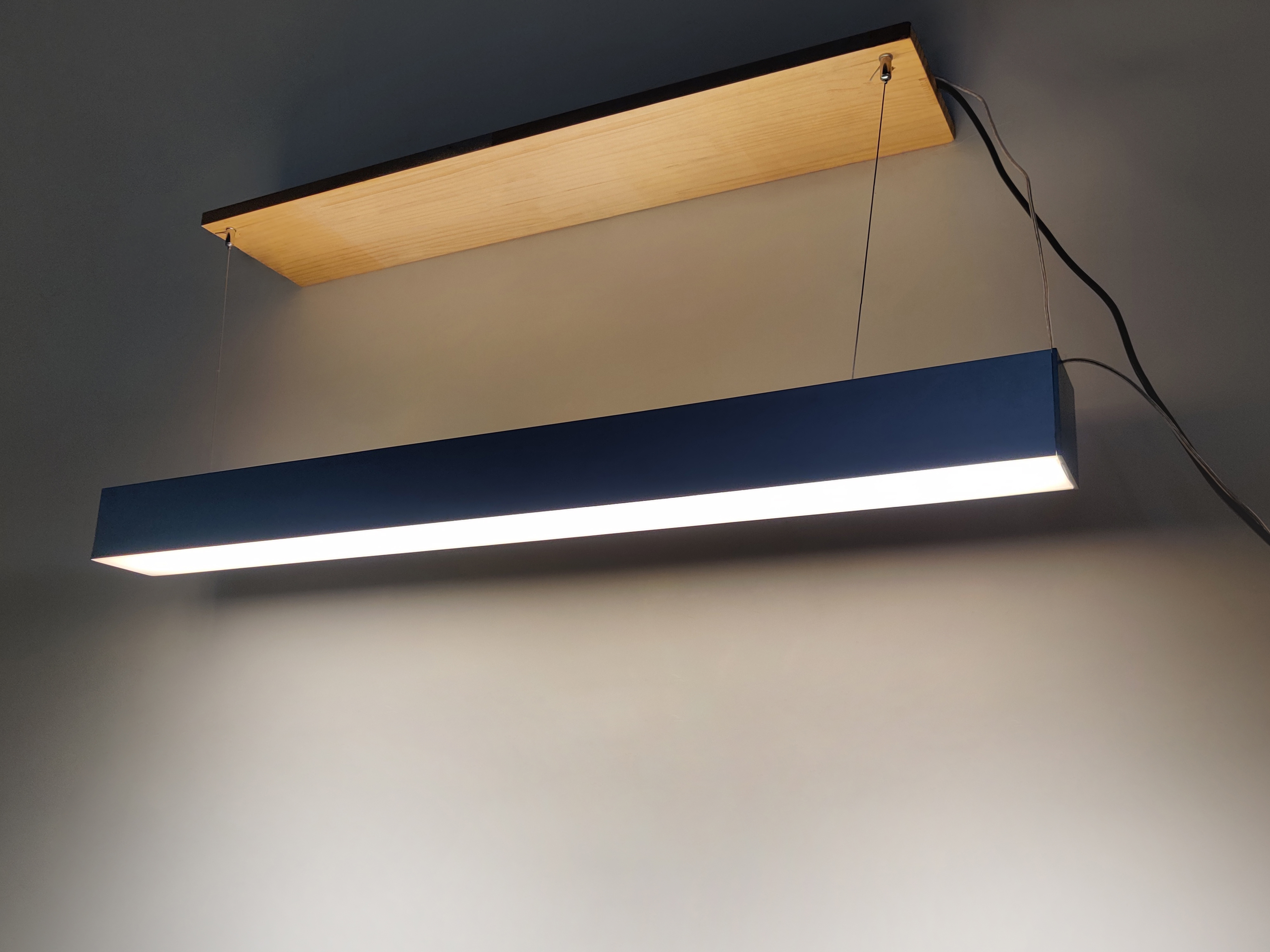

HILA SERIES DIRECT & INDIRECT SURFACE LINEAR LIGHT

Specification

Model HILA Input Vol. 220-240VAC
Direct Optical Diffuser Power 64W
Direct Beam Angle / LED Bridgelux
UGR <16 SDCM <3/<5
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
Efficiency 100lm/W
Dimension L1500 x W96 x H100mm Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
IP IP22 Life Time 50,000hrs
Installation Pendant, Ceiling mounted THD <20%

Luminaire: HILA,     Optical: Diffuser,     Efficiency: 100lm/W,     LED: Bridgelux,     Driver: Lifud

OPTICAL

LENGTH

 DIRECT

POWER

RA

CCT

DIM

PC Diffuser

L1500mm

6080lm

64.0W

80+

2700K

On-Off

PC Diffuser

L1500mm

6080lm

64.0W

80+

2700K

0-10V

PC Diffuser

L1500mm

6080lm

64.0W

80+

2700K

DALI

PC Diffuser

L1500mm

6080lm

64.0W

80+

3000K

On-Off

PC Diffuser

L1500mm

6080lm

64.0W

80+

3000K

0-10V

PC Diffuser

L1500mm

6080lm

64.0W

80+

3000K

DALI

PC Diffuser

L1500mm

6400lm

64.0W

80+

4000K

On-Off

PC Diffuser

L1500mm

6400lm

64.0W

80+

4000K

0-10V

PC Diffuser

L1500mm

6400lm

64.0W

80+

4000K

DALI

PC Diffuser

L1500mm

6400lm

64.0W

80+

5000K

On-Off

PC Diffuser

L1500mm

6400lm

64.0W

80+

5000K

0-10V

PC Diffuser

L1500mm

6400lm

64.0W

80+

5000K

DALI

PC Diffuser

L1500mm

6400lm

64.0W

80+

6500K

On-Off

PC Diffuser

L1500mm

6400lm

64.0W

80+

6500K

0-10V

PC Diffuser

L1500mm

6400lm

64.0W

80+

6500K

DALI
