• Hila Linear Architecturally Designed Direct and Indirect Lighting With Ugr < 16, Tir Lens & Diffuser

Hila Linear Architecturally Designed Direct and Indirect Lighting With Ugr < 16, Tir Lens & Diffuser

Short Description:

Discover precision-engineered Architectural LED Lighting for offices. UGR<16 compliance, TIR Lens & Diffuser, and Tunable White technology ensure ideal illumination.

Choose Linear Pendant Lights for versatile Direct & Indirect lighting, elevating any workspace with style and performance.


Product Detail

Download

Product Tags

Product Introduction

Elevate your lighting experience with our innovative Linear Light fixtures. Designed with UGR<16 compliance, your comfort is paramount. The integration of TIR Lens & Diffuser technology ensures optimal light distribution, minimizing glare and providing efficient illumination.

Enhance aesthetics with Pendant installation, combining elegance and functionality seamlessly. Achieve remarkable energy efficiency with an efficacy of up to 100 lumens per watt, delivering brilliant illumination while being environmentally conscious.

Customize your lighting atmosphere with tunable white technology, adapting color temperature to different tasks. Take control with dimming options through DALI, 1-10V, or ON-OFF switches.

Reimagine lighting with a focus on your well-being and style. Experience Linear Light that balances innovation, efficiency, and design, perfect for modern spaces seeking both comfort and performance.

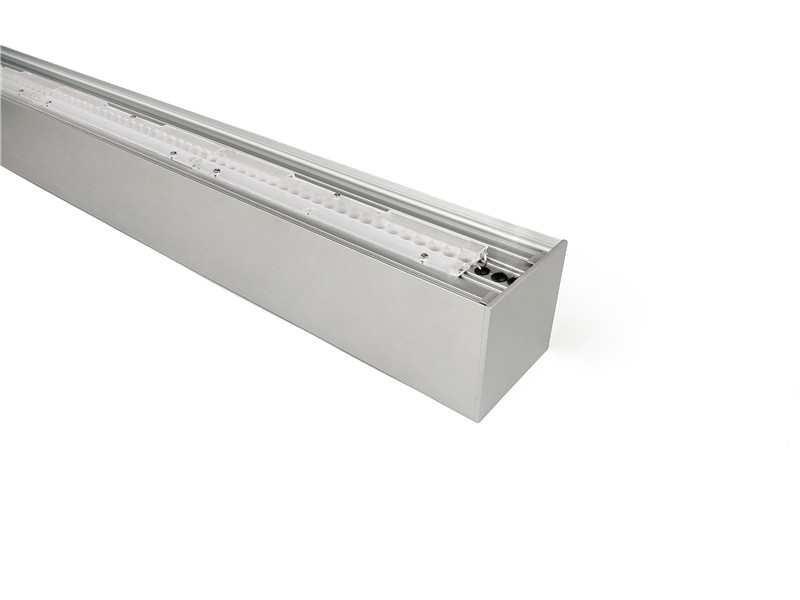

HILA Linear Architecturally designed Direct & Indirect lighting with UGR16, TIR Lens & Diffuser (12)

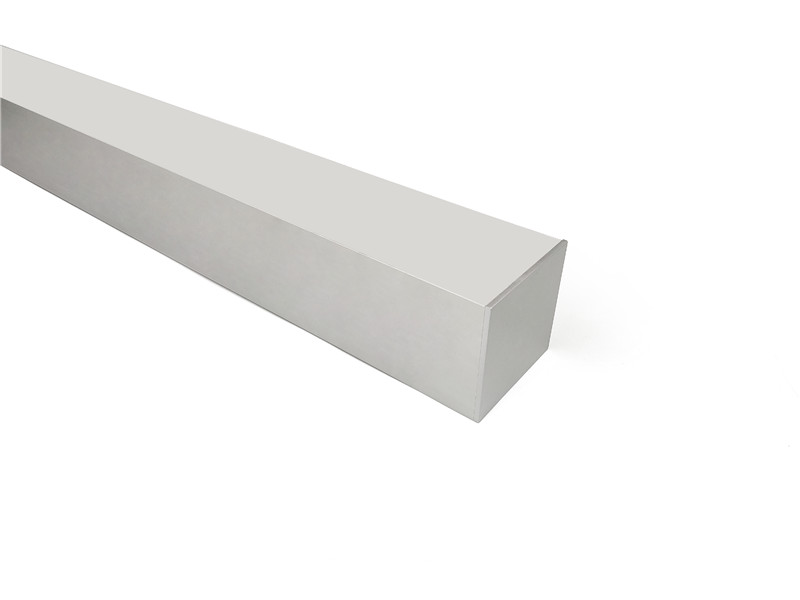

HILA Linear Architecturally designed Direct & Indirect lighting with UGR16, TIR Lens & Diffuser (11)

Feature

1. Anti-Glaring UGR<16: Our Linear Light products prioritize visual comfort with UGR<16 compliance, ensuring a glare-free and visually soothing lighting experience.

2. TIR Lens & Diffuser: The inclusion of TIR (Total Internal Reflection) Lens & Diffuser technology ensures efficient light distribution, reducing glare and enhancing overall illumination quality.

3. Pendant Installation: Enjoy the flexibility of Pendant installation, adding a touch of elegance to your space while providing versatile lighting options.

4. Efficacy up to 100lm/W: Experience remarkable energy efficiency with an efficacy of up to 100 lumens per watt, delivering bright and efficient illumination while conserving energy.

5. Tunable White: Customize your lighting ambiance with tunable white technology, adjusting the color temperature to match different activities and moods.

6. Dimming by DALI/1-10V/ON-OFF: Take control of your lighting experience with versatile dimming options. Whether using DALI, 1-10V, or ON-OFF switches, you have the flexibility to adjust the lighting intensity to your preference.

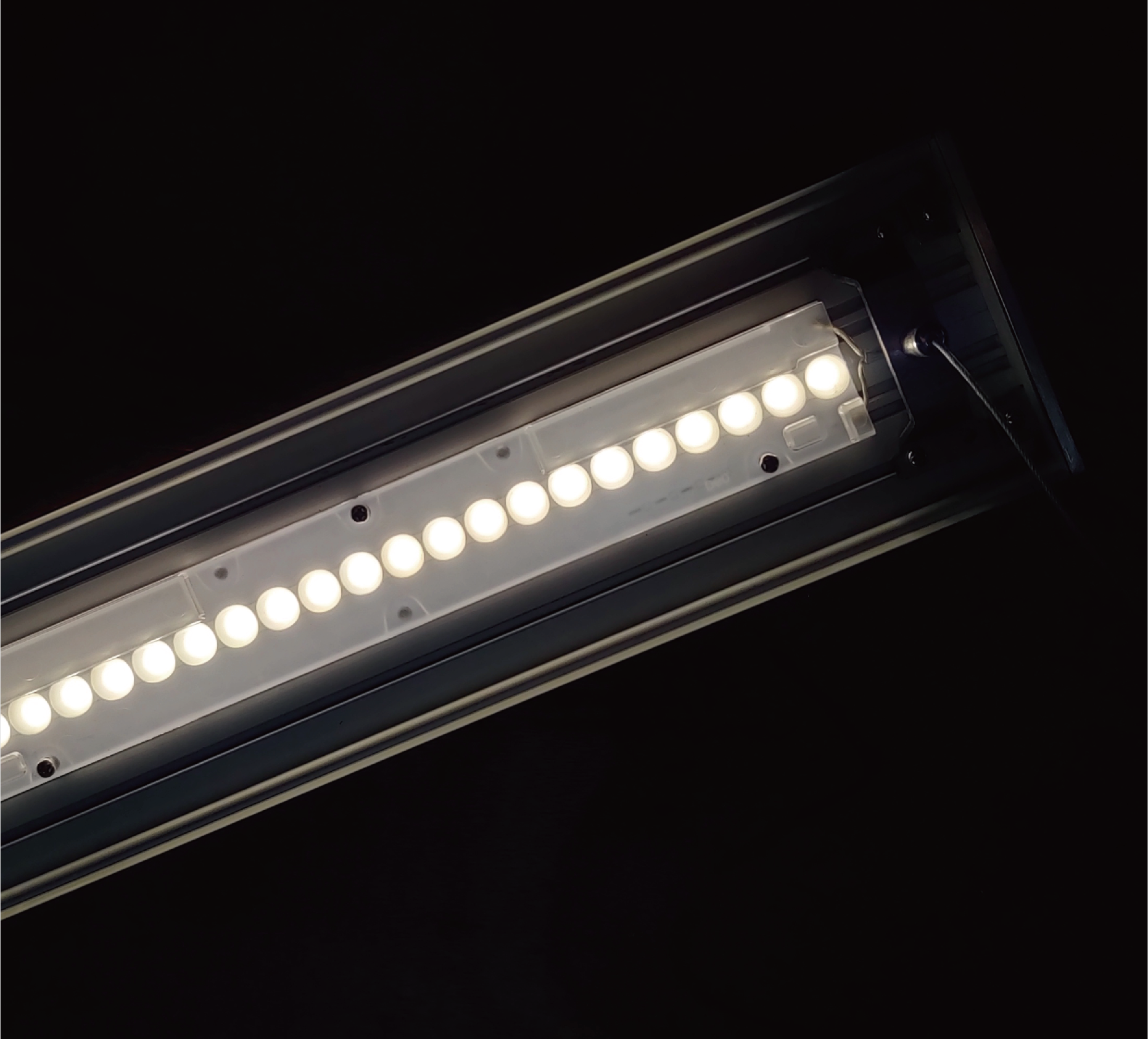

DIRECT & INDIRECT LINEAR LIGHT

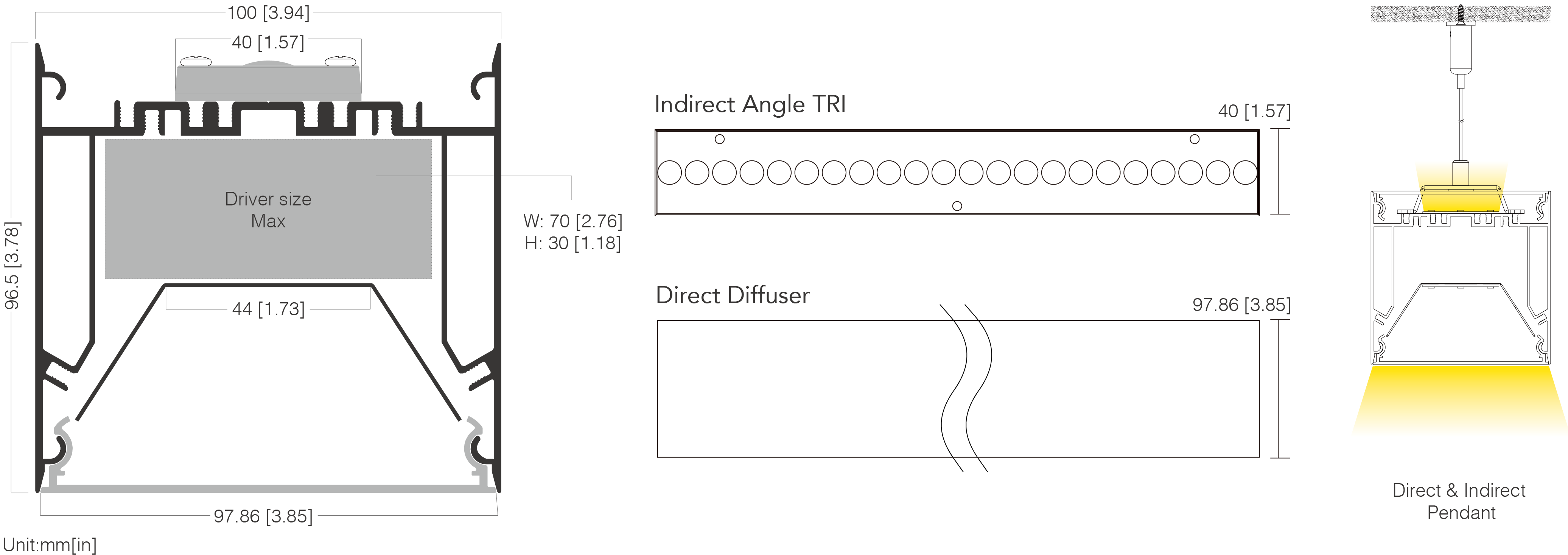

Size & Installation

DIRECT & INDIRECT LINEAR LIGHT

Finish

Standard in matt white textured, matt black textured powder coating and silver anodized. More customized colors up 48 options available in customized service.

Finish

Color Option

slim crystal louver-12

Range of Applications

Impeccable illumination for diverse environments - Offices, Educational Institutions, and Conference Rooms. Versatility ensures outstanding lighting outcomes.

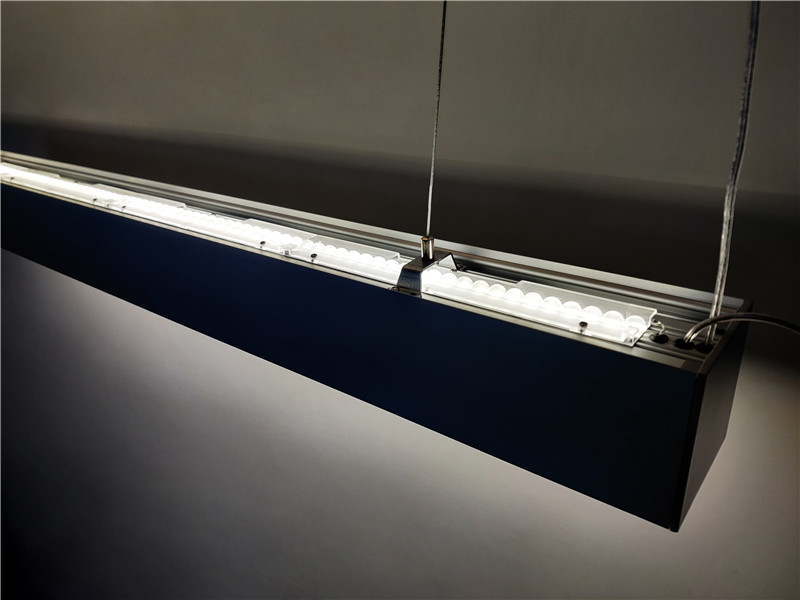

HILA Linear Architecturally designed Direct & Indirect lighting with UGR16, TIR Lens & Diffuser (8)

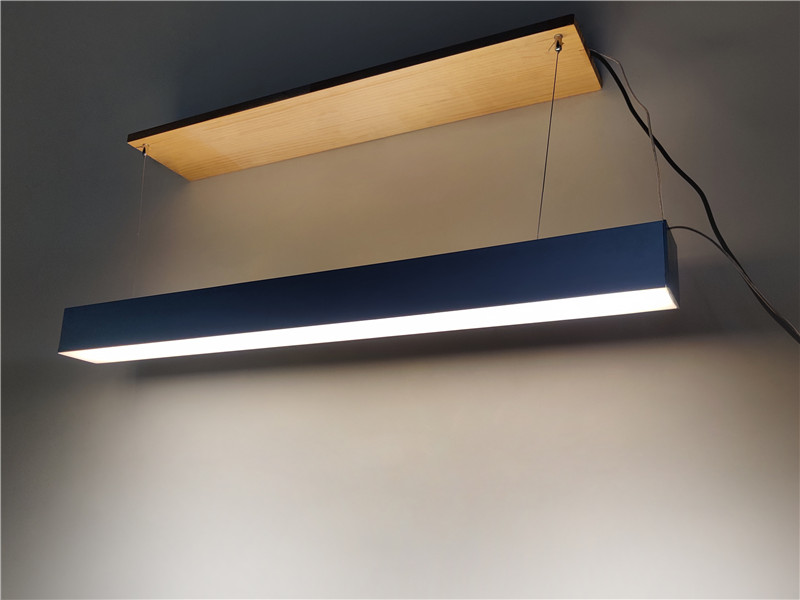

HILA Linear Architecturally designed Direct & Indirect lighting with UGR16, TIR Lens & Diffuser (9)

Specification

Model HILA Input Vol. 220-240VAC
Direct Optical TIR Lens & Diffuser Power 62W
Direct Beam Angle 30° / 45° / 60° / 90° LED Bridgelux
UGR <16 SDCM <3/<5
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
Efficiency 100lm/W
Dimension L1200 x W96 x H100mm Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
IP IP22 Life Time 50,000hrs
Installation Pendant THD <20%

Luminaire: HILA,     Optical: TIR Lens & Diffuser,     Efficiency: 100lm/W,     LED: Bridgelux,     Driver: Lifud

OPTICAL

LENGTH

DIRECT  INDIRECT

POWER

RA

CCT

DIM

TIR Lens+Diffuser

L1200mm

3390lm

1705lm

62.0W

80+

2700K

On-Off

TIR Lens+Diffuser

L1200mm

3390lm

1705lm

62.0W

80+

2700K

0-10V

TIR Lens+Diffuser

L1200mm

3390lm

1705lm

62.0W

80+

2700K

DALI

TIR Lens+Diffuser

L1200mm

3767lm

1895lm

62.0W

80+

3000K

On-Off

TIR Lens+Diffuser

L1200mm

3767lm

1895lm

62.0W

80+

3000K

0-10V

TIR Lens+Diffuser

L1200mm

3767lm

1895lm

62.0W

80+

3000K

DALI

TIR Lens+Diffuser

L1200mm

4185lm

2105lm

62.0W

80+

4000K

On-Off

TIR Lens+Diffuser

L1200mm

4185lm

2105lm

62.0W

80+

4000K

0-10V

TIR Lens+Diffuser

L1200mm

4185lm

2105lm

62.0W

80+

4000K

DALI

TIR Lens+Diffuser

L1200mm

4185lm

2105lm

62.0W

80+

5000K

On-Off

TIR Lens+Diffuser

L1200mm

4185lm

2105lm

62.0W

80+

5000K

0-10V

TIR Lens+Diffuser

L1200mm

4185lm

2105lm

62.0W

80+

5000K

DALI

TIR Lens+Diffuser

L1200mm

4185lm

2105lm

62.0W

80+

6500K

On-Off

TIR Lens+Diffuser

L1200mm

4185lm

2105lm

62.0W

80+

6500K

0-10V

TIR Lens+Diffuser

L1200mm

4185lm

2105lm

62.0W

80+

6500K

DALI
