Experience UGR < 16 compliant Direct Linear Light with Louver & Reflector, and 12 Degree for optimal illumination
Product Introduction
Elevate your lighting experience with our innovative Linear Light fixtures. Designed for optimal visual comfort, our Anti-Glaring UGR<19 compliant lighting ensures a soothing ambiance with minimal glare. The integration of Louver&Reflector technology guarantees efficient light distribution, enhancing overall illumination quality.
Enjoy the flexibility of Pendant and Ceiling mounted installation options, seamlessly adapting to your space and design preferences. Achieve a continuous and seamless appearance with Gapless joining technology, ensuring a flawless look when multiple fixtures are installed.
Customize your lighting atmosphere with angle options of 12° or 24°, tailoring the illumination to your specific needs. Take full control of your lighting with dimming options through DALI, 1-10V, or ON-OFF switches.
Discover a new level of lighting sophistication and functionality. Illuminate your space with style and efficiency through our versatile Linear Light collection.
Feature
1. Anti-Glaring UGR<19: Our Linear Light products prioritize visual comfort with UGR<19 compliance, ensuring minimal glare and creating a soothing lighting environment.
2. Louver&Reflector Lens: The integration of Louver&Reflector technology guarantees efficient light distribution, minimizing glare and enhancing overall illumination quality.
3. Pendant and Ceiling Mounted Installation: Enjoy flexibility with both Pendant and Ceiling mounted installation options, adapting seamlessly to your design vision.
4. Gapless Joining in Field: Achieve a continuous and seamless appearance when multiple fixtures are installed with Gapless joining technology.
5. 12° / 24° Angle Options: Tailor the lighting to your preference with selectable 12° or 24° beam angles, offering flexibility in directing light.
6. Dimming by DALI/1-10V/ON-OFF: Take control of your lighting experience with versatile dimming options. Whether using DALI, 1-10V, or ON-OFF switches, adjust the lighting intensity to your liking.

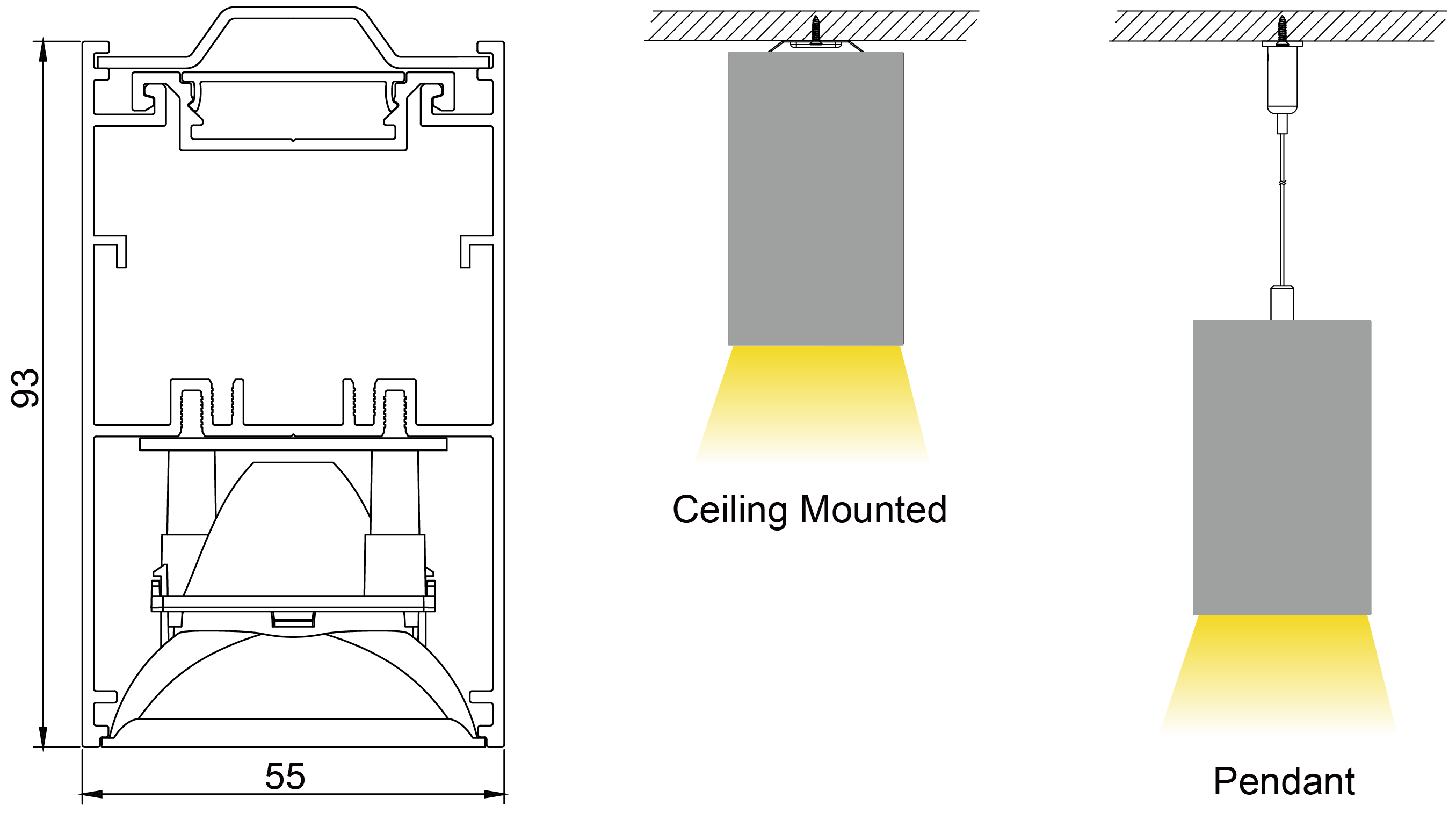

Size & Installation
Finish
Standard in matt white textured, matt black textured powder coating and silver anodized. More customized colors up 48 options available in customized service.
Color Option
Range of Applications
Impeccable lighting results in diverse settings - Offices, Educational Institutions, and Conference Rooms. Versatility assures flawless illumination, adapting accurately to varying environments."
Specification
| Model | HAO | Input Vol. | 220-240VAC |
| Direct Optial | Louver & Lens | Power | 42W |
| Direct Beam Angle | 12° / 24° | LED | Bridgelux |
| UGR | <16 | SDCM | <3 |
| Efficiency | 90lm/W | Lumen | 3402-3893lm/pc |
| Finish | Textured Black (RAL9004) Textrued White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| Dimension | L1208 x W55 x H93mm | Life Time | 50,000hrs |
| IP / IK | IP22 / IK06 | THD | <20% |
| Installation | Pendant, Ceiling Mounting | Net Weight | 1.7kgs |
|
Luminaire: HAO, Optical: Louver & Reflector, Efficiency: 90lm/W, LED: Bridgelux, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
42.0W |
3780lm |
80+ |
3000K |
On-Off |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
43.3W |
3780lm |
80+ |
3000K |
0-10V |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
43.0W |
3780lm |
80+ |
3000K |
DALI |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
42.0W |
3402lm |
90+ |
3000K |
On-Off |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
43.3W |
3402lm |
90+ |
3000K |
0-10V |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
43.3W |
3402lm |
90+ |
3000K |
DALI |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
42.0W |
3893lm |
80+ |
4000K |
On-Off |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
43.3W |
3893lm |
80+ |
4000K |
0-10V |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
43.3W |
3893lm |
80+ |
4000K |
DALI |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
42.0W |
3504lm |
90+ |
4000K |
On-Off |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
43.3W |
3504lm |
90+ |
4000K |
0-10V |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
43.3W |
3504lm |
90+ |
4000K |
DALI |
| Model | HAO | Input Vol. | 220-240VAC |
| Direct Optial | Louver & Lens | Power | 52W |
| Direct Beam Angle | 12° / 24° | LED | Bridgelux |
| UGR | <16 | SDCM | <3 |
| Efficiency | 90lm/W | Lumen | 4212-4820lm/pc |
| Finish | Textured Black (RAL9004) Textrued White (RAL9003) Silver Anodized |
Dim / PF | On/Off >0.9 0-10V >0.9 DALI >0.9 |
| Dimension | L1508 x W55 x H93mm | Life Time | 50,000hrs |
| IP / IK | IP22 / IK06 | THD | <20% |
| Installation | Pendant, Ceiling Mounting | Net Weight | 1.7kgs |
|
Luminaire: HAO, Optical: Louver & Reflector, Efficiency: 90lm/W, LED: Bridgelux, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
52.0W |
4680lm |
80+ |
3000K |
On-Off |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
53.6W |
4680lm |
80+ |
3000K |
0-10V |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
53.6W |
4680lm |
80+ |
3000K |
DALI |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
52.0W |
4212lm |
90+ |
3000K |
On-Off |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
53.6W |
4212lm |
90+ |
3000K |
0-10V |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
53.6W |
4212lm |
90+ |
3000K |
DALI |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
52.0W |
4820lm |
80+ |
4000K |
On-Off |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
53.6W |
4820lm |
80+ |
4000K |
0-10V |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
53.6W |
4820lm |
80+ |
4000K |
DALI |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
52.0W |
4338lm |
90+ |
4000K |
On-Off |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
53.6W |
4338lm |
90+ |
4000K |
0-10V |
|
Louver & Reflector |
12° |
<16 |
L1208mm |
53.6W |
4338lm |
90+ |
4000K |
DALI |
-
HAO Direct Louver & Reflector
-
HAO H5593 Pandent Installation
