Experience Gapless Direct & Indirect Linear Light With UGR < 16 And 24 Degree

Short Description:

Discover Architectural Lighting Fixtures for offices. UGR<16 compliant Linear Light with Louver & Reflector technology offers balanced illumination. Choose Linear Pendant Lights for suspended office lighting, seamlessly combining direct & indirect lighting. Elevate your workspace with stylish and functional Linear LED Fixtures.


Product Detail

Download

Product Tags

Product Introduction

Elevate your lighting experience with our innovative Linear Light fixtures. Designed for ultimate comfort, our UGR<16 compliant lighting ensures glare-free illumination. The integration of Louver & Reflector technology enhances light distribution and efficiency, optimizing your workspace.

Experience seamless continuity with Gapless joining, ensuring a flawless appearance when multiple fixtures are installed. Choose between 12° or 24° beam angles to direct light precisely. Enjoy the elegance of Pendant installation, adding style while offering versatile lighting solutions.

Customize your lighting atmosphere with dimming options through DALI, 1-10V, or ON-OFF switches. Whether it's focused illumination or ambient lighting, our Linear Light products cater to your needs.

Discover a new level of lighting sophistication and functionality. Illuminate your space with style and efficiency through our versatile Linear Light collection.

Feature

1. UGR<16 Anti-GlaringOur Linear Light products prioritize visual comfort with UGR<16 compliance, ensuring a glare-free and soothing lighting environment.

2. Louver & Reflector OpticalExperience optimal illumination with the integration of Louver & Reflector technology, providing balanced light distribution and enhanced efficiency.

3. Pendant Installation: Enjoy the elegance of Pendant installation, adding style to your space while offering versatile lighting solutions.

4. Gapless Joining in Field: Achieve seamless continuity with Gapless joining, ensuring a flawless appearance when multiple fixtures are installed.

5. 12° / 24° Angle Options: Tailor the lighting to your preference with selectable 12° or 24° beam angles, offering flexibility in directing light.

6. Dimming by DALI/1-10V/ON-OFF: Take control of your lighting experience with versatile dimming options. Whether using DALI, 1-10V, or ON-OFF switches, adjust the lighting intensity to your liking.

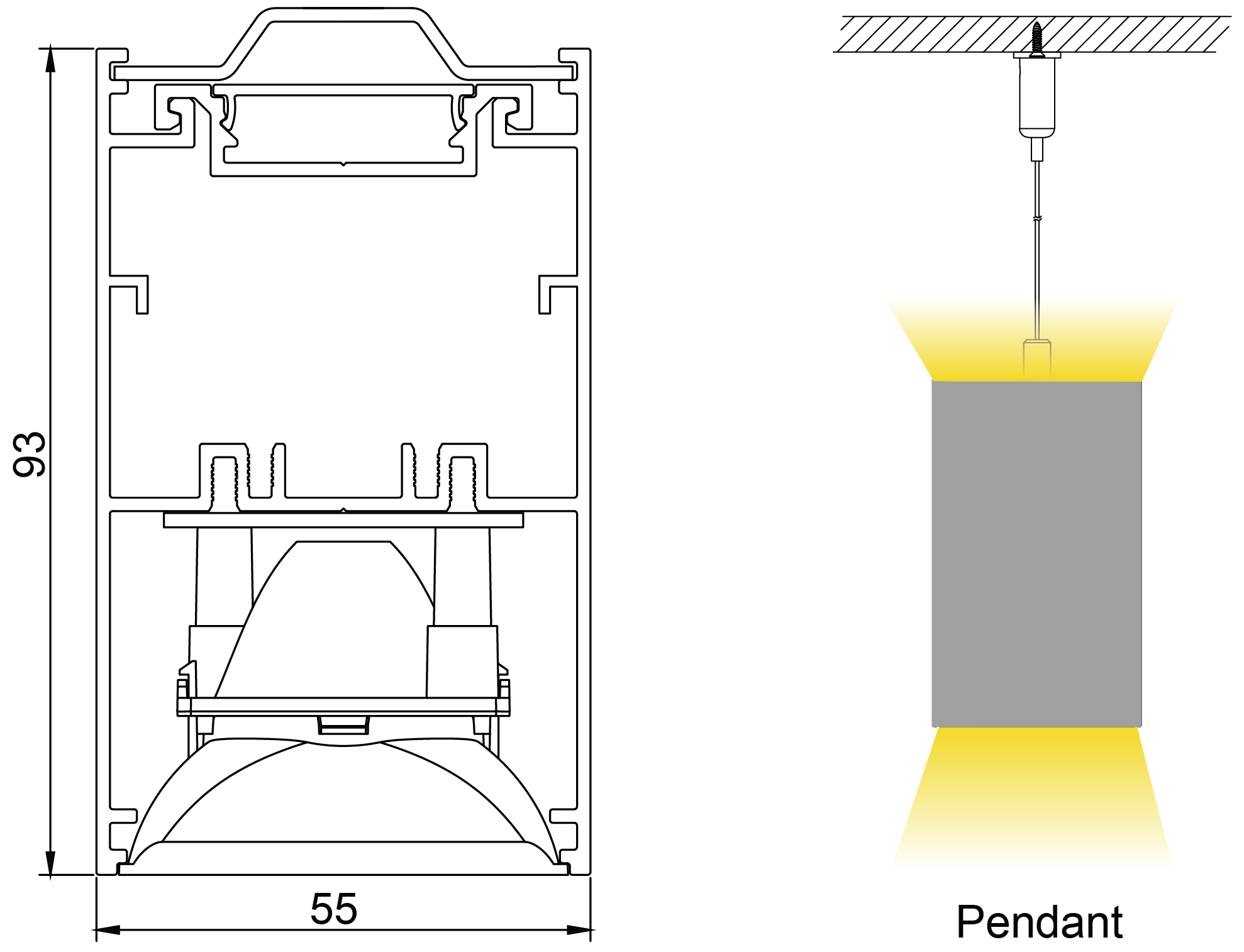

Size & Installation

Direct Indirect Linear light
HILA Linear Architecturally designed Direct & Indirect lighting with UGR16, TIR Lens & Diffuser (5)

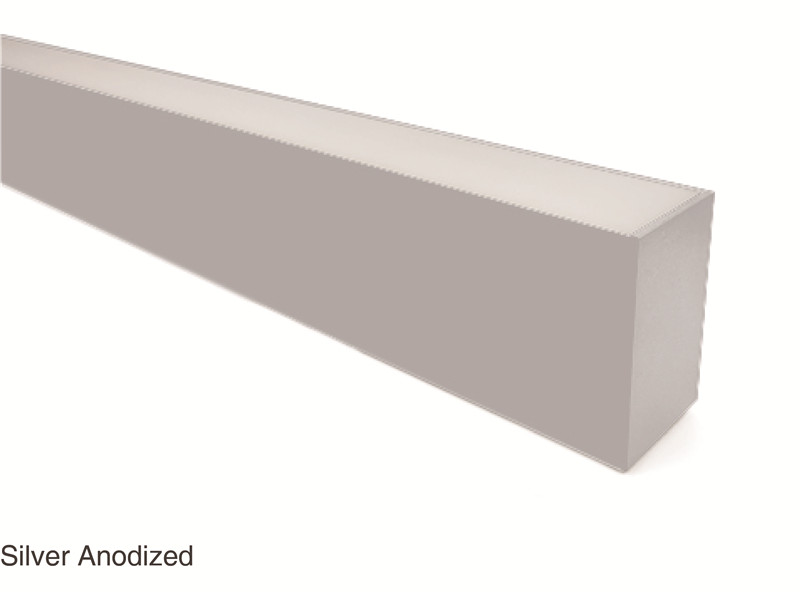

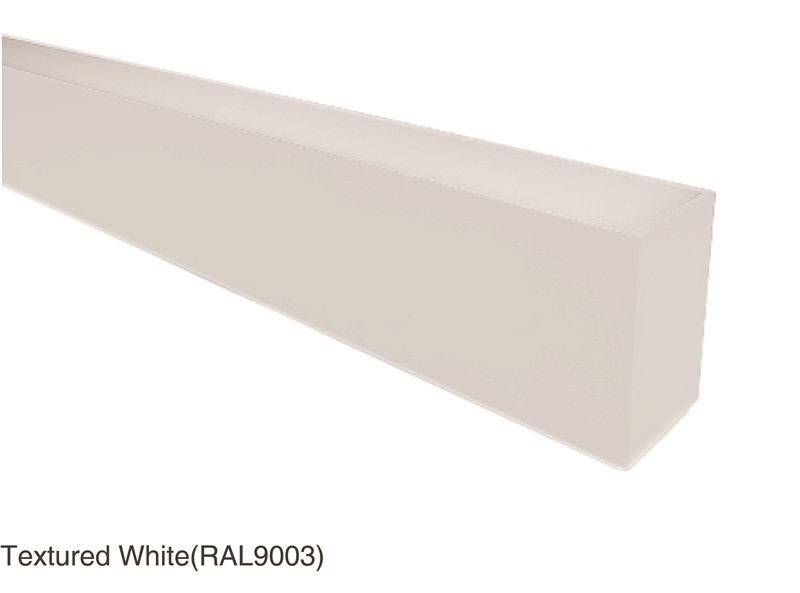

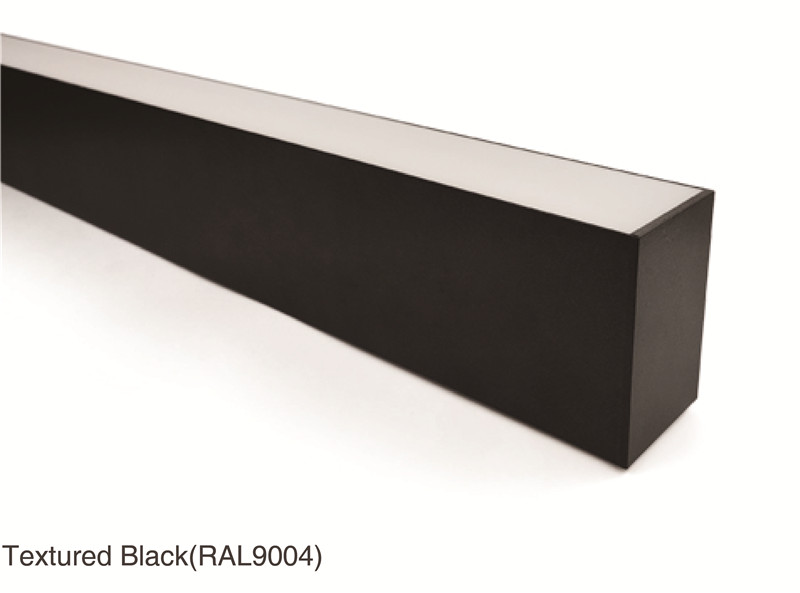

Finish

Standard in matt white textured, matt black textured powder coating and silver anodized. More customized colors up 48 options available in customized service.

Finish01 (1)
Finish01 (2)
Finish01 (3)

Color Option

slim crystal louver-12

Range of Applications

Outstanding lighting outcomes for varied settings: Offices, Educational Institutions, Conference Rooms. Versatility guarantees impeccable illumination, tailored to each environment's unique demands.

Specification

Model

HAO

Input Vol. 220-240VAC

Direct Optial

Louver & Reflector

Power 40W

Direct Beam Angle

12° / 24°

LED Bridgelux

UGR

<16

SDCM <3

Indirect Optial

Clear Lens

Lumen 3330-3811lm/pc

Indirect Beam Angle

105°

Efficiency 93lm/W

Finish

Textured Black (RAL9004)
Textrued White (RAL9003)
Silver Anodized

Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1208 x W55 x H93mm

Life Time 50,000hrs

IP / IK

IP22 / IK06

THD <20%

Installation

Pendant

Net Weight 1.7kgs

Luminaire: HAO, Optical: Louver & Reflector, Efficiency: 93lm/W, LED: Bridgelux, Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

DIRECT

INDIRECT

POWER

LUMEN

RA

CCT

DIM

Louver & Reflector

24°

<16

L1208mm

30.0W

2700lm

10.0W

1000lm

40.0W

3700lm

80+

3000K

On-Off

Louver & Reflector

24°

<16

L1208mm

30.9W

2700lm

10.3W

1000lm

41.2W

3700lm

80+

3000K

0-10V

Louver & Reflector

24°

<16

L1208mm

30.9W

2700lm

10.3W

1000lm

41.2W

3700lm

80+

3000K

DALI

Louver & Reflector

24°

<16

L1208mm

30.0W

2430lm

10.0W

900lm

40.0W

3330lm

90+

3000K

On-Off

Louver & Reflector

24°

<16

L1208mm

30.9W

2430lm

10.3W

900lm

41.2W

3330lm

90+

3000K

0-10V

Louver & Reflector

24°

<16

L1208mm

30.9W

2430lm

10.3W

900lm

41.2W

3330lm

90+

3000K

DALI

Louver & Reflector

24°

<16

L1208mm

30.0W

2781lm

10.0W

1030lm

40.0W

3811lm

80+

4000K

On-Off

Louver & Reflector

24°

<16

L1208mm

30.9W

2781lm

10.3W

1030lm

41.2W

3811lm

80+

4000K

0-10V

Louver & Reflector

24°

<16

L1208mm

30.9W

2781lm

10.3W

1030lm

41.2W

3811lm

80+

4000K

DALI

Louver & Reflector

24°

<16

L1208mm

30.0W

2503lm

10.0W

927lm

40.0W

3430lm

90+

4000K

On-Off

Louver & Reflector

24°

<16

L1208mm

30.9W

2503lm

10.3W

927lm

41.2W

3430lm

90+

4000K

0-10V

Louver & Reflector

24°

<16

L1208mm

30.9W

2503lm

10.3W

927lm

41.2W

3430lm

90+

4000K

DALI

Model

HAO

Input Vol. 220-240VAC

Direct Optial

Louver & Reflector

Power 51W

Direct Beam Angle

12° / 24°

LED Bridgelux

UGR

<16

SDCM <3

Indirect Optial

Clear Lens

Lumen 4248-4862lm/pc

Indirect Beam Angle

105°

Efficiency 93lm/W

Finish

Textured Black (RAL9004)
Textrued White (RAL9003)
Silver Anodized

Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1508 x W55 x H93mm

Life Time 50,000hrs

IP / IK

IP22 / IK06

THD <20%

Installation

Pendant

Net Weight 1.7kgs

Luminaire: HAO, Optical: Louver & Reflector, Efficiency: 93lm/W, LED: Bridgelux, Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

DIRECT

INDIRECT

POWER

LUMEN

RA

CCT

DIM

Louver & Reflector

24°

<16

L1508mm

38.0W

3420lm

13.0W

1300lm

51.0W

4720lm

80+

3000K

On-Off

Louver & Reflector

24°

<16

L1508mm

39.1W

3420lm

13.4W

1300lm

52.5W

4720lm

80+

3000K

0-10V

Louver & Reflector

24°

<16

L1508mm

39.1W

3420lm

13.4W

1300lm

52.5W

4720lm

80+

3000K

DALI

Louver & Reflector

24°

<16

L1508mm

38.0W

3078lm

13.0W

1170lm

51.0W

4248lm

90+

3000K

On-Off

Louver & Reflector

24°

<16

L1508mm

39.1W

3078lm

13.4W

1170lm

52.5W

4248lm

90+

3000K

0-10V

Louver & Reflector

24°

<16

L1508mm

39.1W

3078lm

13.4W

1170lm

52.5W

4248lm

90+

3000K

DALI

Louver & Reflector

24°

<16

L1508mm

38.0W

3523lm

13.0W

1339lm

51.0W

4862lm

80+

4000K

On-Off

Louver & Reflector

24°

<16

L1508mm

39.1W

3523lm

13.4W

1339lm

52.5W

4862lm

80+

4000K

0-10V

Louver & Reflector

24°

<16

L1508mm

39.1W

3523lm

13.4W

1339lm

52.5W

4862lm

80+

4000K

DALI

Louver & Reflector

24°

<16

L1508mm

38.0W

3170lm

13.0W

1205lm

51.0W

4375lm

90+

4000K

On-Off

Louver & Reflector

24°

<16

L1508mm

39.1W

3170lm

13.4W

1205lm

52.5W

4375lm

90+

4000K

0-10V

Louver & Reflector

24°

<16

L1508mm

39.1W

3170lm

13.4W

1205lm

52.5W

4375lm

90+

4000K

DALI
