ZOLI-High-Performance PC Diffuser LED Linear Light Fixture LED Lighting, Sustainable LED Lighting in Contemporary, Modern Interior Spaces with Energy-Efficiency and Stylish Design
Product Introduction
The U5168 Series stands at the forefront of cutting-edge linear LED lighting, meticulously designed to deliver exceptional downlighting. Constructed from a single-piece extruded 6063 Aluminum profile, this fixture not only ensures durability but also excels in high heat dissipation performance for prolonged and reliable use.
Facilitating streamlined field installation, the U5168 Series incorporates an effortless tool connecting operation using One Nut joining. This thoughtful design includes an open space, simplifying AC wiring and maintenance procedures, ensuring quick and hassle-free setup and upkeep.
To enhance versatility, the U5168 Series offers multiple angular module options and a flexible joining solution in the field, effectively reducing labor operations and optimizing installation convenience.
A standout feature is its tailored customization capabilities for projects. Specifications, including luminaire length, CRI, power, and luminaire efficiency, can be finely adjusted to meet specific requirements, catering to a diverse range of applications. The U5168 Series truly represents a comprehensive lighting solution that seamlessly combines advanced features with adaptability for various lighting scenarios.
Feature
1.Precision Downlighting: Unveiling the U5168 Series, a linear LED lighting fixture meticulously designed for efficient downlighting. Crafted from a single-piece extruded 6063 Aluminum profile, this fixture excels in delivering optimal illumination while ensuring superior heat dissipation for long-lasting performance.
2.Effortless Installation: The U5168 Series stands out with its user-friendly One Nut joining operation, simplifying field installation. Its well-thought-out design provides an open space for hassle-free AC wiring and maintenance, enhancing convenience during setup and upkeep.

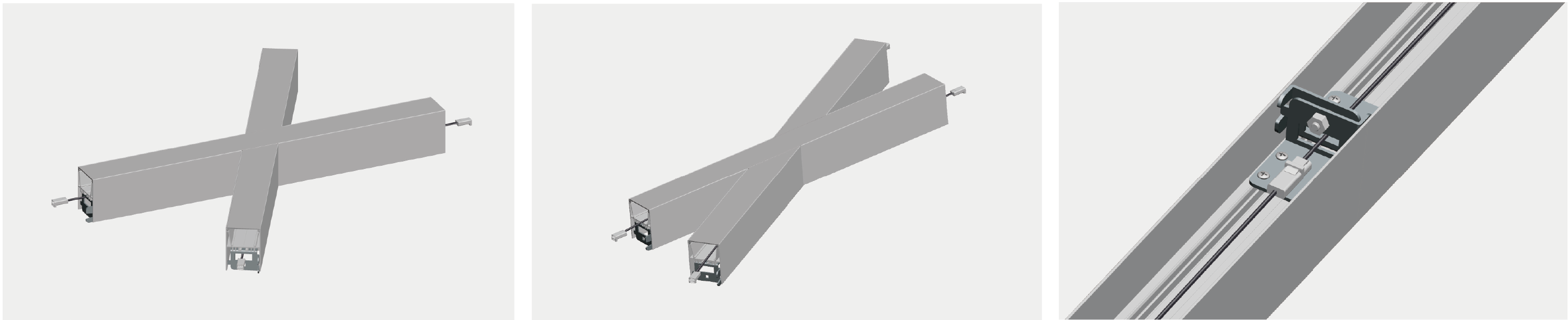

3.Flexible Angular Modules: Choose from a range of angular module options within the U5168 Series, offering flexibility in lighting angles. This fixture also provides a practical and adaptable joining solution in the field, reducing labor operations and streamlining the installation process.
4.Customized for Your Project: A distinctive feature of the U5168 Series is its adaptability to meet project-specific requirements. Customize specifications such as luminaire length, CRI, power, and luminaire efficiency, ensuring versatility to cater to various applications. The U5168 Series is the ideal choice for a wide range of lighting scenarios, providing tailored solutions for your projects.

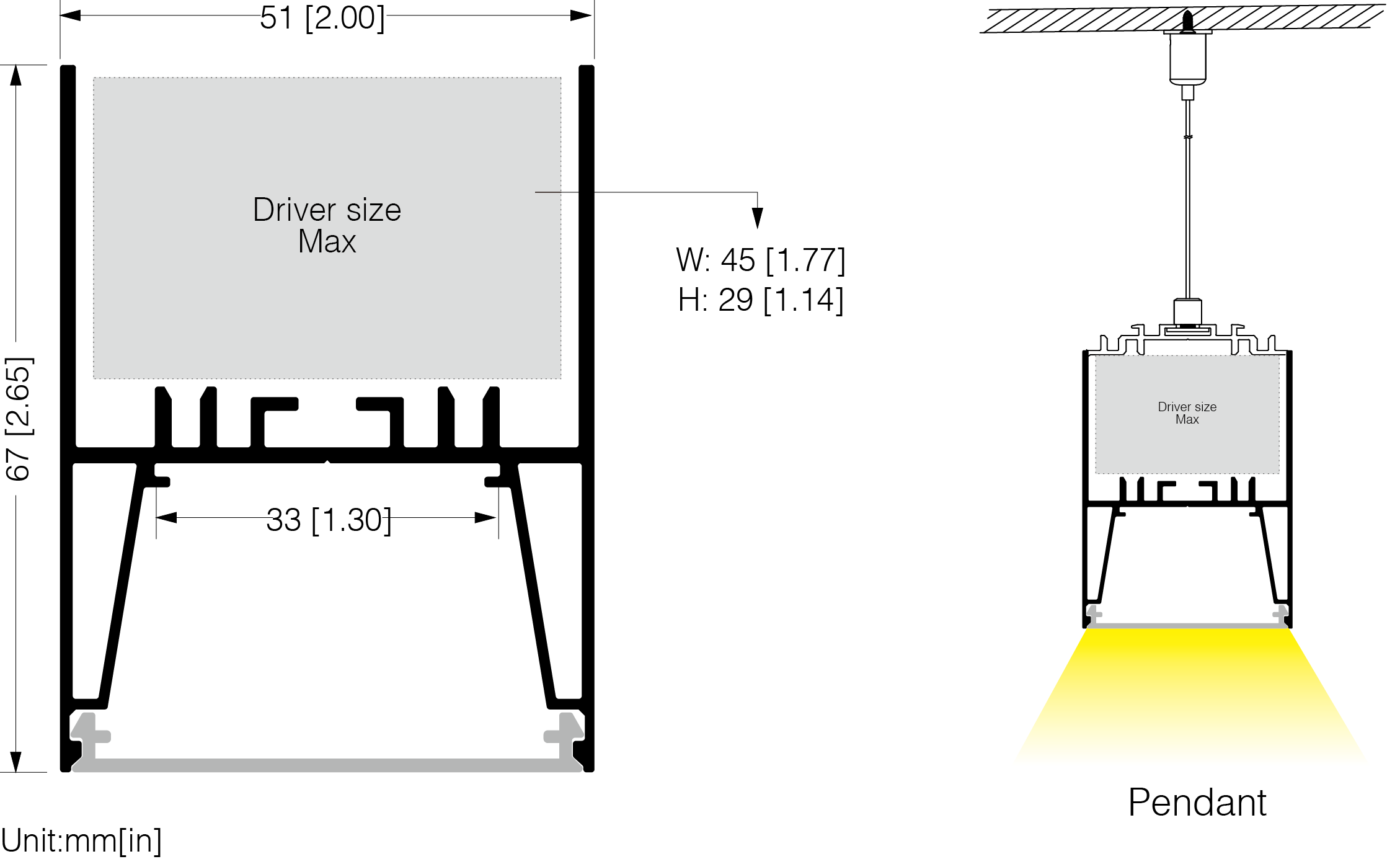

Dimension & Installation

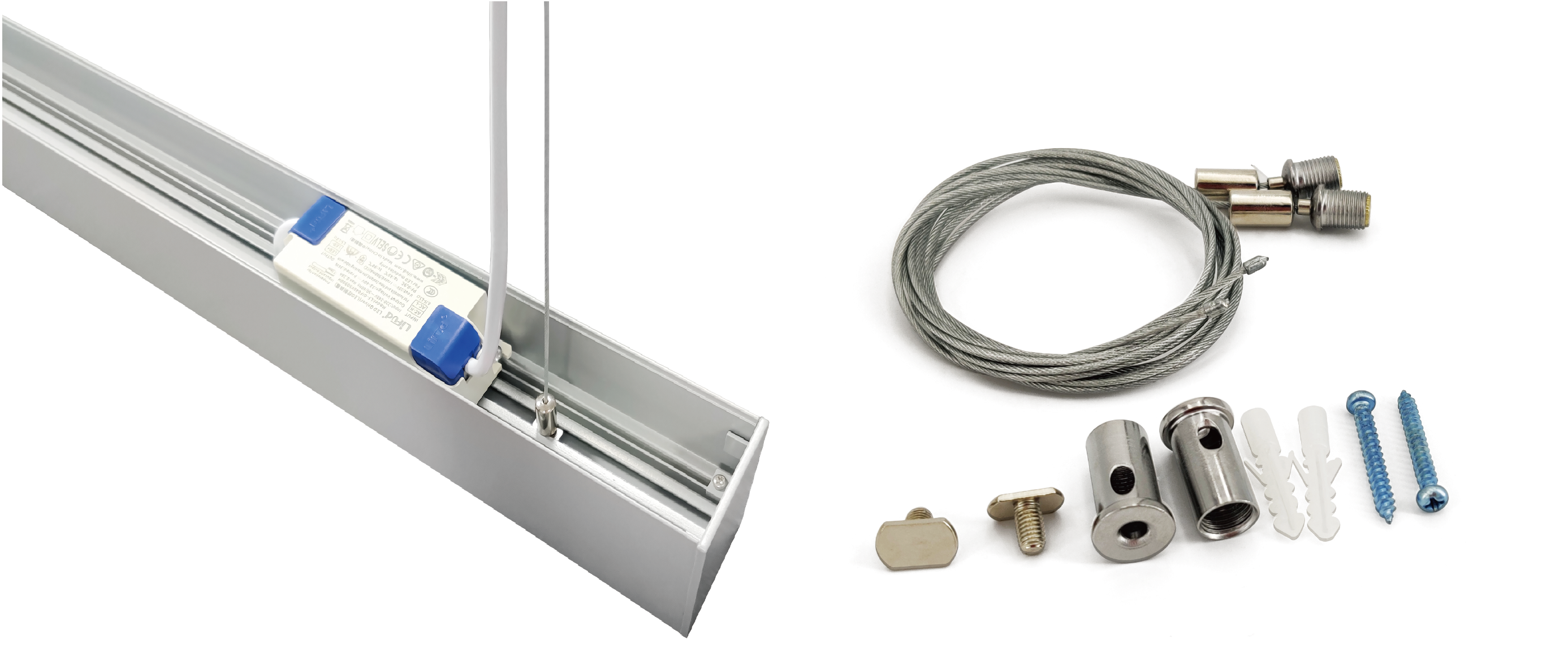

Accessories

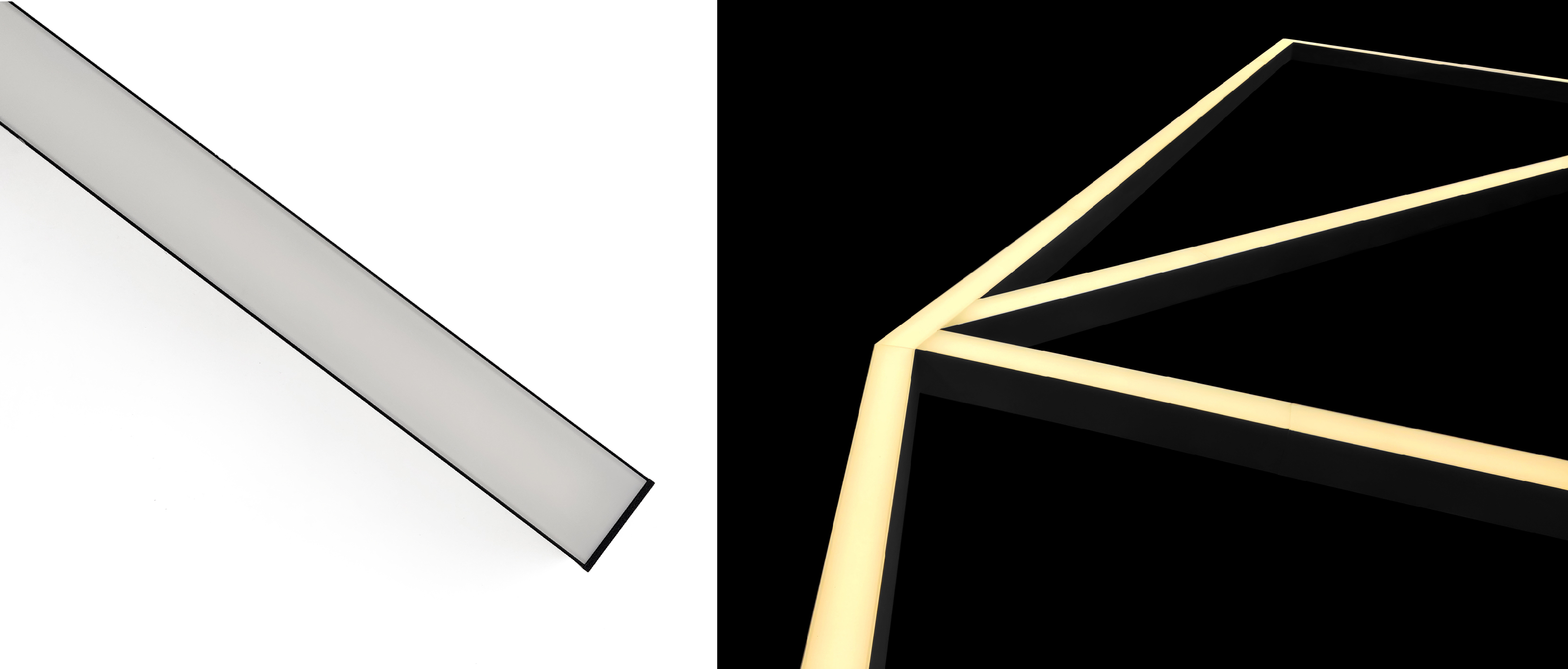

Finish
Choose from our standard options, featuring Matt White textured, Matt Black textured powder coating, and Silver anodized finishes.
For a touch of personalization, our Customized service expands your choices to include a palette of up to 48 additional colors, allowing you to curate your selection to perfectly match your preferences.
Color Option

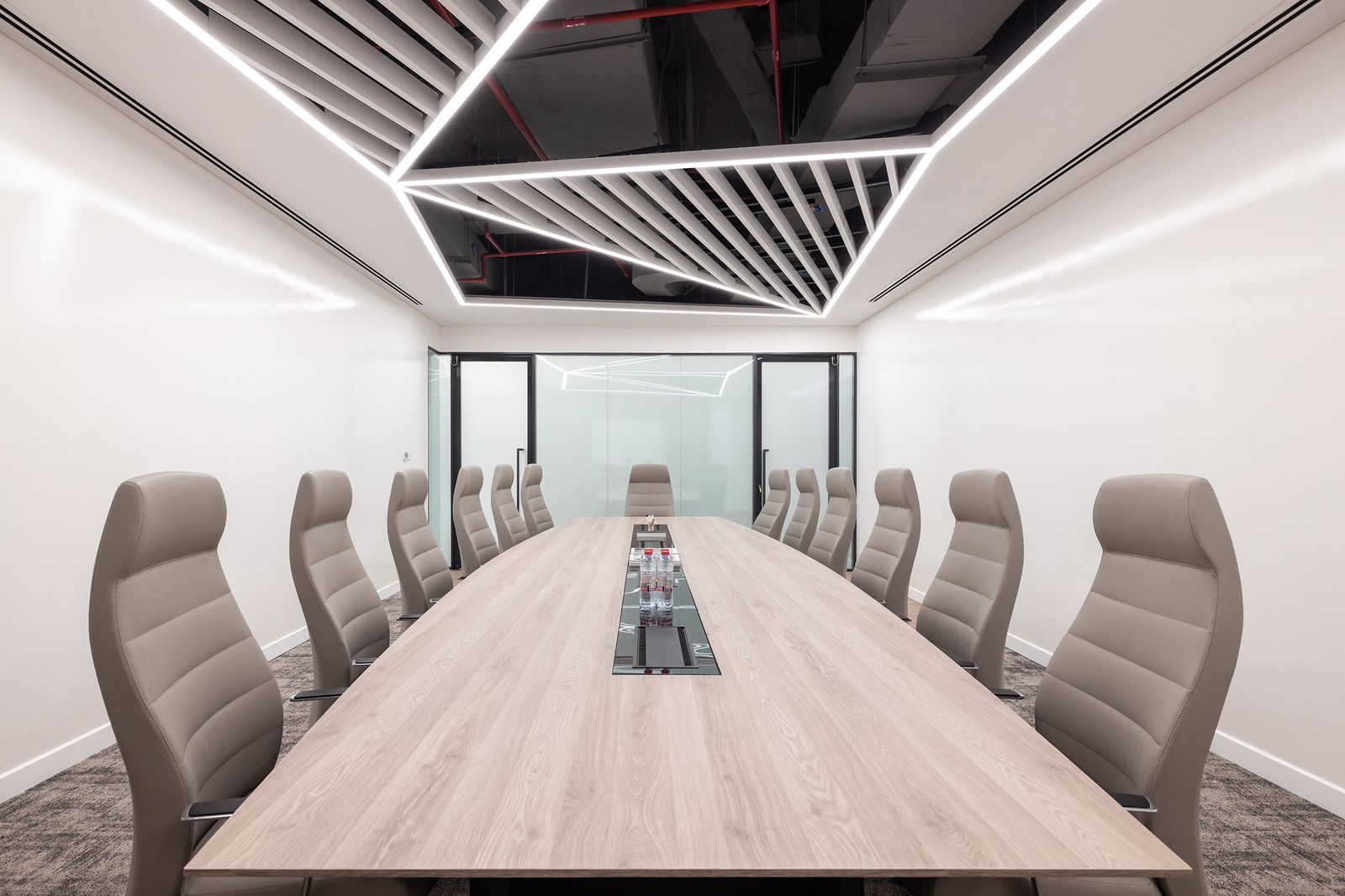

Applications
Our lighting fixtures showcase remarkable versatility and adaptability, performing exceptionally in a variety of environments.
Whether illuminating offices, educational institutions, or conference rooms with ambient light or offering focused illumination in diverse workspaces, our fixtures stand out.
They not only enhance productivity in office spaces but also foster a conducive learning atmosphere in educational settings, establishing them as the ideal lighting solution for a wide range of environments.
Specification
|
Model |
U5168 |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser Lens |
Power |
15W |
|
Beam Angle |
105° |
LED |
2835SMD |
|
UGR |
<26 |
SDCM |
<3 |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L1208 x W51 x H68mm |
Lumen |
1350-2008lm/pc |
|
IP / IK |
IP22 |
Efficiency |
90-130lm/W |
|
Installation |
Pendant |
THD |
<20% |
|
Net Weight |
1.35kgs |
Life Time |
50,000hrs |
|
Luminaire: U5168, Optical: PC Lens, Power: 15W Efficiency: 90lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1350lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1350lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1350lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1215lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1215lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1215lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1391lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1391lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1391lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1251lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1251lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1251lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1283lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1283lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1283lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1154lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1154lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1154lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U5168, Optical: PC Lens, Power: 15W Efficiency: 110lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1650lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1650lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1650lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1485lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1485lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1485lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1700lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1700lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1700lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1530lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1530lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1530lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1568lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1568lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1568lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1411lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1411lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1411lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U5168, Optical: PC Lens, Power: 15W Efficiency: 130lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1950lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1950lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1950lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1755lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1755lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1755lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
2009lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
2009lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
2009lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1808lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1808lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1808lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1853lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1853lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1853lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.0W |
1667lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1667lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
15.5W |
1667lm |
90+ |
2700-4000K |
DALI |
|
Model |
U5168 |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser Lens |
Power |
27W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
UGR |
<26 |
SDCM |
<3 |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L1208 x W51 x H68mm |
Lumen |
2430-3615lm/pc |
|
IP / IK |
IP22/IK06 |
Efficiency |
90-130lm/W |
|
Installation |
Pendant |
THD |
<20% |
|
Net Weight |
1.35kgs |
Life Time |
50,000hrs |
|
Luminaire: U5168, Optical: PC Lens, Power: 27W Efficiency: 90lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
2430lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2430lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2430lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
2187lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2187lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2187lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
2503lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2503lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2503lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
2253lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2253lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2253lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
2309lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2309lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2309lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
2078lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2078lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2078lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U5168, Optical: PC Lens, Power: 27W Efficiency: 110lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
2970lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2970lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2970lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
2673lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2673lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2673lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
3059lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3059lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3059lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
2753lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2753lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2753lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
2822lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2822lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2822lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
2539lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2539lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
2539lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U5168, Optical: PC Lens, Power: 27W Efficiency: 130lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
3510lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3510lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3510lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
3159lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3159lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3159lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
3615lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3615lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3615lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
3254lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3254lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3254lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
3335lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3335lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3335lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.0W |
3001lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3001lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
27.8W |
3001lm |
90+ |
2700-4000K |
DALI |
|
Model |
U5168 |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser Lens |
Power |
35W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
UGR |
<26 |
SDCM |
<3 |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L1208 x W51 x H68mm |
Lumen |
2835-4687lm/pc |
|
IP / IK |
IP22/IK06 |
Efficiency |
90-130lm/W |
|
Installation |
Pendant |
THD |
<20% |
|
Net Weight |
1.35kgs |
Life Time |
50,000hrs |
|
Luminaire: U5168, Optical: PC Lens, Power: 35W Efficiency: 90lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
3150lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3150lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3150lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
2835lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
2835lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
2835lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
3245lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3245lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3245lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
2920lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
2920lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
2920lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
2993lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
2993lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
2993lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
2693lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
2693lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
2693lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U5168, Optical: PC Lens, Power: 35W Efficiency: 110lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
3850lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3850lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3850lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
3465lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3465lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3465lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
3966lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3966lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3966lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
3569lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3569lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3569lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
3658lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3658lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3658lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
3292lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3292lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3292lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U5168, Optical: PC Lens, Power: 35W Efficiency: 130lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
4550lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
4550lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
4550lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
4095lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
4095lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
4095lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
4687lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
4687lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
4687lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
4218lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
4218lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
4218lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
4323lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
4323lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
4323lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
35.0W |
3890lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3890lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1208mm |
36.1W |
3890lm |
90+ |
2700-4000K |
DALI |
|
Model |
U5168 |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser Lens |
Power |
27W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
UGR |
<26 |
SDCM |
<3 |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L1508 x W51 x H68mm |
Lumen |
2430-3615lm/pc |
|
IP / IK |
IP22/IK06 |
Efficiency |
90-130lm/W |
|
Installation |
Pendant |
THD |
<20% |
|
Net Weight |
1.45kg |
Life Time |
50,000hrs |
|
Luminaire: U5168, Optical: PC Lens, Power: 27W Efficiency: 90lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
2430lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2430lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2430lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
2187lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2187lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2187lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
2503lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2503lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2503lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
2253lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2253lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2253lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
2309lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2309lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2309lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
2078lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2078lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2078lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U5168, Optical: PC Lens, Power: 27W Efficiency: 110lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
2970lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2970lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2970lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
2673lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2673lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2673lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
3059lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3059lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3059lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
2753lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2753lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2753lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
2822lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2822lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2822lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
2539lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2539lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
2539lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U5168, Optical: PC Lens, Power: 27W Efficiency: 130lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
3510lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3510lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3510lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
3159lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3159lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3159lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
3615lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3615lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3615lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
3254lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3254lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3254lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
3335lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3335lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3335lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.0W |
3001lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3001lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
27.8W |
3001lm |
90+ |
2700-4000K |
DALI
|
|
Model |
U5168 |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser Lens |
Power |
36W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
UGR |
<26 |
SDCM |
<3 |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L1508 x W51 x H68mm |
Lumen |
3240-4914lm/pc |
|
IP / IK |
IP22/IK06 |
Efficiency |
90-130lm/W |
|
Installation |
Pendant |
THD |
<20% |
|
Net Weight |
1.35kgs |
Life Time |
50,000hrs |
|
Luminaire: U5168, Optical: PC Lens, Power: 36W Efficiency: 90lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
3240lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3240lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3240lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
2916lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
2916lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
2916lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
3337lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3337lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3337lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
3003lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3003lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3003lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
3078lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3078lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3078lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
2770lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
2770lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
2770lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U5168, Optical: PC Lens, Power: 36W Efficiency: 110lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
3960lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3960lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3960lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
3564lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3564lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3564lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
4079lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4079lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4079lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
3671lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3671lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3671lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
3762lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3762lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3762lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
3386lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3386lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
3386lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U5168, Optical: PC Lens, Power: 36W Efficiency: 130lm/W, LED: SMD 2835, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
4680lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4680lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4680lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
4212lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4212lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4212lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
4820lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4820lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4820lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
4338lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4338lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4338lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
4446lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4446lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4446lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
36.0W |
4001lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4001lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
37.1W |
4001lm |
90+ |
2700-4000K |
DALI |
|
Model |
U5168 |
Input Vol. |
220-240VAC |
|
Optical |
PC Diffuser Lens |
Power |
45W |
|
Beam Angle |
105° |
LED |
2835 SMD |
|
UGR |
<26 |
SDCM |
<3 |
|
Finish |
Textured Black (RAL9004) |
Dim / PF |
On/Off >0.9 |
|
Dimension |
L1508 x W51 x H68mm |
Lumen |
4050-6143lm/pc |
|
IP / IK |
IP22/IK06 |
Efficiency |
90-130lm/W |
|
Installation |
Pendant |
THD |
<20% |
|
Net Weight |
1.45kgs |
Life Time |
50,000hrs |
|
Luminaire: U5168, Optical: PC Lens, Power: 45W Efficiency: 90lm/W, LED: 2835 SMD, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
4050lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4050lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4050lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
3645lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
3645lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
3645lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
4172lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4172lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4172lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
3754lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
3754lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
3754lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
3848lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
3848lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
3848lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
3463lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
3463lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
3463lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U5168, Optical: PC Lens, Power: 45W Efficiency: 110lm/W, LED: 2835 SMD, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
4950lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4950lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4950lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
4455lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4455lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4455lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
5099lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
5099lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
5099lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
4589lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4589lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4589lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
4703lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4703lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4703lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
4232lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4232lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
4232lm |
90+ |
2700-4000K |
DALI |
|
Luminaire: U5168, Optical: PC Lens, Power: 45W Efficiency: 130lm/W, LED: 2835 SMD, Driver: Lifud |
||||||||
|
OPTICAL |
ANGLE |
UGR |
LENGTH |
POWER |
LUMEN |
RA |
CCT |
DIM |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
5850lm |
80+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
5850lm |
80+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
5850lm |
80+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
5265lm |
90+ |
3000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
5265lm |
90+ |
3000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
5265lm |
90+ |
3000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
6026lm |
80+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
6026lm |
80+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
6026lm |
80+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
5423lm |
90+ |
4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
5423lm |
90+ |
4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
5423lm |
90+ |
4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
5558lm |
80+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
5558lm |
80+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
5558lm |
80+ |
2700-4000K |
DALI |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
45.0W |
5002lm |
90+ |
2700-4000K |
On-Off |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
5002lm |
90+ |
2700-4000K |
0-10V |
|
PC Diffuser Lens |
105° |
<26 |
L1508mm |
46.4W |
5002lm |
90+ |
2700-4000K |
DALI |
-
U5168 Pendant Installation
-
U5168 Pendant Joining
-
1, ZOLI U5168 SERIES PC DIFFUSER LENS LINEAR LIGHT
Related Products
CONTACT
-
address: No. 1 TianQin St., Wusha Industrial Zone, Henglan Town, ZhongShan, Guangdong, China
-
Phone
-
E-mail
-
Whatsapp
-
Top
