BVG-O Waterproof Wall washer IP65 linear light with 12 optical lens options

Short Description:

With width of 29.5mm, height of 39.5mm, this waterproof Wall washer linear light BVG-O is designed with 12 optical lens options from Narrow 9° to flood 35°x48°.

Featuring injected high-efficiency acrylic precision TIR lens, it provides a narrow optical and clean light beam to highlight wall textures without shadow and hotspot.

Due to its waterproof feature, it is popular used in damp places, such as corridor, washing rooms.

Send email to us

+86 -150 1296 2268（Ivy Chen）

+86 -132 2957 2611（Kelsie Liang）

+86 -137 5101 2331（Wendy Wu）

ACOUSTICAL CALCULATOR TOOL

Product Detail

Download

Product Tags

Product Introduction

The widespread popularity of LED wall washers stems from their versatility and adaptability, making them a preferred choice across various lighting applications. Particularly effective in uniformly illuminating expansive surfaces or enhancing the aesthetic appeal of a space, the BVG-O Waterproof Linear Wall Washer Light offers remarkable flexibility.

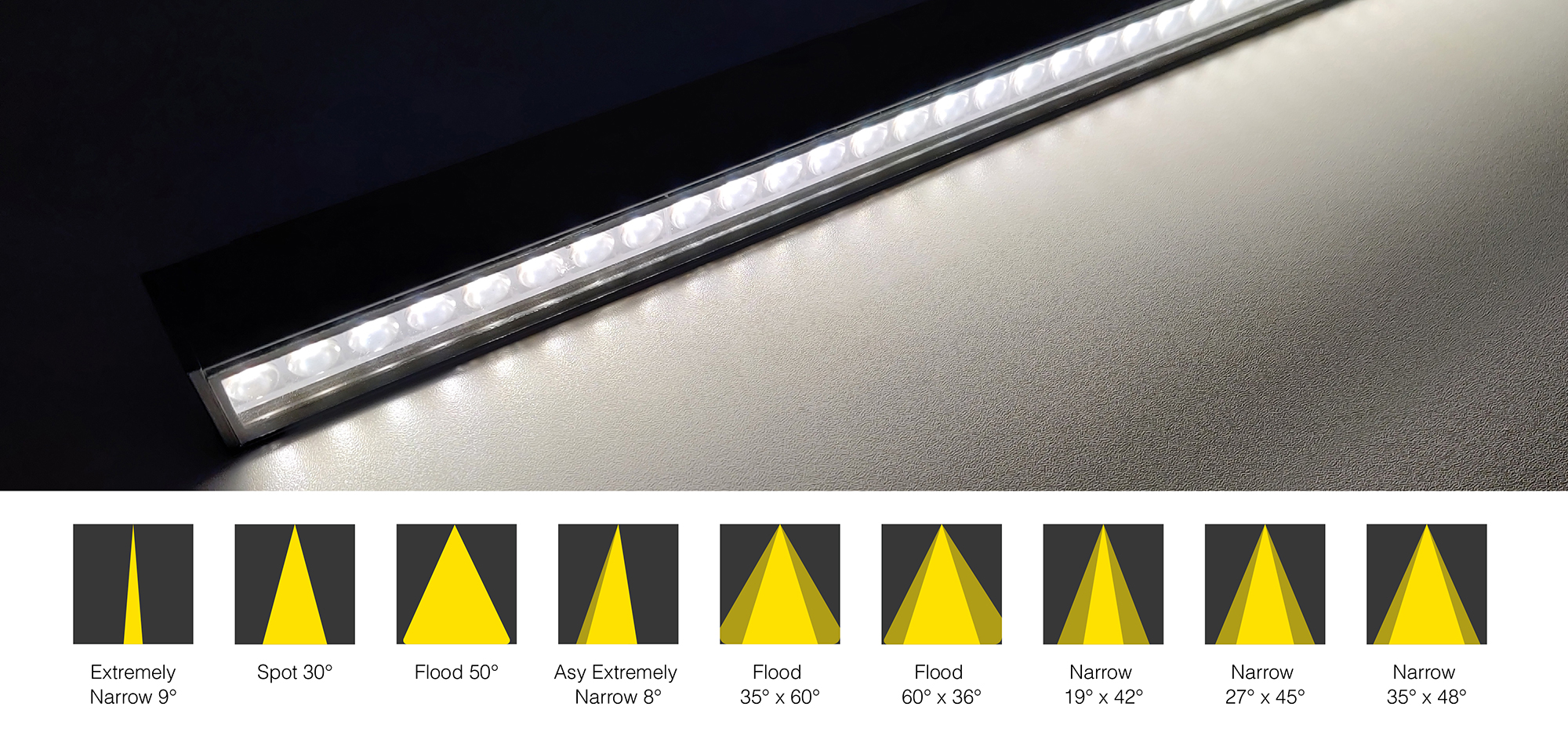

Equipped with a range of lens options including narrow 9°, medium, and wide beam angles like 35°x48°, this wall washer allows for versatile lighting designs. Users can easily achieve the desired effect and coverage tailored to specific space requirements. Additionally, as an IP65-rated wall grazer LED, it excels in damp environments such as corridors and washing rooms.

The installation process is made convenient through metal clips or a swivel bracket, enabling easy rotation of the fixture from 85° up to 80° down, catering to various preferences and situational needs.

BVG Waterproof Wall washer IP65 linear light with 12 optical lens options-01 (2)

BVG Waterproof Wall washer IP65 linear light with 12 optical lens options-01 (1)

Feature

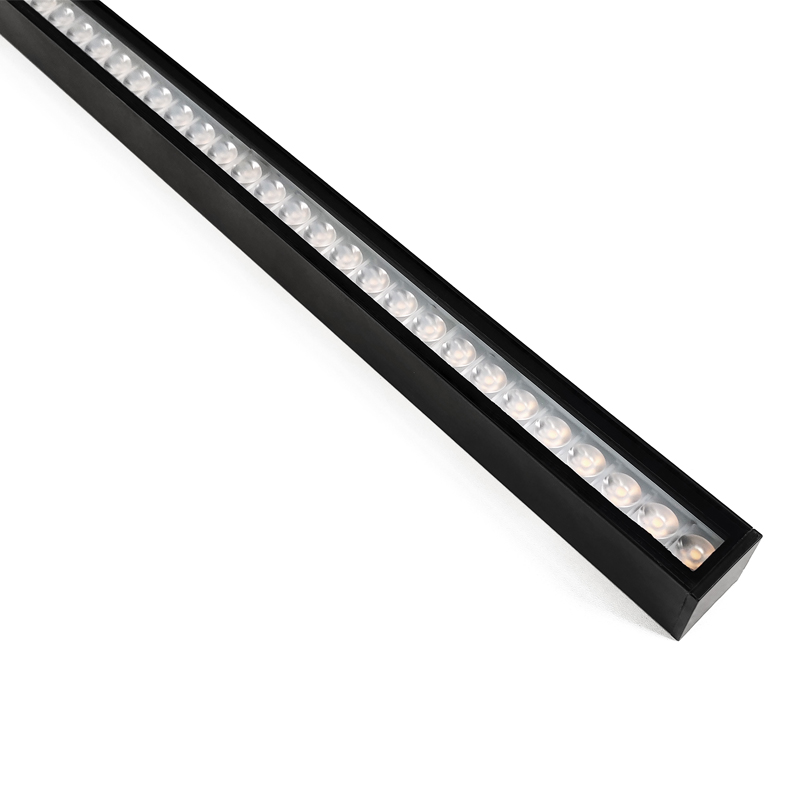

1,Crafted from high-quality 6063 aluminum housing: This product boasts a construction using top-tier aluminum housing, known for its excellent heat dissipation properties that contribute to prolonging the wall washer grazer's lifespan.

2,12 optical lens options for optimal beam angle: Offering a diverse array of optical lens options, this wall grazer provides flexibility in choosing the ideal beam angle to meet specific lighting requirements.

3,Customizable fixture lengths with 120mm increments: Precision in length adjustments is achievable, allowing seamless integration within various architectural settings.

4, Effortless installation and adjustable direction: Ceiling-mounted clips ensure a straightforward and secure installation process, while the swivel bracket facilitates convenient adjustments to the lighting direction. The swivel bracket permits a rotational angle range from -85° to 85°, empowering users to precisely direct the light output.

5, IP65 Waterproof rating, ideal for damp environments: With its IP65 Waterproof rating, this lighting solution is well-suited for damp locations, making it perfect for spaces like bathrooms, kitchens, or outdoor areas exposed to moisture.

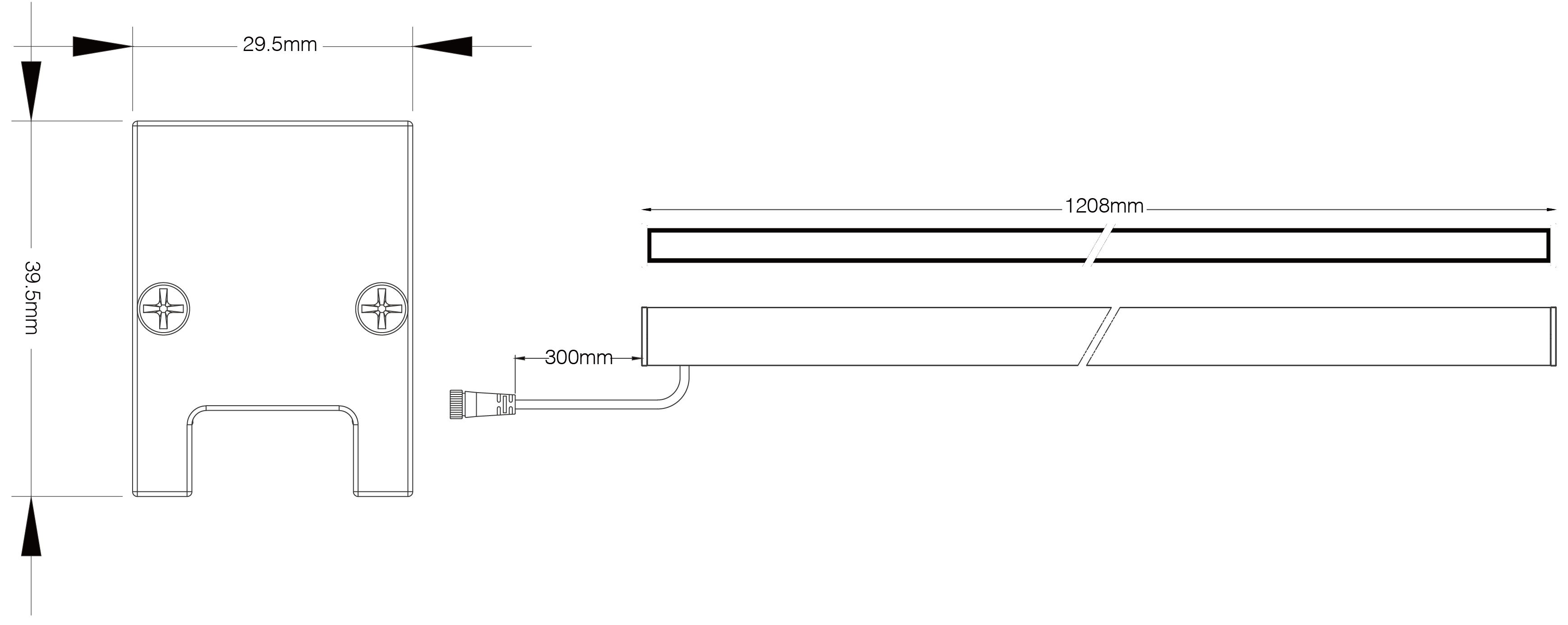

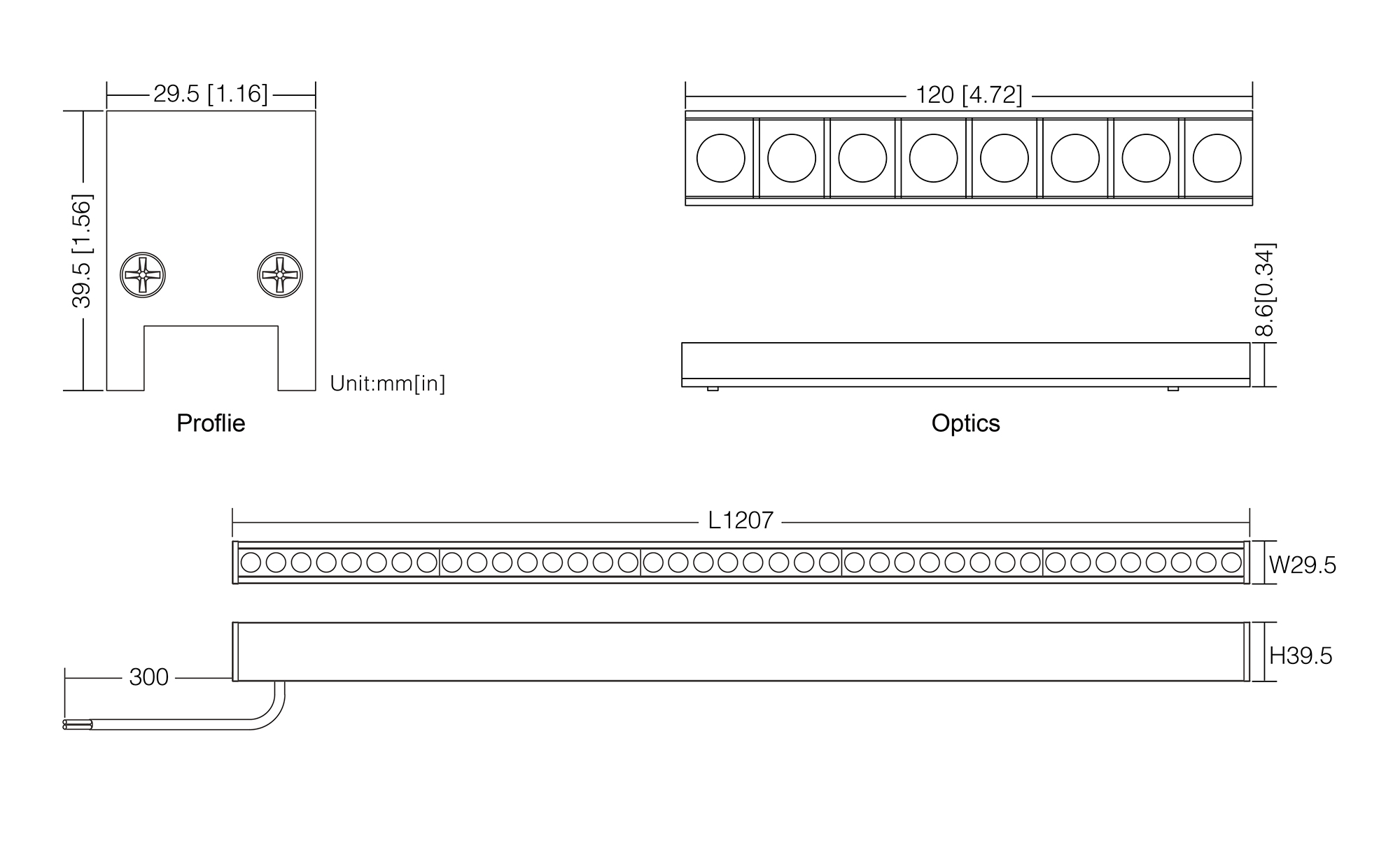

Dimension

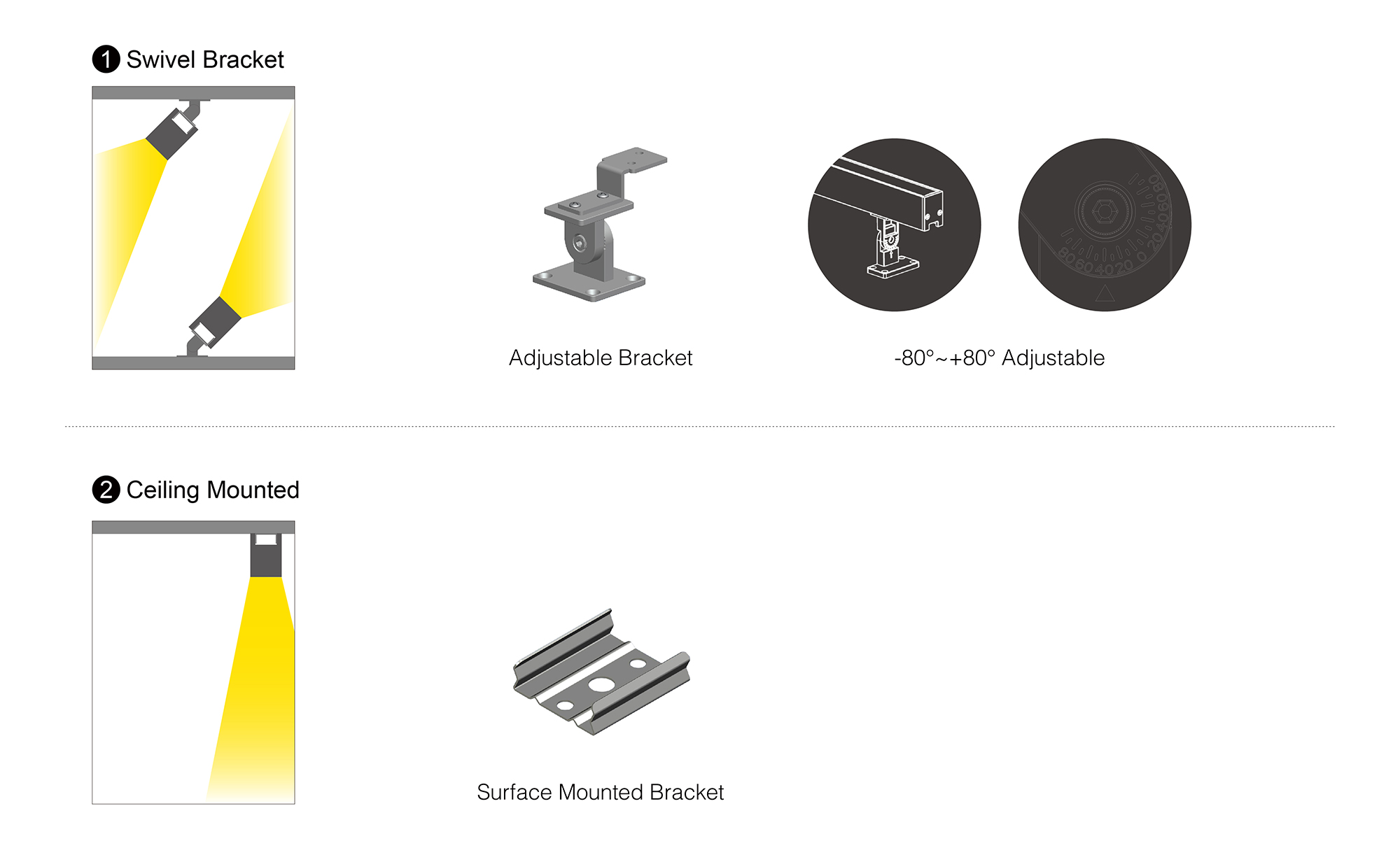

Accessories and installations

Finish

We offer standard finishes including Matt White textured, Matt Black textured powder coating, and Silver anodized options. To provide a personalized touch, our Customized service expands your choices to a palette of up to 48 additional colors, enabling you to customize your selection according to your preferences.

Color Option

Range of Applications

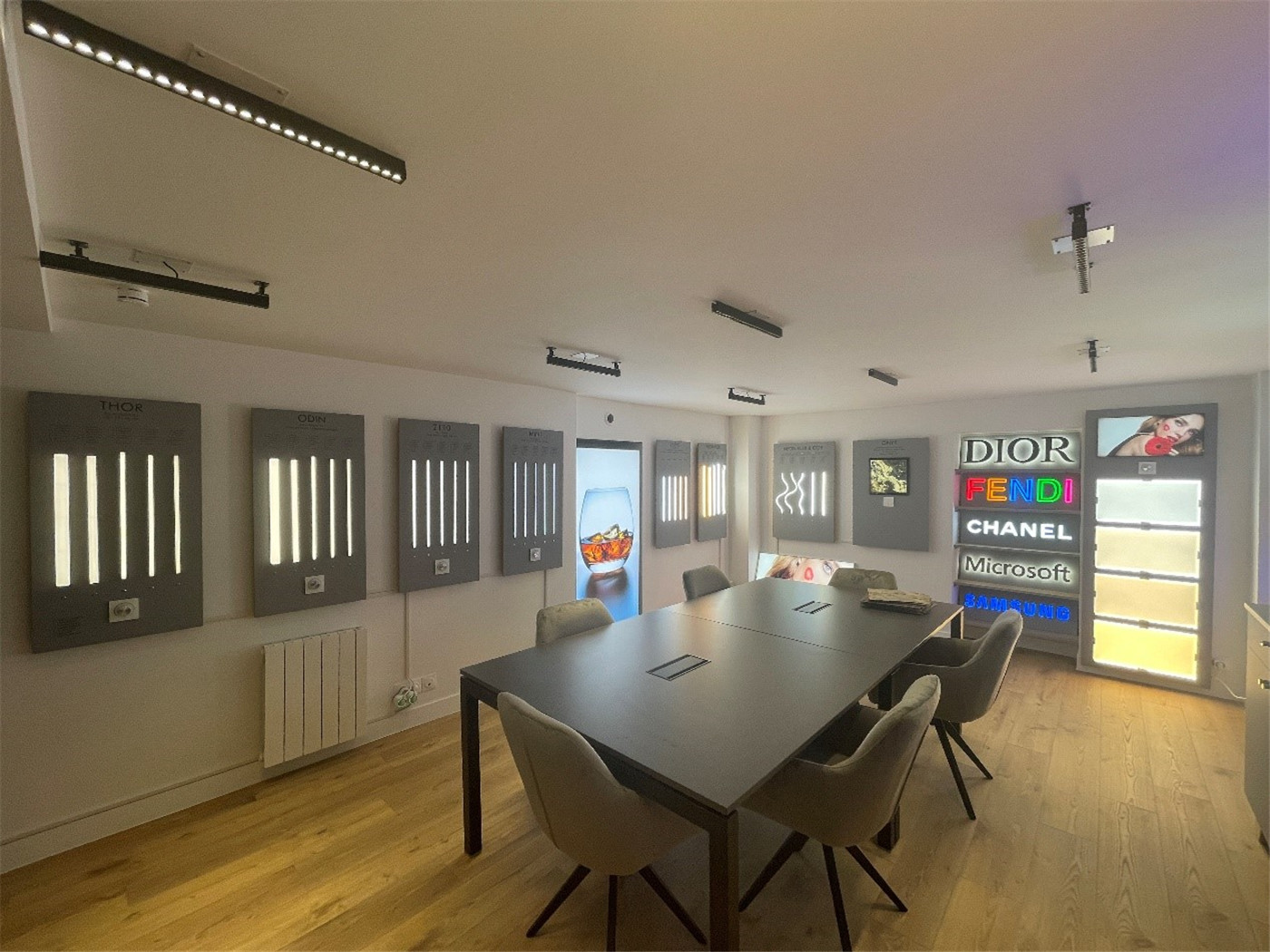

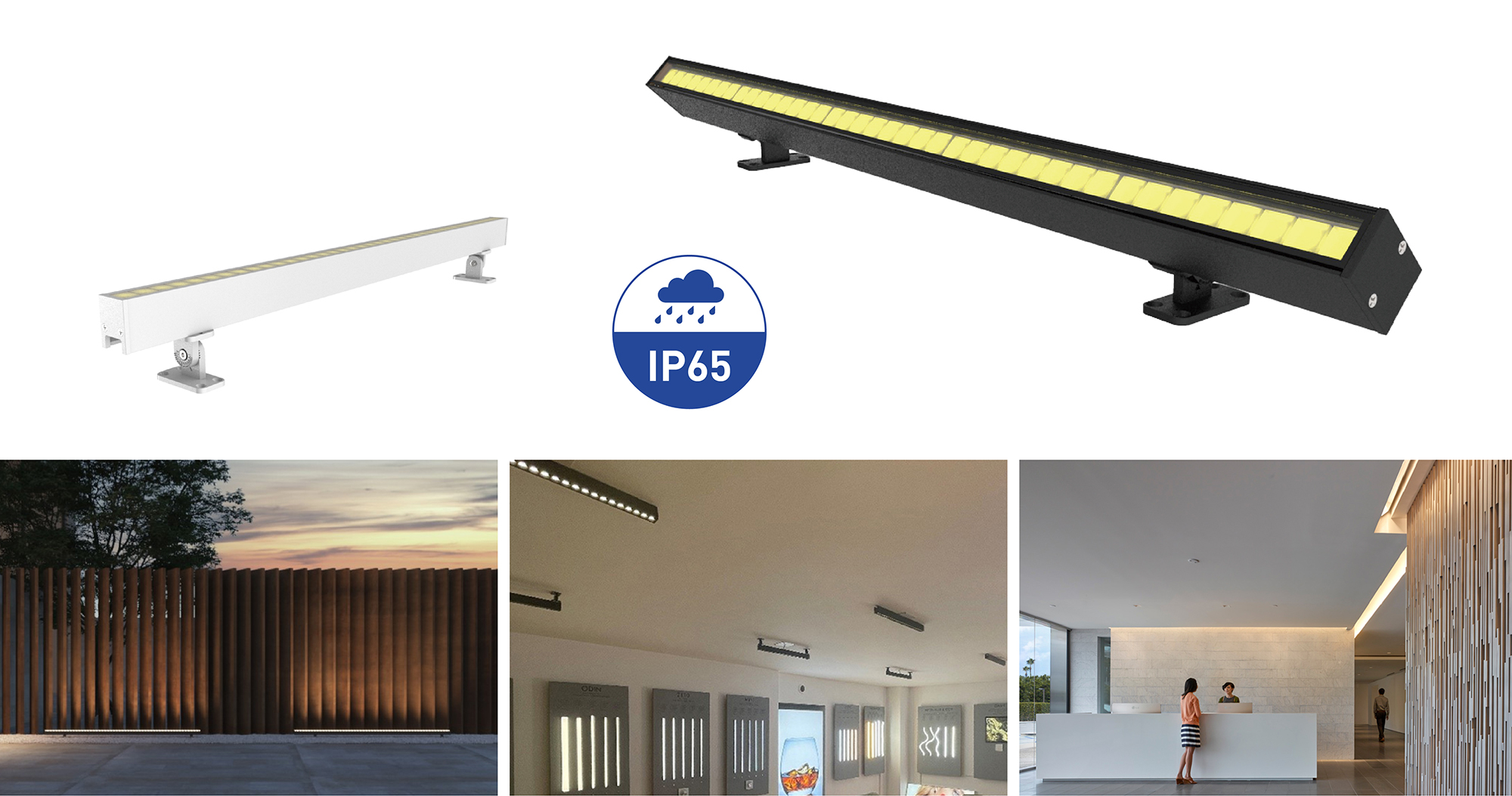

Extensively utilized in exhibition rooms, corridors, washrooms, retail stores, art galleries, museums, hospitality venues, office spaces, and various architectural structures.

BVG Waterproof Wall washer IP65 linear light with 12 optical lens options-01 (7)

Specification

Model	BVG-O	Input Vol.	24VDC Constant Vol.
Optical	Precision TIR Lens	Power	21W
Beam Angle	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	LED	Osram
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<19	SDCM	<3
Dimension	L1207 x W29.5x H39.5mm	Lumen	2352lm/pc
IP	IP65	Efficiency	112lm/W
Installation	Ceiling Mounting, Swivel Bracket	Life Time L80B10	50,000hrs
Net Weight	1.4kgs	THD	<20%

Luminaire: BVG-O, Optical: TIR Lens, Efficiency: 112lm/W, LED:Osram
OPTICAL	ANGLE	UGR	LENGTH	POWER	LUMEN	RA	CCT	DIM
TIR Lens	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	<19	L1207mm	21.0W	2352lm	80+	3000K	On-Off
TIR Lens	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	<19	L1207mm	21.6W	2352lm	80+	3000K	0-10V
TIR Lens	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	<19	L1207mm	21.6W	2352lm	80+	3000K	DALI
TIR Lens	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	<19	L1207mm	21.0W	2117lm	90+	3000K	On-Off
TIR Lens	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	<19	L1207mm	21.6W	2117lm	90+	3000K	0-10V
TIR Lens	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	<19	L1207mm	21.6W	2117lm	90+	3000K	DALI
TIR Lens	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	<19	L1207mm	21.0W	2423lm	80+	4000K	On-Off
TIR Lens	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	<19	L1207mm	21.6W	2423lm	80+	4000K	0-10V
TIR Lens	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	<19	L1207mm	21.6W	2423lm	80+	4000K	DALI
TIR Lens	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	<19	L1207mm	21.0W	2180lm	90+	4000K	On-Off
TIR Lens	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	<19	L1207mm	21.6W	2180lm	90+	4000K	0-10V
TIR Lens	9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°	<19	L1207mm	21.6W	2180lm	90+	4000K	DALI
