• BVG-T TIR Optical Interior Grazer Linear Light with 12 Optical Lens Options for Indoor Applications

BVG-T TIR Optical Interior Grazer Linear Light with 12 Optical Lens Options for Indoor Applications

Short Description:

Explore the BVG-T TIR Optical Interior Grazer Linear Light, engineered for indoor applications like surface mounted, pendant, and wall mounted installations.

Operating at 24V with compact dimensions of W25 x H35mm, this versatile fixture offers 12 optical lens options for precise light distribution.

Ideal for accentuating spaces with exceptional precision and style, this light is designed to enhance interior environments with its customizable configurations and efficient performance.

Elevate your space with the flexibility and quality of this linear light, tailored to meet various design needs while delivering impactful illumination for a range of indoor settings.


Product Detail

Download

Product Tags

Product Introduction

The BVG-T TIR Optical Interior Grazer Linear Light is an advanced indoor lighting solution designed for precise and versatile illumination. Crafted with precision TIR lenses made from injected high-efficiency acrylic, this fixture ensures clean, focused light distribution without shadows or hotspots. With 12 optical lens options, including beam angles such as 9°, 30°, 50°, Asy8°, 35x60°, and more, the BVG-T effectively highlights wall textures and architectural features with tailored lighting effects.

One key feature of the BVG-T is its customizable length, allowing for adjustments in 120mm increments. This flexibility enables tailored installations that optimize light coverage and integration within indoor spaces. Additionally, the fixture offers easy installation with flexible mounting options, including ceiling-mounted or swivel brackets with a rotating angle range of -80° to 80°, facilitating precise light direction adjustments.

Operating efficiently at 24V with compact dimensions (W25 x H35mm), the BVG-T is suitable for various indoor environments, including commercial, retail, hospitality, and architectural spaces. Experience the exceptional precision and impact of the BVG-T for accent lighting in your next project.

BVG-T TIR OPTICAL INTERIOR GRAZER LINEAR LIGHT (3)
5

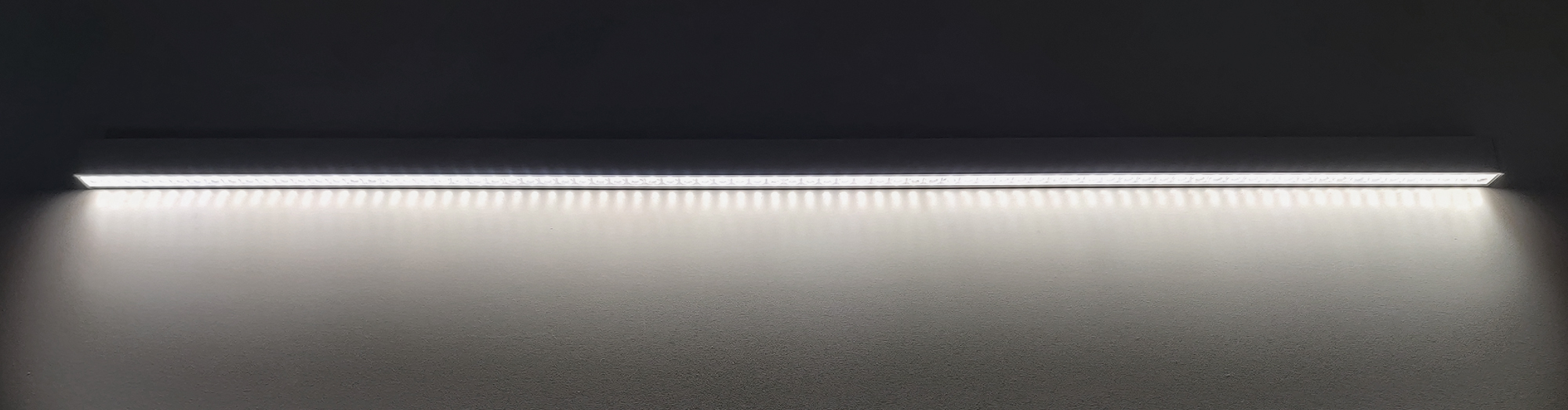

Feature

1, Precision TIR Lens: This linear light incorporates injected high-efficiency acrylic precision TIR (Total Internal Reflection) lenses. These lenses ensure clean and focused light distribution, minimizing shadows and hotspots while highlighting wall textures effectively.

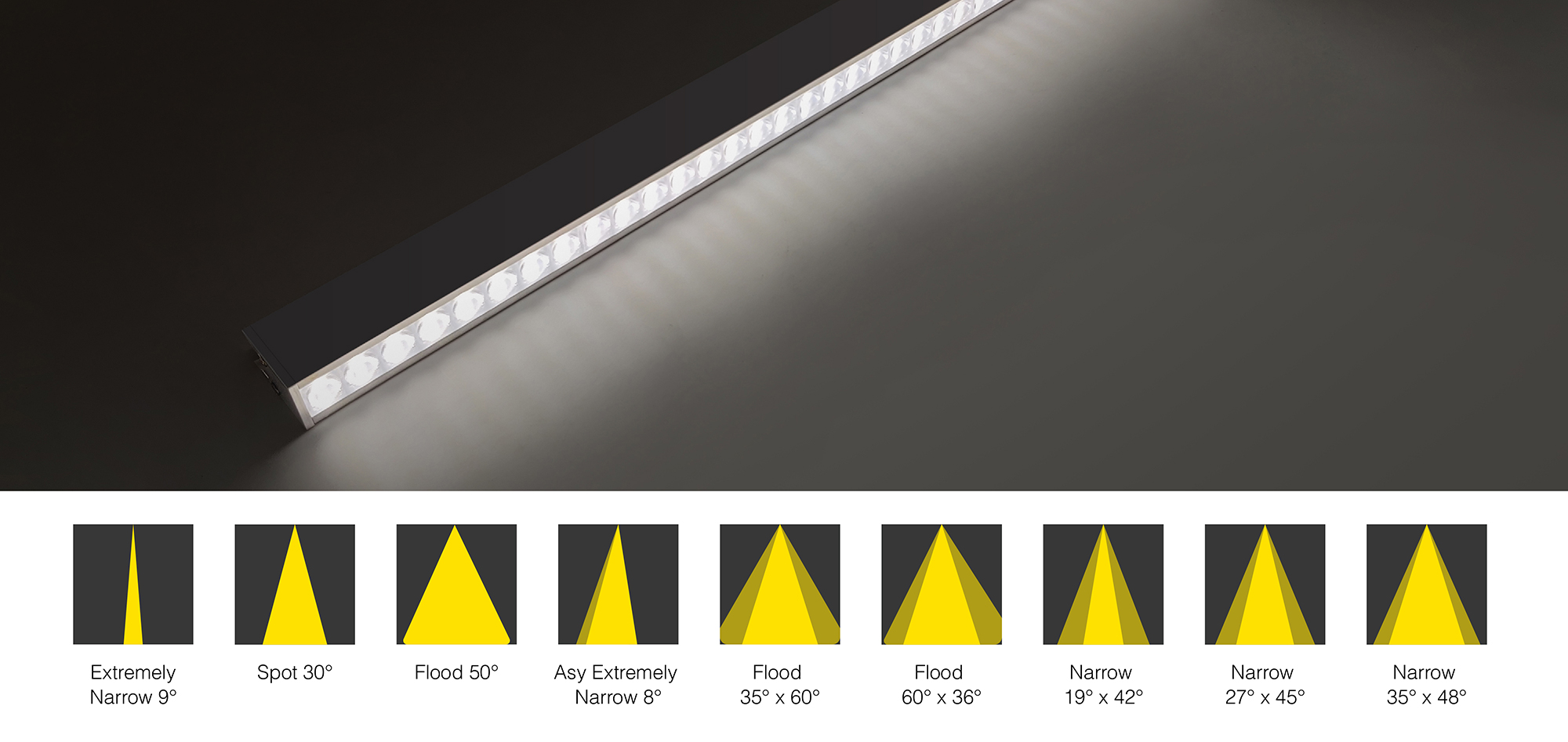

2, Versatile Optics: The BVG-T is engineered with 12 optical lens options, providing a variety of beam angles to suit different lighting requirements. These options include 9°, 30°, 50°, Asy8°, 35x60°, 60x36°, 19x42°, 27x45°, and 35x48° beam angles. Whether you need a narrow spotlight effect or a wider distribution, this fixture can deliver the desired lighting effect without compromising quality.

3, Customizable Length: This linear light is available in custom lengths, adjustable in 120mm increments. This feature allows for tailored installations to fit specific project requirements, ensuring optimal coverage and integration with the surrounding space.

4, Easy Installation with Flexible Mounting Options: Installing the BVG-T is simplified with its flexible mounting options. Ceiling-mounted or swivel brackets enable easy installation and provide a rotating angle range of -80° to 80°. This flexibility allows for precise adjustment of the light output direction, ensuring that the light can be directed precisely where it's needed most.

5, Efficient Performance: Operating at 24V with compact dimensions of W25 x H35mm, this linear light delivers efficient performance suitable for various indoor settings. The low-voltage operation enhances safety and energy efficiency, making it an ideal choice for commercial, retail, hospitality, and architectural applications.

6, Quality Design and Construction: The BVG-T is designed with a focus on quality and durability. It features robust construction and reliable components, ensuring long-lasting performance even in demanding environments.

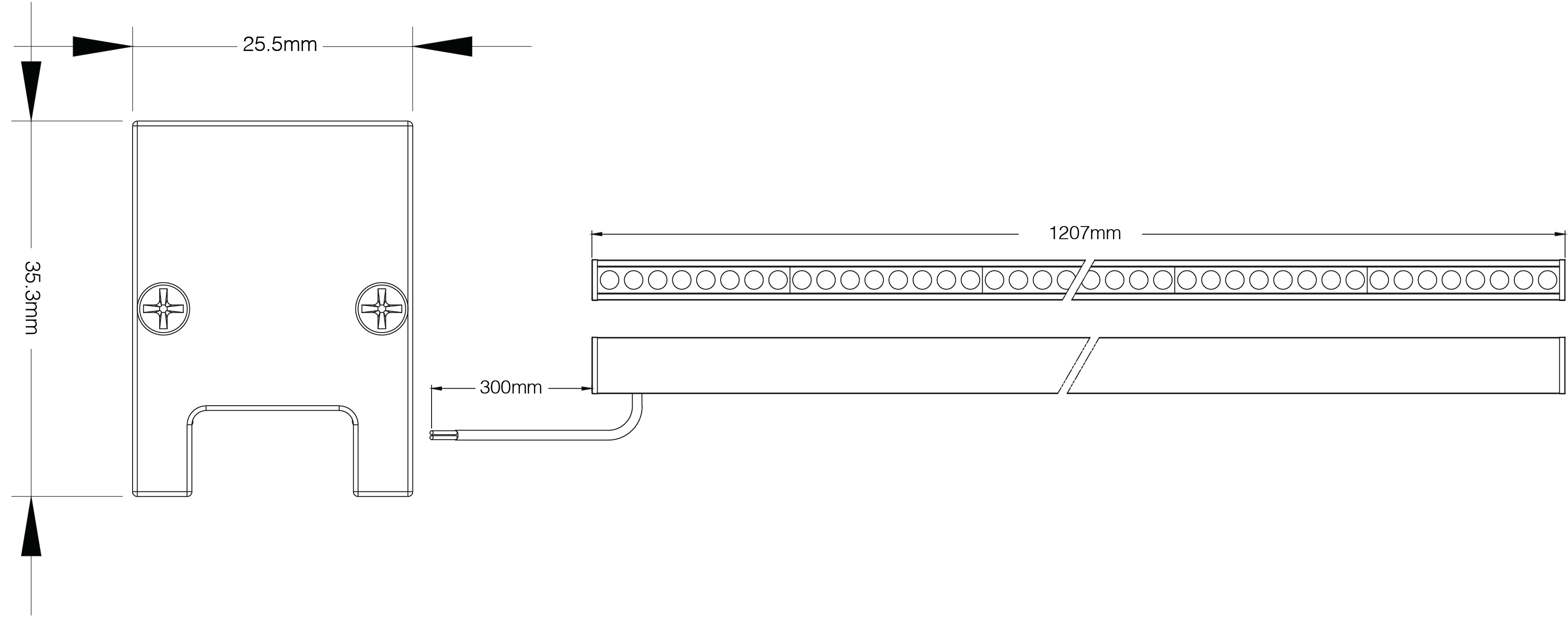

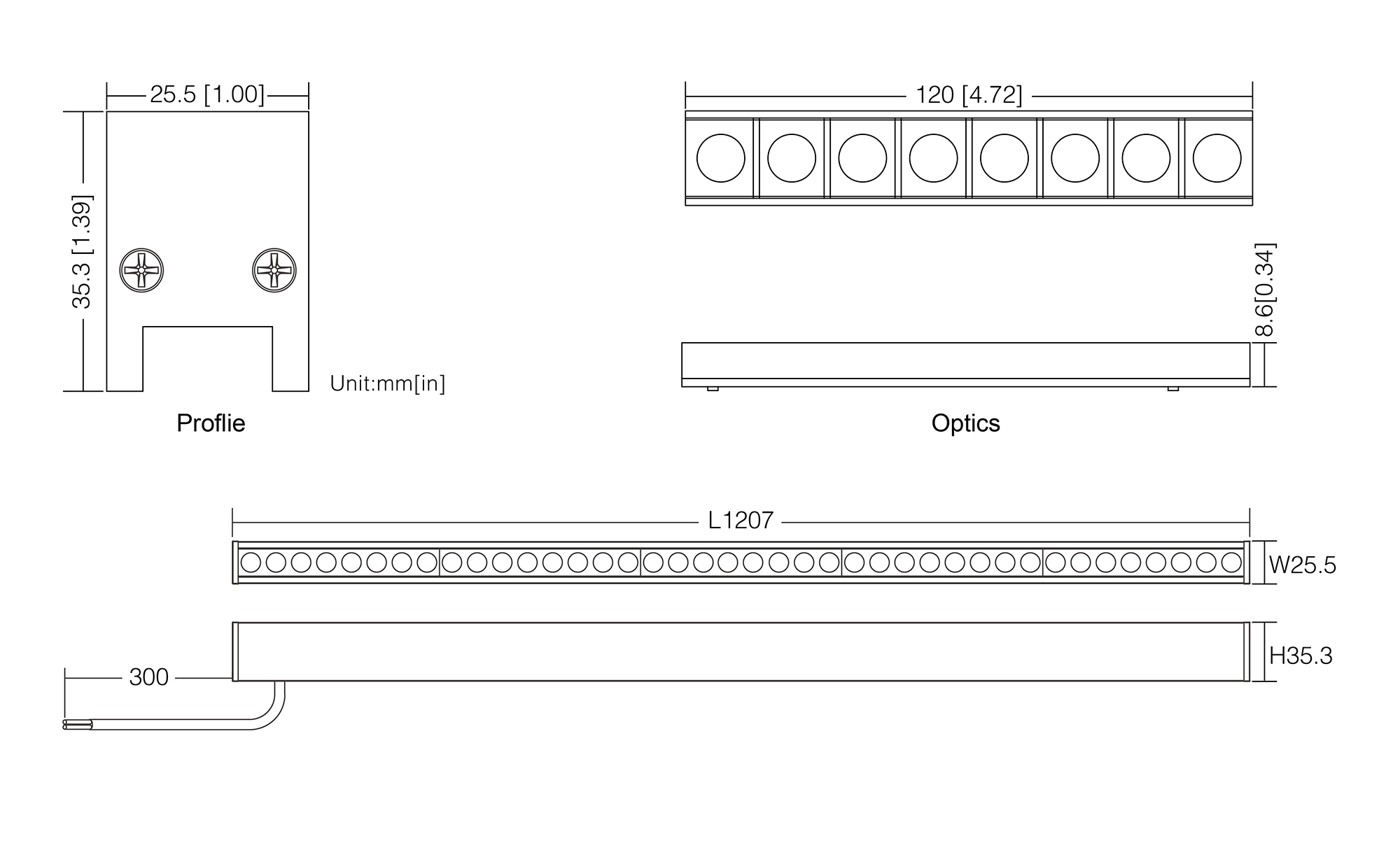

Dimension

尺寸5_画板 1

Accessories and installations

ACCESSORIES

Finish

Discover our range of standard finishes, including Matte White textured, Matte Black textured powder coating, and Silver anodized options. For a tailored look, explore our Customized service offering a palette of 48 additional colors, enabling you to design a unique finish that perfectly aligns with your preferences.

Finish

Color Option

slim crystal louver-12

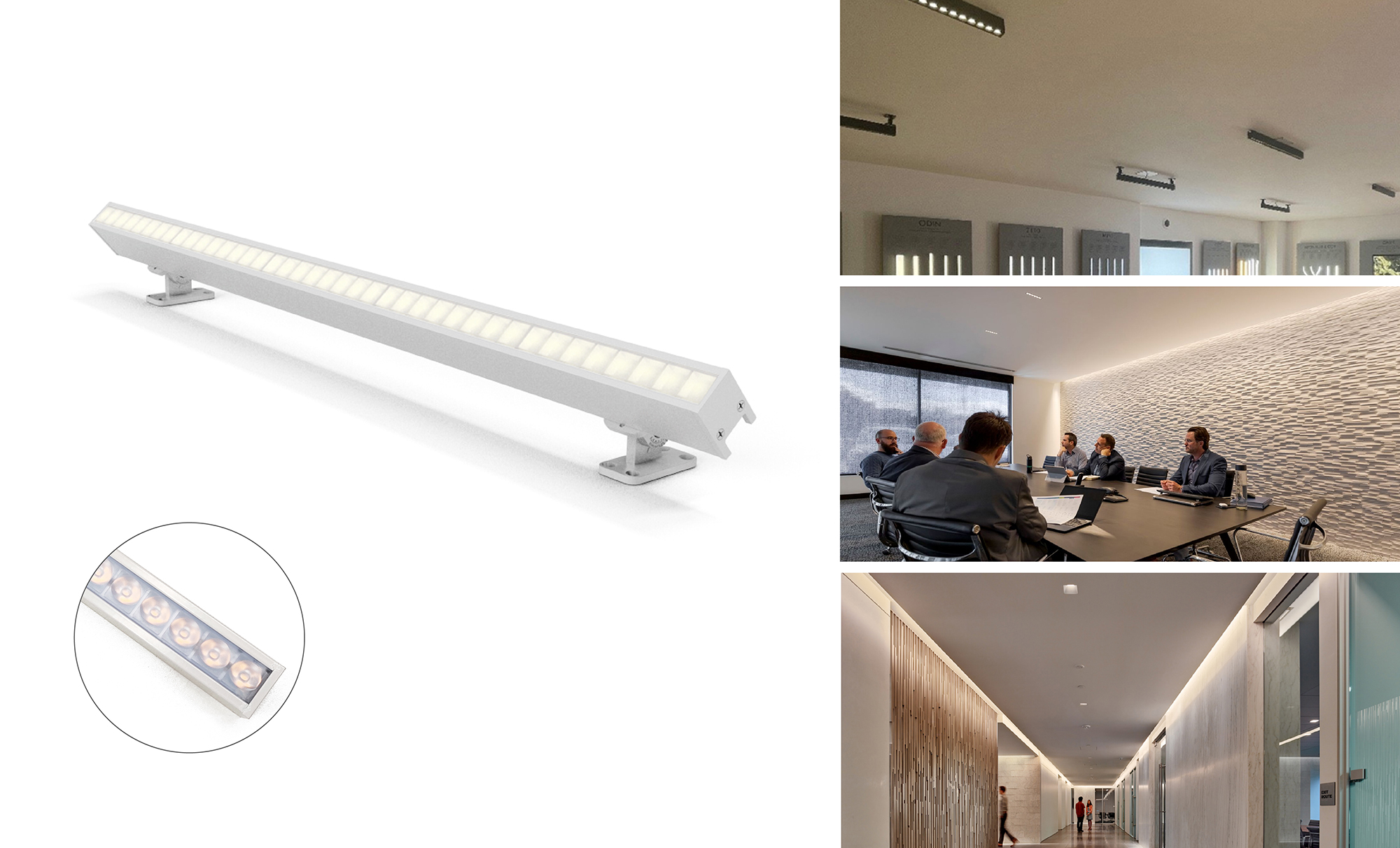

Range of Applications

This adaptable lighting solution is widely employed in art galleries, museums, retail displays, hospitality venues, and other environments requiring accent lighting. It adeptly emphasizes objects, fosters visual intrigue, and enhances the overall ambiance of the space.

BVG-T TIR OPTICAL INTERIOR GRAZER LINEAR LIGHT

Specification

Model

BVG-T

Input Vol.

24VDC
Constant Vol.

Optical

TIR Lens

Power

21W

Beam Angle

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

LED

Osram

UGR

<19

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1207 x W25 x H35mm

Lumen

2352lm/pc

IP / IK

IP22 / IK08

Efficiency

112lm/W

Installation

Ceiling Mounting, Swivel Bracket

Life Time
L80B10

50,000hrs

Net Weight

1.1kgs

THD

<20%

 Luminaire: BVG-T,         Optical: TIR Lens,          Efficiency: 112lm/W,           LED:Osram

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

TIR Lens

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

<19

L1207mm

21.0W

2352lm

80+

3000K

On-Off

TIR Lens

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

<19

L1207mm

21.6W

2352lm

80+

3000K

0-10V

TIR Lens

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

<19

L1207mm

21.6W

2352lm

80+

3000K

DALI

TIR Lens

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

<19

L1207mm

21.0W

2117lm

90+

3000K

On-Off

TIR Lens

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

<19

L1207mm

21.6W

2117lm

90+

3000K

0-10V

TIR Lens

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

<19

L1207mm

21.6W

2117lm

90+

3000K

DALI

TIR Lens

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

<19

L1207mm

21.0W

2423lm

80+

4000K

On-Off

TIR Lens

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

<19

L1207mm

21.6W

2423lm

80+

4000K

0-10V

TIR Lens

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

<19

L1207mm

21.6W

2423lm

80+

4000K

DALI

TIR Lens

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

<19

L1207mm

21.0W

2180lm

90+

4000K

On-Off

TIR Lens

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

<19

L1207mm

21.6W

2180lm

90+

4000K

0-10V

TIR Lens

9° / 30° / 50° / Asy8° / 35x60° / 60x36° / 19x42° / 27x45°/ 35x48°

<19

L1207mm

21.6W

2180lm

90+

4000K

DALI
