BVG-L Louver optical interior wall washer linear light UGR < 16

Short Description:

This louver optical light is linear light for wall washer with outstanding feature UGR<16.

With a slim size of width 25mm, height 35mm, this linear grazer is built by aluminum profile, louver and reflector optical kits.

It delivers high-performance light evenly to graze the wall continuously in DC24V.


Product Detail

Download

Product Tags

Product Introduction

This linear wall washer light provides versatile beam angles of 25° or 50°, catering to various applications while maintaining a UGR<16. With a power consumption of 18W per meter, it ensures optimal brightness without excessive energy usage. Generating 90 lumens per watt, it delivers a soft yet powerful illumination. Select from a broad color temperature range (2200K-6500K) to create the desired atmosphere.

This grazer light offers three flexible control options: ON/off, dimmable 0-10V, and dimmable DALI, catering to different preferences and needs. Whether you seek straightforward on/off functionality, adjustable brightness with 0-10V control, or advanced DALI capabilities, we have the solution for you.

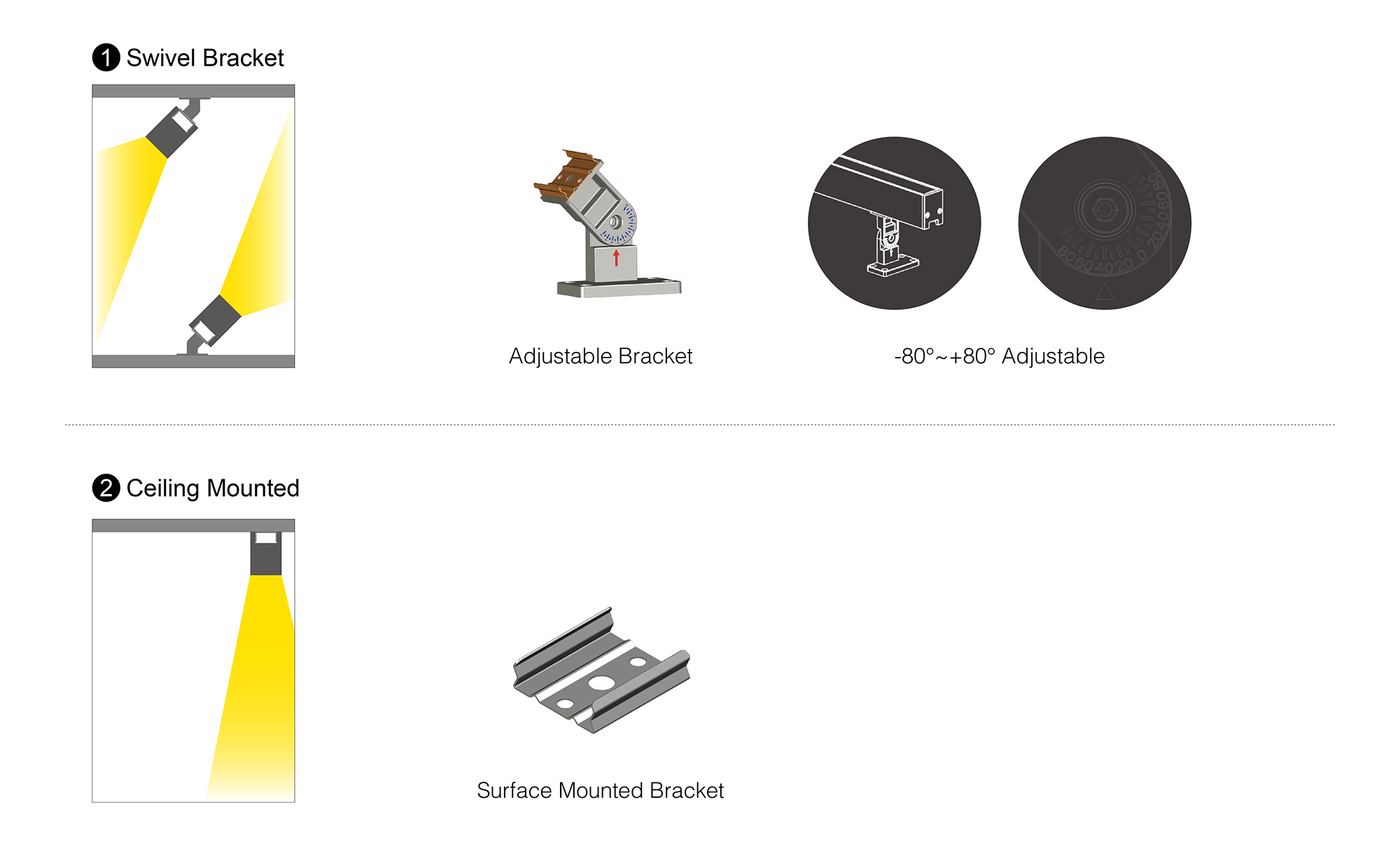

The linear light provides two convenient installation choices: surface mounting clips or swivel brackets. Surface mounting clips ensure a secure installation, making it ideal for applications where stability is crucial. On the other hand, swivel brackets offer enhanced versatility, allowing easy adjustment of the light's direction. With a rotating angle range of -80° to 80°, the swivel brackets provide flexibility in precisely directing the light where needed.

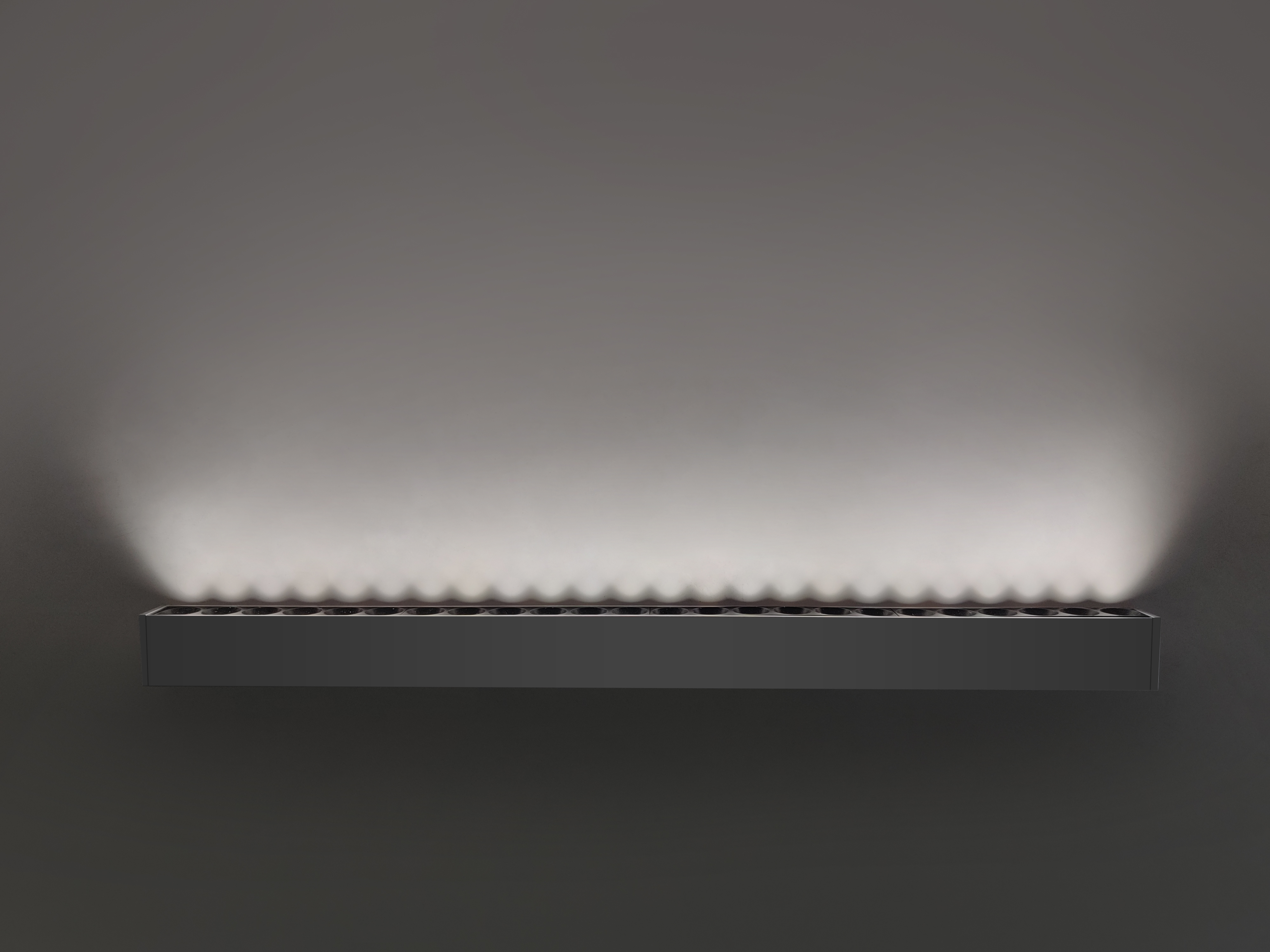

REFLECTOR LOUVER.

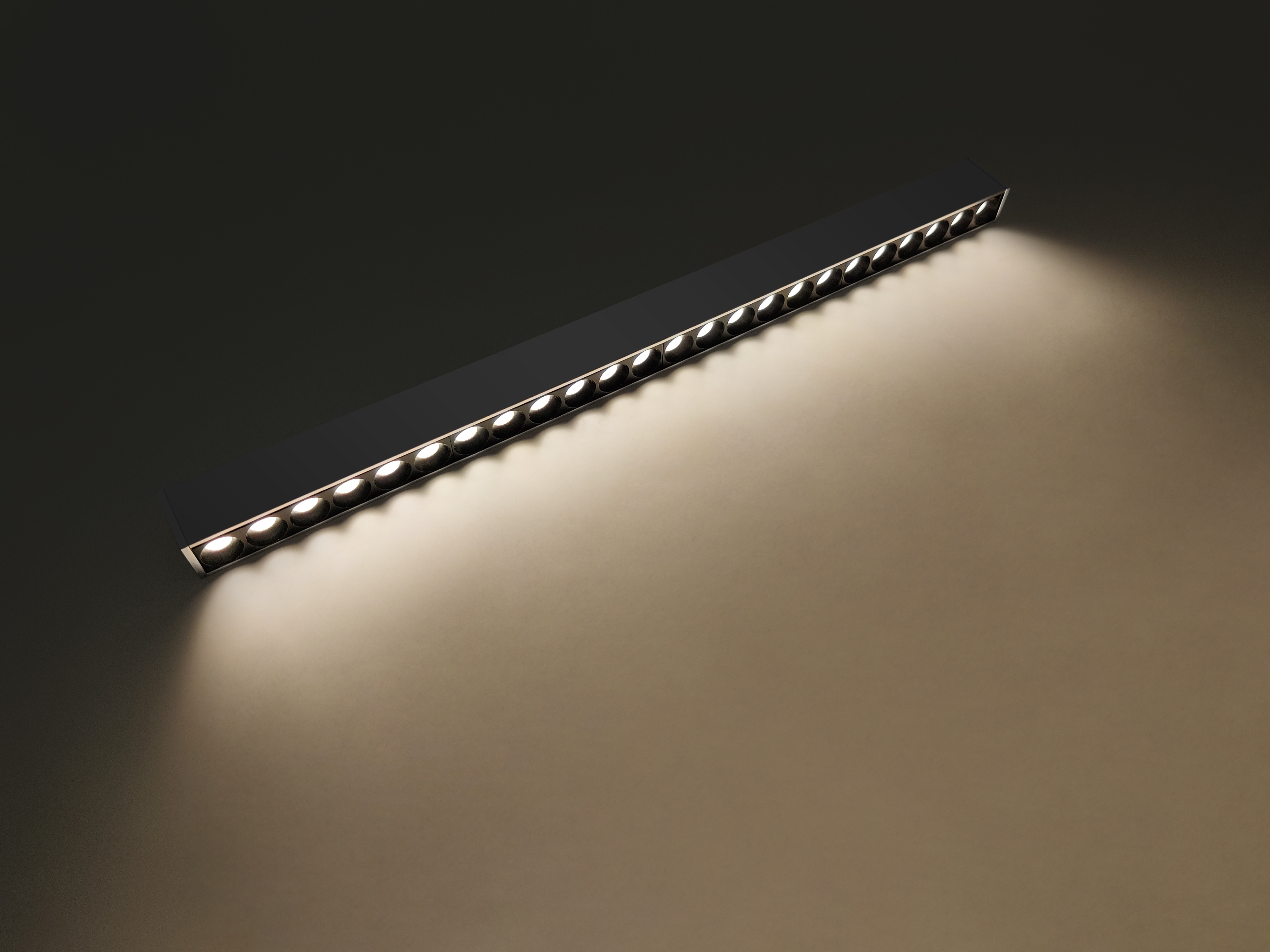

REFLECTOR LOUVER

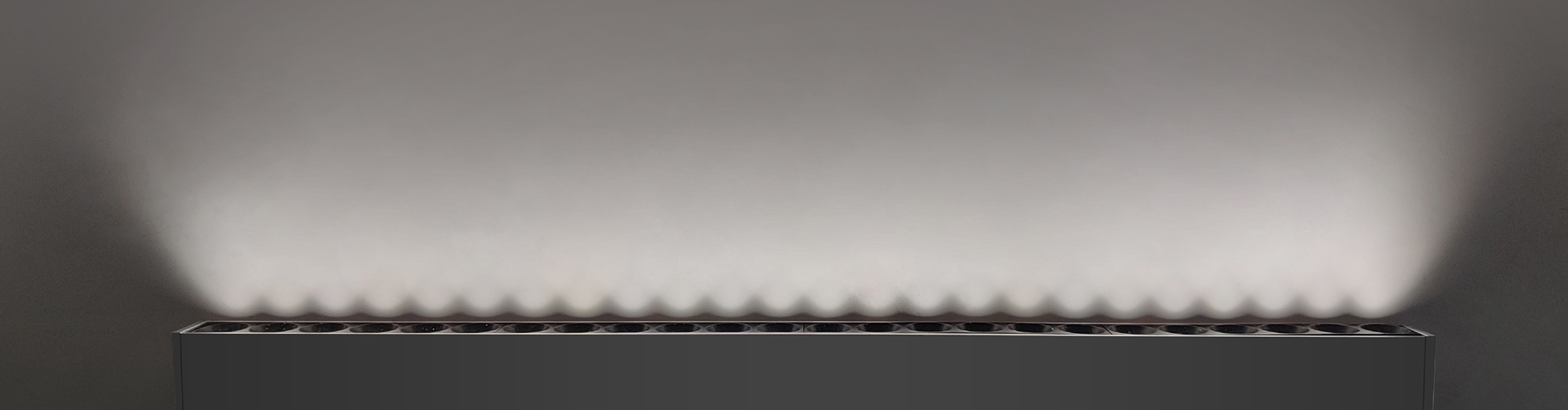

Feature

1,Engineering Design with High-Reflection Reflectors and Louver Optical System: The incorporation of high-reflection reflectors ensures efficient light distribution, maximizing overall lighting performance. The louver optical system is designed to control directionality and minimize glare, resulting in a visually pleasing and comfortable illumination.

2,Customizable Lengths in 120mm Increments: This product offers flexibility through customizable lengths, allowing precise modifications in 120mm increments. This ensures tailored lighting solutions for diverse applications.

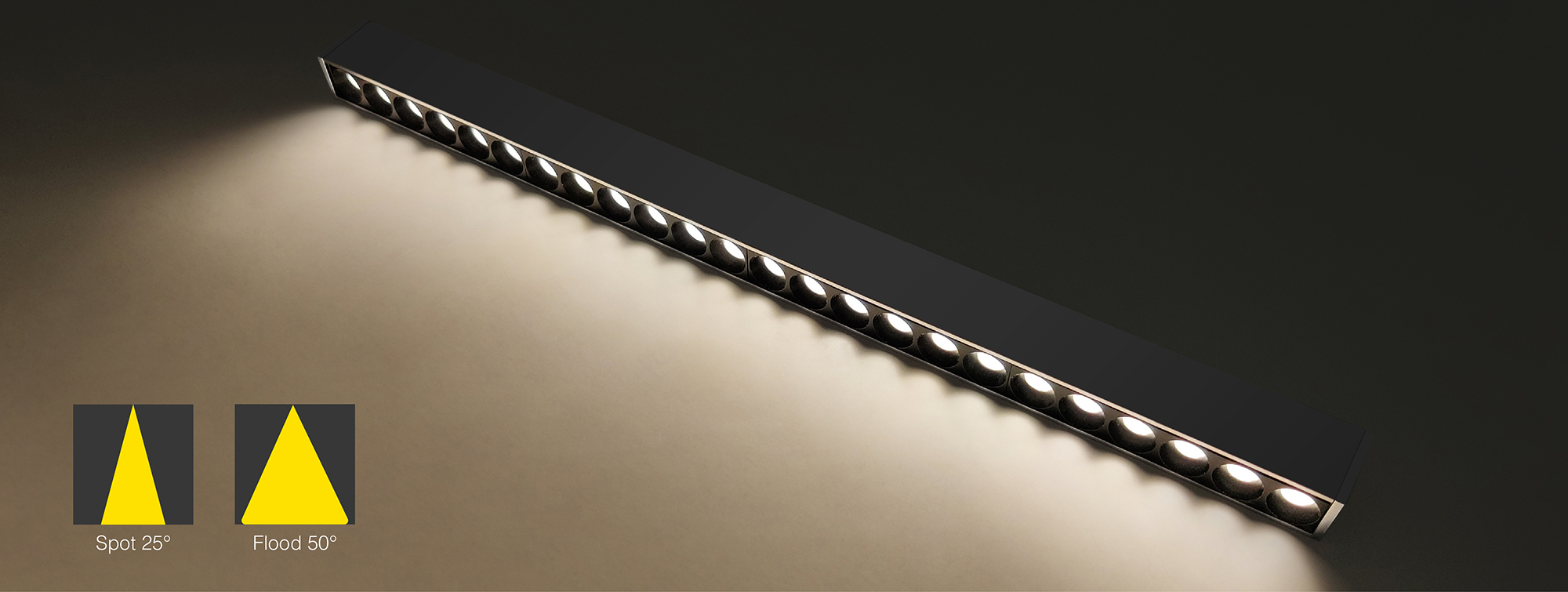

3,Spot (25°) and Flood (50°) Options in Black, Silver, and White Louvers: Providing versatility, this product offers two beam angle options to meet various lighting requirements. The 25° spot angle delivers focused illumination, ideal for highlighting specific objects or areas, while the 50° flood angle offers broader coverage for general lighting. The availability of black, silver, and white louver options allows customization to match any space's aesthetic.

4,UGR<16 for Reduced Glare: With a UGR value of less than 16, this product minimizes glare, contributing to a comfortable lighting environment.

5,Easy Installation with Ceiling Mounted or Swivel Brackets (Rotating Angle: -80° to 80°): Installation is simplified through compatibility with ceiling-mounted brackets or swivel brackets. The rotating angle range from -80° to 80° provides flexibility in directing the light output to desired areas.

6,High-Quality Components for an Elegant Appearance: Constructed with premium materials, this product ensures durability and long-term performance. Its sleek and elegant design adds sophistication to any space, making it suitable for both functional and aesthetically driven lighting designs.

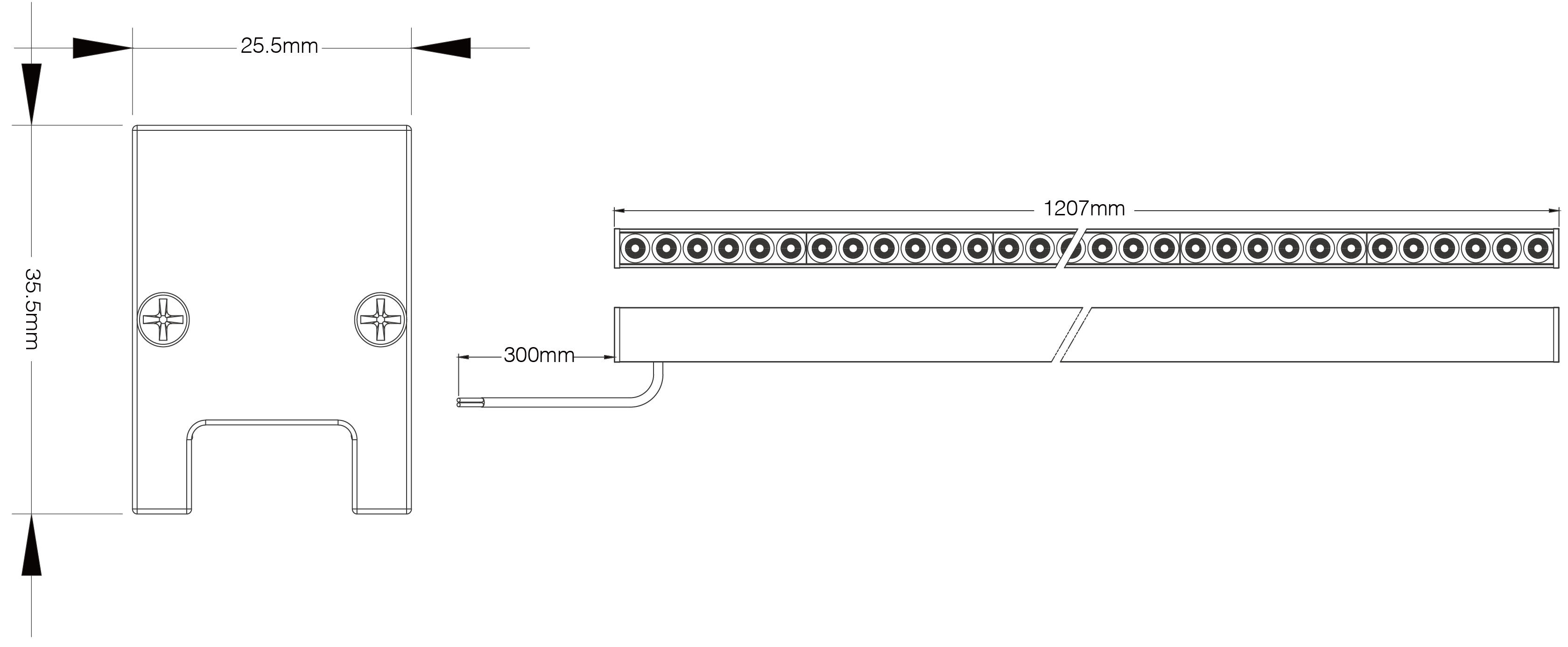

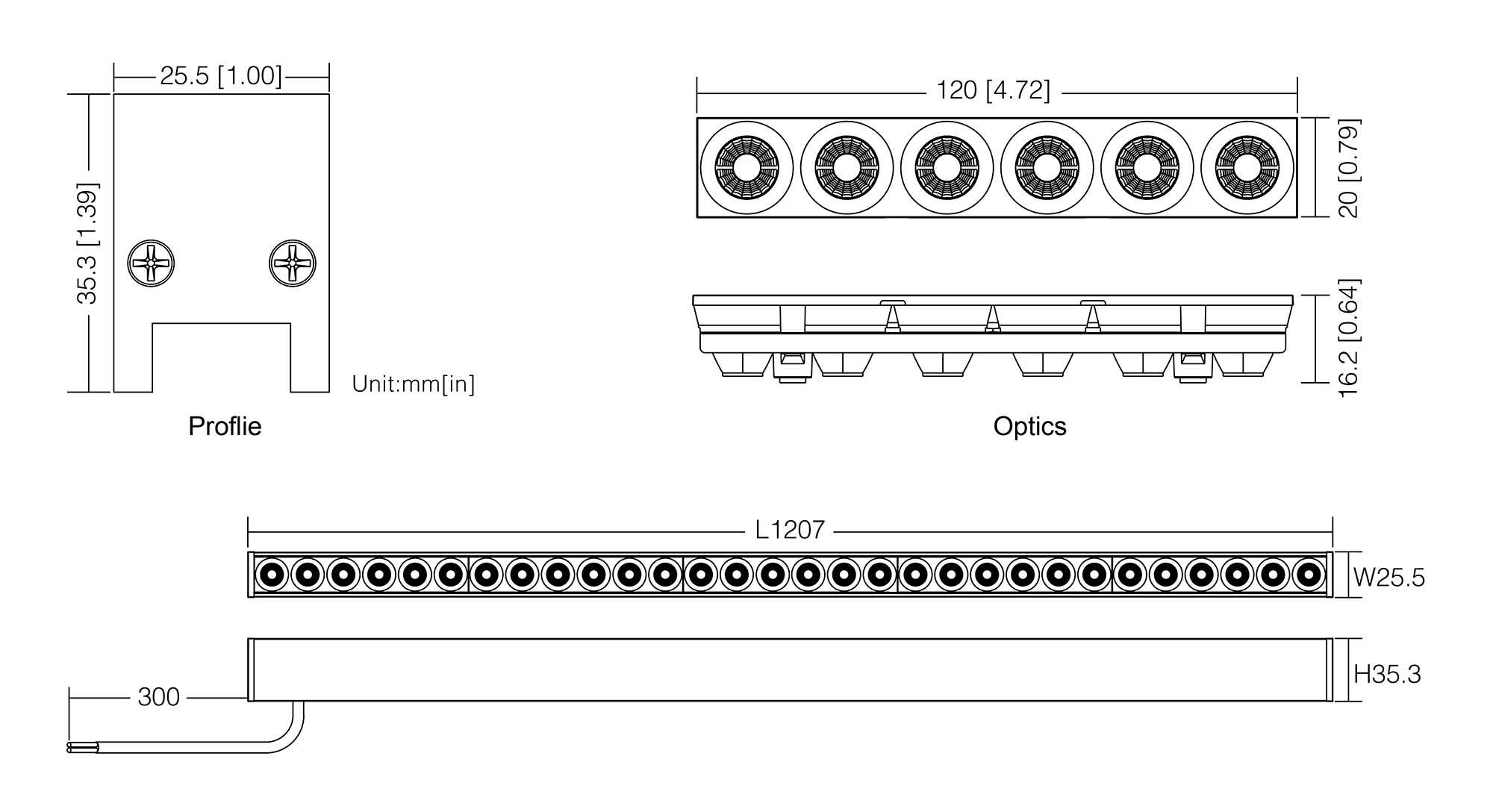

Dimension

BVG-DIMENSION

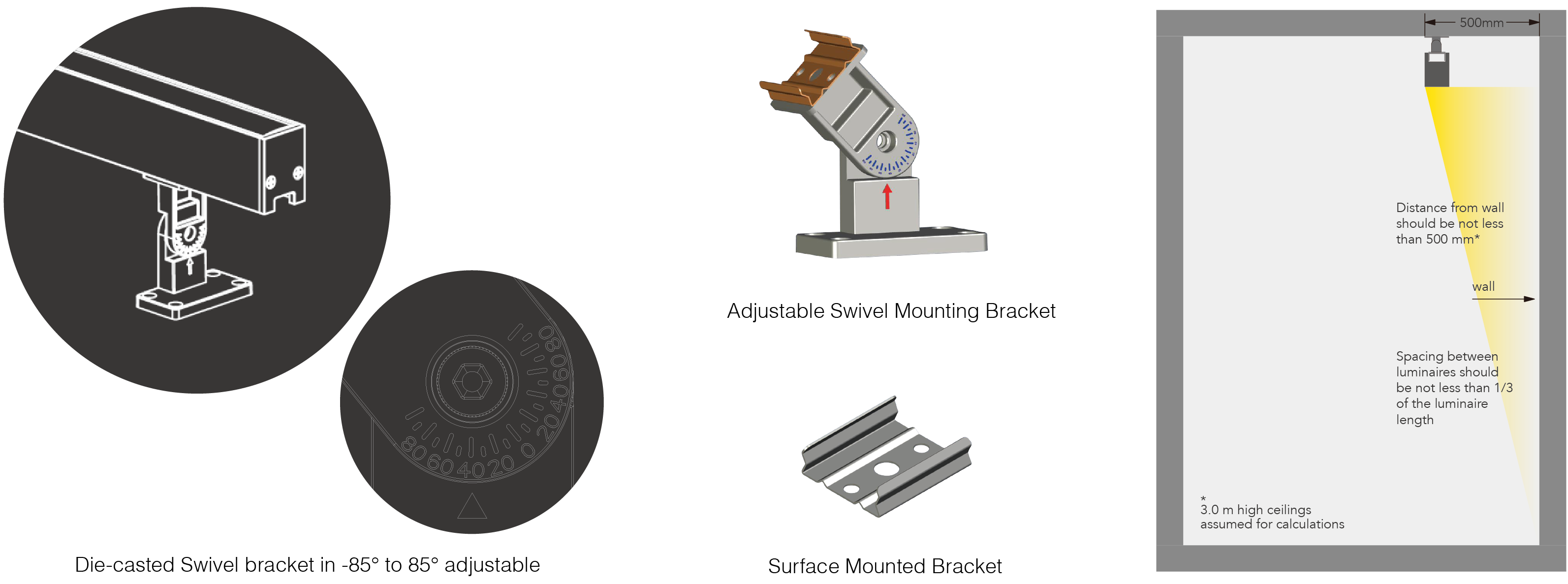

Accessories and installations

ACCESSORIES

Finish

We offer standard finishes including Matt White textured, Matt Black textured powder coating, and Silver anodized options. To provide a personalized touch, our Customized service expands your choices to a palette of up to 48 additional colors, enabling you to customize your selection according to your preferences.

Finish

Color Option

slim crystal louver-12

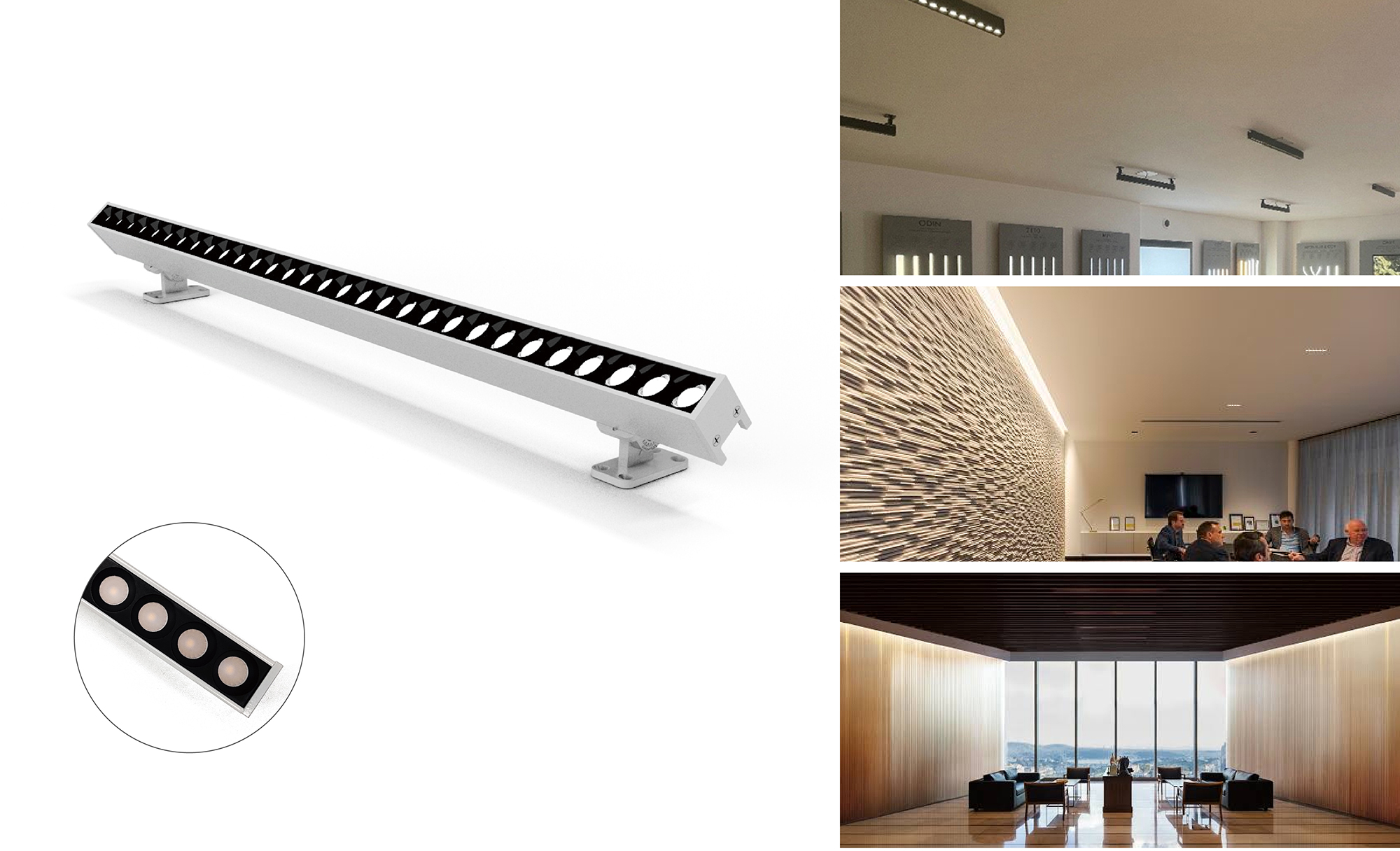

Range of Applications

Extensively utilized in exhibition rooms, corridors, washrooms, retail stores, art galleries, museums, hospitality venues, office spaces, and various architectural structures.

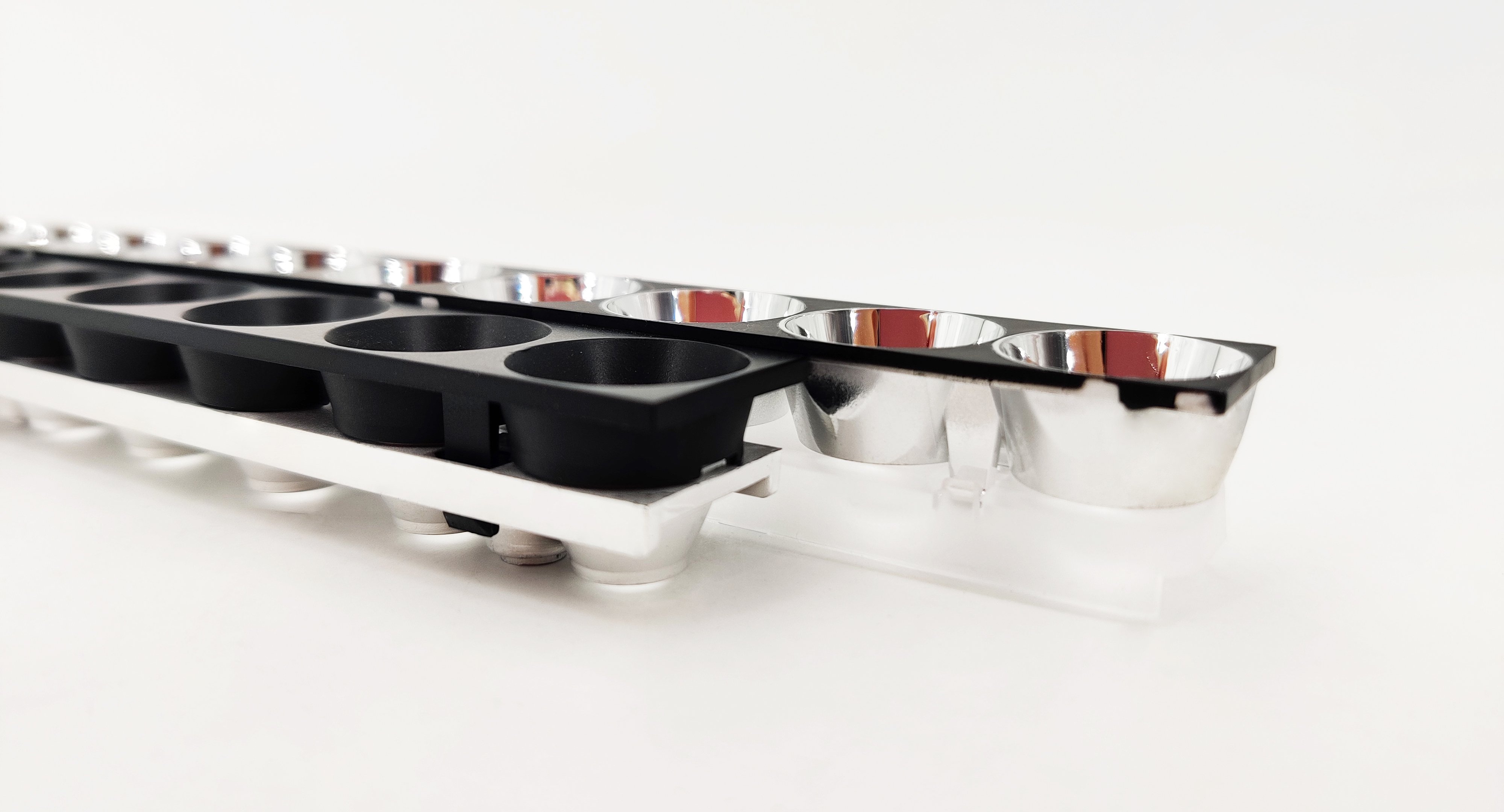

BVG REFLECTOR LOUVER.

Specification

Model

BVG-L

Input Vol.

24VDC
Constant Vol.

Optic

Louver Reflector

Power

18W

Beam Angle

25° / 50°

LED

Osram

UGR

<16

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1207 x W25 x H35mm

Lumen

1620lm/pc

IP

IP22/IK08

Efficiency

90lm/W

Installation

Ceiling Mounted, Swivel bracket

THD

<20%

Net Weight

1.1kgs

Life Time
L80B10

50,000hrs

Luminaire: BVG-L,       Optical: Louver Reflector,          Efficiency: 90lm/W,         LED: Osram

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

TIR Lens

25°/50°

<16

L1207mm

18.0W

1620lm

80+

3000K

On-Of f

TIR Lens

25°/50°

<16

L1207mm

18.5W

1620lm

80+

3000K

0-10V

TIR Lens

25°/50°

<16

L1207mm

18.5W

1620lm

80+

3000K

DALI

TIR Lens

25°/50°

<16

L1207mm

18.0W

1458lm

90+

3000K

On-Of f

TIR Lens

25°/50°

<16

L1207mm

18.5W

1458lm

90+

3000K

0-10V

TIR Lens

25°/50°

<16

L1207mm

18.5W

1458lm

90+

3000K

DALI

TIR Lens

25°/50°

<16

L1207mm

18.0W

1669lm

80+

4000K

On-Of f

TIR Lens

25°/50°

<16

L1207mm

18.5W

1669lm

80+

4000K

0-10V

TIR Lens

25°/50°

<16

L1207mm

18.5W

1669lm

80+

4000K

DALI

TIR Lens

25°/50°

<16

L1207mm

18.0W

1502lm

90+

4000K

On-Of f

TIR Lens

25°/50°

<16

L1207mm

18.5W

1502lm

90+

4000K

0-10V

TIR Lens

25°/50°

<16

L1207mm

18.5W

1502lm

90+

4000K

DALI
