• Advanced BVG-E Linear Lighting: Extruded Lens for Interior Grazing with Double Asymmetric, Asymmetric, and Flood beam angles

Advanced BVG-E Linear Lighting: Extruded Lens for Interior Grazing with Double Asymmetric, Asymmetric, and Flood beam angles

Short Description:

Experience the advanced BVG-E Linear Lighting system, featuring an extruded lens designed for interior grazing applications with exceptional versatility.

This innovative lighting solution offers a range of beam angles, including double asymmetric, asymmetric, and flood options, allowing for precise light distribution and control.

Ideal for highlighting architectural elements and wall textures, BVG-E delivers high-performance illumination tailored to various indoor settings.

The extruded lens minimizes glare and enhances light quality, ensuring uniform and continuous lighting effects.

Elevate your interior design with this sophisticated lighting solution, combining functionality and aesthetics for impactful and visually appealing environments.


Product Detail

Download

Product Tags

Product Introduction

Introducing the BVG-E Linear Lighting system, a cutting-edge solution designed to enhance interior spaces with advanced features and exceptional versatility. At the heart of this system is the innovative extruded PMMA lens, which can be easily customized to match any luminaire's length, enabling tailored configurations for specific environments. Engineered for DC24V operation, the BVG-E system delivers high-performance lighting that ensures uniform and continuous illumination, making it ideal for effectively grazing walls and highlighting architectural features.

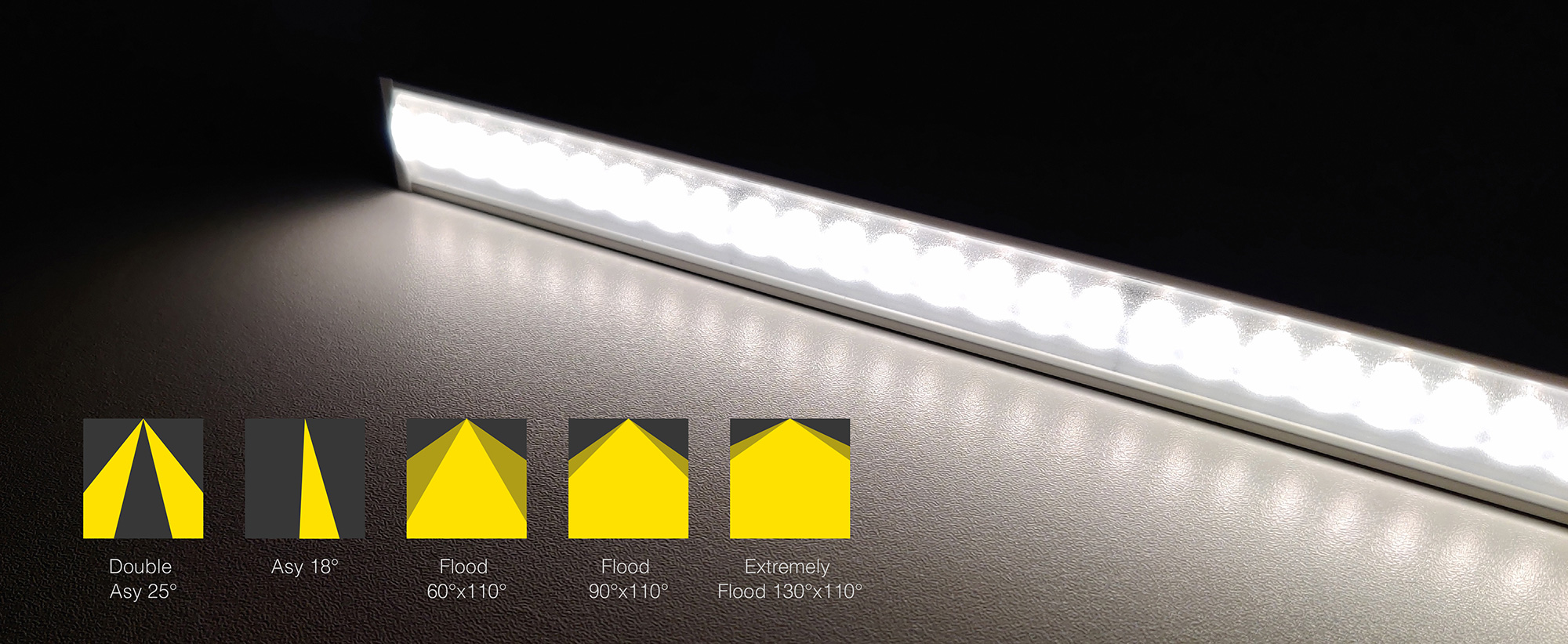

One of the standout features of the BVG-E system is its versatile extruded optical lens, offering multiple beam angles including BAT25°, ASY18°, and wider angles such as 60x110°, 90x110°, and 130x110°. These options provide flexibility in light distribution, enhancing wall textures and emphasizing architectural details with precision.

Furthermore, the BVG-E system is designed with a UGR<19 rating to minimize glare, creating a comfortable and visually pleasing lighting environment suitable for a variety of indoor applications. Installation is simplified with ceiling-mounted or swivel brackets, offering a rotating angle range of -80° to 80° for precise light direction and coverage.

Ideal for a wide range of interior lighting projects, the BVG-E Linear Lighting system combines versatility, superior performance, and straightforward installation. Transform your spaces with impactful illumination that seamlessly integrates functionality and aesthetics, setting a new standard for precision lighting solutions.

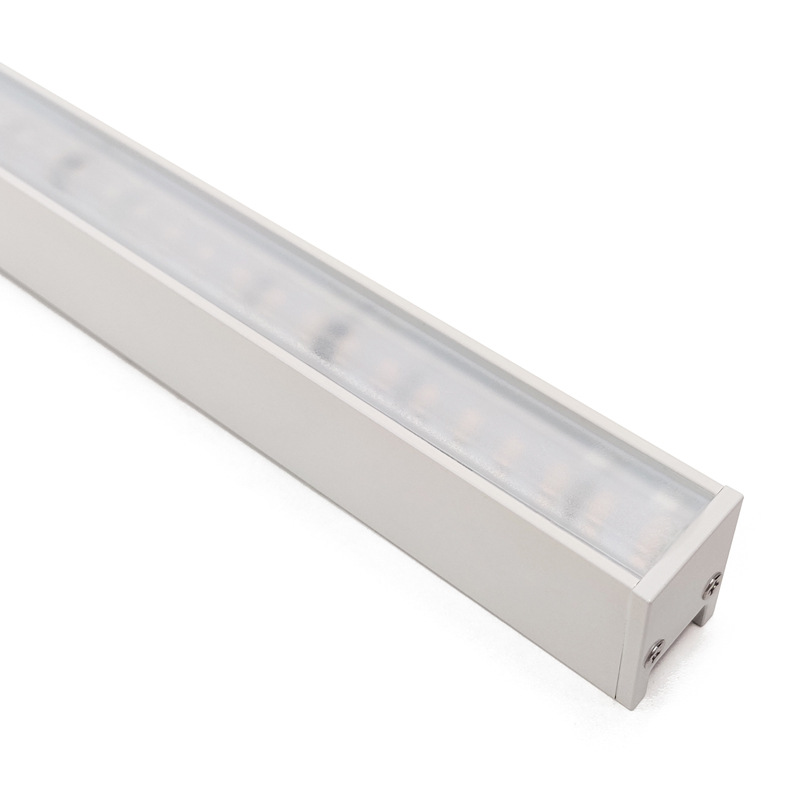

BVG-E WALL GRAZER-EXTRUDED LENS (1)

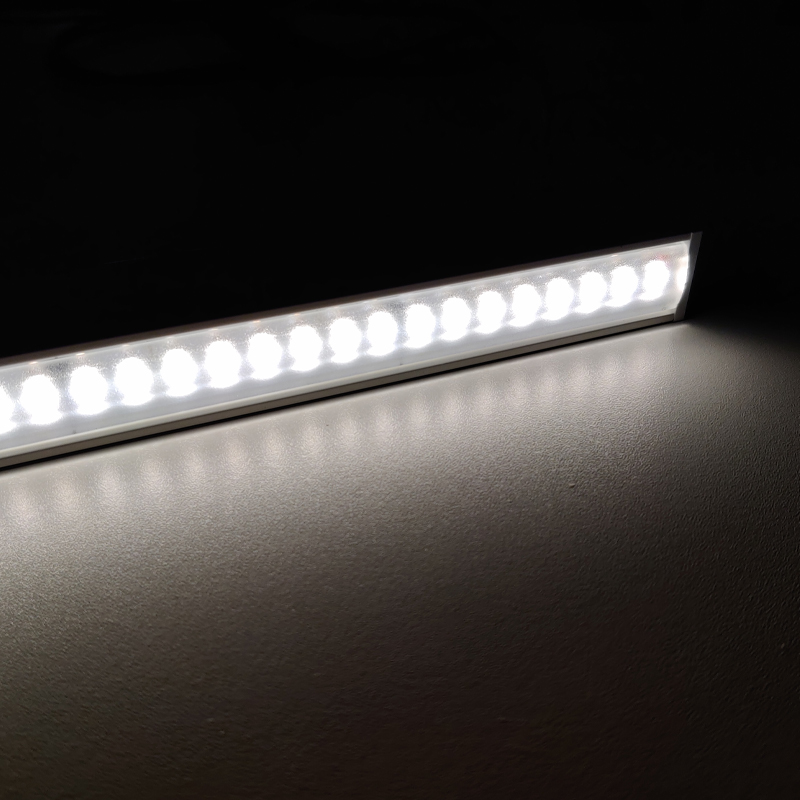

BVG-E WALL GRAZER-EXTRUDED LENS (5)

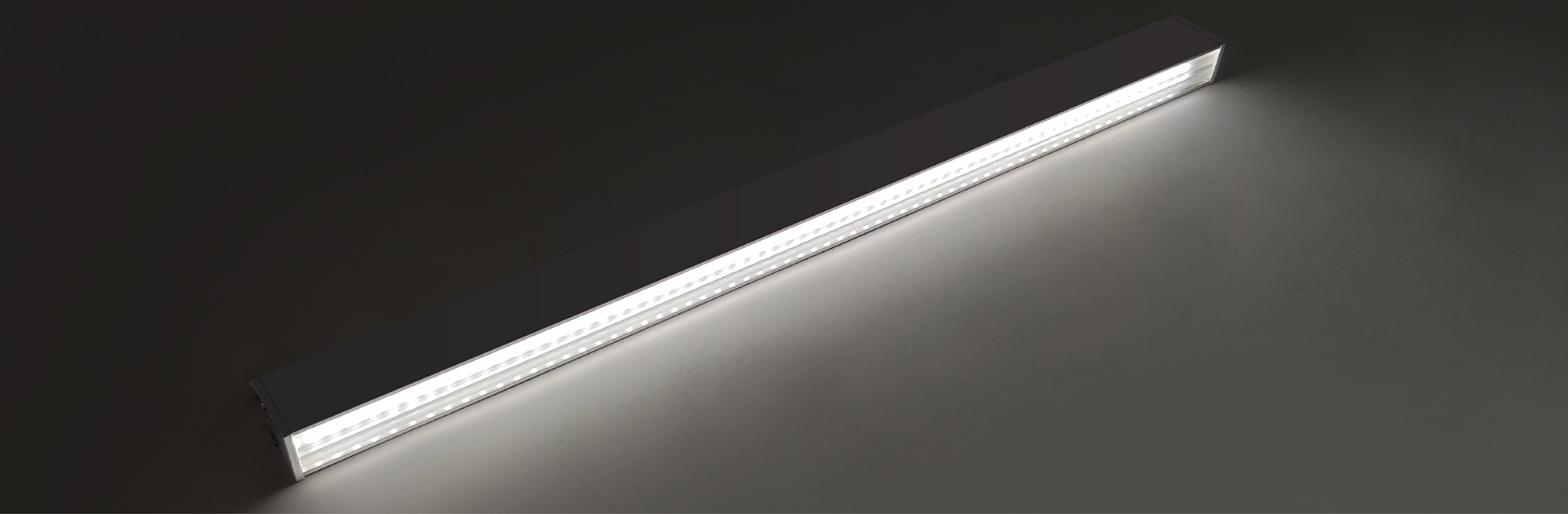

Feature

1, Extruded PMMA Lens Design: The BVG-E system incorporates an innovative extruded PMMA lens that can be easily cut to match the luminaire's length, enabling customized configurations and installations tailored to specific spaces.

2, High-Performance Wall Grazing: Engineered for DC24V operation, BVG-E delivers high-performance lighting that ensures uniform and continuous illumination, ideal for effectively grazing walls and highlighting architectural features.

3, Multiple Beam Angles for Versatility: With beam angles including BAT25°, ASY18°, 60x110°, 90x110°, and 130x110°, the extruded optical lens of BVG-E offers versatile light distribution options to enhance wall textures and emphasize architectural details.

4, Reduced Glare (UGR<19): Featuring a UGR<19 rating, BVG-E minimizes glare to create a comfortable and visually pleasing lighting environment suitable for various indoor applications.

5, Easy Installation with Flexible Mounting Options: Simplify installation with ceiling-mounted or swivel brackets that allow for a rotating angle range of -80° to 80°, providing flexibility in directing the light output precisely to desired areas.

These outstanding features position the BVG-E Linear Lighting system as an ideal choice for precision lighting needs, offering versatility, superior performance, and straightforward installation for a wide range of interior lighting projects.

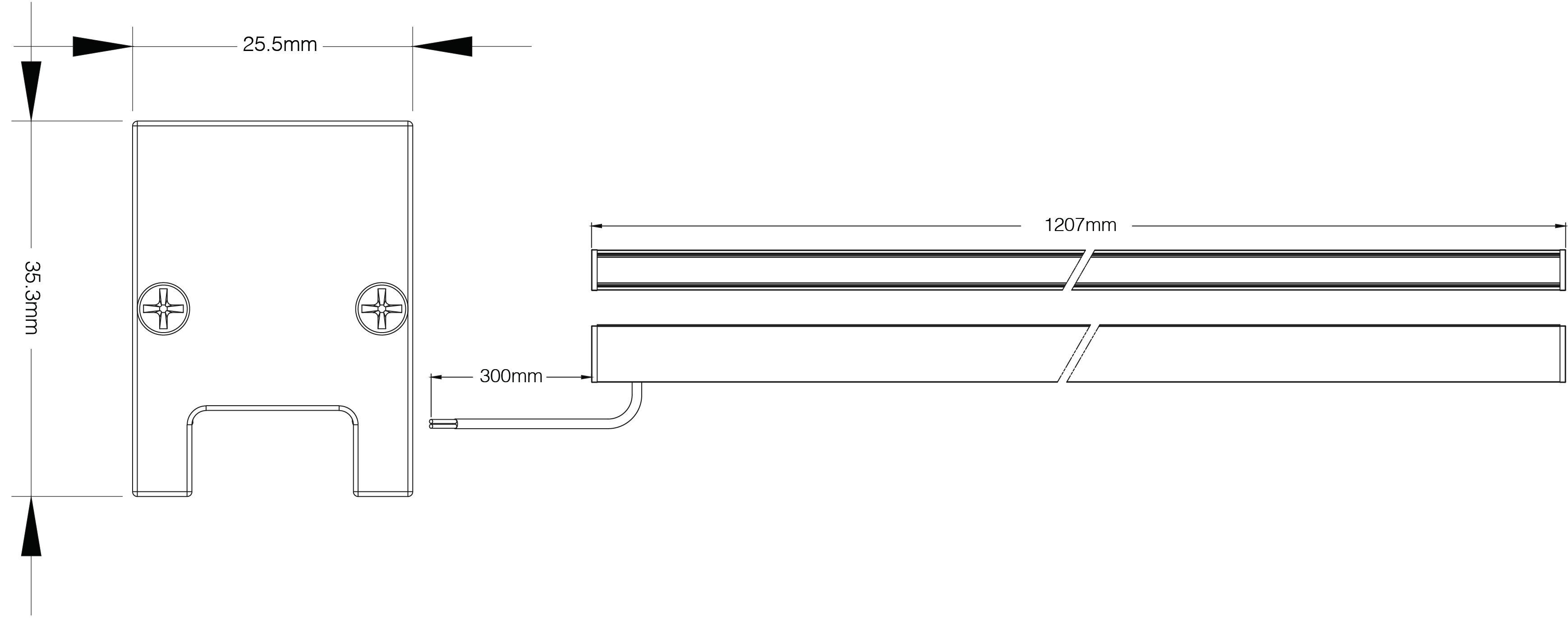

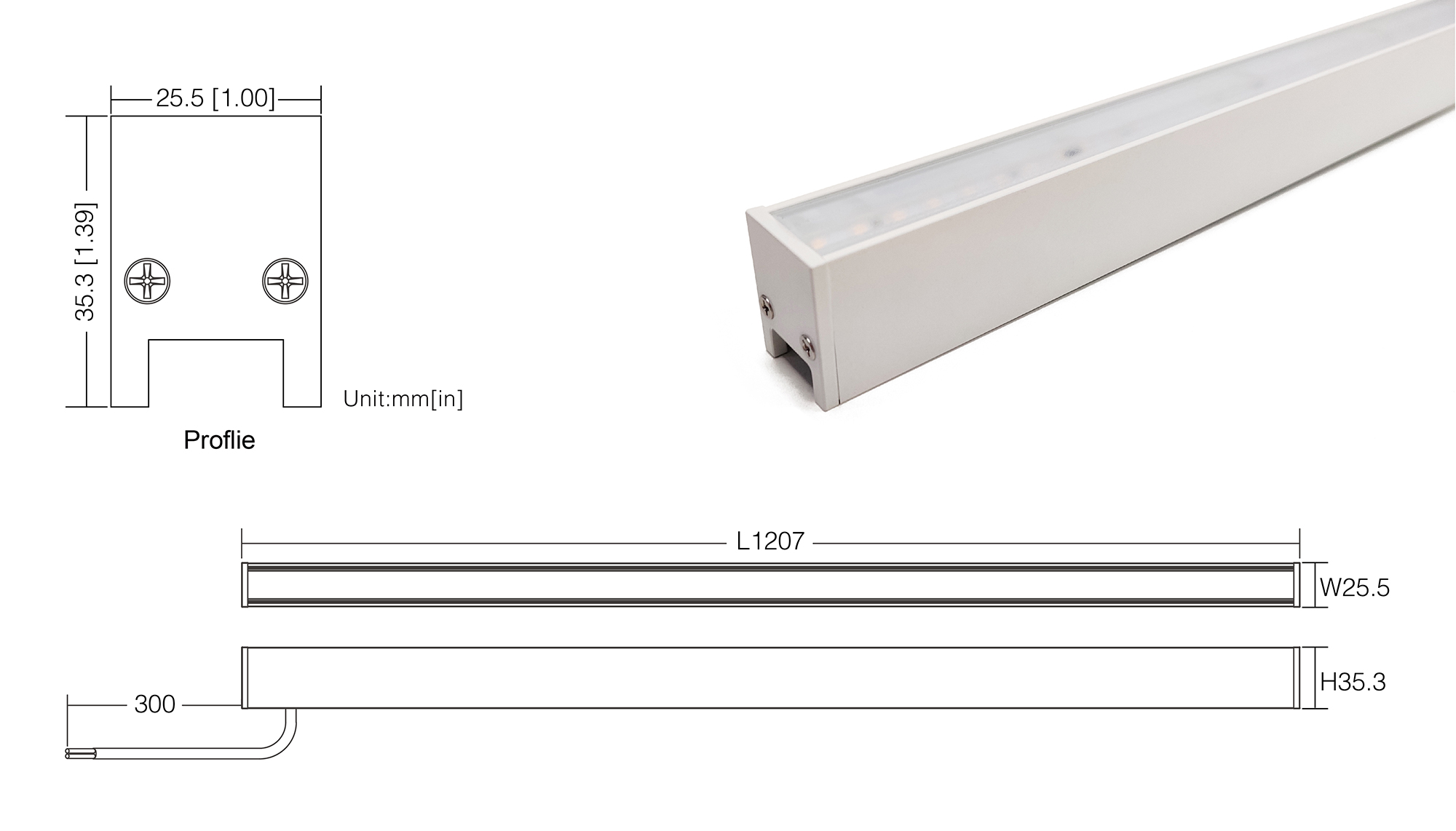

Dimension

BVG-E WALL GRAZER-EXTRUDED LENS (3)

Accessories and installations

ACCESSORIES

Finish

Explore our selection of standard finishes, featuring Matte White textured, Matte Black textured powder coating, and Silver anodized options. For a personalized touch, take advantage of our Customized service offering a palette of 48 additional colors, allowing you to create a bespoke finish that perfectly complements your preferences.

Finish

Color Option

slim crystal louver-12

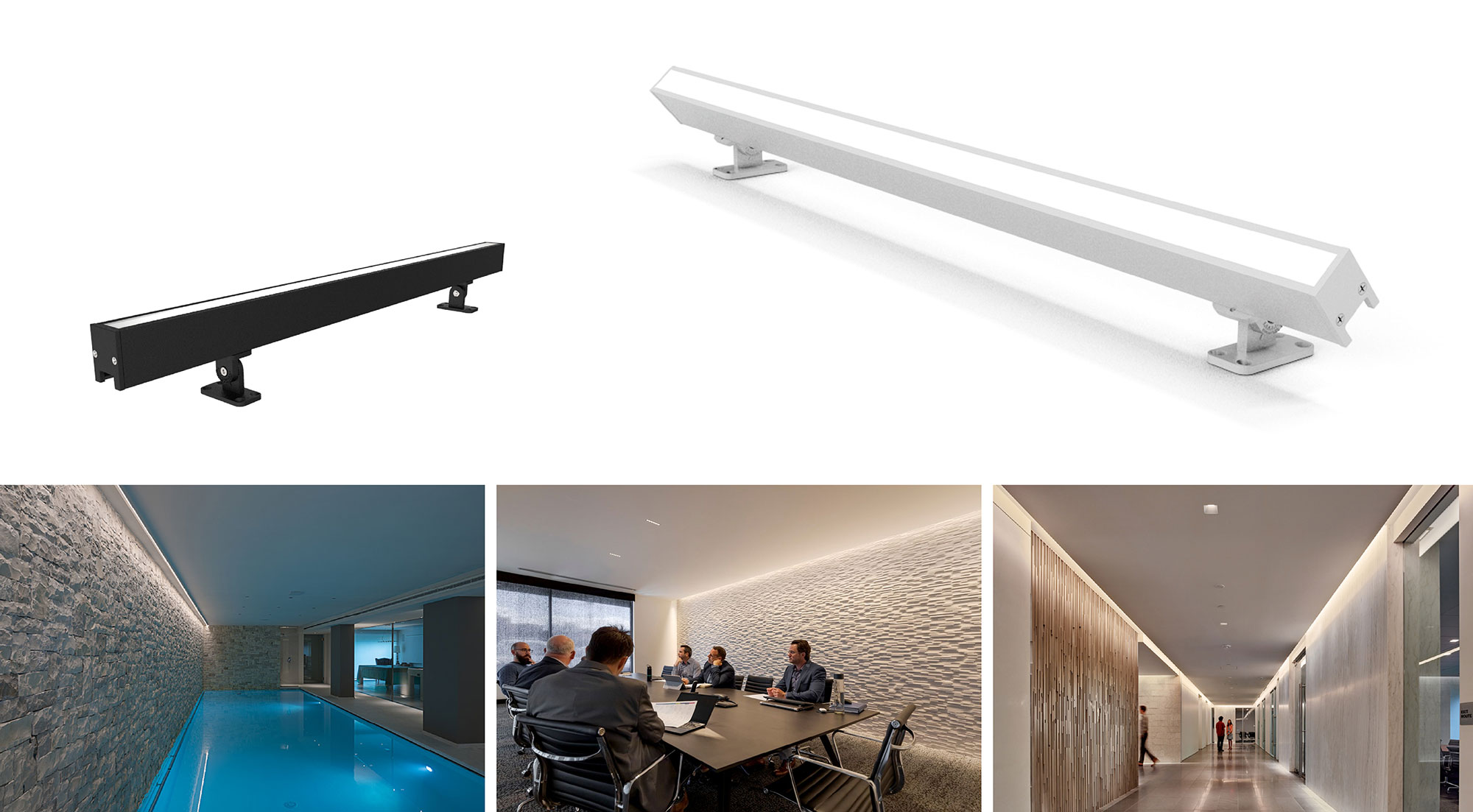

Range of Applications

This versatile lighting solution is commonly used in art galleries, museums, retail displays, hospitality venues, and other settings that demand accent lighting. It effectively highlights objects, creates visual interest, and elevates the overall ambiance of the space.

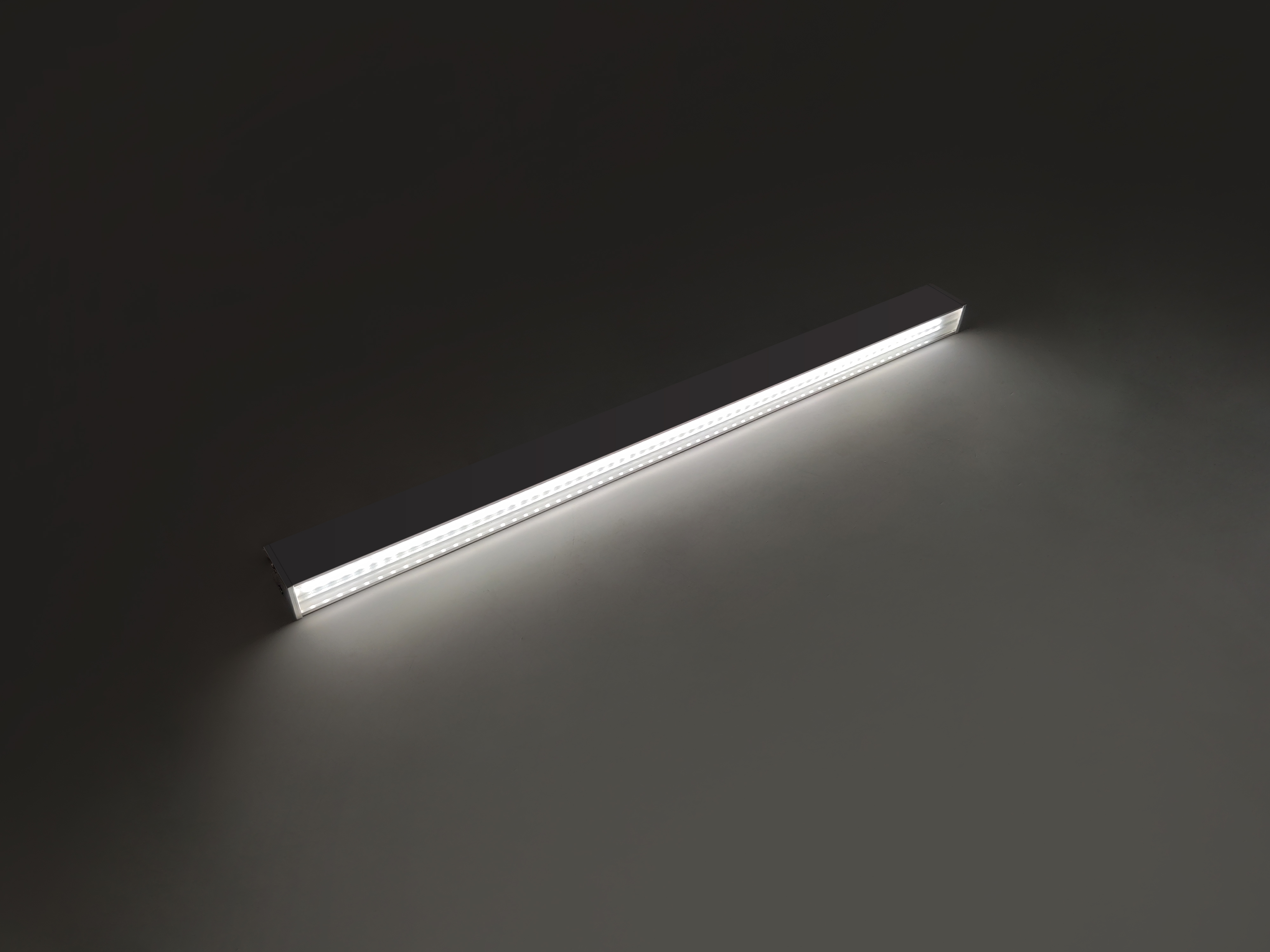

IMG_20200907_154827

Specification

Model

BVG-E

Input Vol.

24VDC Constant Vol.

Optical

Extruded Lens

Power

17W

Beam Angle

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

LED

2835 SMD

UGR

<19

SDCM

<3

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

Dimension

L1207 x W25 x H35mm

Lumen

1700lm/pc

IP / IK

IP22

Efficiency

100lm/W

Installation

Ceiling Mounting, Swivel Bracket

THD

<20%

Net Weight

1.05kg

Life Time
L80B10

50,000hrs

 Luminaire: BVG-E,         Optical: Extruded Lens,          Efficiency: 112lm/W,           LED: Epistar

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Extruded Lens

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

<19

L1207mm

21.0W

2352lm

80+

3000K

On-Off

Extruded Lens

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

<19

L1207mm

21.6W

2352lm

80+

3000K

0-10V

Extruded Lens

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

<19

L1207mm

21.6W

2352lm

80+

3000K

DALI

Extruded Lens

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

<19

L1207mm

21.0W

2117lm

90+

3000K

On-Off

Extruded Lens

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

<19

L1207mm

21.6W

2117lm

90+

3000K

0-10V

Extruded Lens

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

<19

L1207mm

21.6W

2117lm

90+

3000K

DALI

Extruded Lens

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

<19

L1207mm

21.0W

2423lm

80+

4000K

On-Off

Extruded Lens

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

<19

L1207mm

21.6W

2423lm

80+

4000K

0-10V

Extruded Lens

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

<19

L1207mm

21.6W

2423lm

80+

4000K

DALI

Extruded Lens

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

<19

L1207mm

21.0W

2180lm

90+

4000K

On-Off

Extruded Lens

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

<19

L1207mm

21.6W

2180lm

90+

4000K

0-10V

Extruded Lens

BAT25° / ASY18° / 60x110° / 90x110° / 130x110°

<19

L1207mm

21.6W

2180lm

90+

4000K

DALI
