• Acoustic Slim Lighting With TIR Louver Optical Lens

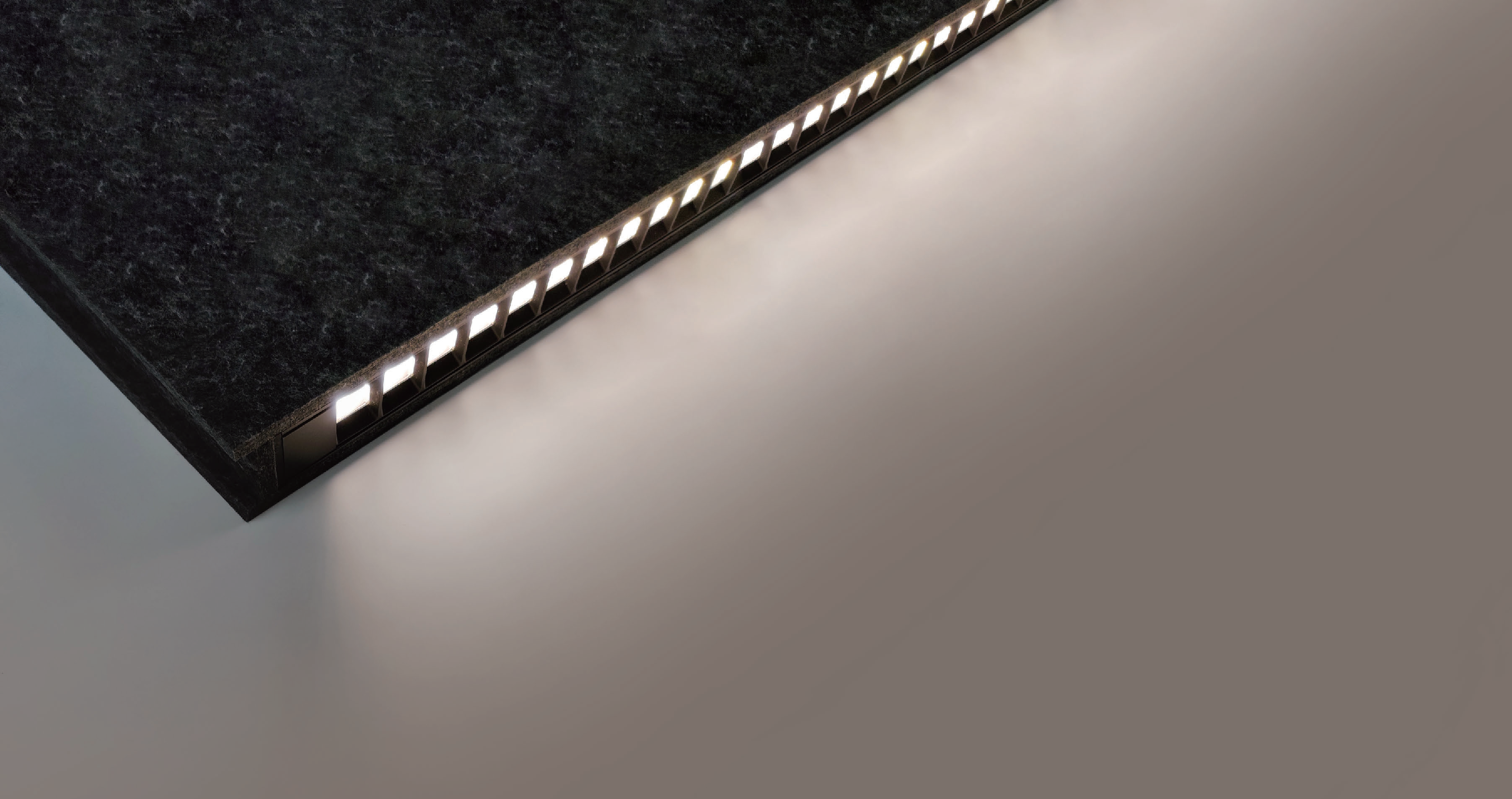

Acoustic Slim Lighting With TIR Louver Optical Lens

Short Description:

The Acoustic Slim Light Luminaire is offered in three lengths, spanning from 600 to 1500mm, and can be customized to extend up to 2000mm.

Select from a diverse range of 25 panel colors to personalize your lighting experience with various LED options, including CRI95+ and 90+.

Explore approximately 7 CCT options ranging from 2700K to 6500K and enjoy versatile dimming methods, including ON/OFF, DALI, and 0-10V, providing complete control over your lighting environment.


Product Detail

Download

Product Tags

Product Introduction

Introducing the SSH-Slim Series, an innovative acoustic lighting solution revolutionizing environments for work, worship, entertainment, and home. This series offers diverse design options, featuring 4x8ft (1.22x2.44m) acoustic panels crafted from 100% recyclable, fire-retardant, and odorless materials, contributing to sustainability.

Showcasing a comprehensive range of LED options in CRI90+/CRI95+, customizable CCT options, and versatile dimming methods (0-10V, DALI, ON/OFF), this linear light provides both functional illumination and outstanding sound management with NRC = 0.7 acoustic panels. Ideal for pendant installation.

Furthermore, the SSH-Slim comes equipped with an internal driver and patented connection bracket, ensuring effortless installation, maintenance, and seamless jointing for extended configurations.

Feature

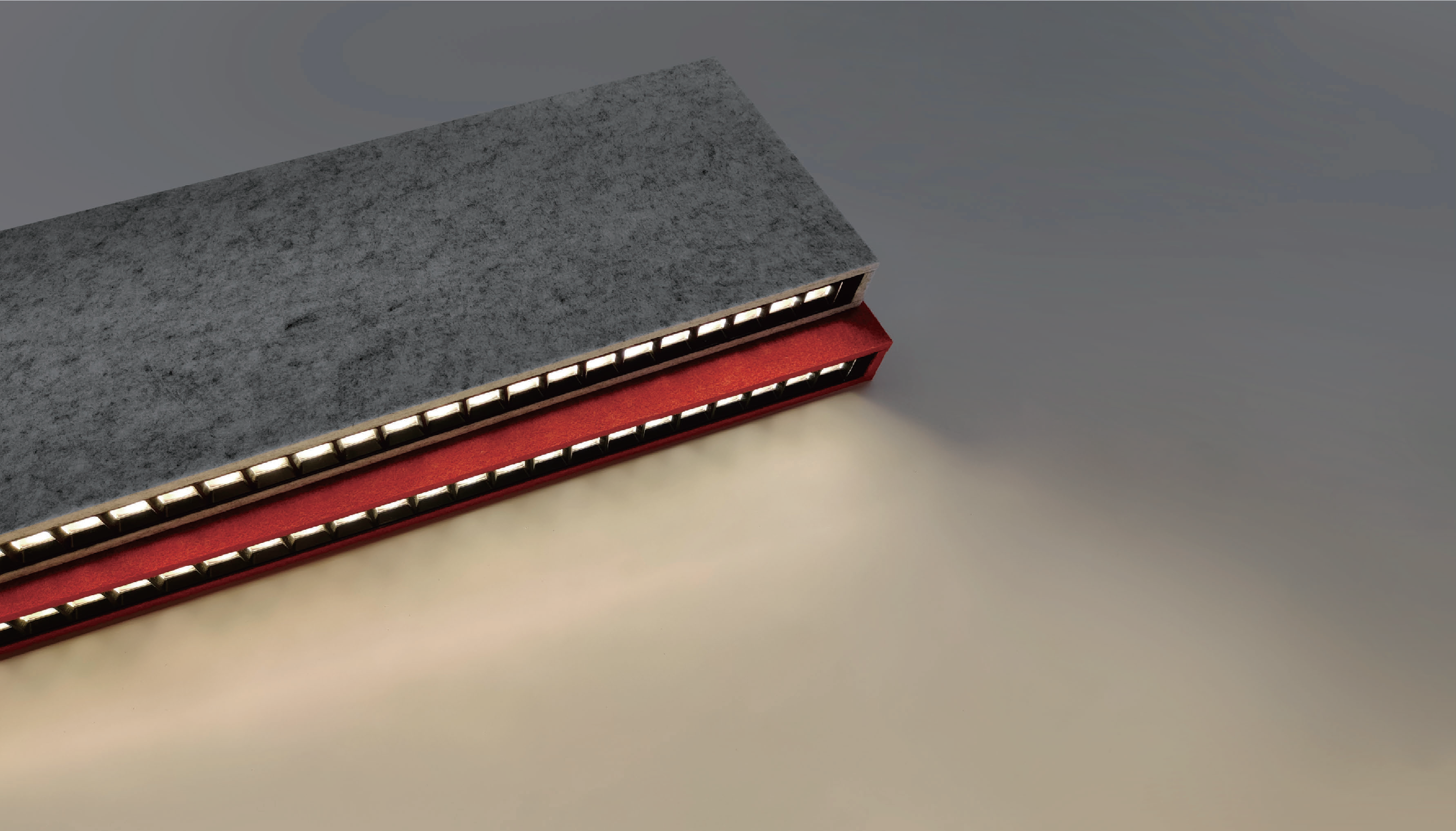

1,Customized Designs: 25 customizable acoustic colors.

2,Exceptional Color Rendering: Presenting our lights, assuring vibrant color reproduction with a Color Rendering Index (CRI) over 95 and an R9 value surpassing 90, enhancing your space's visual appeal.

3,Eco-friendly Materials: Committed to sustainability, our products are crafted from 100% recyclable and odorless materials, minimizing their environmental footprint.

4,Class A Fire Retardant: Prioritizing safety, our lights incorporate Class A fire-retardant materials, ensuring an added layer of security and peace of mind.

5, High Sound Absorption Performance in NRC = 0.7 panels, Excellent illumination performance.

6, Improved Work Environment: Elevate comfort in both work and living spaces through a harmonious blend of reduced noise and superior lighting quality. Improved lighting and sound control not only enhance work efficiency but also contribute to heightened employee satisfaction overall.

7, Effortless Installation: Crafted for easy installation and swift field joints, our Acoustic Lighting guarantees a seamless and hassle-free setup.

Size & Installation

尺寸_画板 1

Finish

Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.

33_画板 1

Other 15 colors for option.

1231_画板 1

Range of Applications

Presenting a versatile lighting solution that seamlessly integrates quality illumination with effective sound absorption. Ideal for cultivating a pleasant working environment in spaces such as offices, restaurants, meeting rooms, educational institutions, healthcare facilities, theaters, museums, and more.

图片(1)

Specification

Model

SSH-Slim

Input Vol.

220-240VAC

Optical

Louver & Lens=4sets

Power

21W

Beam Angle

35x75°/50x50°/Dimond50°/50°

LED

Osram

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1208mm x W53mm x H102mm

Lumen

1947lm/pc

IP / IK

IP22

Efficiency

90lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-Slim,          Optical: Louver & Lens=4sets,           Efficiency: 90lm/W,            LED: Osram,            Driver: Lifud

OPTICAL

ANGLE

UGR

DIMENSION

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

21W

1890lm

80+

3000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

21W

1890lm

80+

3000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

21W

1890lm

80+

3000K

DALI

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

21W

1701lm

90+

3000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

21W

1701lm

90+

3000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

21W

1701lm

90+

3000K

DALI

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

21W

1947lm

80+

4000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

21W

1947lm

80+

4000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

21W

1947lm

80+

4000K

DALI

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

21W

1752lm

90+

4000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

21W

1752lm

90+

4000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

21W

1752lm

90+

4000K

DALI

Model

SSH-Slim

Input Vol.

220-240VAC

Optical

Louver & Lens=8sets

Power

30W

Beam Angle

35x75°/50x50°/Dimond50°/50°

LED

Osram

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1208mm x W53mm x H102mm

Lumen

2780lm/pc

IP / IK

IP22

Efficiency

90lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-Slim,           Optical: Louver & Lens=8sets,           Efficiency: 90lm/W,            LED: Osram,            Driver: Lifud

OPTICAL

ANGLE

UGR

DIMENSION

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

30W

2700lm

80+

3000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

30W

2700lm

80+

3000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

30W

2700lm

80+

3000K

DALI

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

30W

2430lm

90+

3000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

30W

2430lm

90+

3000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

30W

2430lm

90+

3000K

DALI

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

30W

2781lm

80+

4000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

30W

2781lm

80+

4000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

30W

2781lm

80+

4000K

DALI

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

30W

2503lm

90+

4000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

30W

2503lm

90+

4000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1208mm

30W

2503lm

90+

4000K

DALI

Model

SSH-Slim

Input Vol.

220-240VAC

Optical

Louver & Lens=5sets

Power

27W

Beam Angle

35x75°/50x50°/Dimond50°/50°

LED

Osram

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1508mm x W53mm x H102mm

Lumen

2503lm/pc

IP / IK

IP22

Efficiency

90lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-Slim,           Optical: Louver & Lens=5sets,            Efficiency: 90lm/W,            LED: Osram,            Driver: Lifud

OPTICAL

ANGLE

UGR

DIMENSION

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

27W

2403lm

80+

3000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

27W

2403lm

80+

3000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

27W

2403lm

80+

3000K

DALI

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

27W

2187lm

90+

3000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

27W

2187lm

90+

3000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

27W

2187lm

90+

3000K

DALI

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

27W

2503lm

80+

4000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

27W

2503lm

80+

4000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

27W

2503lm

80+

4000K

DALI

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

27W

2253lm

90+

4000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

27W

2253lm

90+

4000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

27W

2253lm

90+

4000K

DALI

Model

SSH-Slim

Input Vol.

220-240VAC

Optical

Louver & Lens=10sets

Power

45W

Beam Angle

35x75°/50x50°/Dimond50°/50°

LED

Osram

Finish

Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized

Dim / PF

On/Off >0.9
0-10V >0.9
DALI >0.9

UGR

<19

SDCM

<3

Dimension

L1508mm x W53mm x H102mm

Lumen

4172lm/pc

IP / IK

IP22

Efficiency

90lm/W

Installation

Pendant

Life Time
L80B10

50,000hrs

Net Weight

/

THD

<20%

Luminaire: SSH-Slim,           Optical: Louver & Lens=10sets,           Efficiency: 90lm/W,            LED: Osram,            Driver: Lifud

OPTICAL

ANGLE

UGR

DIMENSION

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

45W

4050lm

80+

3000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

45W

4050lm

80+

3000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

45W

4050lm

80+

3000K

DALI

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

45W

3645lm

90+

3000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

45W

3645lm

90+

3000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

45W

3645lm

90+

3000K

DALI

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

45W

4172lm

80+

4000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

45W

4172lm

80+

4000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

45W

4172lm

80+

4000K

DALI

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

45W

3754lm

90+

4000K

On-Off

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

45W

3754lm

90+

4000K

0-10V

Louver & Lens

35x75°/50x50°/Dimond50°/50°

<19

L1508mm

45W

3754lm

90+

4000K

DALI
