Acoustic Slim Lighting With PC Diffuser Optical Lens

Short Description:

Acoustic Slim Light Luminaire, offering a selection of three lengths from 600 to 1500mm, with customization options extending up to 2000mm.

Select from a diverse palette of 25 panel colors and personalize your lighting experience with various LED choices, featuring CRI95+ and 90+.

Explore approximately 7 CCT options ranging from 2700K to 6500K, and enjoy versatile dimming methods, including ON/OFF, DALI, and 0-10V, providing complete control over your lighting environment.


Product Detail

Download

Product Tags

Product Introduction

Introducing the SSH-Slim Series, an innovative acoustic lighting solution reshaping environments for work, worship, entertainment, and home. This series offers diverse design options, including 4x8ft (1.22x2.44m) acoustic panels, crafted from 100% recyclable, fire-retardant, and odorless materials, contributing to sustainability.

With an extensive range of LED options in CRI90+/CRI95+, customizable CCT options, and versatile dimming methods (0-10V, DALI, ON/OFF), this linear light provides both functional illumination and superior sound management, featuring NRC = 0.7 acoustic panels. Ideal for pendant installation.

Furthermore, the SSH-Slim is equipped with an internal driver, patented connection bracket, ensuring straightforward installation, maintenance, and seamless jointing for extended configurations.

Feature

1. Customized Designs: 25 options acoustic colors can be customized

2. Exceptional Color Rendering: Presenting our lights, assuring vibrant color reproduction with a Color Rendering Index (CRI) over 95 and an R9 value surpassing 90, enhancing your space's visual appeal.

3. Eco-friendly Materials: Committed to sustainability, our products are crafted from 100% recyclable and odorless materials, minimizing their environmental footprint.

4. Class A Fire Retardant: Prioritizing safety, our lights incorporate Class A fire-retardant materials, ensuring an added layer of security and peace of mind.

5, High Sound Absorption Performance in NRC = 0.7 panels, Excellent illumination performance

6, Improved Work Environment: Experience heightened comfort in both work and living environments through a combination of reduced noise and superior lighting quality. Enhanced lighting and sound control not only boost work efficiency but also elevate overall employee satisfaction.

7, Effortless Installation: Designed for effortless installation and rapid field joints for continuous runs, our Acoustic Lighting ensures a seamless and hassle-free setup.

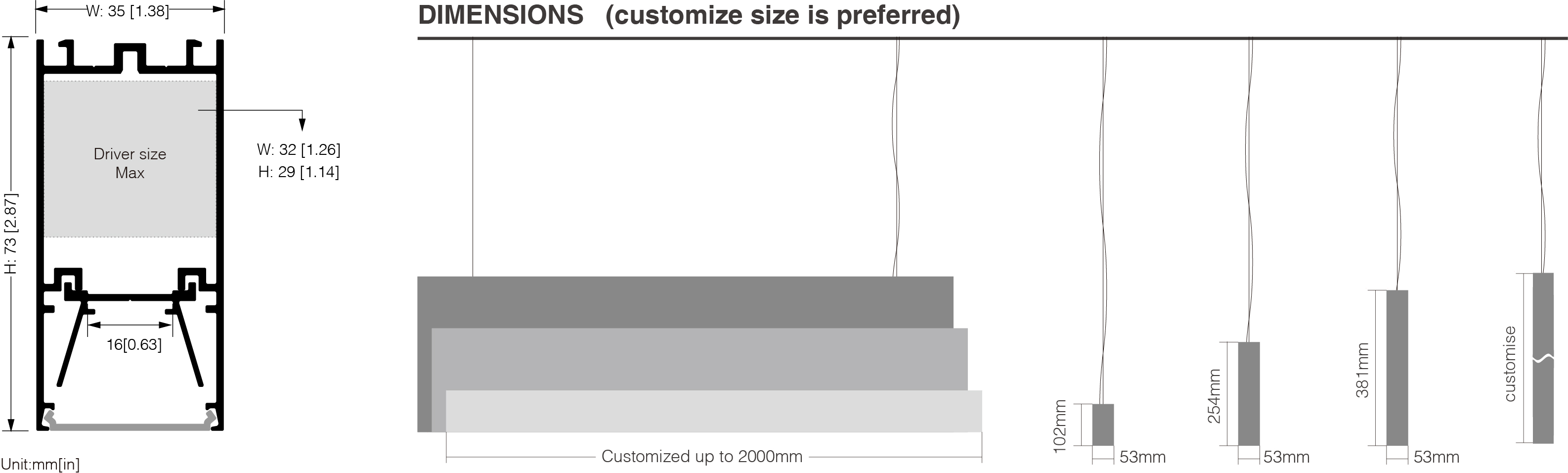

Size & Installation

未标题-2

Finish

Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.

33_画板 1

Other 15 colors for option.

1231_画板 1

Range of Applications

Presenting Acoustic lights, providing a versatile lighting solution by seamlessly integrating quality illumination with effective sound absorption. Ideal for spaces where cultivating a pleasant working environment is crucial, including offices, restaurants, meeting rooms, educational institutions, healthcare facilities, theaters, museums, and more.

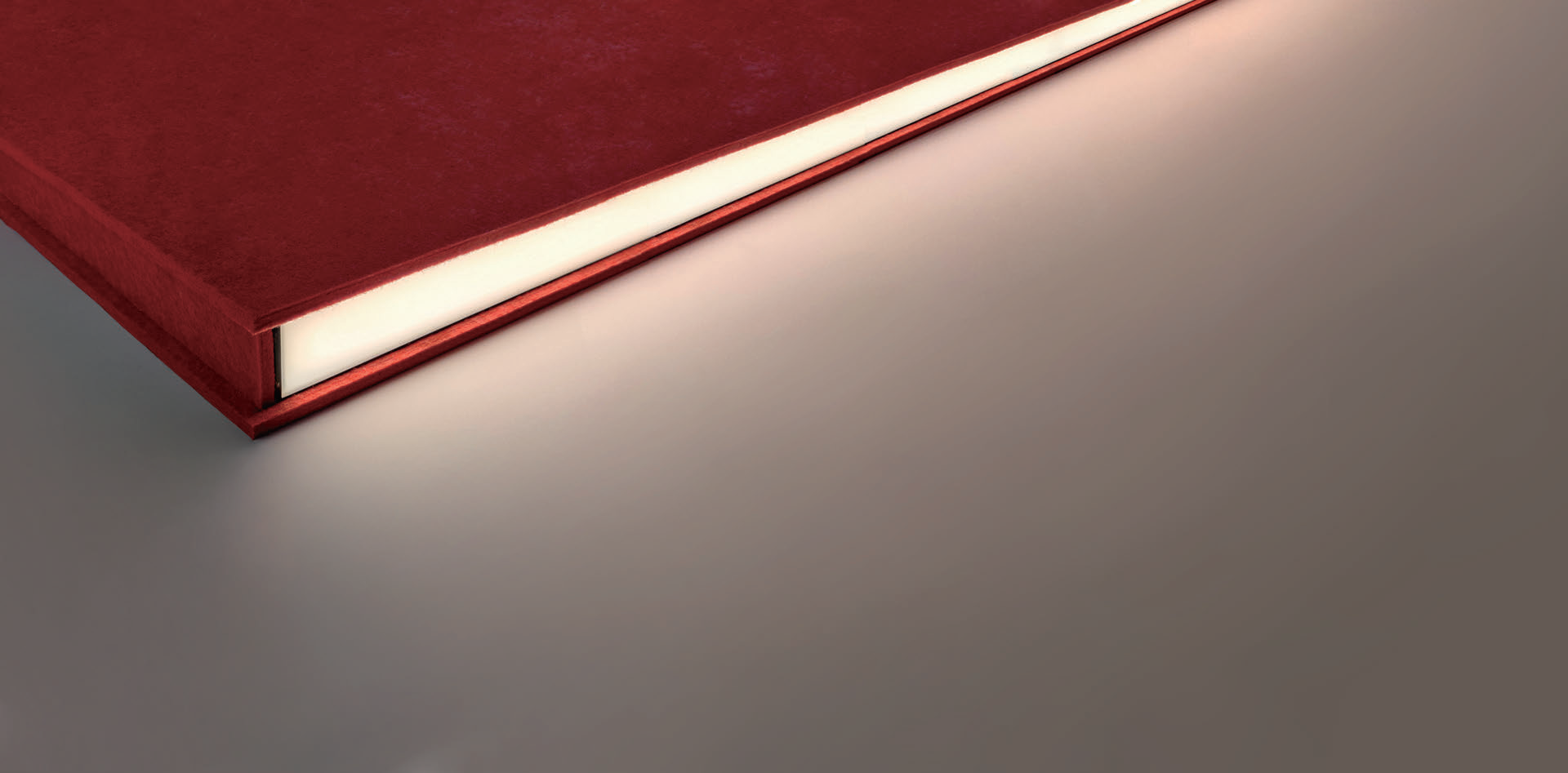

Acoustic Slim Lighting With PC Diffuser Optical Lens

Specification

Model SSH-Slim Input Vol. 220-240VAC
Optical PC Diffuser Lens Power 11.5W
Beam Angle 105° LED SMD 2853
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
UGR <26 SDCM <3
Dimension L628 x W53 x H102mm Lumen 828lm/pc
IP / IK IP22 Efficiency 80lm/W
Installation Pendant Life Time
L80B10
50,000hrs
Net Weight / THD <20%

Luminaire: SSH-Slim,    Optical: PC lens,     Efficiency: 80lm/W,     LED: SMD 2835,       Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L628mm

11.5W

787lm

80+

3000K

On-Off

PC Diffuser Lens

105°

<26

L628mm

11.5W

787lm

80+

3000K

0-10V

PC Diffuser Lens

105°

<26

L628mm

11.5W

787lm

80+

3000K

DALI

PC Diffuser Lens

105°

<26

L628mm

11.5W

828lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L628mm

11.5W

828lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L628mm

11.5W

828lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L628mm

11.5W

708lm

80+

4000K

On-Off

PC Diffuser Lens

105°

<26

L628mm

11.5W

708lm

80+

4000K

0-10V

PC Diffuser Lens

105°

<26

L628mm

11.5W

708lm

80+

4000K

DALI

PC Diffuser Lens

105°

<26

L628mm

11.5W

708lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L628mm

11.5W

745lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L628mm

11.5W

745lm

90+

4000K

DALI

Model SSH-Slim Input Vol. 220-240VAC
Optical PC Diffuser Lens Power 23W
Beam Angle 105° LED SMD 2853
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
UGR <26 SDCM <3
Dimension L1228mm x W53mm x H102mm Lumen 1656lm/pc
IP / IK IP22 Efficiency 80lm/W
Installation Pendant Life Time
L80B10
50,000hrs
Net Weight / THD <20%
Luminaire: SSH-Slim,          Optical: PC lens,           Efficiency: 80lm/W,            LED: SMD 2835,            Driver: Lifud

OPTICAL

ANGLE

UGR

DIMENSION

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1228mm

23W

1573lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1228mm

23W

1573lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1228mm

23W

1573lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1228mm

23W

1656lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1228mm

23W

1656lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1228mm

23W

1656lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1228mm

23W

1416lm

95+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1228mm

23W

1416lm

95+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1228mm

23W

1416lm

95+

3000K

DALI

PC Diffuser Lens

105°

<26

L1228mm

23W

1490lm

95+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1228mm

23W

1490lm

95+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1228mm

23W

1490lm

95+

4000K

DALI

Model SSH-Slim Input Vol. 220-240VAC
Optical PC Diffuser Lens Power 27W
Beam Angle 105° LED SMD 2853
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
UGR <26 SDCM <3
Dimension L1528mm x W53mm x H381mm Lumen 1944lm/pc
IP / IK IP22 Efficiency 80lm/W
Installation Pendant Life Time
L80B10
50,000hrs
Net Weight / THD <20%
Luminaire: SSH-Slim,          Optical: PC lens,           Efficiency: 80lm/W,            LED: SMD 2835,            Driver: Lifud

OPTICAL

ANGLE

UGR

DIMENSION

POWER

LUMEN

RA

CCT

DIM

PC Diffuser Lens

105°

<26

L1528mm

27W

1847lm

90+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1528mm

27W

1847lm

90+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1528mm

27W

1847lm

90+

3000K

DALI

PC Diffuser Lens

105°

<26

L1528mm

27W

1944lm

90+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1528mm

27W

1944lm

90+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1528mm

27W

1944lm

90+

4000K

DALI

PC Diffuser Lens

105°

<26

L1528mm

27W

1662lm

95+

3000K

On-Off

PC Diffuser Lens

105°

<26

L1528mm

27W

1662lm

95+

3000K

0-10V

PC Diffuser Lens

105°

<26

L1528mm

27W

1662lm

95+

3000K

DALI

PC Diffuser Lens

105°

<26

L1528mm

27W

1749lm

95+

4000K

On-Off

PC Diffuser Lens

105°

<26

L1528mm

27W

1749lm

95+

4000K

0-10V

PC Diffuser Lens

105°

<26

L1528mm

27W

1749lm

95+

4000K

DALI
