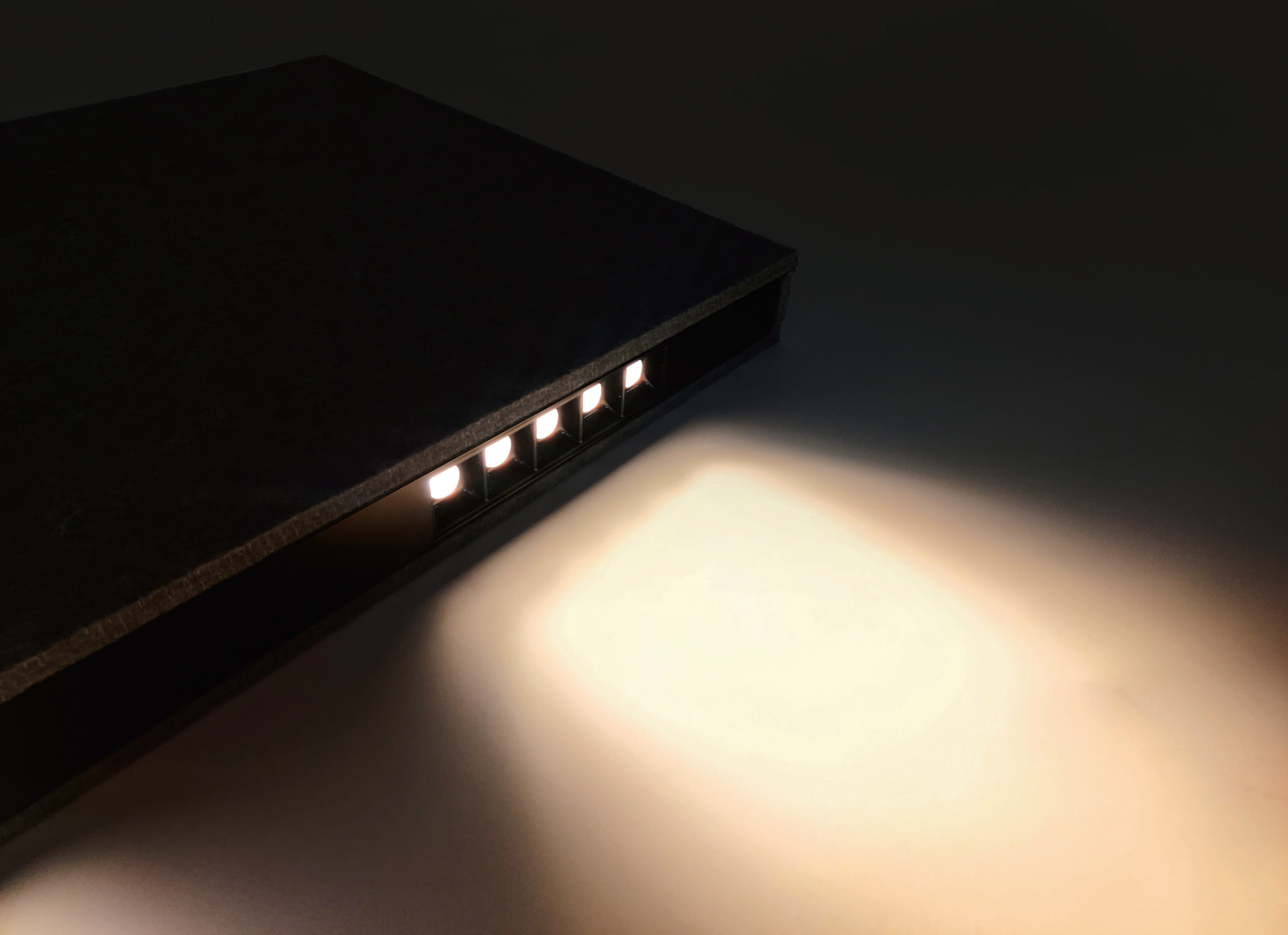

Acoustic Slim Lighting With Cone Louver Lens

Short Description:

Introducing the Acoustic Slim Light Luminaire, available in three lengths ranging from 600 to 1500mm, with customization options extending up to 2000mm.

Select from a diverse range of 25 panel colors to personalize your lighting experience with various LED options, including CRI95+ and 90+.

Explore approximately 7 CCT options ranging from 2700K to 6500K and indulge in versatile dimming methods, including ON/OFF, DALI, and 0-10V, allowing complete control over your lighting environment.

Send email to us

+86 -150 1296 2268（Ivy Chen）

+86 -132 2957 2611（Kelsie Liang）

+86 -137 5101 2331（Wendy Wu）

ACOUSTICAL CALCULATOR TOOL

Product Detail

Download

Product Tags

Product Introduction

Introducing the SSH-Slim Series, an innovative acoustic lighting solution revolutionizing environments for work, worship, entertainment, and home. This series offers diverse design options, featuring 4x8ft (1.22x2.44m) acoustic panels crafted from 100% recyclable, fire-retardant, and odorless materials, contributing to sustainability.

With a comprehensive selection of LED options in CRI90+/CRI95+, customizable CCT choices, and versatile dimming methods (0-10V, DALI, ON/OFF), this linear light provides both functional illumination and exceptional sound management with NRC = 0.7 acoustic panels. Ideal for pendant installation.

Furthermore, the SSH-Slim is equipped with an internal driver and patented connection bracket, ensuring effortless installation, maintenance, and seamless jointing for extended configurations.

Feature

1, Customized Designs: 25 customizable acoustic colors.

2, Exceptional Color Rendering: Presenting our lights, assuring vibrant color reproduction with a Color Rendering Index (CRI) over 95 and an R9 value surpassing 90, enhancing your space's visual appeal.

3, Eco-friendly Materials: Committed to sustainability, our products are crafted from 100% recyclable and odorless materials, minimizing their environmental footprint.

4, Class A Fire Retardant: Prioritizing safety, our lights incorporate Class A fire-retardant materials, ensuring an added layer of security and peace of mind.

5, High Sound Absorption Performance in NRC = 0.7 panels, Excellent illumination performance

6, Improved Work Environment: Elevate comfort in both work and living spaces through a harmonious blend of reduced noise and superior lighting quality. Improved lighting and sound control not only enhance work efficiency but also contribute to heightened employee satisfaction overall.

7, Effortless Installation: Crafted for easy installation and swift field joints, our Acoustic Lighting guarantees a seamless and hassle-free setup.

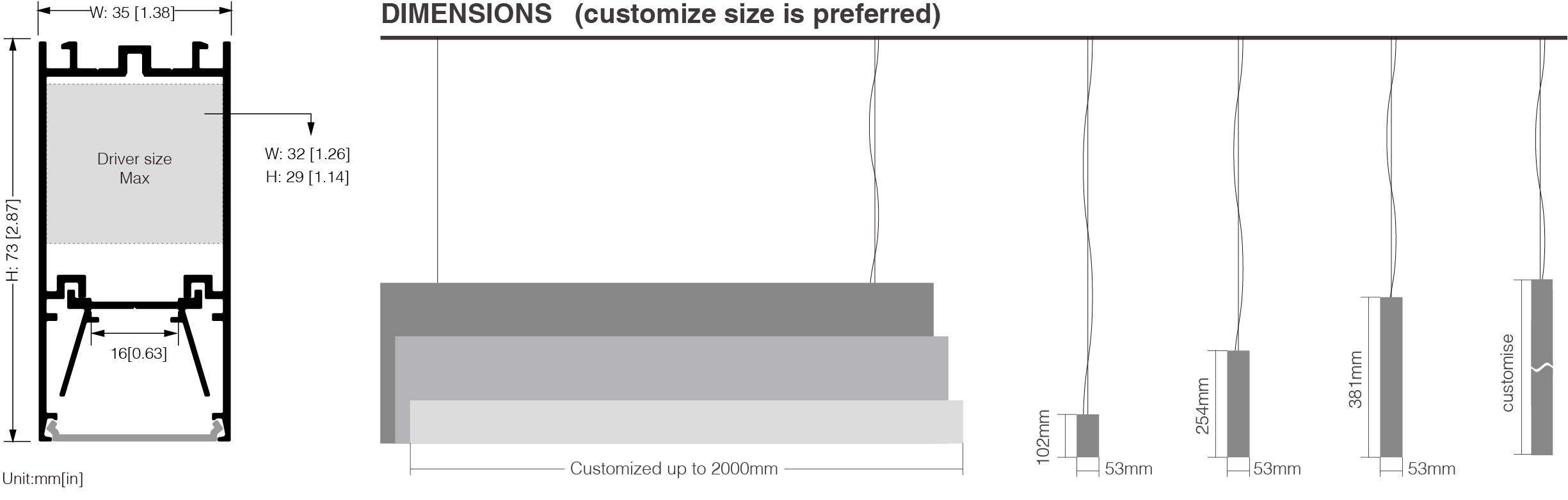

Size & Installation

Finish

Acoustic System is offering various color up to 25 options, 10 colors are in stock for quick shipping.

Other 15 colors for option.

Range of Applications

Presenting a versatile lighting solution that seamlessly integrates quality illumination with effective sound absorption. Ideal for cultivating a pleasant working environment in spaces such as offices, restaurants, meeting rooms, educational institutions, healthcare facilities, theaters, museums, and more.

Specification

Model	SSH-Slim	Input Vol.	220-240VAC
Optical	Cone Louver=4sets	Power	21W
Beam Angle	24°/38°	LED	Osram
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<19	SDCM	<3
Dimension	L1208mm x W53mm x H102mm	Lumen	1947lm/pc
IP / IK	IP22	Efficiency	90lm/W
Installation	Pendant	Life Time L80B10	50,000hrs
Net Weight	/	THD	<20%

Luminaire: SSH-Slim, Optical: Cone Louver=4sets, Efficiency: 90lm/W, LED: Osram, Driver: Lifud
OPTICAL	ANGLE	UGR	DIMENSION	POWER	LUMEN	RA	CCT	DIM
Cone Louver	24°/38°	<19	L1208mm	21W	1890lm	80+	3000K	On-Off
Cone Louver	24°/38°	<19	L1208mm	21W	1890lm	80+	3000K	0-10V
Cone Louver	24°/38°	<19	L1208mm	21W	1890lm	80+	3000K	DALI
Cone Louver	24°/38°	<19	L1208mm	21W	1701lm	90+	3000K	On-Off
Cone Louver	24°/38°	<19	L1208mm	21W	1701lm	90+	3000K	0-10V
Cone Louver	24°/38°	<19	L1208mm	21W	1701lm	90+	3000K	DALI
Cone Louver	24°/38°	<19	L1208mm	21W	1947lm	80+	4000K	On-Off
Cone Louver	24°/38°	<19	L1208mm	21W	1947lm	80+	4000K	0-10V
Cone Louver	24°/38°	<19	L1208mm	21W	1947lm	80+	4000K	DALI
Cone Louver	24°/38°	<19	L1208mm	21W	1752lm	90+	4000K	On-Off
Cone Louver	24°/38°	<19	L1208mm	21W	1752lm	90+	4000K	0-10V
Cone Louver	24°/38°	<19	L1208mm	21W	1752lm	90+	4000K	DALI

Model	SSH-Slim	Input Vol.	220-240VAC
Optical	Cone Louver=8sets	Power	30W
Beam Angle	24°/38°	LED	Osram
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<19	SDCM	<3
Dimension	L1208mm x W53mm x H102mm	Lumen	2781lm/pc
IP / IK	IP22	Efficiency	90lm/W
Installation	Pendant	Life Time L80B10	50,000hrs
Net Weight	/	THD	<20%

Luminaire: SSH-Slim, Optical: Cone Louver=8sets, Efficiency: 90lm/W, LED: Osram, Driver: Lifud
OPTICAL	ANGLE	UGR	DIMENSION	POWER	LUMEN	RA	CCT	DIM
Cone Louver	24°/38°	<19	L1208mm	30W	2700lm	80+	3000K	On-Off
Cone Louver	24°/38°	<19	L1208mm	30W	2700lm	80+	3000K	0-10V
Cone Louver	24°/38°	<19	L1208mm	30W	2700lm	80+	3000K	DALI
Cone Louver	24°/38°	<19	L1208mm	30W	2430lm	90+	3000K	On-Off
Cone Louver	24°/38°	<19	L1208mm	30W	2430lm	90+	3000K	0-10V
Cone Louver	24°/38°	<19	L1208mm	30W	2430lm	90+	3000K	DALI
Cone Louver	24°/38°	<19	L1208mm	30W	2781lm	80+	4000K	On-Off
Cone Louver	24°/38°	<19	L1208mm	30W	2781lm	80+	4000K	0-10V
Cone Louver	24°/38°	<19	L1208mm	30W	2781lm	80+	4000K	DALI
Cone Louver	24°/38°	<19	L1208mm	30W	2503lm	90+	4000K	On-Off
Cone Louver	24°/38°	<19	L1208mm	30W	2503lm	90+	4000K	0-10V
Cone Louver	24°/38°	<19	L1208mm	30W	2503lm	90+	4000K	DALI

Model	SSH-Slim	Input Vol.	220-240VAC
Optical	Cone Louver=5sets	Power	27W
Beam Angle	24°/38°	LED	Osram
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<19	SDCM	<3
Dimension	L1508mm x W53mm x H102mm	Lumen	2503lm/pc
IP / IK	IP22	Efficiency	90lm/W
Installation	Pendant	Life Time L80B10	50,000hrs
Net Weight	/	THD	<20%

Luminaire: SSH-Slim, Optical: Cone Louver=5sets, Efficiency: 90lm/W, LED: Osram, Driver: Lifud
OPTICAL	ANGLE	UGR	DIMENSION	POWER	LUMEN	RA	CCT	DIM
Cone Louver	24°/38°	<19	L1508mm	27W	2430lm	80+	3000K	On-Off
Cone Louver	24°/38°	<19	L1508mm	27W	2430lm	80+	3000K	0-10V
Cone Louver	24°/38°	<19	L1508mm	27W	2430lm	80+	3000K	DALI
Cone Louver	24°/38°	<19	L1508mm	27W	2187lm	90+	3000K	On-Off
Cone Louver	24°/38°	<19	L1508mm	27W	2187lm	90+	3000K	0-10V
Cone Louver	24°/38°	<19	L1508mm	27W	2187lm	90+	3000K	DALI
Cone Louver	24°/38°	<19	L1508mm	27W	2503lm	80+	4000K	On-Off
Cone Louver	24°/38°	<19	L1508mm	27W	2503lm	80+	4000K	0-10V
Cone Louver	24°/38°	<19	L1508mm	27W	2503lm	80+	4000K	DALI
Cone Louver	24°/38°	<19	L1508mm	27W	2253lm	90+	4000K	On-Off
Cone Louver	24°/38°	<19	L1508mm	27W	2253lm	90+	4000K	0-10V
Cone Louver	24°/38°	<19	L1508mm	27W	2253lm	90+	4000K	DALI

Model	SSH-Slim	Input Vol.	220-240VAC
Optical	Cone Louver=10sets	Power	45W
Beam Angle	24°/38°	LED	Osram
Finish	Textured Black (RAL9004) Textured White (RAL9003) Silver Anodized	Dim / PF	On/Off >0.9 0-10V >0.9 DALI >0.9
UGR	<19	SDCM	<3
Dimension	L1508mm x W53mm x H102mm	Lumen	4172lm/pc
IP / IK	IP22	Efficiency	90lm/W
Installation	Pendant	Life Time L80B10	50,000hrs
Net Weight	/	THD	<20%

Luminaire: SSH-Slim, Optical: Cone Louver=10sets, Efficiency: 90lm/W, LED: Osram, Driver: Lifud
OPTICAL	ANGLE	UGR	DIMENSION	POWER	LUMEN	RA	CCT	DIM
Cone Louver	24°/38°	<19	L1508mm	45W	4050lm	80+	3000K	On-Off
Cone Louver	24°/38°	<19	L1508mm	45W	4050lm	80+	3000K	0-10V
Cone Louver	24°/38°	<19	L1508mm	45W	4050lm	80+	3000K	DALI
Cone Louver	24°/38°	<19	L1508mm	45W	3645lm	90+	3000K	On-Off
Cone Louver	24°/38°	<19	L1508mm	45W	3645lm	90+	3000K	0-10V
Cone Louver	24°/38°	<19	L1508mm	45W	3645lm	90+	3000K	DALI
Cone Louver	24°/38°	<19	L1508mm	45W	4172lm	80+	4000K	On-Off
Cone Louver	24°/38°	<19	L1508mm	45W	4172lm	80+	4000K	0-10V
Cone Louver	24°/38°	<19	L1508mm	45W	4172lm	80+	4000K	DALI
Cone Louver	24°/38°	<19	L1508mm	45W	3754lm	90+	4000K	On-Off
Cone Louver	24°/38°	<19	L1508mm	45W	3754lm	90+	4000K	0-10V
Cone Louver	24°/38°	<19	L1508mm	45W	3754lm	90+	4000K	DALI
