• Acoustic Light SSH-SLIM with 35×75° TIR & LOUVER and UGR < 19

Acoustic Light SSH-SLIM with 35×75° TIR & LOUVER and UGR < 19

Short Description:

Introducing our Sound Management Fixture: a noise-reducing LED light designed for office spaces. With UGR<19, 35×75° TIR & LOUVER optics, and slim profile, our linear pendant lights not only enhance your office LED lighting but also contribute to a quieter, more productive workspace. Elevate your office environment today.


Product Detail

Download

Product Tags

Product Introduction

Introducing our revolutionary Linear Light: a perfect fusion of cutting-edge technology and eco-conscious design. With a UGR<19 rating, our light delivers an exceptional lighting experience, ensuring minimal glare and optimal visual comfort in environments like offices and commercial spaces.

Crafted with precision, our Linear Light boasts 35x75° TIR & LOUVER optics, providing precise light distribution, enhanced efficiency, and reduced light spillage, guaranteeing a perfectly illuminated area.

But that's not all – our product isn't just about illumination. It's also about sound management. With a remarkable NRC rating of 0.7, our panels offer superior sound absorption, creating quieter, more productive spaces.

We're committed to sustainability, too. Made from 100% recyclable and odorless materials, our Linear Light prioritizes eco-friendliness without compromising on performance. Plus, it meets Class A fire retardant standards for added safety.

Experience the future of lighting and sound management with our Linear Light. Elevate your space with customizable designs in 4x8ft (1.22x2.44m) panels. It's time to redefine your environment.

Feature

1. UGR<19 (Unified Glare Rating <19):

This feature ensures that our linear light product provides excellent lighting quality with minimal glare, making it perfect for environments where visual comfort is essential, such as offices and commercial spaces.

2. 35x75° TIR & LOUVER Optics:

Our product is equipped with TIR (Total Internal Reflection) and LOUVER optics that offer precise light distribution, enhancing efficiency and reducing light spillage, resulting in an optimally illuminated area.

3. High Sound Absorption Performance in NRC = 0.7 Panels:

Our acoustic panels have a Noise Reduction Coefficient (NRC) rating of 0.7, indicating exceptional sound absorption capabilities. This feature contributes to a quieter and more comfortable environment by reducing noise levels effectively.

4. 100% Recyclable and Odorless Material:

We prioritize sustainability by using materials that are both eco-friendly and odorless. This not only benefits the environment but also ensures a pleasant indoor air quality.

5. Class A Fire Retardant:

Our product meets Class A fire retardant standards, offering enhanced fire safety. This feature is crucial, especially in commercial and public spaces where safety regulations are stringent.

6. Various Customized Design in 4x8ft/1.22x2.44m Acoustic Panels:

We provide versatile design options for our 4x8ft (1.22x2.44m) acoustic panels, allowing you to customize the aesthetics to suit your unique space while enjoying the benefits of superior sound absorption and lighting quality.

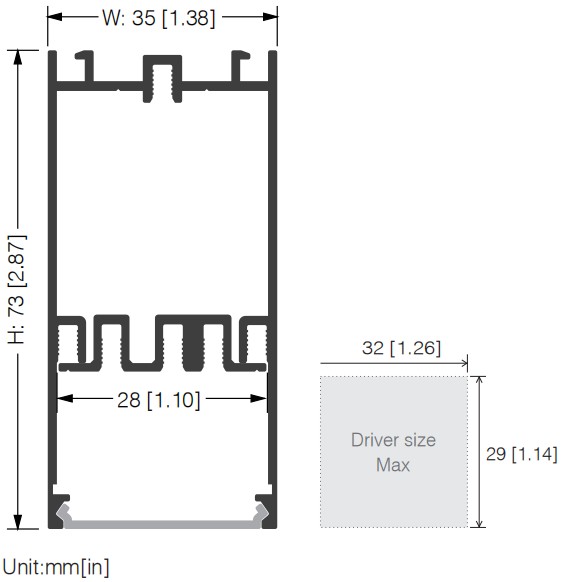

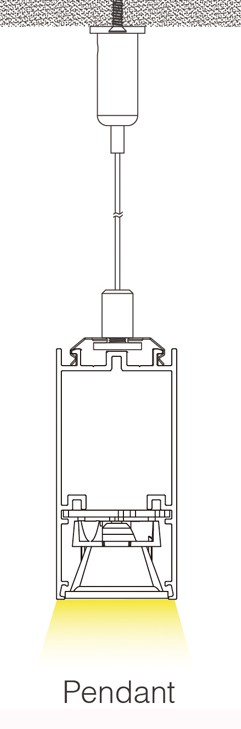

Size & Installation

Acoustic Light SSH-SLIM with 35x75° TIR & LOUVER and UGR  19-02 (2)
Acoustic Light SSH-SLIM with 35x75° TIR & LOUVER and UGR  19-02 (1)
Acoustic Light SSH-SLIM with 35x75° TIR & LOUVER and UGR  19-04

Finish

Standard in matt white textured, matt black textured powder coating and silver anodized. More customized colors up 48 options available in customized service.

Finish01 (1)
Finish01 (2)
Finish01 (3)

Color Option

slim crystal louver-12

Range of Applications

Ideal lighting solutions for various settings – offices, educational institutions, and conference rooms. Versatile across different environments, guaranteeing impeccable illumination.

Specification

Model SLIM Input Vol. 220-240VAC
Optical Louver & Lens Power 21W
Beam Angle 35x75° LED Osram
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
CCT 3000K

4000K

Dim / PF On/Off >0.9

0-10V >0.9

DALI >0.9

CRI 80+

90+

UGR <19 SDCM <3
Dimension L1228 x W53 x H102mm Lumen 1890-1947lm/pc
IP / IK IP22 Efficiency 90lm/W
Installation Pendant, Ceiling Mounted Life Time
L80B10
50,000hrs
Net Weight 1.45kgs THD <20%
Luminaire: SLIM,    Optical: Louver & Lens,  Efficiency: 90lm/W,  LED: Osram, Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

35x75°

<19

L1208mm

21.0W

1890lm

80+

3000K

On-Off

Louver & Lens

35x75°

<19

L1208mm

21.6W

1890lm

80+

3000K

0-10V

Louver & Lens

35x75°

<19

L1208mm

21.6W

1890lm

80+

3000K

DALI

Louver & Lens

35x75°

<19

L1208mm

21.0W

1701lm

90+

3000K

On-Off

Louver & Lens

35x75°

<19

L1208mm

21.6W

1701lm

90+

3000K

0-10V

Louver & Lens

35x75°

<19

L1208mm

21.6W

1701lm

90+

3000K

DALI

Louver & Lens

35x75°

<19

L1208mm

21.0W

1947lm

80+

4000K

On-Off

Louver & Lens

35x75°

<19

L1208mm

21.6W

1947lm

80+

4000K

0-10V

Louver & Lens

35x75°

<19

L1208mm

21.6W

1947lm

80+

4000K

DALI

Louver & Lens

35x75°

<19

L1208mm

21.0W

1752lm

90+

4000K

On-Off

Louver & Lens

35x75°

<19

L1208mm

21.6W

1752lm

90+

4000K

0-10V

Louver & Lens

35x75°

<19

L1208mm

21.6W

1752lm

90+

4000K

DALI

Model SLIM Input Vol. 220-240VAC
Optical Louver & Lens Power 30W
Beam Angle 35x75° LED Osram
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver Anodized
CCT 3000K4000K
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
CRI 80+90+
UGR <19 SDCM <3
Dimension L1208 x W35 x H72mm Lumen 2700-2781lm/pc
IP / IK IP22 Efficiency 90lm/W
Installation Pendant, Ceiling Mounted Life Time
L80B10
50,000hrs
Net Weight 1.45kgs THD <20%
Luminaire: SLIM,  Optical: Louver & Lens  Efficiency: 90lm/W, LED: Osram,  Driver: Lifud

OPTICAL

ANGLE

UGR

LENGTH

POWER

LUMEN

RA

CCT

DIM

Louver & Lens

35x75°

<19

L1208mm

30.0W

2700lm

80+

3000K

On-Off

Louver & Lens

35x75°

<19

L1208mm

30.9W

2700lm

80+

3000K

0-10V

Louver & Lens

35x75°

<19

L1208mm

30.9W

2700lm

80+

3000K

DALI

Louver & Lens

35x75°

<19

L1208mm

30.0W

2430lm

90+

3000K

On-Off

Louver & Lens

35x75°

<19

L1208mm

30.9W

2430lm

90+

3000K

0-10V

Louver & Lens

35x75°

<19

L1208mm

30.9W

2430lm

90+

3000K

DALI

Louver & Lens

35x75°

<19

L1208mm

30.0W

2781lm

80+

4000K

On-Off

Louver & Lens

35x75°

<19

L1208mm

30.9W

2781lm

80+

4000K

0-10V

Louver & Lens

35x75°

<19

L1208mm

30.9W

2781lm

80+

4000K

DALI

Louver & Lens

35x75°

<19

L1208mm

30.0W

2503lm

90+

4000K

On-Off

Louver & Lens

35x75°

<19

L1208mm

30.9W

2503lm

90+

4000K

0-10V

Louver & Lens

35x75°

<19

L1208mm

30.9W

2503lm

90+

4000K

DALI
