• 75mm width Circular Led light OLA75

75mm width Circular Led light OLA75

Short Description:

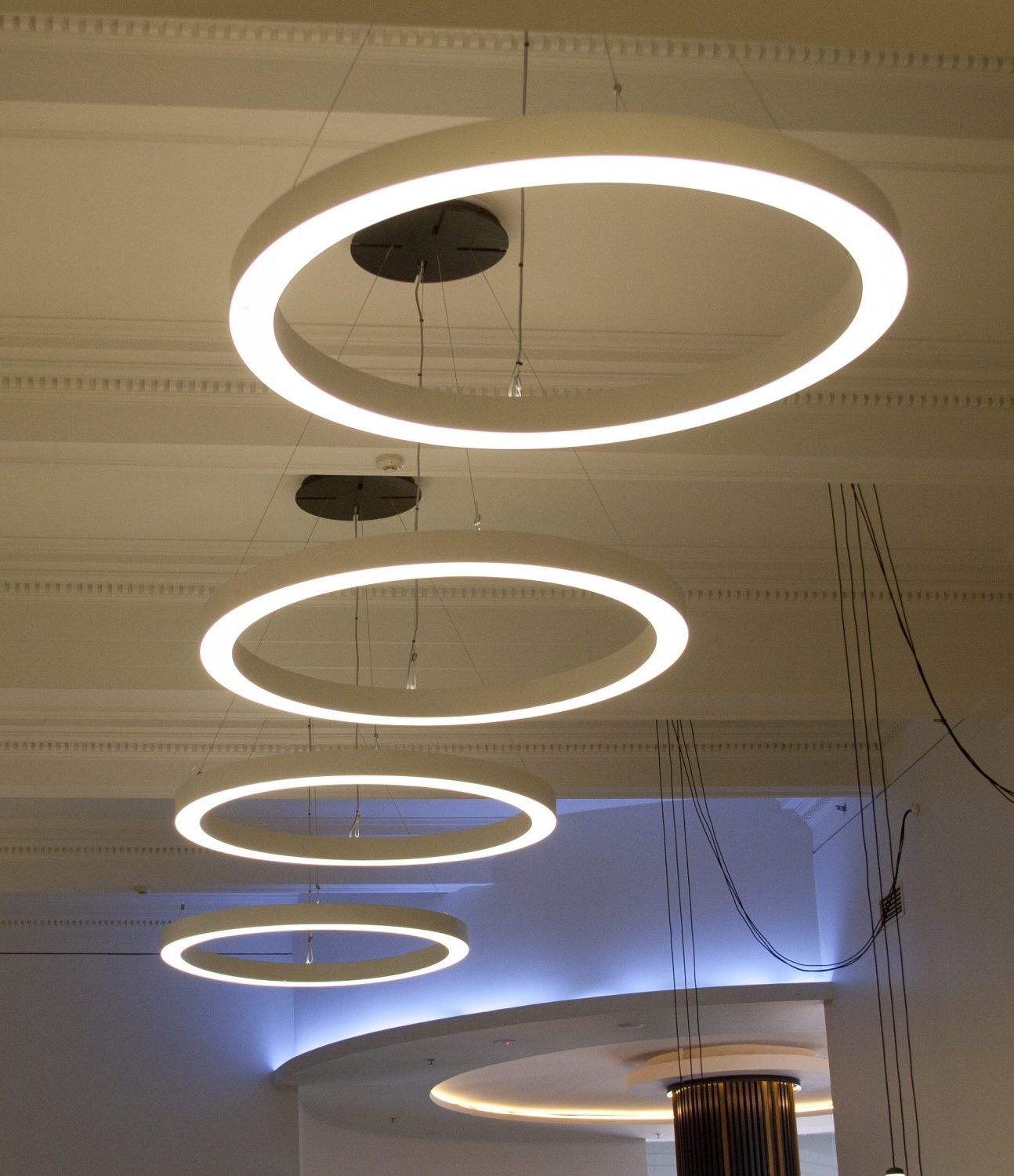

OLA75 is a circular LED light from BV Inspiration’s bendable lighting system.

It features a lighting surface width of 75mm and a profile height of 100mm, with the circular diameter options of 450mm, 600mm, 900mm, 1000mm, 1200mm.

The light can be controlled using different systems, including ON/OFF, 0-10V dimming, and DALI dimming.

With CRI80 or CRI90, CCT from 2200k to 6500k, this big circular light offers uniform illumination and can enhance the aesthetics of any space.


Product Detail

Download

Product Tags

Product Introduction

2

This big size circular led light offers a wide range of housing color options to match any aesthetic or branding requirement including classic colors like white, black, and silver, or we can provide tailored colors to perfectly complement your space.

It gives you the choice between high-quality CRI 80 or CRI 90, ensuring that the colors and textures in your space are faithfully depicted.

With a CCT range of 2200k to 6500k, you can select the ideal color temperature to create the desired atmosphere.

Additionally, the tunable white options allow you to adjust the color temperature according to your specific needs.

Whether you prefer the simplicity of ON/OFF, the flexibility of 0-10V, or the advanced control of Dali, these rings led lights have got you covered, help you to create the perfect ambience with ease.

This huge Led circular offers multiple diameter choices, including450mm, 600mm, 900mm, 1000mm, 1200mm, or bigger, depending on the desired lighting effect and the scale of your space.

Many other customizable shapes are available to be customized to match different projects.

Feature

1, Finish Color options: You can choose from standard housing colors like white, black, and silver, or we can provide tailored colors if necessary.

2,CCT (Correlated Color Temperature): This ring lighting system offers a wide CCT range of 2200k to 6500k, allowing you to select the perfect color temperature for your space.Meanwhile, option for tunable white, enables you to adjust the color temperature as you need.

3,CRI (Color Rendering Index): choose between CRI 80 or CRI 90, ensuring high-quality light output that accurately represents the colors and textures in your environment.

4, Dimming Options: versatile dimming options including ON/OFF, 0-10V, and Dali.This ensures you have precise control over the light intensity for creating the desired atmosphere.

5,Multiple Diameter Choices: We offer a variety of diameter options to cater to different lighting requirements.

6,Customizable Shapes: Whether you require linear fixtures, square panels, circular luminaires, or any other specific shape, we can accommodate your needs.

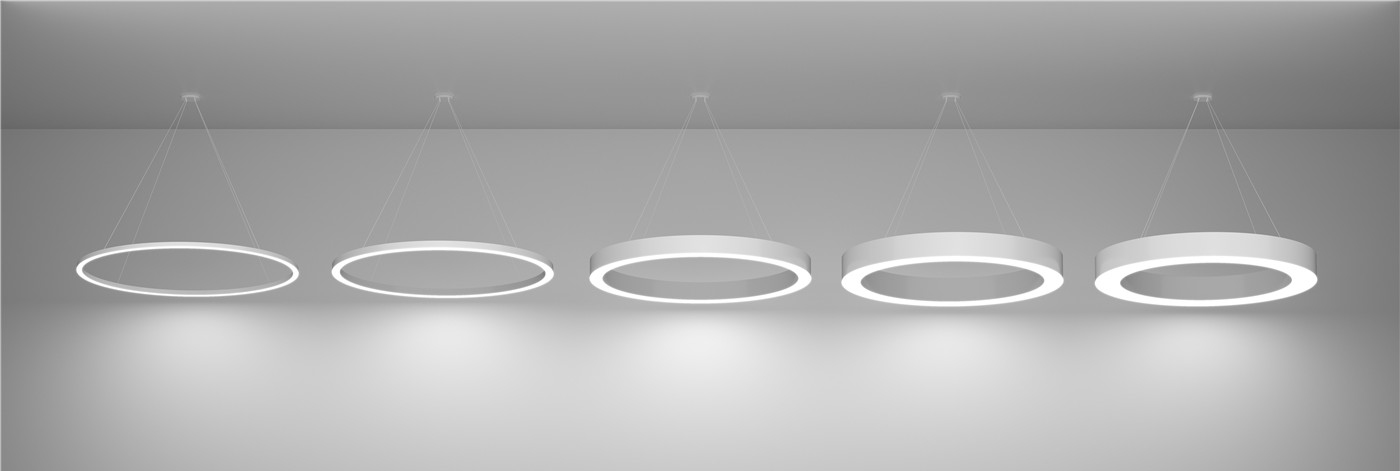

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (10)
2-OLA白皮书

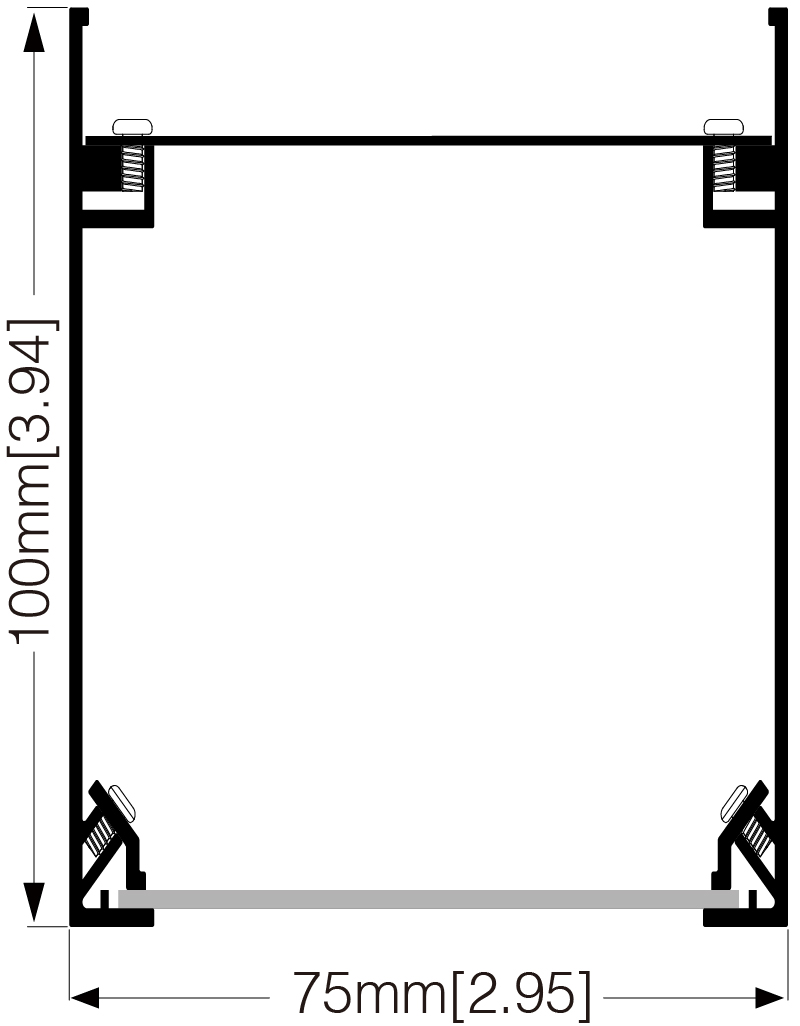

Size & Installation

9_画板 1

Pendant by canopy surface-mounted.

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (14)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (13)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (12)

Finish

We have Matt black, Matt white, and silver grey as standard.

Finish3

Other 48 colors can be project-tailored for you.

Color Options

Range of Applications

Mainly used in offices, conference rooms, educational institutions, other commercial buildings, and government buildings.

circular led

Specification

Model OLA75 Input Vol. 220-240VAC
Optical Diffuser Power 28W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ450 x W75 x H100mm Lumen 1190-1442lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA75,              Optical: Diffuser,              Efficiency: 50lm/W,            LED: Epistar,             Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Diffuser

110°

Φ450mm

28.0W

1400lm

80+

3000K

On-Off

Diffuser

110°

Φ450mm

28.8W

1400lm

80+

3000K

0-10V

Diffuser

110°

Φ450mm

28.8W

1400lm

80+

3000K

DALI

Diffuser

110°

Φ450mm

28.0W

1260lm

90+

3000K

On-Off

Diffuser

110°

Φ450mm

28.8W

1260lm

90+

3000K

0-10V

Diffuser

110°

Φ450mm

28.8W

1260lm

90+

3000K

DALI

Diffuser

110°

Φ450mm

28.0W

1442lm

80+

4000K

On-Off

Diffuser

110°

Φ450mm

28.8W

1442lm

80+

4000K

0-10V

Diffuser

110°

Φ450mm

28.8W

1442lm

80+

4000K

DALI

Diffuser

110°

Φ450mm

28.0W

1298lm

90+

4000K

On-Off

Diffuser

110°

Φ450mm

28.8W

1298lm

90+

4000K

0-10V

Diffuser

110°

Φ450mm

28.8W

1298lm

90+

4000K

DALI

Model OLA75 Input Vol. 220-240VAC
Optical Diffuser Power 37W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ600 x W75 x H100mm Lumen 1573-1906lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA75,              Optical: Diffuser,              Efficiency: 50lm/W,            LED: Epistar,             Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Diffuser

110°

Φ600mm

37.0W

1850lm

80+

3000K

On-Off

Diffuser

110°

Φ600mm

38.1W

1850lm

80+

3000K

0-10V

Diffuser

110°

Φ600mm

38.1W

1850lm

80+

3000K

DALI

Diffuser

110°

Φ600mm

37.0W

1665lm

90+

3000K

On-Off

Diffuser

110°

Φ600mm

38.1W

1665lm

90+

3000K

0-10V

Diffuser

110°

Φ600mm

38.1W

1665lm

90+

3000K

DALI

Diffuser

110°

Φ600mm

37.0W

1906lm

80+

4000K

On-Off

Diffuser

110°

Φ600mm

38.1W

1906lm

80+

4000K

0-10V

Diffuser

110°

Φ600mm

38.1W

1906lm

80+

4000K

DALI

Diffuser

110°

Φ600mm

37.0W

1715lm

90+

4000K

On-Off

Diffuser

110°

Φ600mm

38.1W

1715lm

90+

4000K

0-10V

Diffuser

110°

Φ600mm

38.1W

1715lm

90+

4000K

DALI

Model OLA75 Input Vol. 220-240VAC
Optical Diffuser Power 56W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ900 x W75 x H100mm Lumen 2380-2884lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA75,              Optical: Diffuser,              Efficiency: 50lm/W,            LED: Epistar,             Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Diffuser

110°

Φ900mm

56.0W

2800lm

80+

3000K

On-Off

Diffuser

110°

Φ900mm

57.7W

2800lm

80+

3000K

0-10V

Diffuser

110°

Φ900mm

57.7W

2800lm

80+

3000K

DALI

Diffuser

110°

Φ900mm

56.0W

2520lm

90+

3000K

On-Off

Diffuser

110°

Φ900mm

57.7W

2520lm

90+

3000K

0-10V

Diffuser

110°

Φ900mm

57.7W

2520lm

90+

3000K

DALI

Diffuser

110°

Φ900mm

56.0W

2884lm

80+

4000K

On-Off

Diffuser

110°

Φ900mm

57.7W

2884lm

80+

4000K

0-10V

Diffuser

110°

Φ900mm

57.7W

2884lm

80+

4000K

DALI

Diffuser

110°

Φ900mm

56.0W

2596lm

90+

4000K

On-Off

Diffuser

110°

Φ900mm

57.7W

2596lm

90+

4000K

0-10V

Diffuser

110°

Φ900mm

57.7W

2596lm

90+

4000K

DALI

Model OLA75 Input Vol. 220-240VAC
Optical Diffuser Power 65W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ1000 x W75 x H100mm Lumen 2763-3348lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA75,              Optical: Diffuser,              Efficiency: 50lm/W,            LED: Epistar,             Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Diffuser

110°

Φ1000mm

65.0W

3250lm

80+

3000K

On-Off

Diffuser

110°

Φ1000mm

67.0W

3250lm

80+

3000K

0-10V

Diffuser

110°

Φ1000mm

67.0W

3250lm

80+

3000K

DALI

Diffuser

110°

Φ1000mm

65.0W

2925lm

90+

3000K

On-Off

Diffuser

110°

Φ1000mm

67.0W

2925lm

90+

3000K

0-10V

Diffuser

110°

Φ1000mm

67.0W

2925lm

90+

3000K

DALI

Diffuser

110°

Φ1000mm

65.0W

3348lm

80+

4000K

On-Off

Diffuser

110°

Φ1000mm

67.0W

3348lm

80+

4000K

0-10V

Diffuser

110°

Φ1000mm

67.0W

3348lm

80+

4000K

DALI

Diffuser

110°

Φ1000mm

65.0W

3013lm

90+

4000K

On-Off

Diffuser

110°

Φ1000mm

67.0W

3013lm

90+

4000K

0-10V

Diffuser

110°

Φ1000mm

67.0W

3013lm

90+

4000K

DALI

Model OLA75 Input Vol. 220-240VAC
Optical Diffuser Power 78W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ1200 x W75 x H100mm Lumen 3315-4017lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA75,              Optical: Diffuser,              Efficiency: 50lm/W,            LED: Epistar,             Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Diffuser

110°

Φ1200mm

78.0W

3900lm

80+

3000K

On-Off

Diffuser

110°

Φ1200mm

80.3W

3900lm

80+

3000K

0-10V

Diffuser

110°

Φ1200mm

80.3W

3900lm

80+

3000K

DALI

Diffuser

110°

Φ1200mm

78.0W

3510lm

90+

3000K

On-Off

Diffuser

110°

Φ1200mm

80.3W

3510lm

90+

3000K

0-10V

Diffuser

110°

Φ1200mm

80.3W

3510lm

90+

3000K

DALI

Diffuser

110°

Φ1200mm

78.0W

4017lm

80+

4000K

On-Off

Diffuser

110°

Φ1200mm

80.3W

4017lm

80+

4000K

0-10V

Diffuser

110°

Φ1200mm

80.3W

4017lm

80+

4000K

DALI

Diffuser

110°

Φ1200mm

78.0W

3615lm

90+

4000K

On-Off

Diffuser

110°

Φ1200mm

80.3W

3615lm

90+

4000K

0-10V

Diffuser

110°

Φ1200mm

80.3W

3615lm

90+

4000K

DALI
