• 50mm width Circular Led light with diameter 1000MM OLA50SL100

50mm width Circular Led light with diameter 1000MM OLA50SL100

Short Description:

OLA50SL100 is a circular LED light from BV Inspiration’s bendable lighting system.

It features a lighting surface width of 50mm and a profile height of 75mm, with the circular diameter 100mm.

The light can be controlled using different systems, including ON/OFF, 0-10V dimming, and DALI dimming.

With CRI80 or CRI90, CCT from 2200k to 6500k, this big circular light offers uniform illumination and can enhance the aesthetics of any space.


Product Detail

Download

Product Tags

Product Introduction

This big size circular led light offers a wide range of housing color options to match any aesthetic or branding requirement including classic colors like white, black, and silver, or we can provide tailored colors to perfectly complement your space.

It gives you the choice between high-quality CRI 80 or CRI 90, ensuring that the colors and textures in your space are faithfully depicted.

With a CCT range of 2200k to 6500k, you can select the ideal color temperature to create the desired atmosphere.

Additionally, the tunable white options allow you to adjust the color temperature according to your specific needs.

Whether you prefer the simplicity of ON/OFF, the flexibility of 0-10V, or the advanced control of Dali, these rings led lights have got you covered, help you to create the perfect ambience with ease.

This huge Led circular offers multiple diameter choices, including450mm, 600mm, 900mm, 1000mm, or bigger, depending on the desired lighting effect and the scale of your space.

Many other customizable shapes are available to be customized to match different projects.

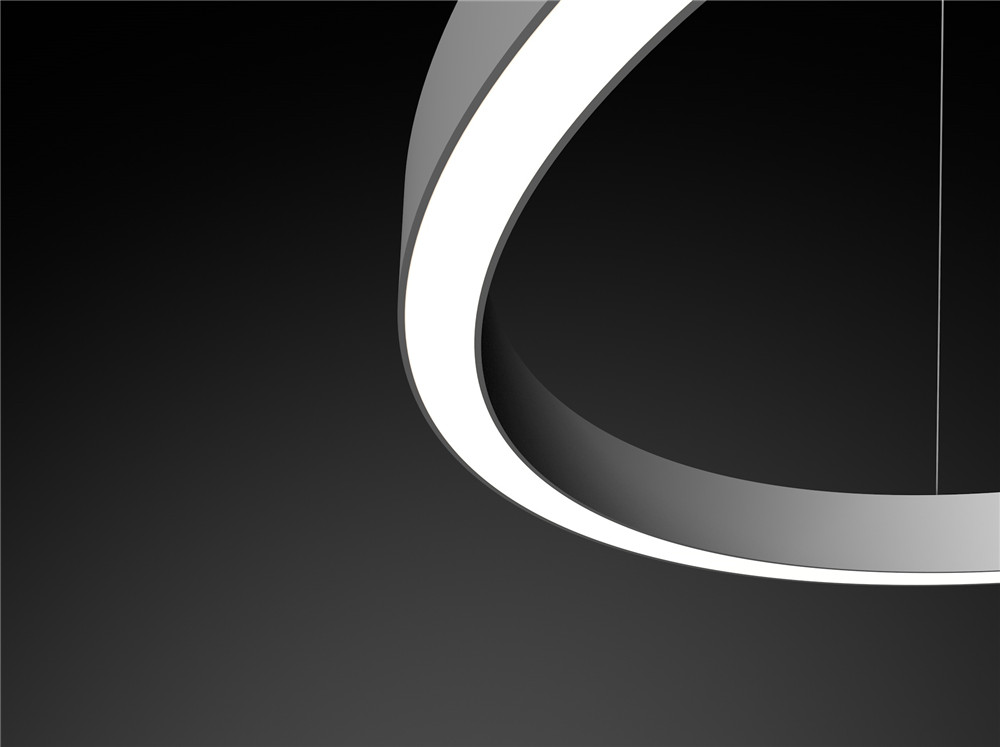

50mm width Circular Led light with diameter 1000MM OLA50SL100-01 (5)

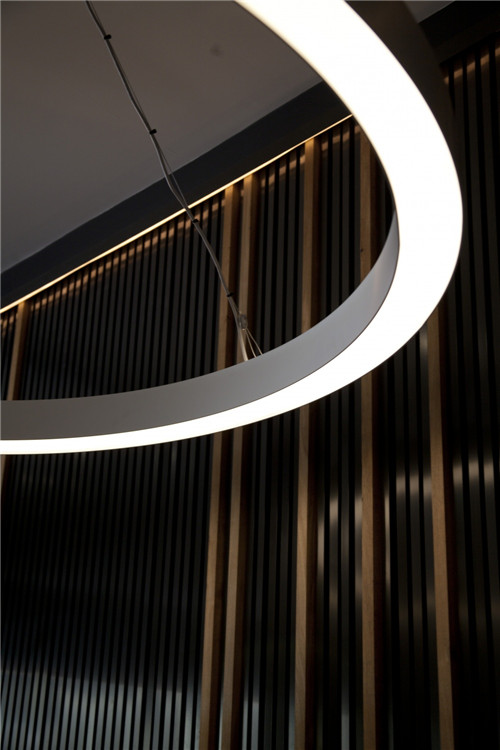

50mm width Circular Led light with diameter 1000MM OLA50SL100-01 (6)

Feature

1, Finish Color options: You can choose from standard housing colors like white, black, and silver, or we can provide tailored colors if necessary.

2, CCT (Correlated Color Temperature): This ring lighting system offers a wide CCT range of 2200k to 6500k, allowing you to select the perfect color temperature for your space.

Meanwhile, option for tunable white, enables you to adjust the color temperature as you need.

3, CRI (Color Rendering Index): choose between CRI 80 or CRI 90, ensuring high-quality light output that accurately represents the colors and textures in your environment.

4, Dimming Options: versatile dimming options including ON/OFF, 0-10V, and Dali.

This ensures you have precise control over the light intensity for creating the desired atmosphere.

5, Multiple Diameter Choices: We offer a variety of diameter options to cater to different lighting requirements.

6, Customizable Shapes: Whether you require linear fixtures, square panels, circular luminaires, or any other specific shape, we can accommodate your needs.

l
2-OLA白皮书

Size & Installation

3_画板 1

pendant with driver in the canopy.

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (12)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (13)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (14)

Finish

We have Matt black, Matt white, and silver grey as standard.

Other 48 colors can be project-tailored for you.

Finish3
Color Options

Applications

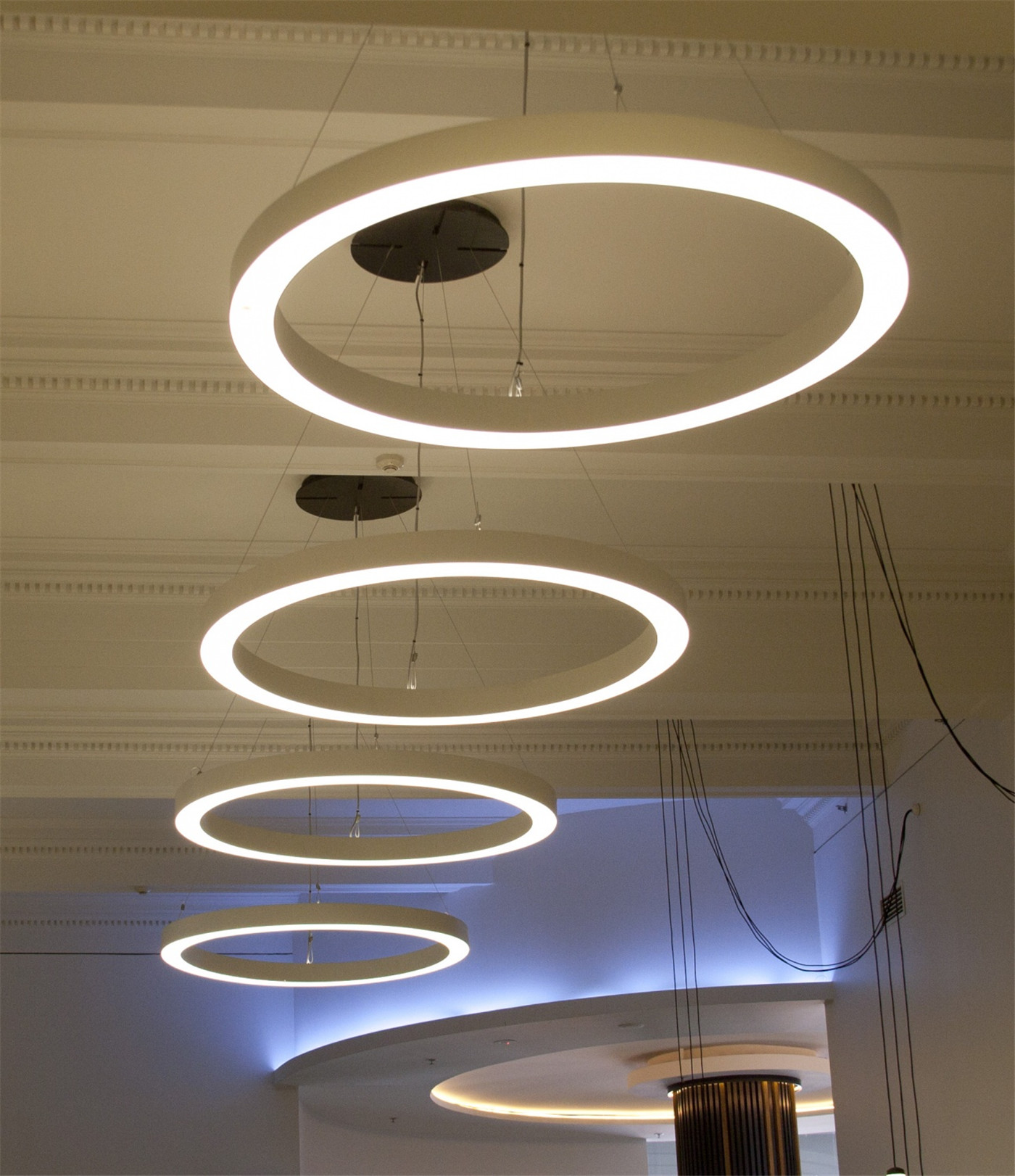

Mainly used in offices, conference rooms, educational institutions, other commercial buildings, and government buildings.

50mm width Circular Led light with diameter 1000MM OLA50SL100-01 (10)

Specification

Model OLA50 Input Vol. 220-240VAC
Optical Silicone Power 25W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ450 x W50 x H75mm Lumen 1063-1288lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA50,             Optical: Silicone,          Efficiency: 50lm/W,         LED: Epistar,               Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ450mm

25.0W

1250lm

80+

3000K

On-Off

Silicone

110°

Φ450mm

25.8W

1250lm

80+

3000K

0-10V

Silicone

110°

Φ450mm

25.8W

1250lm

80+

3000K

DALI

Silicone

110°

Φ450mm

25.0W

1125lm

90+

3000K

On-Off

Silicone

110°

Φ450mm

25.8W

1125lm

90+

3000K

0-10V

Silicone

110°

Φ450mm

25.8W

1125lm

90+

3000K

DALI

Silicone

110°

Φ450mm

25.0W

1288lm

80+

4000K

On-Off

Silicone

110°

Φ450mm

25.8W

1288lm

80+

4000K

0-10V

Silicone

110°

Φ450mm

25.8W

1288lm

80+

4000K

DALI

Silicone

110°

Φ450mm

25.0W

1159lm

90+

4000K

On-Off

Silicone

110°

Φ450mm

25.8W

1159lm

90+

4000K

0-10V

Silicone

110°

Φ450mm

25.8W

1159lm

90+

4000K

DALI

Model OLA50 Input Vol. 220-240VAC
Optical Silicone Power 30W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ600 x W50 x H75mm Lumen 1275-1545lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA50,             Optical: Silicone,          Efficiency: 50lm/W,         LED: Epistar,               Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ600mm

30.0W

1500lm

80+

3000K

On-Off

Silicone

110°

Φ600mm

30.9W

1500lm

80+

3000K

0-10V

Silicone

110°

Φ600mm

30.9W

1500lm

80+

3000K

DALI

Silicone

110°

Φ600mm

30.0W

1350lm

90+

3000K

On-Off

Silicone

110°

Φ600mm

30.9W

1350lm

90+

3000K

0-10V

Silicone

110°

Φ600mm

30.9W

1350lm

90+

3000K

DALI

Silicone

110°

Φ600mm

30.0W

1545lm

80+

4000K

On-Off

Silicone

110°

Φ600mm

30.9W

1545lm

80+

4000K

0-10V

Silicone

110°

Φ600mm

30.9W

1545lm

80+

4000K

DALI

Silicone

110°

Φ600mm

30.0W

1391lm

90+

4000K

On-Off

Silicone

110°

Φ600mm

30.9W

1391lm

90+

4000K

0-10V

Silicone

110°

Φ600mm

30.9W

1391lm

90+

4000K

DALI

Model OLA50 Input Vol. 220-240VAC
Optical Silicone Power 43W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ900 x W50 x H75mm Lumen 1828-2150lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA50,             Optical: Silicone,          Efficiency: 50lm/W,         LED: Epistar,               Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ900mm

43.0W

2150lm

80+

3000K

On-Off

Silicone

110°

Φ900mm

44.3W

2150lm

80+

3000K

0-10V

Silicone

110°

Φ900mm

44.3W

2150lm

80+

3000K

DALI

Silicone

110°

Φ900mm

43.0W

1935lm

90+

3000K

On-Off

Silicone

110°

Φ900mm

44.3W

1935lm

90+

3000K

0-10V

Silicone

110°

Φ900mm

44.3W

1935lm

90+

3000K

DALI

Silicone

110°

Φ900mm

43.0W

2215lm

80+

4000K

On-Off

Silicone

110°

Φ900mm

44.3W

2215lm

80+

4000K

0-10V

Silicone

110°

Φ900mm

44.3W

2215lm

80+

4000K

DALI

Silicone

110°

Φ900mm

43.0W

1993lm

90+

4000K

On-Off

Silicone

110°

Φ900mm

44.3W

1993lm

90+

4000K

0-10V

Silicone

110°

Φ900mm

44.3W

1993lm

90+

4000K

DALI

Model OLA50 Input Vol. 220-240VAC
Optical Silicone Power 52W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ1000 x W50 x H75mm Lumen 2340-2678lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA50,             Optical: Silicone,          Efficiency: 50lm/W,         LED: Epistar,               Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ1000mm

52.0W

2600lm

80+

3000K

On-Off

Silicone

110°

Φ1000mm

53.6W

2600lm

80+

3000K

0-10V

Silicone

110°

Φ1000mm

53.6W

2600lm

80+

3000K

DALI

Silicone

110°

Φ1000mm

52.0W

2340lm

90+

3000K

On-Off

Silicone

110°

Φ1000mm

53.6W

2340lm

90+

3000K

0-10V

Silicone

110°

Φ1000mm

53.6W

2340lm

90+

3000K

DALI

Silicone

110°

Φ1000mm

52.0W

2678lm

80+

4000K

On-Off

Silicone

110°

Φ1000mm

53.6W

2678lm

80+

4000K

0-10V

Silicone

110°

Φ1000mm

53.6W

2678lm

80+

4000K

DALI

Silicone

110°

Φ1000mm

52.0W

2410lm

90+

4000K

On-Off

Silicone

110°

Φ1000mm

53.6W

2410lm

90+

4000K

0-10V

Silicone

110°

Φ1000mm

53.6W

2410lm

90+

4000K

DALI

Model OLA50 Input Vol. 220-240VAC
Optical Silicone Power 60W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ1200 x W50 x H75mm Lumen 2550-3090lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA50,            Optical: Silicone,          Efficiency: 50lm/W,         LED: Epistar,              Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ1200mm

60.0W

3000lm

80+

3000K

On-Off

Silicone

110°

Φ1200mm

61.8W

3000lm

80+

3000K

0-10V

Silicone

110°

Φ1200mm

61.8W

3000lm

80+

3000K

DALI

Silicone

110°

Φ1200mm

60.0W

2700lm

90+

3000K

On-Off

Silicone

110°

Φ1200mm

61.8W

2700lm

90+

3000K

0-10V

Silicone

110°

Φ1200mm

61.8W

2700lm

90+

3000K

DALI

Silicone

110°

Φ1200mm

60.0W

3090lm

80+

4000K

On-Off

Silicone

110°

Φ1200mm

61.8W

3090lm

80+

4000K

0-10V

Silicone

110°

Φ1200mm

61.8W

3090lm

80+

4000K

DALI

Silicone

110°

Φ1200mm

60.0W

2781lm

90+

4000K

On-Off

Silicone

110°

Φ1200mm

61.8W

2781lm

90+

4000K

0-10V

Silicone

110°

Φ1200mm

61.8W

2781lm

90+

4000K

DALI
