20mm width Ring LED light with diameter 600mm OLA20SL60a

Short Description:

The ring LED light OLA20SL60 is a slim and stylish lighting solution.

It has a 600mm diameter and a sleek profile of 20mm and silicone lens.

CCT from 2200k to 6500k, no flickering effects, color rendering indexes in the CRI> 80, or CRI>90 on request, dimmable or non-dimmable are the main characteristics.


Product Detail

Download

Product Tags

Product Introduction

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (6)

Due to its innovative features, stylish design, high quality of its components, the circular light ring gives wider, more uniform illumination and offers exceptional performance, functionally and aesthetically.

Featuring a high Color Rendering Index (CRI) of 90 or 80, it ensures accurate and vibrant color representation.

People can choose the right color temperature from 2200~6500k, offer customizable lighting options for different settings.

This round circle light can be non-dimmable, 0~10v dimmable, or Dali dimmable for different lighting requirements.

During the sus-pendant installation, the LED drivers, which are responsible for regulating and supplying power to the circular led lights, are strategically positioned within the ceiling canopy. This placement not only allows for increased space and airflow for the drivers, ensuring optimal performance and longevity, but also contributes to a seamless and streamlined appearance of the overall installation.

In its family named OLA series, a bendable lighting system, there are other members with different diameters and shapes available.

Feature

1, Curved corners give the luminaires a more sophisticated and stylish design: This design element adds a touch of elegance and sophistication to the overall aesthetic of the lighting fixtures.

2, Silicon lens, softens the light glaring to people's eyes: The circular Led lights are equipped with a silicon lens that helps reduce the glare emitted by the light, contributes to a more pleasant and enjoyable lighting experience for individuals in the space.

3, High-quality components, 5-year warranty: The ring LED light fixtures are built using high-quality components, ensuring their durability and long lifespan.

4, CRI80 or CRI90 for selection: With the choice between CRI80 or CRI90, users can select the level of color accuracy and vibrancy they desire for their specific lighting needs.

5, 3000k, 4000k, 6000k for choice: Users can choose from different color temperatures such as 3000K, 4000K, and 6000K, offering warm, neutral, or cool lighting options.

6, Tunable white is available: allowing users to adjust the color temperature according to their specific preferences or changing lighting needs.

7, Models with diameter of 450mm, 900mm, 1200mm for choice: The LED light fixtures are available in multiple sizes to accommodate different spaces and lighting requirements.

8, Pendant installation with drivers hidden in the ceiling canopy: This setting makes the operation or maintenance easier, also gives the space more comfort.

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (10)
2-OLA白皮书

Size & Installation

1_画板 1

Pendant by canopy surface-mounted.

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (14)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (13)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (12)

Finish

The Aluminum housing standard colors are: Textured white, black, and silver grey.

And other 48 colors can be tailored to meet different requirements.

Finish3
Color Options

Range of Applications

Widely used in offices, retail stores, restaurants, and hotels,lobbies, reception areas, corridors, and hotel rooms, living rooms, bedrooms.

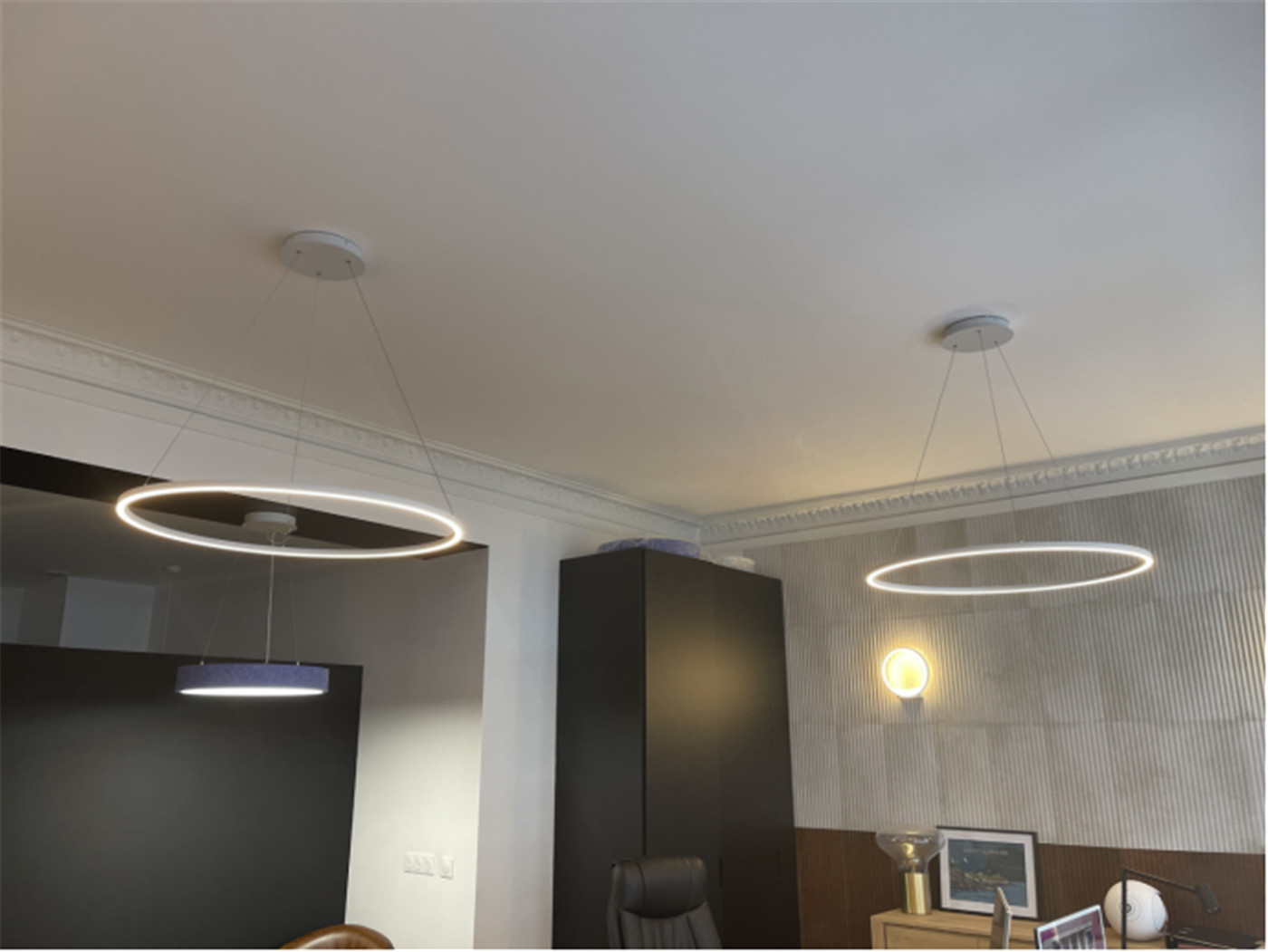

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (17)

Specification

Model OLA20 Input Vol. 220-240VAC
Optical Silicone Power 17W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ450 x W20 x H20mm Lumen 723-876lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA20,                   Optical: Silicone,              Efficiency: 50lm/W,            LED: Epistar,         Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ450mm

17.0W

850lm

80+

3000K

On-Off

Silicone

110°

Φ450mm

17.5W

850lm

80+

3000K

0-10V

Silicone

110°

Φ450mm

17.5W

850lm

80+

3000K

DALI

Silicone

110°

Φ450mm

17.0W

765lm

90+

3000K

On-Off

Silicone

110°

Φ450mm

17.5W

765lm

90+

3000K

0-10V

Silicone

110°

Φ450mm

17.5W

765lm

90+

3000K

DALI

Silicone

110°

Φ450mm

17.0W

876lm

80+

4000K

On-Off

Silicone

110°

Φ450mm

17.5W

876lm

80+

4000K

0-10V

Silicone

110°

Φ450mm

17.5W

876lm

80+

4000K

DALI

Silicone

110°

Φ450mm

17.0W

788lm

90+

4000K

On-Off

Silicone

110°

Φ450mm

17.5W

788lm

90+

4000K

0-10V

Silicone

110°

Φ450mm

17.5W

788lm

90+

4000K

DALI

Model OLA20 Input Vol. 220-240VAC
Optical Silicone Power 25W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ600 x W20 x H20mm Lumen 1125-1288lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA20,                   Optical: Silicone,              Efficiency: 50lm/W,            LED: Epistar,         Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ600mm

25.0W

1250lm

80+

3000K

On-Off

Silicone

110°

Φ600mm

25.8W

1250lm

80+

3000K

0-10V

Silicone

110°

Φ600mm

25.8W

1250lm

80+

3000K

DALI

Silicone

110°

Φ600mm

25.0W

1125lm

90+

3000K

On-Off

Silicone

110°

Φ600mm

25.8W

1125lm

90+

3000K

0-10V

Silicone

110°

Φ600mm

25.8W

1125lm

90+

3000K

DALI

Silicone

110°

Φ600mm

25.0W

1288lm

80+

4000K

On-Off

Silicone

110°

Φ600mm

25.8W

1288lm

80+

4000K

0-10V

Silicone

110°

Φ600mm

25.8W

1288lm

80+

4000K

DALI

Silicone

110°

Φ600mm

25.0W

1159lm

90+

4000K

On-Off

Silicone

110°

Φ600mm

25.8W

1159lm

90+

4000K

0-10V

Silicone

110°

Φ600mm

25.8W

1159lm

90+

4000K

DALI

Model OLA20 Input Vol. 220-240VAC
Optical Silicone Power 35W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ900 x W20 x H20mm Lumen 1488-1803lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA20,              Optical: Silicone,              Efficiency: 50lm/W,            LED: Epistar,              Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ900mm

35.0W

1750lm

80+

3000K

On-Off

Silicone

110°

Φ900mm

36.1W

1750lm

80+

3000K

0-10V

Silicone

110°

Φ900mm

36.1W

1750lm

80+

3000K

DALI

Silicone

110°

Φ900mm

35.0W

1575lm

90+

3000K

On-Off

Silicone

110°

Φ900mm

36.1W

1575lm

90+

3000K

0-10V

Silicone

110°

Φ900mm

36.1W

1575lm

90+

3000K

DALI

Silicone

110°

Φ900mm

35.0W

1803lm

80+

4000K

On-Off

Silicone

110°

Φ900mm

36.1W

1803lm

80+

4000K

0-10V

Silicone

110°

Φ900mm

36.1W

1803lm

80+

4000K

DALI

Silicone

110°

Φ900mm

35.0W

1622lm

90+

4000K

On-Off

Silicone

110°

Φ900mm

36.1W

1622lm

90+

4000K

0-10V

Silicone

110°

Φ900mm

36.1W

1622lm

90+

4000K

DALI

Model OLA20 Input Vol. 220-240VAC
Optical Silicone Power 70W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ1200 x W20 x H20mm Lumen 2975-3605lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA20,              Optical: Silicone,              Efficiency: 50lm/W,            LED: Epistar,              Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

Silicone

110°

Φ1200mm

70.0W

3500lm

80+

3000K

On-Off

Silicone

110°

Φ1200mm

72.1W

3500lm

80+

3000K

0-10V

Silicone

110°

Φ1200mm

72.1W

3500lm

80+

3000K

DALI

Silicone

110°

Φ1200mm

70.0W

3150lm

90+

3000K

On-Off

Silicone

110°

Φ1200mm

72.1W

3150lm

90+

3000K

0-10V

Silicone

110°

Φ1200mm

72.1W

3150lm

90+

3000K

DALI

Silicone

110°

Φ1200mm

70.0W

3605lm

80+

4000K

On-Off

Silicone

110°

Φ1200mm

72.1W

3605lm

80+

4000K

0-10V

Silicone

110°

Φ1200mm

72.1W

3605lm

80+

4000K

DALI

Silicone

110°

Φ1200mm

70.0W

3245lm

90+

4000K

On-Off

Silicone

110°

Φ1200mm

72.1W

3245lm

90+

4000K

0-10V

Silicone

110°

Φ1200mm

72.1W

3245lm

90+

4000K

DALI
