100mm width Circular Led light with diameter 1200MM OLA100PC120

Short Description:

This huge ring light LED OLA100PC100 is the model with biggest size in the bendable lighting solution OLA series.

It has a huge diameter of 1200mm, a sleek profile of 100mm width and 100mm height, and high quality PC diffuser lens.

CCT from 2200k to 6500k, no flickering effects, color rendering indexes in the CRI> 80, or CRI>90 on request, dimmable or non-dimmable are the main characteristics.


Product Detail

Download

Product Tags

Product Introduction

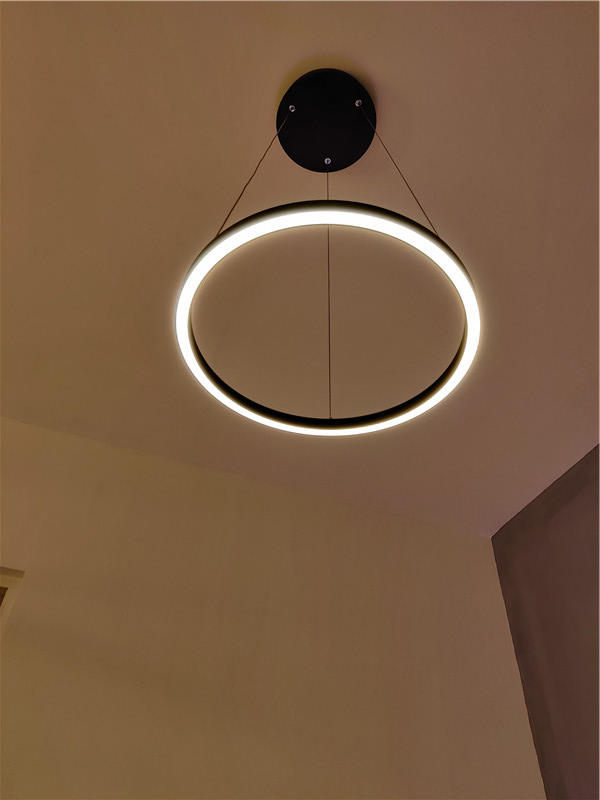

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (6)

Due to its innovative features, stylish design, high quality of its components, the circular light ring gives wider, more uniform illumination and offers exceptional performance, functionally and aesthetically.

Featuring a high Color Rendering Index (CRI) of 90 or 80, it ensures accurate and vibrant color representation.

People can choose the right color temperature from 2200~6500k, offer customizable lighting options for different settings.

This round circle light can be non-dimmable, 0~10v dimmable, or Dali dimmable for different lighting requirements.

During the sus-pendant installation, the LED drivers, which are responsible for regulating and supplying power to the circular led lights, are strategically positioned within the ceiling canopy. This placement not only allows for increased space and airflow for the drivers, ensuring optimal performance and longevity, but also contributes to a seamless and streamlined appearance of the overall installation.

In its family named OLA series, a bendable lighting system, there are other members with different diameters and shapes available.

Feature

1, Curved corners give the luminaires a more sophisticated and stylish design: This design element adds a touch of elegance and sophistication to the overall aesthetic of the lighting fixtures.

2, PC diffusers, maintain maximum amount of light: The circular Led lights are equipped with a PC lens that helps to keep the light used utmost, save energy.

3, High-quality components, 5-year warranty: The ring LED light fixtures are built using high-quality components, ensuring their durability and long lifespan.

4, CRI80 or CRI90 for selection: With the choice between CRI80 or CRI90, users can select the level of color accuracy and vibrancy they desire for their specific lighting needs.

5, 3000k, 4000k, 6000k for choice: Users can choose from different color temperatures such as 3000K, 4000K, and 6000K, offering warm, neutral, or cool lighting options.

6, Tunable white is available: allowing users to adjust the color temperature according to their specific preferences or changing lighting needs.

7, Models with diameter of 450mm, 900mm, 1000mm, 1200mm for choice: The LED light fixtures are available in multiple sizes to accommodate different spaces and lighting requirements.

For other size or shape to be tailored, please contact us.

8, Pendant installation with drivers hidden in the ceiling canopy: This setting makes the operation or maintenance easier, also gives the space more comfort.

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (10)
2-OLA白皮书

Size & Installation

未标题-2_画板 1

Pendant by canopy surface-mounted.

20mm width Ring LED light with diameter 600mm OLA20SL60-01 (14)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (13)
20mm width Ring LED light with diameter 600mm OLA20SL60-01 (12)

Finish

The Aluminum housing standard colors are: Textured white, black, and silver grey.

And other 48 colors can be tailored to meet different requirements.

Finish3
Color Options

Range of Applications

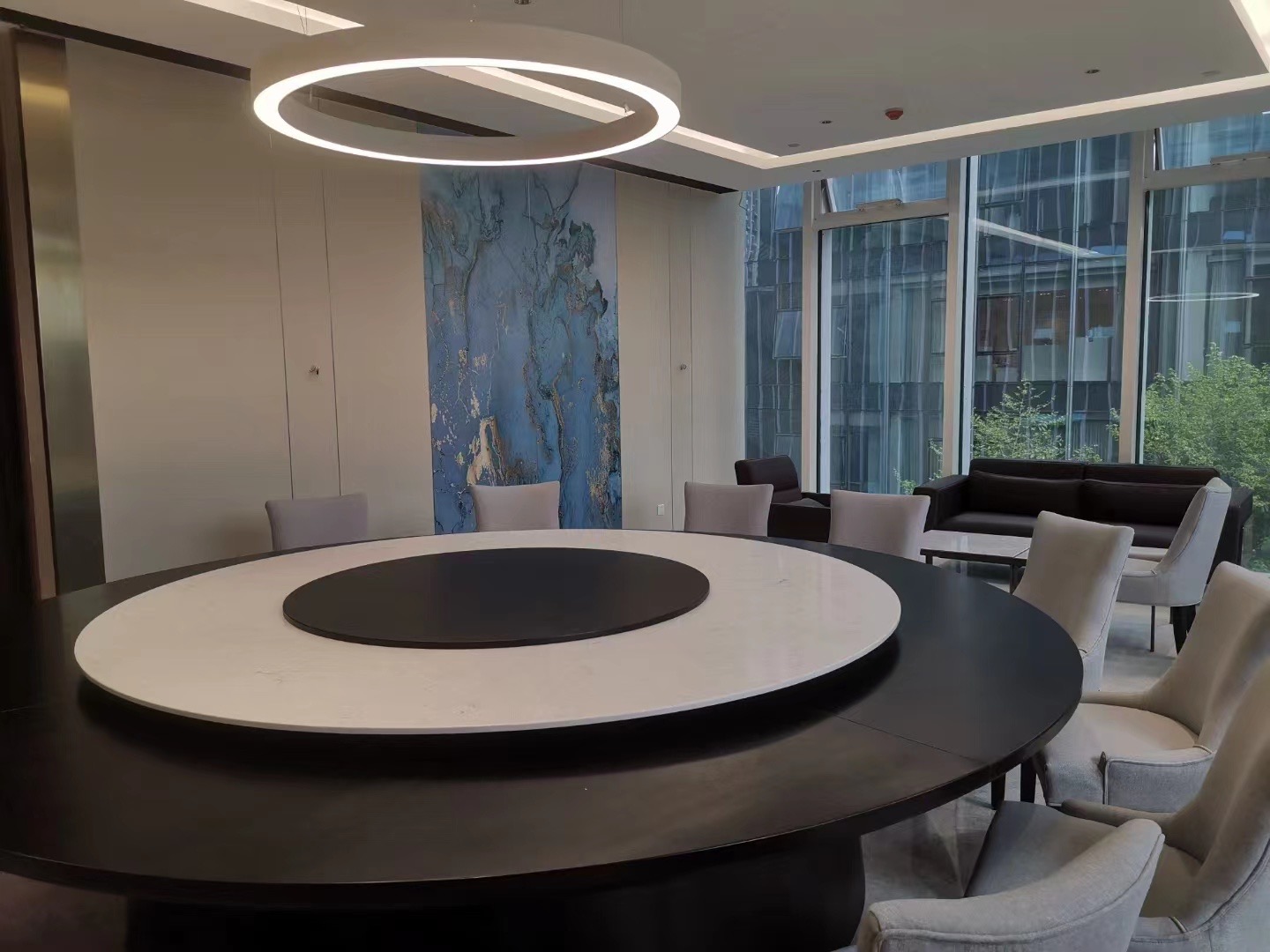

Widely used as office lighting, hotel lighting, conference room lighting, in reception areas and other commercial spaces

Application

Specification

Model OLA100 Input Vol. 220-240VAC
Optical PC Diffuser Power 35W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ450 x W100 x H100mm Lumen 1488-1803lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA100,              Optical: Diffuser,              Efficiency: 50lm/W,            LED: Epistar,             Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

 Diffuser

110°

Φ450mm

35.0W

1750lm

80+

3000K

On-Off

 Diffuser

110°

Φ450mm

36.1W

1750lm

80+

3000K

0-10V

 Diffuser

110°

Φ450mm

36.1W

1750lm

80+

3000K

DALI

 Diffuser

110°

Φ450mm

35.0W

1575lm

90+

3000K

On-Off

 Diffuser

110°

Φ450mm

36.1W

1575lm

90+

3000K

0-10V

 Diffuser

110°

Φ450mm

36.1W

1575lm

90+

3000K

DALI

 Diffuser

110°

Φ450mm

35.0W

1803lm

80+

4000K

On-Off

 Diffuser

110°

Φ450mm

36.1W

1803lm

80+

4000K

0-10V

 Diffuser

110°

Φ450mm

36.1W

1803lm

80+

4000K

DALI

 Diffuser

110°

Φ450mm

35.0W

1622lm

90+

4000K

On-Off

 Diffuser

110°

Φ450mm

36.1W

1622lm

90+

4000K

0-10V

 Diffuser

110°

Φ450mm

36.1W

1622lm

90+

4000K

DALI

Model OLA100 Input Vol. 220-240VAC
Optical PC Diffuser Power 48W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ600 x W100 x H100mm Lumen 2101-2472lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA100,             Optical: Diffuser,              Efficiency: 50lm/W,            LED: Epistar,              Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

 Diffuser

110°

Φ600mm

48.0W

2400lm

80+

3000K

On-Off

 Diffuser

110°

Φ600mm

49.4W

2400lm

80+

3000K

0-10V

 Diffuser

110°

Φ600mm

49.4W

2400lm

80+

3000K

DALI

 Diffuser

110°

Φ600mm

48.0W

2160lm

90+

3000K

On-Off

 Diffuser

110°

Φ600mm

49.4W

2160lm

90+

3000K

0-10V

 Diffuser

110°

Φ600mm

49.4W

2160lm

90+

3000K

DALI

 Diffuser

110°

Φ600mm

48.0W

2472lm

80+

4000K

On-Off

 Diffuser

110°

Φ600mm

49.4W

2472lm

80+

4000K

0-10V

 Diffuser

110°

Φ600mm

49.4W

2472lm

80+

4000K

DALI

 Diffuser

110°

Φ600mm

48.0W

2225lm

90+

4000K

On-Off

 Diffuser

110°

Φ600mm

49.4W

2225lm

90+

4000K

0-10V

 Diffuser

110°

Φ600mm

49.4W

2225lm

90+

4000K

DALI

Model OLA100 Input Vol. 220-240VAC
Optical PC Diffuser Power 70W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ900 x W100 x H100mm Lumen 4275-4893lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA100,            Optical: Diffuser,              Efficiency: 50lm/W,            LED: Epistar,              Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

 Diffuser

110°

Φ900mm

70.0W

3500lm

80+

3000K

On-Off

 Diffuser

110°

Φ900mm

72.1W

3500lm

80+

3000K

0-10V

 Diffuser

110°

Φ900mm

72.1W

3500lm

80+

3000K

DALI

 Diffuser

110°

Φ900mm

70.0W

3150lm

90+

3000K

On-Off

 Diffuser

110°

Φ900mm

72.1W

3150lm

90+

3000K

0-10V

 Diffuser

110°

Φ900mm

72.1W

3150lm

90+

3000K

DALI

 Diffuser

110°

Φ900mm

70.0W

3605lm

80+

4000K

On-Off

 Diffuser

110°

Φ900mm

72.1W

3605lm

80+

4000K

0-10V

 Diffuser

110°

Φ900mm

72.1W

3605lm

80+

4000K

DALI

 Diffuser

110°

Φ900mm

70.0W

3245lm

90+

4000K

On-Off

 Diffuser

110°

Φ900mm

72.1W

3245lm

90+

4000K

0-10V

 Diffuser

110°

Φ900mm

72.1W

3245lm

90+

4000K

DALI

Model OLA100 Input Vol. 220-240VAC
Optical PC Diffuser Power 78W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ1000 x W100 x H100mm Lumen 3414-4017lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA100,            Optical: Diffuser,              Efficiency: 50lm/W,            LED: Epistar,             Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

 Diffuser

110°

Φ1000mm

78.0W

3900lm

80+

3000K

On-Off

 Diffuser

110°

Φ1000mm

80.3W

3900lm

80+

3000K

0-10V

 Diffuser

110°

Φ1000mm

80.3W

3900lm

80+

3000K

DALI

 Diffuser

110°

Φ1000mm

78.0W

3510lm

90+

3000K

On-Off

 Diffuser

110°

Φ1000mm

80.3W

3510lm

90+

3000K

0-10V

 Diffuser

110°

Φ1000mm

80.3W

3510lm

90+

3000K

DALI

 Diffuser

110°

Φ1000mm

78.0W

4017lm

80+

4000K

On-Off

 Diffuser

110°

Φ1000mm

80.3W

4017lm

80+

4000K

0-10V

 Diffuser

110°

Φ1000mm

80.3W

4017lm

80+

4000K

DALI

 Diffuser

110°

Φ1000mm

78.0W

3615lm

90+

4000K

On-Off

 Diffuser

110°

Φ1000mm

80.3W

3615lm

90+

4000K

0-10V

 Diffuser

110°

Φ1000mm

80.3W

3615lm

90+

4000K

DALI

Model OLA100 Input Vol. 220-240VAC
Optical PC Diffuser Power 95W
Beam Angle 110° LED 2835 SMD
UGR <26 SDCM <3
Finish Textured Black (RAL9004)
Textured White (RAL9003)
Silver grey
Dim / PF On/Off >0.9
0-10V >0.9
DALI >0.9
Dimension Φ1200 x W100 x H100mm Lumen 4159-4893lm/pc
IP / IK IP22 / IK06 Efficiency 40-50lm/W
Installation Pendant THD <20%
Life Time
L80B10
50,000hrs
Luminaire: OLA100,            Optical: Diffuser,              Efficiency: 50lm/W,            LED: Epistar,             Driver: Lifud

OPTICAL

ANGLE

DIAMETER

POWER

LUMEN

RA

CCT

DIM

 Diffuser

110°

Φ1200mm

95.0W

4750lm

80+

3000K

On-Off

 Diffuser

110°

Φ1200mm

97.9W

4750lm

80+

3000K

0-10V

 Diffuser

110°

Φ1200mm

97.9W

4750lm

80+

3000K

DALI

 Diffuser

110°

Φ1200mm

95.0W

4275lm

90+

3000K

On-Off

 Diffuser

110°

Φ1200mm

97.9W

4275lm

90+

3000K

0-10V

 Diffuser

110°

Φ1200mm

97.9W

4275lm

90+

3000K

DALI

 Diffuser

110°

Φ1200mm

95.0W

4893lm

80+

4000K

On-Off

 Diffuser

110°

Φ1200mm

97.9W

4893lm

80+

4000K

0-10V

 Diffuser

110°

Φ1200mm

97.9W

4893lm

80+

4000K

DALI

 Diffuser

110°

Φ1200mm

95.0W

4403lm

90+

4000K

On-Off

 Diffuser

110°

Φ1200mm

97.9W

4403lm

90+

4000K

0-10V

 Diffuser

110°

Φ1200mm

97.9W

4403lm

90+

4000K

DALI
