SSH-HEX

SSH Series is a Enginnering desing Acoustic Lighting, which is revolutionizing the way people experience work, worship, entertainment, and their home through a suite of sound absorption and soundproofing solutions. It’s providing functional illumination source as well as excellent sound management.

ORDERING INFORMATION

LUMINAIRE

FINISH

LENS

LENGTH

COLOR
QUALITY

COLOR
TEMP

CRI

INSTALL
ACCS.

IP
GRADE

CONTROL
OPTOINS

SSH-HEX

AC01- Cloudy Black
AC02- Moon Grey
AC03- Concrete Grey
AC04- Silver Grey
AC05- Indigo Blue
AC06- Ocean Blue
AC07- Navy Blue
AC08- Stone Blue
AC09- China Red
AC10- Camel Brown
etc.

D-
Diffuser

745-
L745mm

1200-
L1200mm

3-
3-Step
MacAdam
Ellipse

5-
5-Step
MacAdam
Ellips

30- 3000K

40- 4000K

60- 6000K

80-
80+ CRI

90-
90+ CRI

P-
Pentand

22- IP22

D1-
DALI

D2-
0-10V

D3-
On/off

Note:
1. Blueview’s standard is 3-Step MacAdam
2. The listed Color Temperature is only available in CRI80+ in Epistar Chips, for 95+, 90+ in Epistar and Sumsung chips, pls. check the list on following page. For more options, pls. check with your executive sales.

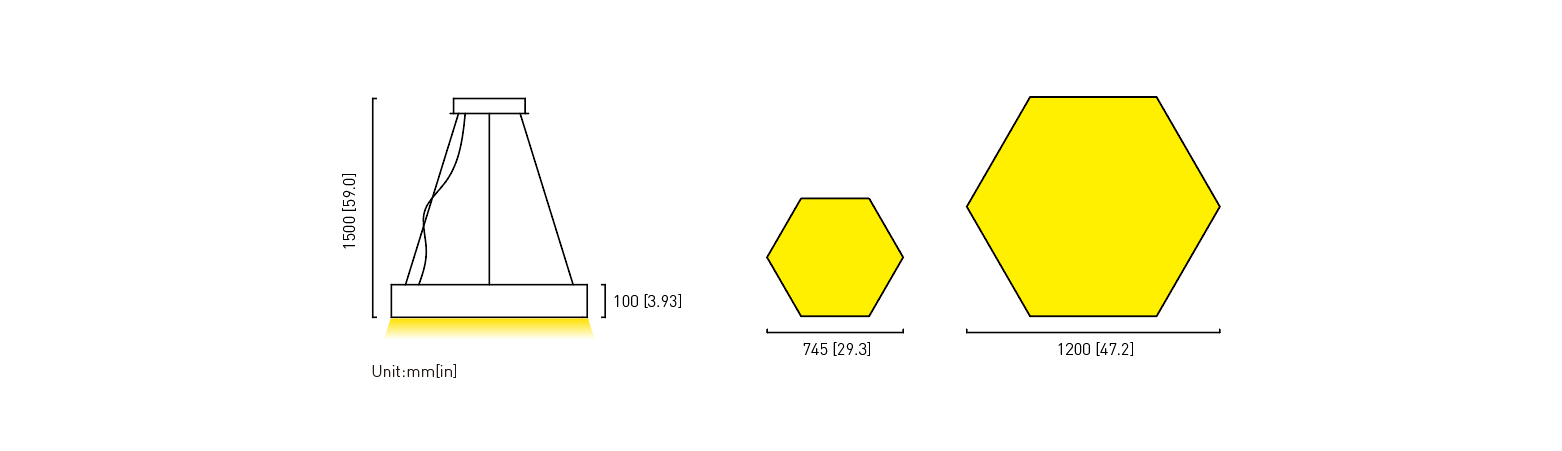

DIMENSION ＆ COLOUR
————————————

FEATURES
——————

SSH Series is a Enginnering desing Acoustic Lighting, which is revolutionizing the way people experience work,

worship, entertainment, and their home through a suite of sound absorption and soundproofing solutions.
It's providing functional illumination source as well as excellent sound management.

● High Sound Absorption Performance in NRC = 0.7 panels Excellent illumination performance
● Up to CRI>95 & R9>90
● 100% recyclable and odorless material
● Class A Fire retardant
● Various customized design in 4x8ft/ 1.22x2.44m acoustic panels

RANGE OF APPLICATIONS
General or local lighting in Office, Educational Instituions, Healthcare, Theater & Museums, etc.

ELECTRIC GEAR
Constant current 0-10V / DALI / Non-dim dirvers, Setable white, Dual white / Dime2Warm,

DMX, PWM lighting solution available.
